Description

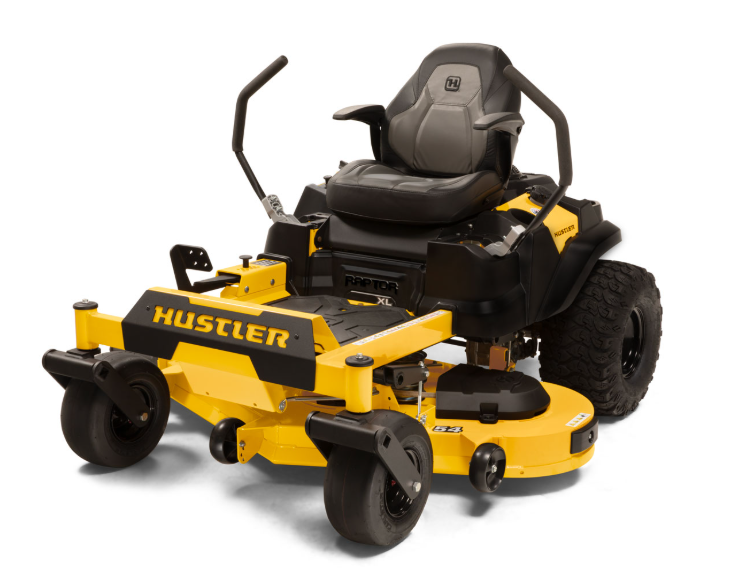

The next generation of the Raptor® XL features premium upgrades to the Raptor X. The XL provides some added comfort with added armrests on it's 20" high-back bolstered seat and Flex Forks® for a smoother ride. Also, there is an option for additional horsepower with a 23hp Kawasaki® FR Engine. More comfort and more power backed by a 3yr / 300hr limited warranty.

Features

• Welded Steel Deck - Welded fabricated steel deck helps add durability and can extend the mower's life.
• Wider Stance - Designed to provide ample room adding to the comfort for the operator.
• SmoothTrak Steering - Precision control designed to help trim and maneuver easily around obstacles.
• High Back Bolstered Seat - Helps provide a comfortable ride with armrests
• Rubber Floor Mat - Helps provide comfort by minimizing vibration on the operator's feet. Standard on all Raptor models.
• Fabricated Frame - Continuous one-piece 1½ inch by 3 inch welded tubular frame.
• Foot Operated Deck Lift - Easily adjust the deck height between 1.5" - 4.5".
• Easy to Service - Flip-up seat pan, removable floor pan, vented pulley covers.
• 20" Drive Tires - 20" VersaTrack Drive Tires
• Kawasaki Power - Powered by a V-Twin Kawasaki® Engine.

Specifications

• Engine Manufacturer: Kawasaki FR691
• Engine Horsepower: 23
• Displacement: 726cc
• Cooling: Air Cooled
• Engine Warranty: 3 Year Warranty
• Drive System Type: Dual Hydrostatic
• Transmission: Hydro-Gear ZT-2200
• Fuel Capacity: 3.5 gal
• Ground Speed (FWD): Up to 7 mph
• Parking Brake: Integrated with steering levers
• Seat: 20" Bolstered high-back seat with armrests
• Cup Holder: Yes
• Front Tire: 11 X 6.5
• Drive Tires (inches): 20 x 8-8 VersaTrack
• Weight (lbs): 623
• Height (inches): 42.6
• Length (inches): 71.7
• Width W/ Chute Up (inches): 58.6
• Tire-To-Tire Width (inches): 46.5
• Productivity (Acres Per Hour): 3.05
• Warranty: 3 Year/300 hour residential
