Description

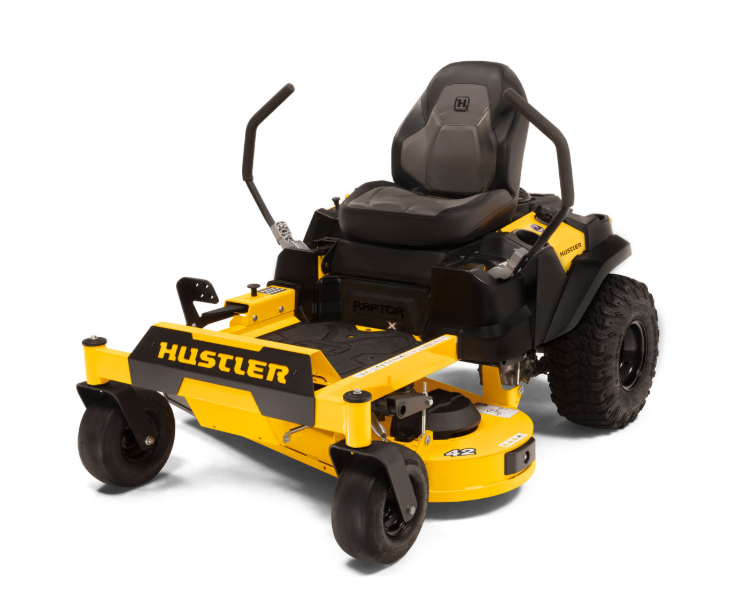

Pro-inspired, with commercial-grade features, the next generation of the Raptor Series brings powerhouse performance and a smooth, efficient ride straight to your yard. The Raptor X features include 1"x3" steel frame and 10 ga. fabricated steel deck, and oversized 3.5-gallon fuel tank. Homeowner's can mow in comfort with a 20" high-back bolstered seat, 20" VersaTrac* Drive tires and a rubberized floormat to help reduce vibrations. All backed by a 3 yr/ 300 hour limited warranty.

Features

• Welded Steel Deck - 11 ga. welded fabricated steel deck.
• Wider Stance - Additional operator platform width provides ample room and comfort for the operator.
• SmoothTrak Steering - Precision control designed to help trim and maneuver easily around obstacles.
• Bolstered Seat - Helps provide a comfortable ride
• Rubber Floor Mat - Helps provide comfort by minimizing vibration on the operator's feet. Standard on all Raptor models.

• Fabricated Frame - Continuous one-piece 1½ inch by 3 inch welded tubular frame.
• Foot-Operated Deck Lift - Easily adjust the deck height between 1.5" - 4.5".
• Easy to Service - Flip-up seat pan, removable floor pan, vented pulley covers.
• 20" Drive Tires - 20" VersaTrack Drive Tires
• Kawasaki Power - Powered by a V-Twin Kawasaki® Engine.

Specifications

• Engine Manufacturer: Kawasaki FR600
• Engine Horsepower: 18
• Displacement: 603cc
• Cooling: Air Cooled
• Engine Warranty: 3 Year Warranty
• Type: Dual Hydrostatic
• Transmission: Hydro-Gear ZT-2200
• Engine Warranty: 3 Year Warranty
• Fuel Capacity: 3.5 gal
• Ground Speed (FWD): Up to 7 mph
• Parking Brake: Integrated with steering levers
• Seat: Bolstered 20" High Back Seat
• Cup Holder: Yes
• Front Tire (inches): 11 x 6.5
• Drive Tire (inches): 20 x 8-8 VersaTrack
• Weight (lbs): 570
• Height (inches): 40.8
• Length (inches): 68.8
• Width w/Chute Up (inches): 45.5
• Tire-to-Tire Width (inches): 43
• Productivity (acres per hour): 2.38
• Warranty: 3 Year/300 hour residential
