Hustler OEM 109202 Right-Side Brake Spring Link Bracket
The Hustler OEM 109202 Right -Side Brake Spring Link Bracket Attaches to the Hydro Gear OEM Factory-Installed Brake Arm That Is Installed the Hydraulic Pump/Wheel Motor. The Hustler 109202 Spring Link Bracket Enables Hustler to Properly Align and Fasten their OEM Designed Brake Linkage and Components without Changing the Hydraulic Manufacture's Generic Components that Remain Standard Between Multiple Makes and Models. Hustler 109202 Spring Link Bracket Attaches to the Hydraulic Pump & Wheel Motor Manufacturer's Generic Brake Arm Using Hex Head Bolt 055939 & Nut 016816
Overview Of 109202 & Other Brake Components Assembly & Functions
109202 Right-Side Spring Link Bracket Serves the Purpose Engaging and Disengagement of the Brakes (Internally Built-In to the Hydraulic Pump & Wheel Motor Assembly) By Relaying the Movement of the Select Brake Engagement Rod (Varies By Models) Via the Pressure Point Between the 054502 Jam Nuts , 797954 Washers, 784421 Engagement/Disengagement Pressure Spring (Trimstar Models) - 601131 Engagement Tension Spring (Raptor & FastTrack) - 601051 Disengagement/Return Spring (Raptor & Fastrack) & 086660 Rod/Spring Retaining Lock Nut. Adjustment to the Brake Engagement is Often Made by Adjusting the Lock Nut & Jam Nut on the Brake Engagement & Disengagement Spring or Springs Tension or Lack of Tension.
For the Left-Side Brake Spring Link Bracket Refer to Part Number 109203
Trimstar: Unlike the Fastrack & Raptor Models - Hustler Trimstar Models Utilize a Brake Pull Link Bracket (Part Number Varies by Model Numbers) Which Ties the Left and Right Brake Arm Together Using Only One Brake Engagement Rod Versus Two. - On Trimstar Models the "Select" Brake Pull Link Bracket is Retained to the Left & Right Brake Spring Lift Bracket Using Hex Head Bolt 034280, Flat Washers 768523, Nut 058776.
Reference Note

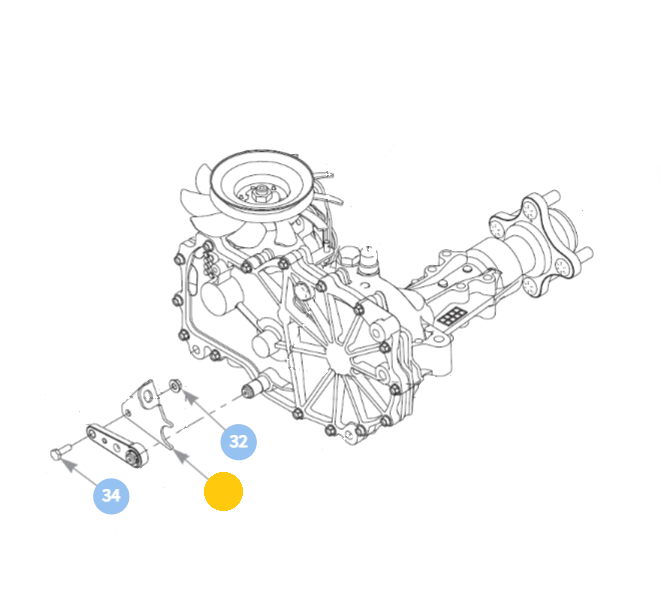

(To Better Understand the Breaking Components and their Appropriate Roles - Review the Detailed Part Diagram Above in the Image *Raptor Models are Temporarily Excluded with Detailed Parts Diagrams but Will Be Eventually Made Available).
⚠️ Before You Order – Verify Fitment
Because Fitment Within Model Numbers and Year Ranges Very - Verify Your Model Is Listed in the Model Fit Chart Below Before Ordering.
Not sure? Contact us with your Hustler model and serial number and we’ll help verify fitment.

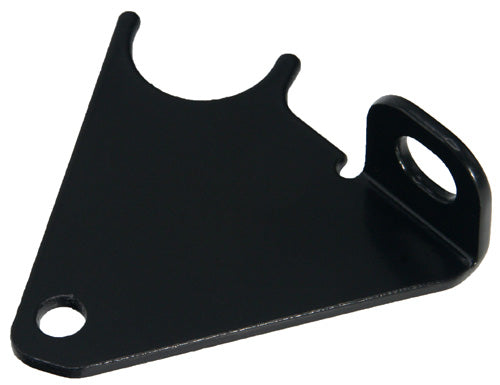

Sold Individually - As Pictured
What This Part Does
- Aligns & Transfers Movement from the Brake Engagement Rod to the Hydraulic Wheel/Motor Brake Arm.
- Assist in Maintaining Predictable Brake Engagement.
- Replaces a Worn, Broken, or Bent Spring Link Brackets.
- Provides Genuine Hustler OEM Fit, Construction, and Mounting Configuration.
Associated Parts

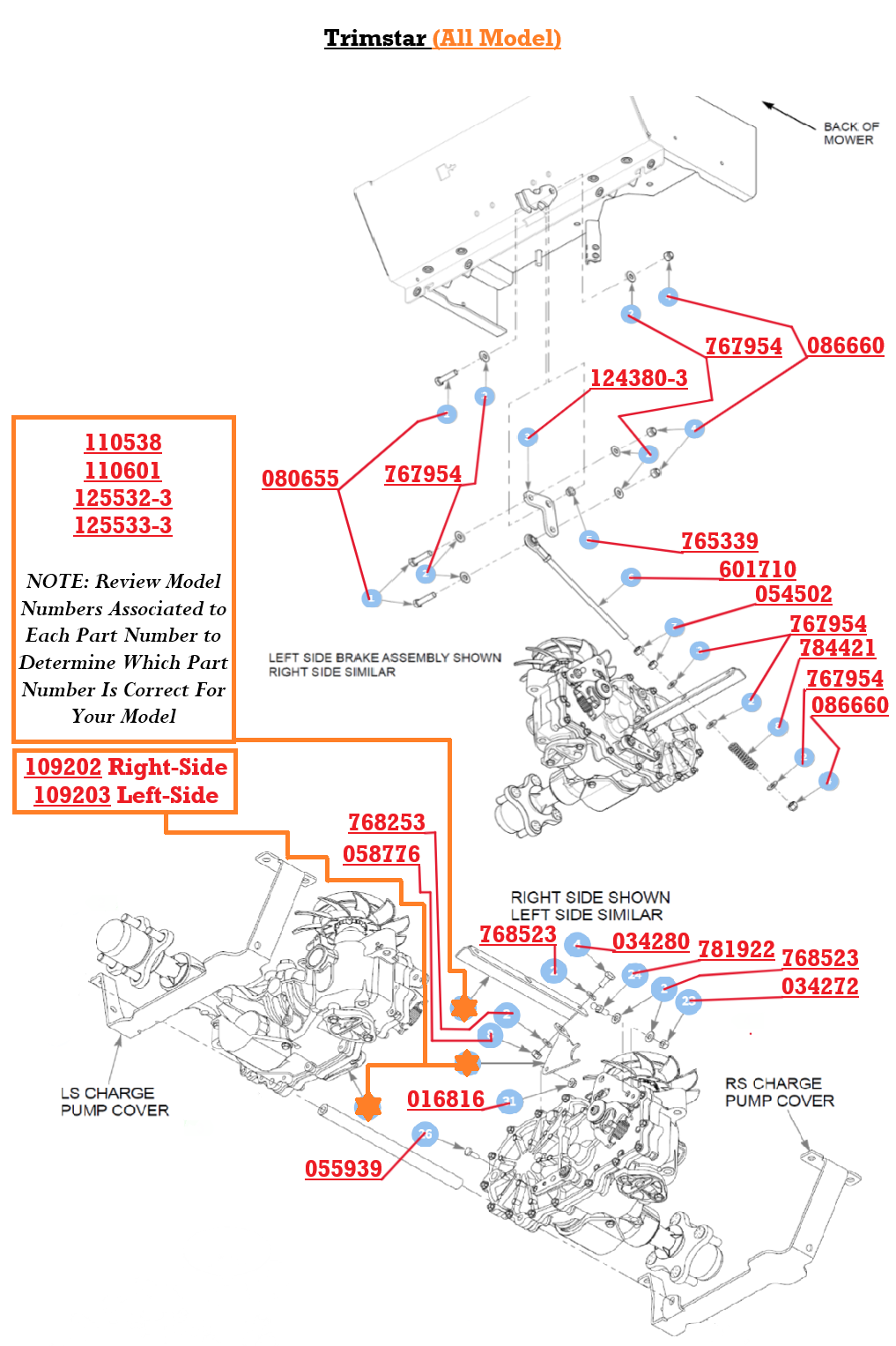

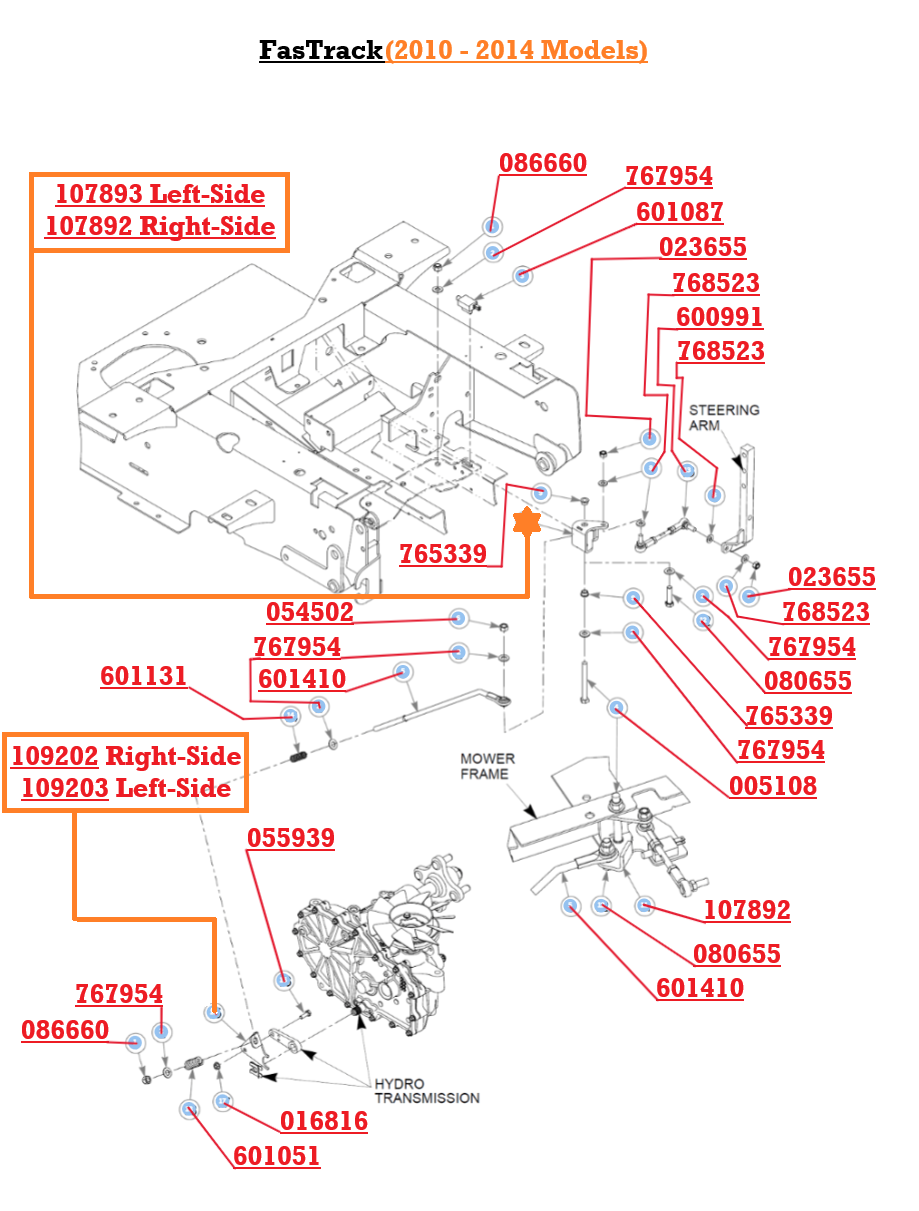

Refer to the Detail Parts Diagrams in the Images for Additional Parts Info.
Part Details
- Brand: Hustler Turf Equipment
- Part Number: 109209
- Supersession: n/a
- Part Name: Right-Hand Brake Spring Link Bracket
- Position: Located on the Right-Hand Side - Mounts to the Right-Side Hydraulic Wheel Motor/Pump's Splined Brake Arm. (Left to Right as You Sit on the Operator's Seat)
- Part Type: Genuine OEM RH Brake Spring Link Bracket
- Quantity: One RH Brake Spring Link Bracket
Model Fit Chart
Trimstar (All Models)
929240, 929265, 929273, 929232, 930388, 930388US, 930396, 930404, 930412, 939496, 939504, 939512, 939538, 942268, 942276
Raptor SD & SDX (2016 - 2019 Models)
934547US, 934760, 934778, 935825, 935833, 935841, 935858US, 935866US, 935882, 935916, 936476, 936484, 936682, 936708, 936716US, 937789, 937797, 937805, 937821, 937839, 937870, 937888, 938019, 938027, 938035, 938134, 938142, 938530, 938548, 938555, 938621, 938639, 938647, 938654, 938662, 938670, 938688, 938696, 939173, 939181, 939199, 939207, 939256, 939264, 939397, 939405
Raptor FLIP-UP Models (2015 - 2023 Models)
933614, 933622, 933846US, 933853US, 938464, 938472, 940312, 940320
FasTrack (2010 - 2014 Models)
928374, 928382, 928481, 929778, 929786, 929794, 930107, 930115, 930123, 930123US, 930131US, 930149, 930149US, 930156US, 930164, 930164US, 930172US, 930784, 932319US, 932814, 932822, 932830, 932848, 932855, 932863
