Hustler OEM 129448-4 Tread Lock Pivot Rod Assembly
The Hustler OEM 129448-4 Tread Lock Pivot Rod Assembly - Hustler OEM 129448-4 Tread Lock Pivot Rod Assembly Retains the Tread Lock Teeth & the Lower End of the 127273-1 Parking Brake Pull Link that Attaches to the Operator's Brake Control Handle Via its Weldment Stud or Insert Pin on the Side or Center of the Handle Assembly. This Enable the Tread Lock Teeth to Insert into the Tread of the Mower Tires Via Pivotal Movement of the Operator's Handle Transferred to 127273-1 Brake Pull Link and Transferred to 129448-4 Tread Lock Pivot Rod Assembly on Which the Tread Lock Teeth are Fastened to - If any of These Components Becomes Worn It Will Contribute to Drifting or Coasting with the Brakes On. (Part Numbers May Vary for Components Based on the Serial Number Range - Review Part Diagrams Above).
⚠️ Before You Order – Verify Fitment
Because Fitment Within Model Numbers and Year Ranges Very - Verify Your Model & Serial Numbers are Listed in the Model Fit Chart Below Before Ordering.
Not sure? Contact us with your Hustler model and serial number and we’ll help verify fitment.
- Sold As an Individual Assembly - As Pictured - DOES NOT COME WITH THE Tread Lock Teeth and Other Components
- When Replacing 127277-4, You may also use 129448-4 (Brake Pivot) & 706549 (Cotter Pin). - This Would Be the Latest Design Type for the Later Serial Number Break - It May Require the Newer Tire Tread Teeth or Locks Associated to the 129448-4 Tread Lock Pivot Arm (Refer to the Parts Diagrams in The Image Section of The Part Number to Determine the Needed Part Numbers) - Tread Lock Teeth Associated to 127277-4 Are Not a Guaranteed Fitment.
What This Part Does
- Transfers Movement from the Brake Control Handle & Brake Pull Link enabling the Tread Lock Teeth (Mounted to the Tread Lock Pivot Rod) to Rotate into the Tire Tread.
- Maintains Predictable Brake Engagement.
- Replaces a Worn, Damaged, Loose, or Binding Brake Tread Lock Pivot Rod.
- Provides Genuine Hustler OEM Fit, Construction, and Mounting Configuration.
Associated Parts

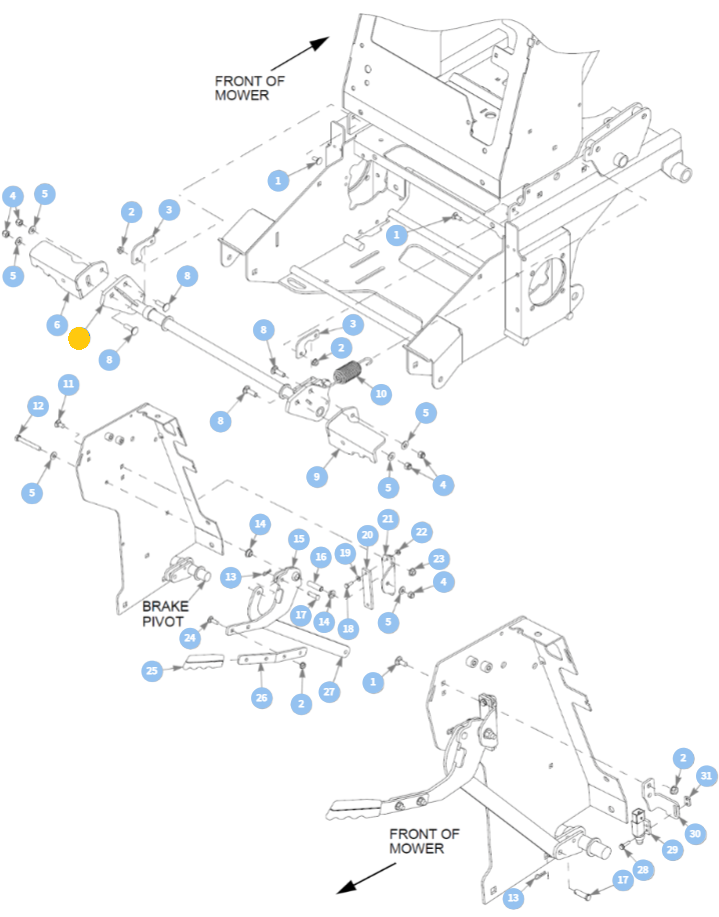

Refer to the Detail Parts Diagrams in the Images for Additional Parts Info.
When replacing 127277-4, You may also use 129448-4 (Brake Pivot) & 706549 (Cotter Pin). - This Would Be the Latest Design Type for the Later Serial Number Break - It May Require the Newer Tire Tread Teeth or Locks Associated to the 129448-4 Tread Lock Pivot Arm (Refer to the Parts Diagrams in The Image Section of The Part Number to Determine the Needed Part Numbers) - Tread Lock Teeth Associated to 127277-4 Are Not a Guaranteed Fitment.
Part Details
- Brand: Hustler Turf Equipment
- Part Number: 129448-4
- Supersession: n/a
- Part Name: Brake - Tread Lock Pivot Rod
- Position: Located Across the Rear of the Unit as You Stand on the Operator's Platform.
- Part Type: Genuine OEM Brake Pull Link Linkage
- Quantity: One Brake Pull Link
Model Fit Chart
Super S (Select 2021 - Current 48", 52", 60" Models) * Review Note Below
Models With the Serial Number Ranges Listed Below Utilize 129448-4 As Installed from Factory.
940213, 940221, 940247, 940296, 941393, 942292, 943126, 943134, 943142
Serial Number 24012867 & Higher
940254, 940304, 943167, 943175
- Serial Number 24013470 & Higher

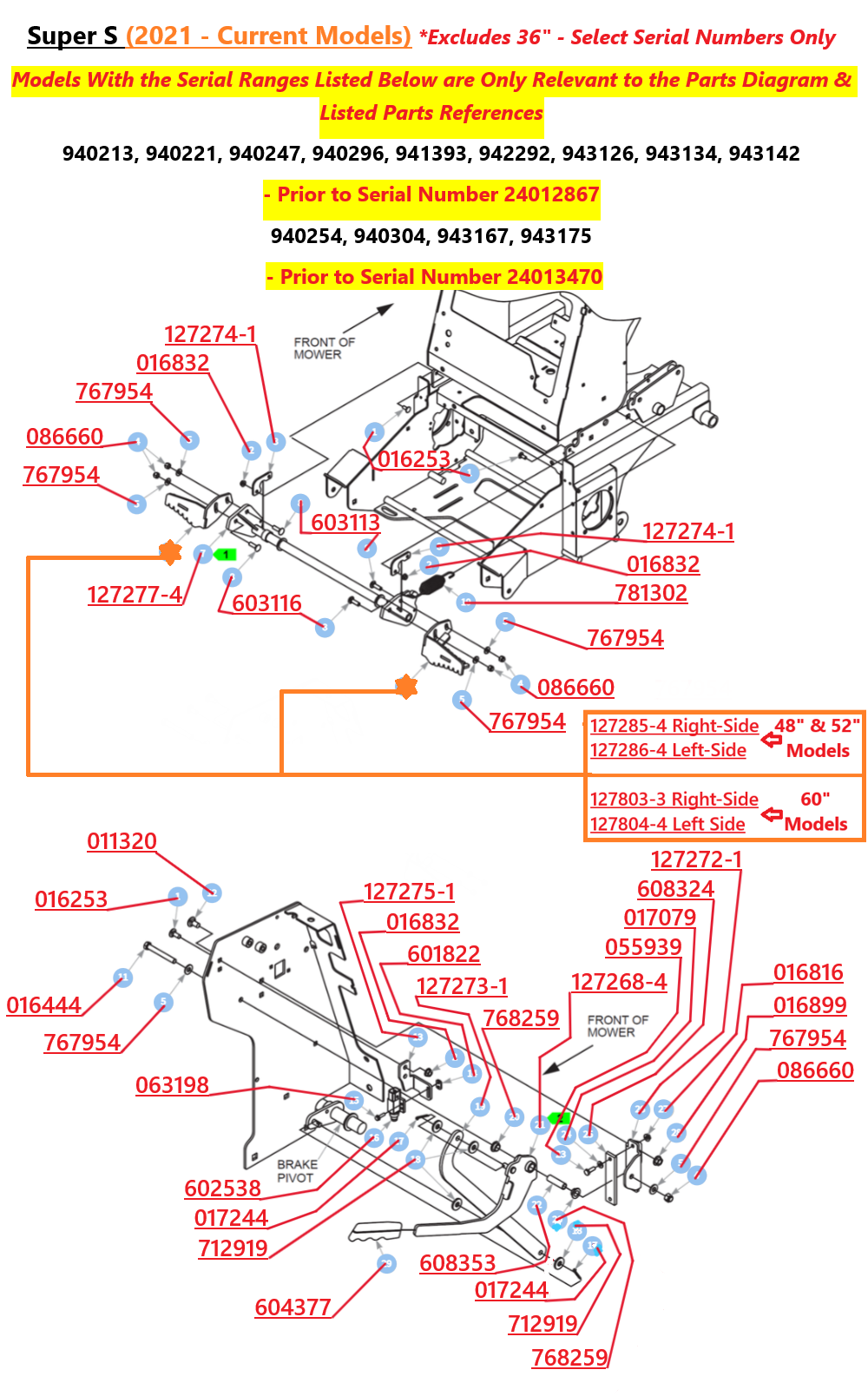

Models with the Listed Serial Numbers Ranges Contain Factory Installed 127277-4 Tread Lock Pivot Rod However they could Use the Newer Options 129448-4 If Desired.
940213, 940221, 940247, 940296, 941393, 942292, 943126, 943134, 943142
- Serial Number Prior to 24012867
940254, 940304, 943167, 943175
- Serial Number Prior to 24013470
