Description

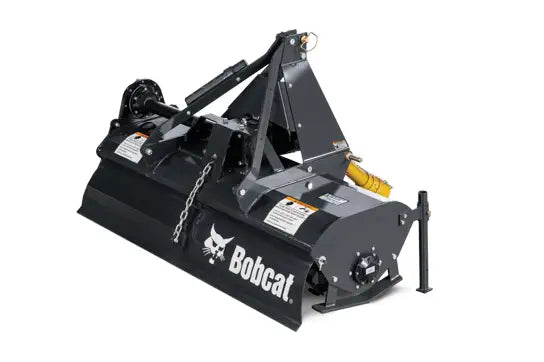

Built for easy and efficient soil preparation, the 3-point tiller implement quickly turns a backyard plot into a soil bed for gardening. It’s perfect for cultivating, aerating and stirring up soil for gardens, food plots and other tillage needs.

This compact tractor implement can be switched between forward or reverse rotation, allowing top-cutting and under-cutting in either direction. Each flange includes six tines for more efficient digging with less vibration. Oil-bath lubrication with an all-gear-driven driveline delivers better performance and less maintenance. Designed to work closer to buildings, fences and trees.

Top Tasks

• 3-point tiller tears through clumps and loosens soil
• Mixes compost, fertilizer, manure and mulch into the soil
• Adds amendments to flower beds
• Prepares land for planting
• Removes weeds between rows

Features

• Forward & Reverse Rotation - The tiller attachment’s bi-directional operation allows for top-cutting and under-cutting in either direction.
• Gear-Driven Driveline - With grease-bath lubrication, you get better performance, more durability and less maintenance.
• Self-Sharpening, Heat Treated Tines - Save time and money by maintaining sharp edges even after tearing through hard, rocky terrain.
• Depth Adjustment - Adjustable runners offer as much as 7-inch tilling depth for maximum mixture of all soil layers and more precise tilling operation.
• Six Tines Per Flange - This tiller implement features six tines per flange for more efficient digging and less vibration.
• Category 1, 3-Point Hitch - A 3-point hitch is used to attach your rear-mounted tiller implement. An adjustable top link is centered above two lower link arms, comprising the three points. The tiller implement quickly and easily attaches with connecting pins at each point.
• Corrosion Resistent, Powder-Coat Finish - A durable powder-coat finish protects the tiller implement for extra-long life in the elements.
• Heavy-Duty PTO Shaft and Slip Clutch - The PTO shaft is designed for various sizes of tractors while the slip clutch protects the gearbox from damage.

Specification

• Length: 25.5"
• Model Name (Public): 72" 3pt Tiller
• Drive: 540 RPM with Slip Clutch Protection
• Cutting Width: 70.6"
• Tine Rotation: 211 RPM @ 540 RPM PTO
• Operating Weight: 718 lbs
• Width: 76"
• Height: 30"
• Working Depth: 7"
• Tractor PTO: Speed 540 RPM HP 12-20
