Description

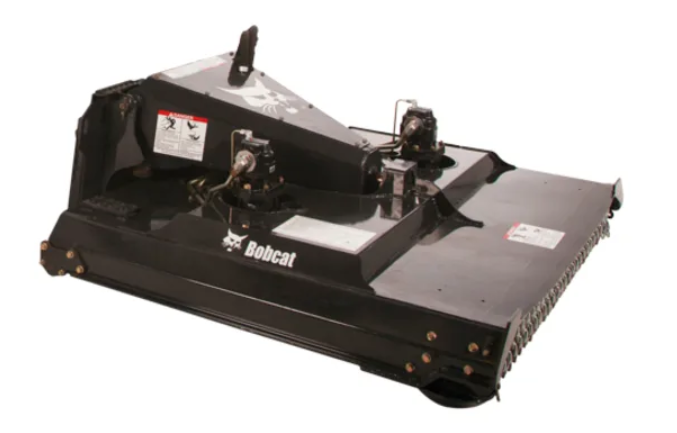

Handle tough brush-clearing jobs easily with the industry-leading Brushcat™ rotary cutter attachment designed and built for applications in construction, agriculture, municipalities, and parks-and-recreation departments.

Using the powerful brush cutting action of the dual offset blades, the Brushcat rotary cutter mulches small branches and saplings — up to 3 inches in diameter — and cuts through the thickest grass and brush; all while maintaining the optimum power-to-blade ratio.

A lightweight, short deck and superior oscillation enable the brush cutter to follow ground contours to maintain a clean cut, even on slopes.

Available high-flow models provide impressive torque for the most challenging brush cutting projects.

Features

• Offset Dual Motor/Blade - The offset dual motor and blade reduce weight, increase visibility, and make trailering easier.
• Patented Deck Oscillation - The deck follows the ground contour even on slopes, while maintaining an even cut.
• Short Deck - The short deck design provides maximum working visibility and a tighter turning radius around trees, fences, and other obstacles.
• Smooth Underside - With a smooth underside, debris doesn’t get caught on the underside of the deck.
• Front Disc - Front discs help traverse uneven terrain with minimal skips and gouging, while reducing operator fatigue.
• Double-Edge Blade - The double-edged blades provide bidirectional cutter rotation by switching the cutter heads, increasing overall blade life.
• Direct-Drive Motor - With the direct-drive motor, power is efficiently transferred straight through to the blades. Enjoy reduced maintenance with the gearbox-free design.
• High Flow Models: Models with high-flow hydraulics provide increased torque for better performance in thick brush.
• Blade Shut Off: The blade shut off stops blade rotation when the rear roller is raised off the ground.
• Velocity Fuse (On Select Models): Integrated into the valve, the velocity fuse safeguards the hydraulic system and limits potential damage. If the hydraulic capacity of the motor is exceeded, the velocity fuse will shut off the hydraulic flow to the cutter, providing a definite uptime advantage.
• Meets SAE & ASAE Standards: The Brushcat complies with SAE J232 and ASAE S483 standards for industrial rotary cutters.
• Rear Tapered Rollers: The rear tapered roller shields debris from flying out of the back of the cutting deck and improves maneuverability in turns without gouging into the ground.
• Front Safety Chains: The front safety chains help prevent debris from being thrown during operation.
• Bob-Tach Mounting System: Easily connect and disconnect the Brushcat rotary cutter with the Bob-Tach mounting system. Fast and easy mounting means spending less time on attachment changes and more time on the job.

Specifications

• Length: 64.12 in
• Blade Tip Speed (Max Flow): 16595 ft/min
• Blade Tip Speed (Min Flow): 11948 ft/min
• Blade Tip Speed (Max Flow @): 12.5 gpm
• Cutting Capacity: 2" (51 mm) in Diameter
• Blade Tip Speed (Min Flow @): 9 gpm
• Cutting Width: 44 in
• Deck Length: 58.2 in
• Operating Weight: 931 lbs
• Cutting Height: 3 in
• Width: 48 in
• Vertical Travel: 8 in
• Flow Range High: 12.5 gpm
• Flow Range Low: 9 gpm
• Height: 26.5 in
