Description

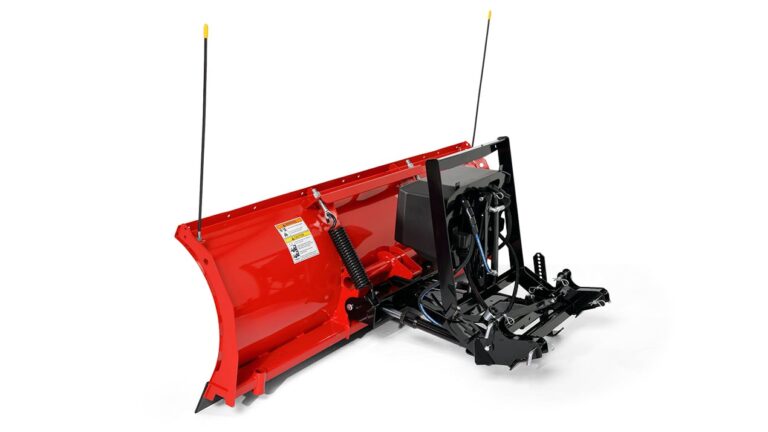

Winter knows no limits—which means you shouldn’t either. Built exclusively for utility vehicles and compact tractors, the WESTERN® IMPACT™ Heavy-Duty snow plows are professional-grade plows built to go anywhere that demands WESTERN-grade performance. Constructed from high-strength, low alloy steel components, both the straight blade and v-plow feature an easy-on/easy-off mounting system and removable receiver brackets for exceptional ground clearance. IMPACT heavy-duty plows also feature Scrape Lock for clean scraping and back dragging.

Features

• CONTROL OPTIONS: The intuitive UTV-specific hand-held control lets you raise and lower the plow, and position the blade in V, scoop, angle and straight modes. An optional joystick control is also available for easy blade control operation when wearing gloves.
• SECURITY GUARD ANTI-THEFT SYSTEM: The exclusive WESTERN^® SECURITY GUARD^™ snowplow anti-theft system is a safe and secure way to electronically lock your snow plow when it is detached from your truck as a deterrent from theft. Unlike physical locks that can easily be cut or removed, the system allows you to electronically lock the snowplow’s hydraulic functions, rendering your plow inoperable to unauthorized users.
• ULTRAFINISH BAKED ON POWDER COAT: The ULTRAFINISH^™ baked on powder coat with epoxy primer is standard on all WESTERN^® plows, providing outstanding protection against wear and rust.

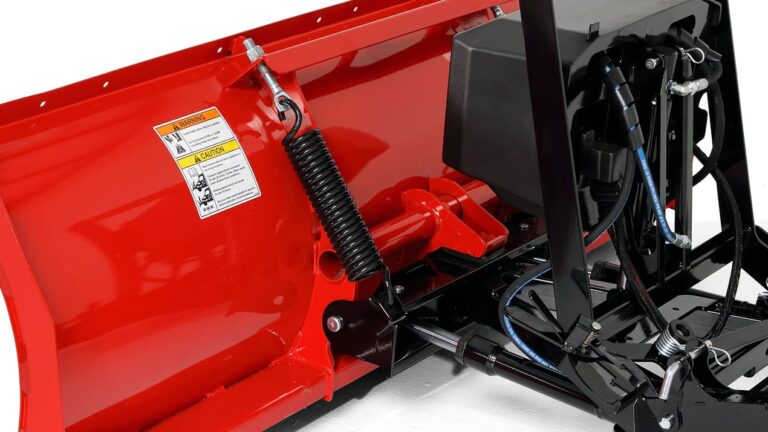

• SCRAPE LOCK: The WESTERN^® Scrape Lock system locks the plow in any position you put it in to give you a cleaner scrape, especially while back dragging. With the plow locked in place, Scrape Lock gives you the performance of a larger plow without the extra weight and without the need to push any extra buttons.
• PRE-PUNCHED BLADES FOR ACCESSORIES: The blade is pre-punched for easy installation of accessories, providing a custom fit. The pre-punched holes also prevent damage to the powder coat that can sometimes occur when installing an accessory.

Specifications

• Moldboard Options: Steel
• Blade Type: Straight Blade
• Vehicle Compatibility: Full Sized UTVs & Series 1 Tractors
• Approx. Weight* (Without Mount): 261lbs
• Plowing Width (Full Angle): Full Angle: 5'4"
• Blade Width: 6'0"
• Blade Height: 23.5"
• Blade Thickness: 14 ga
• Trip Springs: 2
• Ribs: 4
• Lift Cylinder: 1.5" x 6"
• Angling Rams: 1" x 7"
• Cutting Edge: ¼" x 5"
