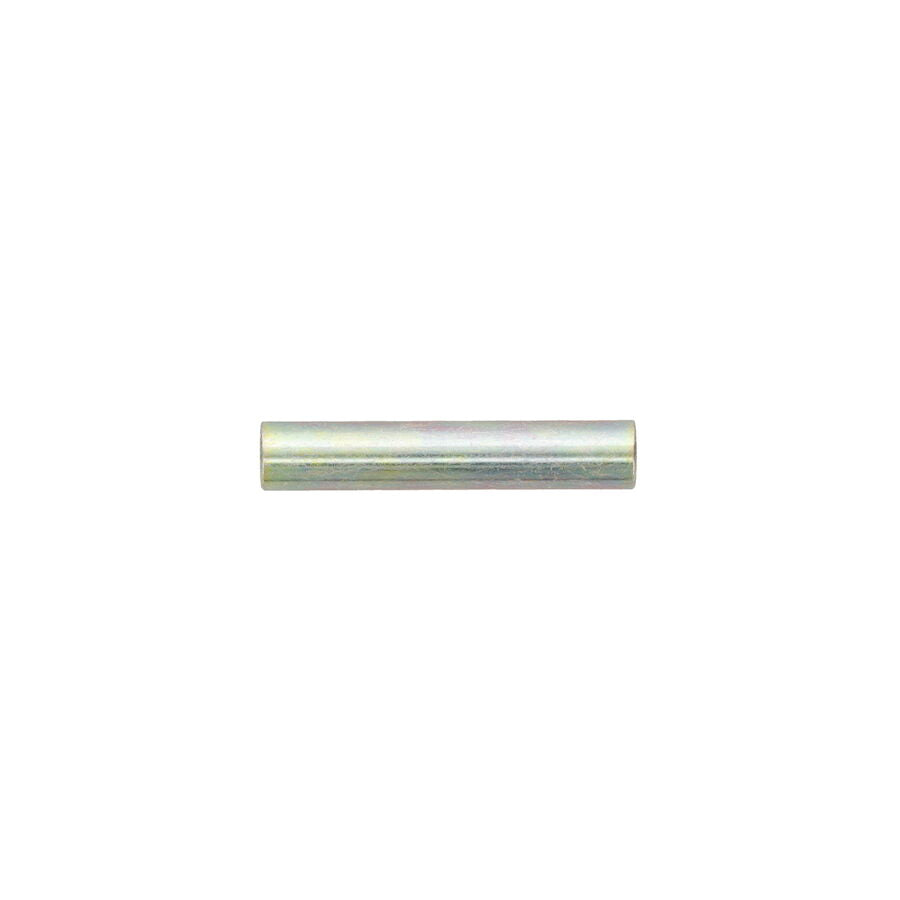

Toro OEM 98-7912 Anti-Scalp Spanner Tube Fits Late Timecutter HD and 60" MX Models - Late Titan Z, ZX, MX, MAX, HD (1500, 2000, 2500) Models - 60" Grandstand Standard, Multiforce, Revolution - 72" Grandstand HDX - Late/Current Z Master Models and More...

• TYPE: TORO OEM Anti-Scalp Wheel Spanner Tube
• SIZE: NA
• APPLICATIONS: Primarily Used in Anti-Scalp Wheel Application - Installed Through the Mower Deck Anti-Scalp Wheel and Anti-Scalp Wheel Spacer as well as Between the Dual Mower Deck Fastening Ears/Bracket - Enables the Fasteners Bolt/Nut to Be Firmly Tightened Without Bending the Mower Deck Anti-Scalp Wheel Fastening Ears/Bracket Against the Anti-Scalp Wheel and Anti-Scalp Wheel Spacer Hindering the Anti-Scalp Wheel Rotation. Note: 98 7912 Is only used in Applications with One Anti-Scalp Wheel per Spanner Bracket.
• COMMON SERIES APPLICATIONS: Select Late 60" Timecutter MX and Timecutter HD Models - Late TITAN MAX Models (Models with Tube Style Framing) - Late TITAN HD Models (Standard & My-Ride - Models with Tube Style Framing) - Late TITAN Z, ZX, MX, Standard and My-Ride Models (Models with Tube Framing) - Late/Current 60" Grandstand Standard, Multi-Force, Revolution Models - Current Grandstand 72" HDX Models - Late ZMaster 2000 Models (Tube Style Framing) - Current/Late ZMaster 3000, 4000, 5000, 6000 7500, Revolution Models - Late ZMaster Z & 7000 Models - GroundMaster & Older Walk-Behind Models.







*Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.







SERIAL NUMBER BREAK: * Models that require 98-7912 May Also Overlap in Part Requirement with Part Number 138-7229 However to Unsure a Correct Fit Review the Model Fit Chart for Each Part Number. Model Numbers That Do overlap with Part Number 138-7229 will Have Serial Number Breaks - any Serial Number 400000000 and Higher Except Model 75210 Which Would be 40431400 and Higher Refer to Part Number 138-7229 - Any Model Number with Overlapping Part Number Requirement Under Those Serial Numbers Would Require Part Number 98-7912.







NOTE: * 98-7912 Anti-Scalp Wheel Spanner May be Used in Different Locations and in Different Quantities Per Mower, Depending on the Mower and Series Deck Size Ect. To Ensure a Correct Fit, Review the Model Fit Chart and Measurements in the Images and the Specification Chart in Comparision with the Needed replacement if this still Prove to be un-helpful feel free to Reach out to us here at Hilly Ridge for any additional Questions.







COMMON ASSOCIATED ANTI-SCALP WHEEL PARTS FOR PART NUMBER 98-7912 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 323-23 or 139-2592 - HEX HEAD BOLT (Retains the Anti-Scalp Wheel, Anti-Scalp Wheel Spacer and Spanner to Mower Deck) x1 Per Anti-Scalp Wheel *Bolt Size is the Same - 2 Different Part Numbers for the Same Size Bolt - 139-2592 Part Number Used on Current I-Beam Titan Models.
2. 1-603299 - ANTI-SCALP WHEEL (Small Wheels Fastened to the Mower Deck and Aids in Helping the Mower Deck to Float Across Uneven Terrain, Helping to Eliminate Scalping) x? Quantity Varies Depending on Model/Series
3. 104-0892 - ANTI-SCALP WHEEL SPACER TUBE (Plastic - *Select Models) - (Installed Over the Anti-Scalp Wheel Spanner Tube and Against the Non-Molded Flange Side of the Anti-Scalp Wheel to Eliminate the Anti-Scalp Wheel from Moving Side to Side and Rubbing Against the Metal Anti-Scalp Wheel Fastening Ears/Brackets) x1 Per Anti-Scalp Wheel *Primarily Used on Timecutter - Titan (Excluding Titan HD Models) - 60" Grandstand Standard, Mult-Force, Revolution Models.
4. 98-7913 - ANTI-SCALP WHEEL SPACER TUBE (Metal - *Select Models) - (Installed Over the Anti-Scalp Wheel Spanner Tube and Against the Non-Molded Flange Side of the Anti-Scalp Wheel to Eliminate the Anti-Scalp Wheel from Moving Side to Side and Rubbing Against the Metal Anti-Scalp Wheel Fastening Ears/Brackets) x1 Per Anti-Scalp Wheel *Primarily Used on Select Titan HD 1500, 2000, 2500 Models - Z-MASTER Z, G3, 2000, 3000, 4000, 5000, 6000, 7000, 7500, Revolution Models - 60"Grandstand Models, 72"Grandstand HDX Models - GroundMaster Models.
5. 98-7912 - ANTI-SCALP WHEEL SPANNER TUBE (Installed Through the Mower Deck Anti-Scalp Wheel and Anti-Scalp Wheel Spacer as well as Between the Dual Mower Deck Fastening Ears/Bracket - Enables the Fasteners Bolt/Nut to Be Firmly Tightened Without Bending the Mower Deck Anti-Scalp Wheel Fastening Ears/Bracket Against the Anti-Scalp Wheel) x1 Per Anti-Scalp Wheel
6. 104-8301 or 119-4042 - FLANGE LOCK NUT (Retains the Anti-Scalp Wheel, Anti-Scalp Wheel Spacer and Spanner to Mower Deck) x1 Per Anti-Scalp Wheel *Nut Size is the Same - 2 Different Part Numbers for the Same Size Nut - 119-4042 Part Number Used on Current I-Beam Titan Models







Specification

Product Number:	987912, 98 7912
Brand:	Toro
Length:	3.300 IN (8.382 CM)
Width:	0.500 IN (1.270 CM)
Height:	0.500 IN (1.270 CM)
Weight:	0.180 LB (0.082 KG)





Model Fit:



TIMECUTTER



TIMECUTTER 48” HD Series – Model Numbers – (* Model Numbers 74864, 74866, 75201, 75210, 75211)



TIMECUTTER 54” HD Series – Model Numbers – (* Model Numbers 74865, 74867, 75202, 75212)



TIMECUTTER 60” MX Series – Model Numbers – (* Model Numbers 74777)

TIMECUTTER 60” HD Series – Model Numbers – (* Model Numbers 75213)



TITAN & TITAN MAX



48” Titan Z, ZX, MX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74846, 74851, 74855, 74891, 74861)



54” Titan ZX, MX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74848, 74852, 74862, 74882, 74892)



60” Titan ZX, MX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Early Models Only - (* Model Numbers 74853, 74863, 74883, 74893)



60” TITAN MAX (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 60" Late Models / Tubed Framing - (* Model Numbers 76601, 76602)



TITAN HD



48" TITAN HD 1500 & HD 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 48" Late Models / Tubed Framing - (* Model Numbers 78450, 74465, 74460, 74453, 74450)



52” TITAN HD 1500 & HD 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 52" Late Models / Tubed Framing - (* Model Numbers 74451, 74454, 74461, 74466)



60” TITAN HD 1500 & HD 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 60" Late Models / Tubed Framing - (* Model Numbers 74452, 74462, 74463, 74467, 74480)



TITAN HD 2500 Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Early Models Only - (* Model Numbers 74470, 74471, 74472, 78472)



GRANDSTAND



60” GRANDSTAND – (Standard) – (* Model Numbers 72509, 72512, 72513, 72520, 74513, 74523, 74550, 74551, 74553, 74576, 74583, 79551, 79553)

60” GRANDSTAND – (Multi-Force) – (* Model Numbers 72523, 72524)

60” E - GRANDSTAND – (Revolution) – (* Model Numbers 18564)



72” GRANDSTAND – (HDX) – (* Model Numbers 72517)



Z-MASTER



CURRENT/LATE MODELS



Z MASTER 3000 MODELS – LATE MODELS – (MODEL NUMBERS 72932, 72936, 72949, 72950, 72952, 72958, 72959)



Z MASTER 4000 MODELS – CURRENT/LATE MODELS- Current IBEAM – (MODEL NUMBERS 74000, 74002, 74004, 74010, 74015, 74020, 74022, 74024, 74035, 74050, 74052, 74054, 74055)



Z MASTER 5000 MODELS – CURRENT/LATE MODELS – (MODEL NUMBERS 72904, 72906, 72907, 72908, 72910, 72911, 72912, 72915, 72918, 72921, 72922, 72923, 72924, 72930, 72943, 72945, 72951, 72953, 72955, 72956, 72957)



Z MASTER 6000 MODELS – CURRENT/LATE MODELS – (MODEL NUMBERS 72926, 72928, 72946, 72947, 72960, 72961, 72965, 72967, 72968, 72969, 72976, 72977, 72980, 72981, 72982, 72983)



Z MASTER 7500 MODELS – CURRENT/LATE MODELS – (MODEL NUMBERS 72027, 72028, 72029, 72030, 72065, 72074, 72076, 74028, 74029, 74060, 74064, 74072, 74074)



Z MASTER REVOLUTION MODELS – CURRENT/LATE MODELS- Current IBEAM – (MODEL NUMBERS 18748, 18752, 18760, 18765)



EARLY/LATE MODELS



 Z Master 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - (* Model Numbers 74141, 74143, 74145, 74490, 74491, 74492, 74493, 74494, 74495, 74496, 74497, 77248, 77260, 77280, 77282, 77284, 77287, 77290, 77293, 77299)



Z MASTER 3000 MODELS – EARLY/LATE MODELS – (MODEL NUMBERS 74949, 74950, 74952, 74953, 74954, 74955, 74956, 74957, 74958, 74959, 74990, 74994, 74996, 75932, 75934, 75936, 75990, 78953)



Z MASTER 5000 MODELS – EARLY/LATE MODELS – (MODEL NUMBERS 74901, 74903, 74904, 74906, 74915, 74916, 74918, 74930, 74933, 74934, 74942,74943, 74944, 74945, 74991, 74995, 75930, 75951, 75955)



Z MASTER 6000 MODELS – EARLY/LATE MODELS – (MODEL NUMBERS 74922, 74923, 74925, 74926, 74927, 74928, 74936, 74938, 74939, 74940, 74946, 74947, 74960, 74961, 74969, 74975, 74977, 74978, 74979, 74992, 74993, 74997, 74998, 75967, 75968, 78922, 78924, 78926, 78928)



Z MASTER 7000 MODELS – EARLY/LATE MODELS – (MODEL NUMBERS 72266, 72267, 72274)



Z MASTER G3 MODELS – EARLY MODELS – (MODELS NUMBERS 74921, 74935, 74937, 74951)



Z MASTER Z MODELS – EARLY MODELS – (MODEL NUMBERS 74237, 74238, 74239, 74242, 74243, 74244, 74245, 74246, 74247, 74248, 74249, 74250, 74251, 74252, 74253, 74254, 74255, 74256, 74261, 74262, 74263, 74264, 74265, 74266, 74267, 74268, 74269, 74270, 74271, 74272, 74273, 74274, 74282, 74283, 74284, 74291, 74292, 74295, 74296, 74297, 74408, 74409, 74410, 74412, 74413, 74414, 74415, 74416, 74417, 74418, 74441, 74442, 74444, 74445, 74448, 74449, 79408, 79409)



GROUNDMASTER



GROUNDMASTER – (* Model Numbers 30354, 30360, 30363, 30366, 30368, 30551, 30553, 30373, 30456, 30467, 30468, 30481, 30534, 30535, 30537, 30538, 30540, 30541, 30619, 31229, 31336, 31890, 31891, 31892, 31893, 31970, 31971, 31972, 31973, 31974, 31975)



OLDER WALK-BEHIND MODELS



OLDER WALK-BEHIND MODELS –  (* Model Numbers 30076, 30078, 30079, 30096, 30098, 30099, 30280, 30286, 30288, 30289, 30486, 30488, 30489, 30496, 30498,  30499, 38096, 39078, 39096, 39488, 39496, 39498)



BAGGER SYSTEMS



BAGGER SYSTEMS – (* Model Numbers 78512)



ANT-SCALP KITS





ANTI-SCALP KITS – (* Part Numbers 108-4140, 108-4141, 112-1792, 115-1015, 115-1016, 133-1440)
