Description

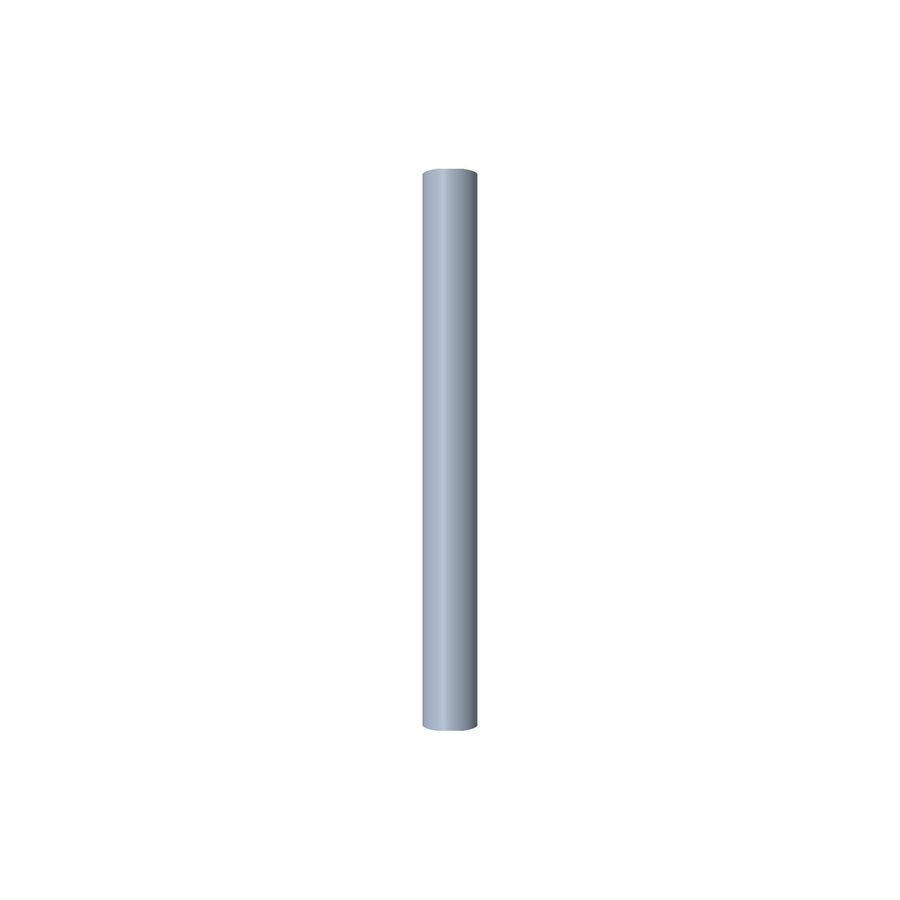

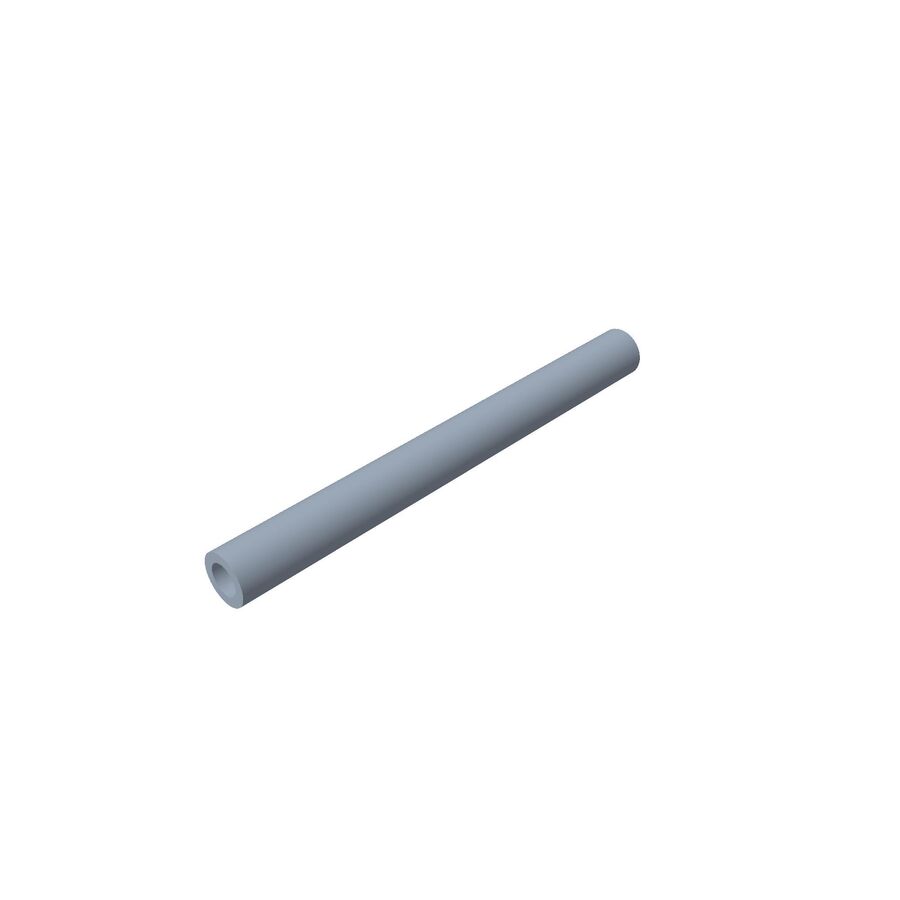

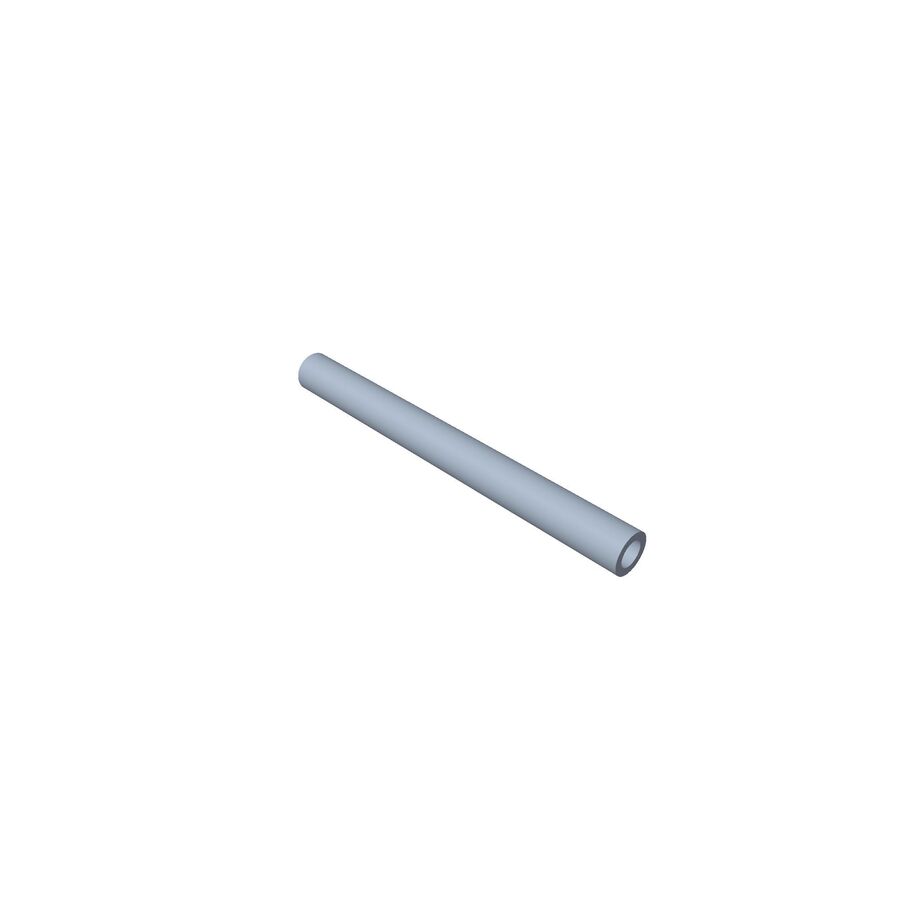

- TYPE: TORO OEM Center Anti-Scalp Wheel Spanner Tube
- SIZE: NA
- APPLICATIONS: Primarily Used in the Center Dual/Double Anti-Scalp Wheel Application - Installed Through the Mowers Deck Dual or Double Center Anti-Scalp Wheels and Between the Dual Mower Deck Fastening Ears/Brackets (Unlike The Outside Anti-Scalp Wheels there is No Need for an Anti-Scalp Wheel Spacer for the Anti-Scalp Wheels - Both Plastic Molded Flanges on the Anti-Scalp Wheels Get Assembled Out-Ward Toward the Mower Deck Fastner Ears or Brackets) - 98-5967 Serves the Purpose of Enables the Fasteners Bolt/Nut to Be Firmly Tightened Without Bending the Mower Deck Anti-Scalp Wheel Fastening Ears/Bracket Against the Anti-Scalp Wheel and Anti-Scalp Wheel Spacer Hindering the Anti-Scalp Wheel Rotation. Note: 98 5967 Is only used in Applications with Two Anti-Scalp Wheel per Spanner Bracket.
- COMMON SERIES APPLICATIONS: Select Current TITAN Standard, My-Ride Models (Models with I-Beam Framing) - Current TITAN MAX Models (Models with I-Beam Framing) - Late TITAN HD Models (1500, 2000, 2500 - Standard & My-Ride - Models with Tube Style Framing) - Late/Current 60" Grandstand Standard, Multi-Force, Revolution Models - Current Grandstand 52", 60" & 72" HDX Models - Current/Late ZMaster 2000 Models (Tube Style Framing & I-Beam Framing) - Current/Late/Early ZMaster Z, 3000, 4000, 5000, 6000, 7000, 7500, Revolution Models - GroundMaster & Older Walk-Behind Models.

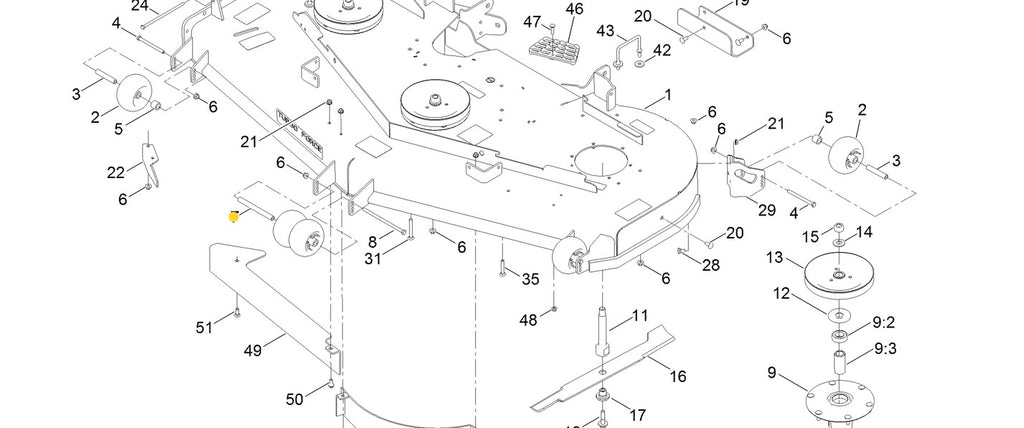

*Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.
NOTE: * 98-5967 Anti-Scalp Wheel Spanner is Primarily Used in The Center of The Mower Deck. To Ensure a Correct Fit, Review the Model Fit Chart and Measurements in the Images and the Specification Chart in Comparision with the Needed replacement if this still Prove to be un-helpful feel free to Reach out to us here at Hilly Ridge for any additional Questions.
COMMON ASSOCIATED ANTI-SCALP WHEEL PARTS FOR PART NUMBER 98-5967 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 108-5388 - HEX HEAD BOLT (Retains the Anti-Scalp Wheel and Spanner to Mower Deck) x1 Per Anti-Scalp Wheel Set of 2
- 1-603299 - ANTI-SCALP WHEEL (Small Wheels Fastened to the Mower Deck and Aids in Helping the Mower Deck to Float Across Uneven Terrain, Helping to Eliminate Scalping) x2 Per 98-5967 Spanner Tube
- 98-5967 - ANTI-SCALP WHEEL SPANNER TUBE (Installed Through the Mower Deck Anti-Scalp Wheel and Between the Dual Mower Deck Fastening Ears/Bracket - Enables the Fasteners Bolt/Nut to Be Firmly Tightened Without Bending the Mower Deck Anti-Scalp Wheel Fastening Ears/Bracket Against the Anti-Scalp Wheel) x1 Per Anti-Scalp Wheel Set of 2
- 104-8301 - FLANGE LOCK NUT (Retains the Anti-Scalp Wheel and Spanner to Mower Deck) x1 Per Anti-Scalp Wheel
Specification
|
Product Number: |
98 5967, 985967 |
|
Brand: |
Toro |
|
Length: |
6.200 IN (15.748 CM) |
|
Width: |
0.500 IN (1.270 CM) |
|
Height: |
0.500 IN (1.270 CM) |
|
Weight: |
0.350 LB (0.159 KG) |
Model Fit:
TITAN & TITAN MAX
48” TITAN Standard, My-Ride (48” Newer/Current Models I-Beam Frame) – 48” Current Models - (* Model Numbers 76401, 76411, 76420, 76425, 76448)
54” TITAN Standard, My-Ride (54” Newer/Current Models I-Beam Frame) – 54” Late/Current Models Only - (* Model Numbers 76501, 76511, 76530, 76554)
60” TITAN, TITAN My-Ride, Titan ZXM 6075 (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76604, 76605, 76614, 76635, 76660)
60” TITAN MAX (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76606, 76607, 76608, 76609, 76610)
TITAN HD
60” TITAN HD 1500 & HD 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 60" Late Models / Tubed Framing - (* Model Numbers 74463, 74480)
60” TITAN HD 2500 Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Early Models Only - (* Model Numbers 74470, 74471, 74472, 78472)
GRANDSTAND
60” GRANDSTAND – (Standard) – (* Model Numbers 72509, 72512, 72513, 72520, 74513, 74523, 74550, 74551, 74553, 74576, 74583, 79551, 79553)
60” GRANDSTAND – (Multi-Force) – (* Model Numbers 72523, 72524)
60” E - GRANDSTAND – (Revolution) – (* Model Numbers 18564)
52” GRANDSTAND – (HDX) – (* Model Numbers 72506)
60” GRANDSTAND – (HDX) – (* Model Numbers 72510, 72514)
72” GRANDSTAND – (HDX) – (* Model Numbers 72517)
Z-MASTER
CURRENT/LATE MODELS
Z MASTER 2000 MODELS – (Current/Late IBEAM – Framing Models) – (MODEL NUMBERS 77281, 77283, 77285, 77288, 77291, 77294)
Z MASTER 3000 MODELS – LATE MODELS – (MODEL NUMBERS 72932, 72936, 72949, 72950, 72952, 72958, 72959)
Z MASTER 4000 MODELS – CURRENT/LATE MODELS- Current IBEAM – (MODEL NUMBERS 74000, 74002, 74004, 74010, 74015, 74020, 74022, 74024, 74035, 74050, 74052, 74054, 74055, 74057)
Z MASTER 5000 MODELS – CURRENT/LATE MODELS – (MODEL NUMBERS 72904, 72906, 72907, 72908, 72910, 72911, 72912, 72915, 72918, 72921, 72922, 72923, 72924, 72930, 72943, 72945, 72951, 72953, 72955, 72956, 72957)
Z MASTER 6000 MODELS – CURRENT/LATE MODELS – (MODEL NUMBERS 72926, 72928, 72946, 72947, 72960, 72961, 72965, 72967, 72968, 72969, 72976, 72977, 72980, 72981, 72982, 72983)
Z MASTER 7500 MODELS – CURRENT/LATE MODELS – (MODEL NUMBERS 72027, 72028, 72029, 72030, 72065, 72074, 72076, 74060, 74064, 74072, 74074)
Z MASTER REVOLUTION MODELS – CURRENT/LATE MODELS- Current IBEAM – (MODEL NUMBERS 18748, 18752, 18760, 18762, 18765)
EARLY/LATE MODELS
48” Z Master 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - (* Model Numbers 74141, 74143, 74145)
Z MASTER 3000 MODELS – EARLY/LATE MODELS – (MODEL NUMBERS 74949, 74950, 74952, 74953, 74954, 74955, 74956, 74957, 74958, 74959, 74990, 74994, 74996, 75932, 75934, 75936, 75990, 78953)
Z MASTER 5000 MODELS – EARLY/LATE MODELS – (MODEL NUMBERS 74901, 74903, 74904, 74906, 74915, 74916, 74918, 74930, 74933, 74934, 74942,74943, 74944, 74945, 74991, 74995, 75930, 75951, 75955)
Z MASTER 6000 MODELS – EARLY/LATE MODELS – (MODEL NUMBERS 74922, 74923, 74925, 74926, 74927, 74928, 74936, 74938, 74939, 74940, 74946, 74947, 74960, 74961, 74969, 74975, 74977, 74978, 74979, 74992, 74993, 74997, 74998, 75967, 75968, 78922, 78924, 78926, 78928)
Z MASTER 7000 MODELS – EARLY/LATE MODELS – (MODEL NUMBERS 72266, 72267, 72274, 74266, 74267, 74268, 74269, 74274)
Z MASTER G3 MODELS – EARLY MODELS – (MODELS NUMBERS 74921, 74935, 74937, 74951)
Z MASTER Z MODELS – EARLY MODELS – (MODEL NUMBERS 74161, 74162, 74163, 74164, 74165, 74166, 74167, 74170, 74171, 74172, 74173, 74174, 74175, 74176, 74177, 74178, 74179, 74197, 74198, 74199, 74202, 74204, 74206, 74211, 74228, 74230, 74233, 74237, 74238, 74239, 74242, 74243, 74244, 74245, 74246, 74247, 74248, 74249, 74250, 74251, 74252, 74253, 74254, 74255, 74256, 74261, 74262, 74263, 74264, 74265, 74270, 74271, 74272, 74273, 74282, 74283, 74284, 74291, 74292, 74295, 74296, 74297, 74410, 74411, 74412, 74413, 74414, 74415, 74416, 74417, 74418, 74441, 74442, 74444, 74445, 74448, 74449)
GROUNDMASTER
GROUNDMASTER – (* Model Numbers 31890, 31891, 31892, 31893, 31970, 31971, 31972, 31973, 31974, 31975)
OLDER WALK-BEHIND MODELS
PROLINE & OLDER WALK-BEHIND MODELS – (* Model Numbers 30031, 30032, 30070, 30071, 30074, 30076, 30078, 30079, 30094, 30096, 30098, 30099, 30342, 30250, 30253, 30254, 30255, 30257, 30258, 30259, 30260, 30280, 30284, 30286, 30288, 30289, 30290, 30291, 30292, 30297, 30317, 30318, 30319,30320, 30321, 30322, 30326, 30327, 30329, 30332, 30333, 30334, 30335, 30338, 30339, 30340, 30340, 30341, 30430, 30431, 30432, 30433, 30435, 30436, 30437, 30438, 30439,30440, 30441, 30484, 30486, 30488, 30489, 30494, 30496, 30498, 30499, 38096, 38494, 39074, 39078, 39094, 39096, 39488, 39494, 39496, 39498)
MOWER DECK ATT. & MISC. MODEL
MOWER DECK & MISC. MODELS – (* Model Numbers 30149, 30151, 30135, 30138, 30147)
ANT-SCALP KITS
ANTI-SCALP & SERVICE KITS – (* Part Numbers 105-6173, 105-6174, 105-6175, 133-1440)
