Description

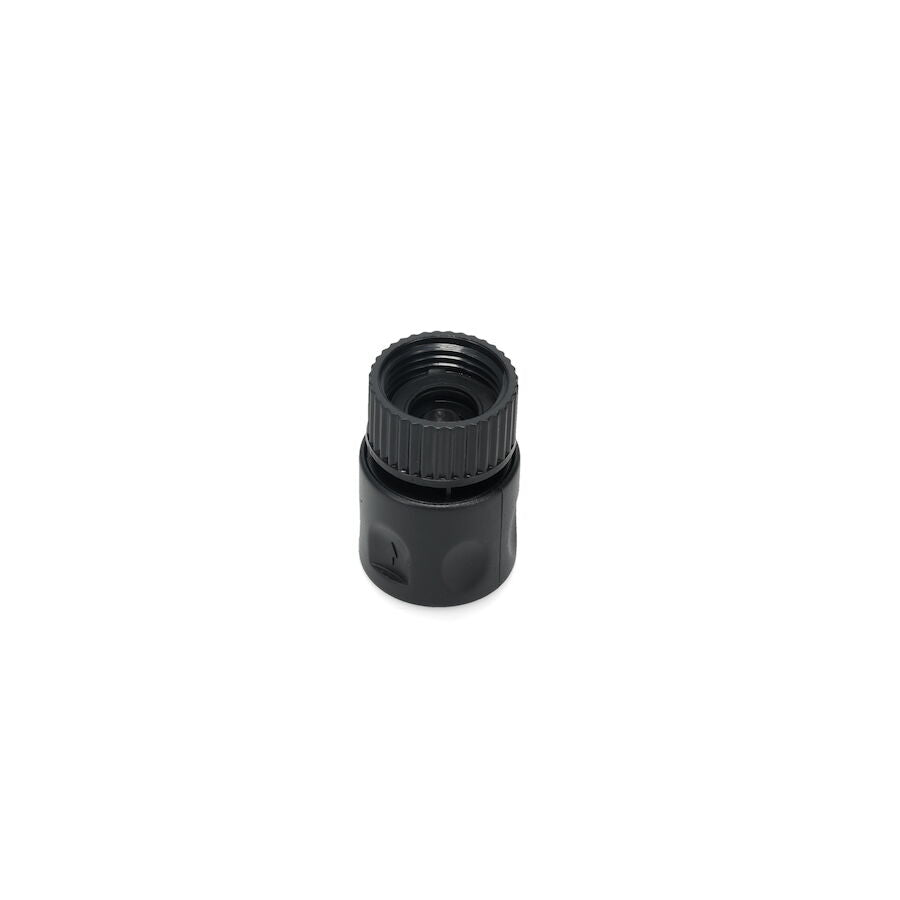

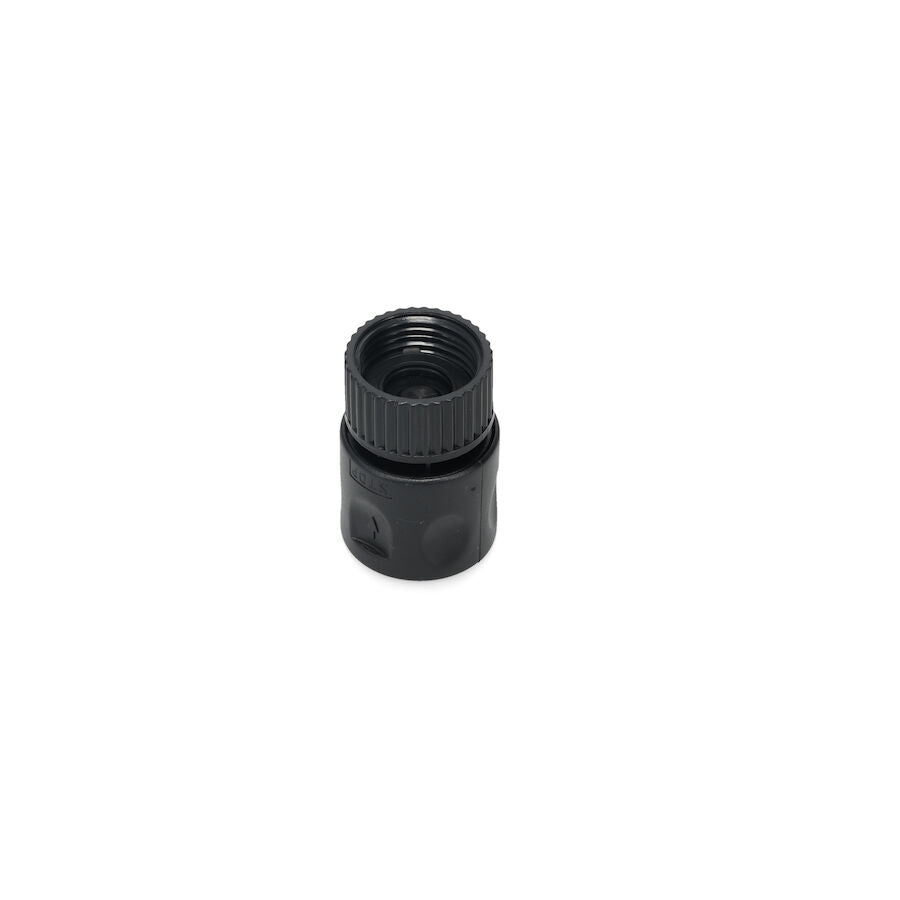

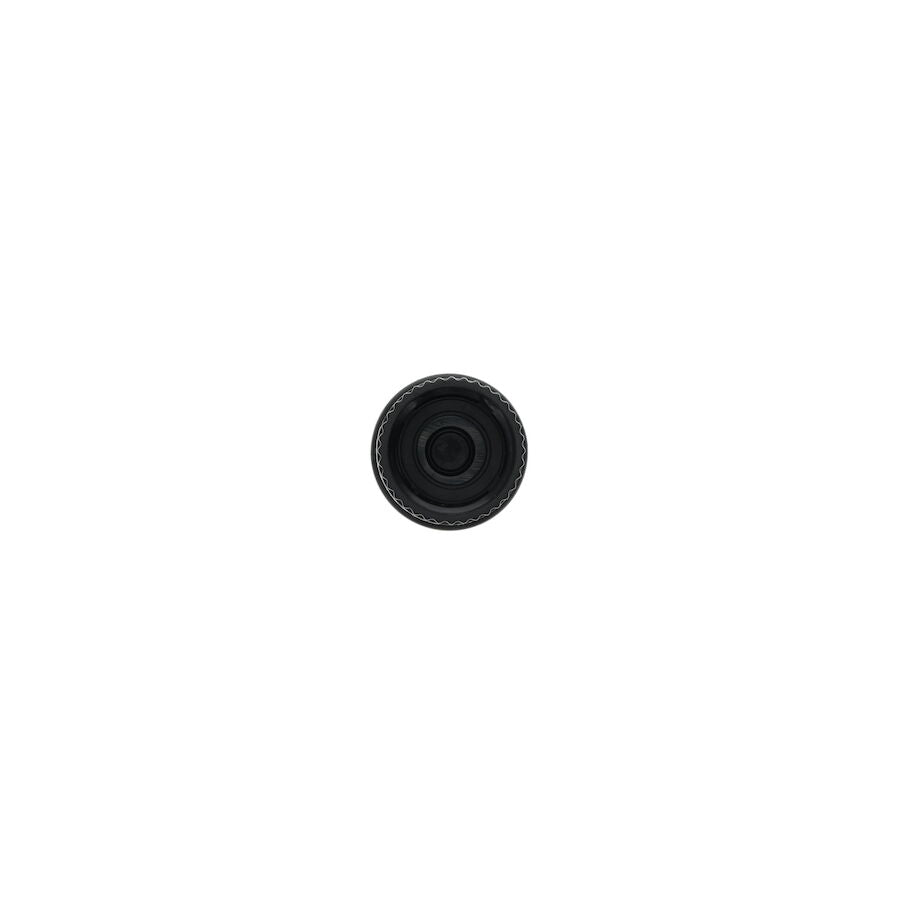

Keep those Mower Decks Clean and Eliminate those unnecessary Grass Build-Ups by Replacing those Broken Hose Quick-Connect Parts. 95 3270 gives you the convenience of keeping a 95 3270 Female Quick-Latch-Coupler attached to your Garden Hose and Connecting to The Male Wash-Out Port that Remains Fastened to your Mower Deck in a matter of Seconds. NOTE: To Properly make use of 95 3270 it is always recommended to run your Mower Deck to Circulate Water Throughout your Mower Deck. However, Due to the Fact that heat absorbs Moisture it is always Best to Leave your Mower Decks Cool down Before Washing it out to Eliminate Warm Bearings and Spindle Assemblies from Absorbing Moisture and Causing Pre-Mature Failure. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.
ASSOCIATED FASTNERS & PARTS FOR PART NUMBER 95-3270 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 139-1700 - SELF-TAPPING TAP SCREW (TimeMaster - Retains Wash Out Port 133-9289)
- 32144-4 - SELF-TAPPING TAP SCREW (Timecutter - Retains Wash-Out Port 133-9289)
- 133-9290 - O-RING (Quick-Coupler O-Ring)

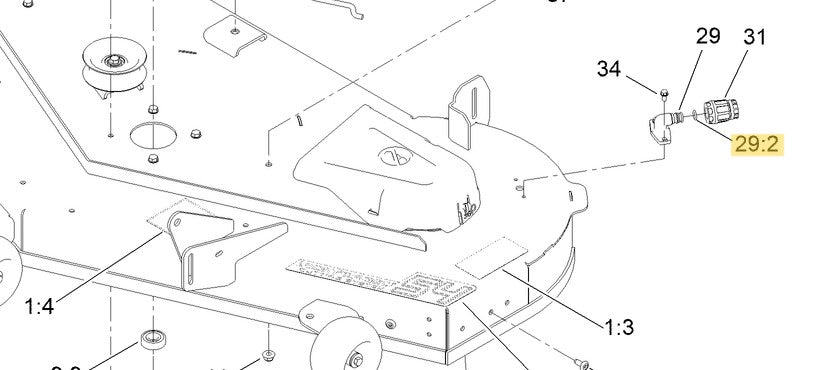

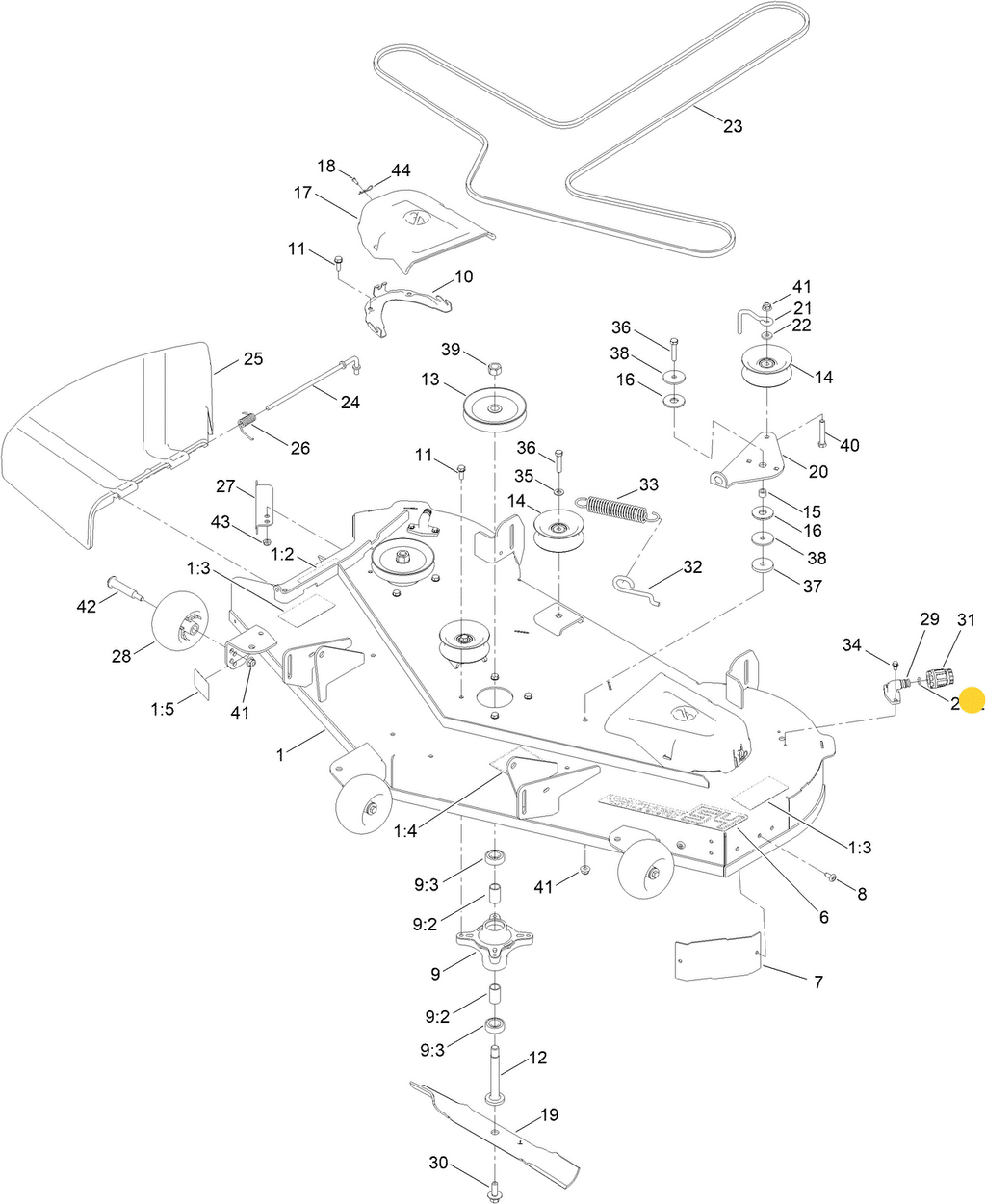

- 133-9289 - MALE QUICK-COUPLER/WASHOUT PORT (Male Quick-Coupler - Fastens to Your Mower Deck)
Specification
|
Product Number: |
953270 |
|
Brand: |
Toro |
|
Length: |
2.100 IN (5.334 CM) |
|
Width: |
1.400 IN (3.556 CM) |
|
Height: |
1.400 IN (3.556 CM) |
|
Weight: |
0.060 LB (0.027 KG) |
Model Fit:
74785, 21200, 74766, 74790, 74864, 74865, 74866, 74867, 75201, 75202, 75210, 75211, 75212, 75213, 74725, 74722, 74780, 74665, 74650, 74667, 74661, 74710, 74711, 74705, 74731, 74775, 74726, 74778, 74760, 74777, 74706, 74727, 74676, 74680, 74795, 74788, 74750, 74768, 74776, 21199, 74772, 74773, 74774, 74682, 74684, 74686, 74688, 74876, 74886, 74888, 21810, 21811, 74687, 74685, 74690, 74694, 75740, 75742, 75741, 75743, 75745, 75750, 75753, 75755, 75754, 75757, 75759, 75760, 75751, 75744, 75734, 75747, 75746, 75749, 75748, 75756, 74683, 74691, 74695, 77401, 75762, 75763, 74677, 74679, 21491, 21493, 21876, 77301, 21816, 21815, 21220, 21219, 77501, 77502, 77504, 77503, 77601, 77602, 77603, 77505, 77404, 77506, 77507, 74696, 74692, 77604, 78280, 78285, 70142, 70183, 79107, 78252, 71188, 71193, 71185, 71201, 71208, 71219, 22038, 22045, 22154, 21012, 20803, 20808, 20821, 20777, 20778, 78218, 71205, 71217, 71215, 20822, 78216, 78226, 20804, 20809, 20776, 70082, 70084, 71189, 71190, 78268, 78357, 78358, 78253, 78363, 78364, 78370, 78375, 78444, 78448, 78452, 79108, 22157, 20786, 20787, 20823, 20824, 70041, 70060, 21013, 70089, 70171, 71198, 71199, 71209, 71220, 71221, 71240, 22158, 70044, 70122, 20779, 20789, 20791, 71223, 71225, 71226, 71241, 78261, 78281, 22173, 71300, 77102, 77104, 77106, 71212, 71227, 71301, 71242, 71228, 74501, 74601, 74701, 22174, 74801, 78449, 74401, 74502, 79109, 20781, 20783, 20784, 70184, 70125, 78294, 78290, 71245, 74405, 74301, 74325, 74330, 74350, 74402, 74403, 21014, 71243, 74602, 74702, 74802, 74351, 78295, 94301, 94330, 94351, 94802, 70185, 70186, 98290, 98294, 74603, 74806, 74406, 74407, 81230, 81235, 81240, 81245, 81250, 71427, 71428, 71429, 71246, 79110, 74352, 74704, 81228, 81229, 81242, 94352, 94806, 94327, 74327, 74353, 94603, 74432, 74433, 81243, 81246, 74425, 74360, 74370, 74372, 94360, 94370, 94372, 74380, 74391, 74399, 74419, 74420, 9749, 74374, 74812, 74814, 74434, 81270, 71252, 74363, 74375, 74381, 81271, 74813, 74815, 74816, 74818, 94818, 74373, 74820, 74822, 74823, 74824, 71257, 74437, 94375, 74914, 74365, 74366, 74376, 74398, 74830, 74832, 74833, 74912, 74385, 74386, 74387, 74620, 74622, 74624, 74625, 74626, 74630, 74632, 74840, 74841, 74842, 74843, 74845, 74920, 74924, 71254, 71255, 74871, 74872, 20199, 20200, 74388, 74389, 74390, 74621, 74623, 74627, 74628, 74640, 74641, 74873, 20975, 20977, 74631, 74633, 74395, 74616, 74629, 74851, 74852, 74853, 74855, 74882, 74883, 74846, 74848, 74635, 74636, 74637, 74638, 74642, 74643, 74793, 74710, 74721, 74730, 74740, 74760, 74770, 74650, 74655, 74656, 74660, 74670, 74675, 74680, 74720, 74723, 74750, 74784, 74787, 74790, 74797, 74780, 74731, 74798, 74785, 74781, 74891, 74892, 74893, 74861, 74862, 74863, 20976, 20978, 74732, 74741, 74775, 74657, 74661, 74765, 74722, 74771, 74777, 21199, 74776, 74795
