Description

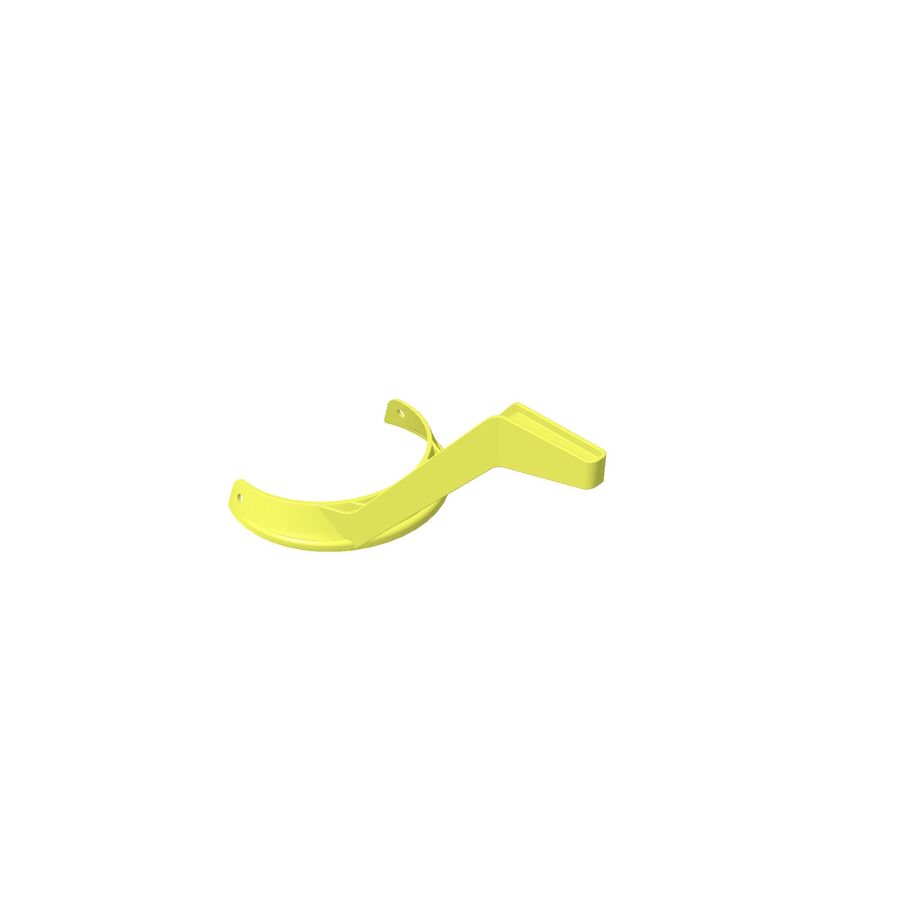

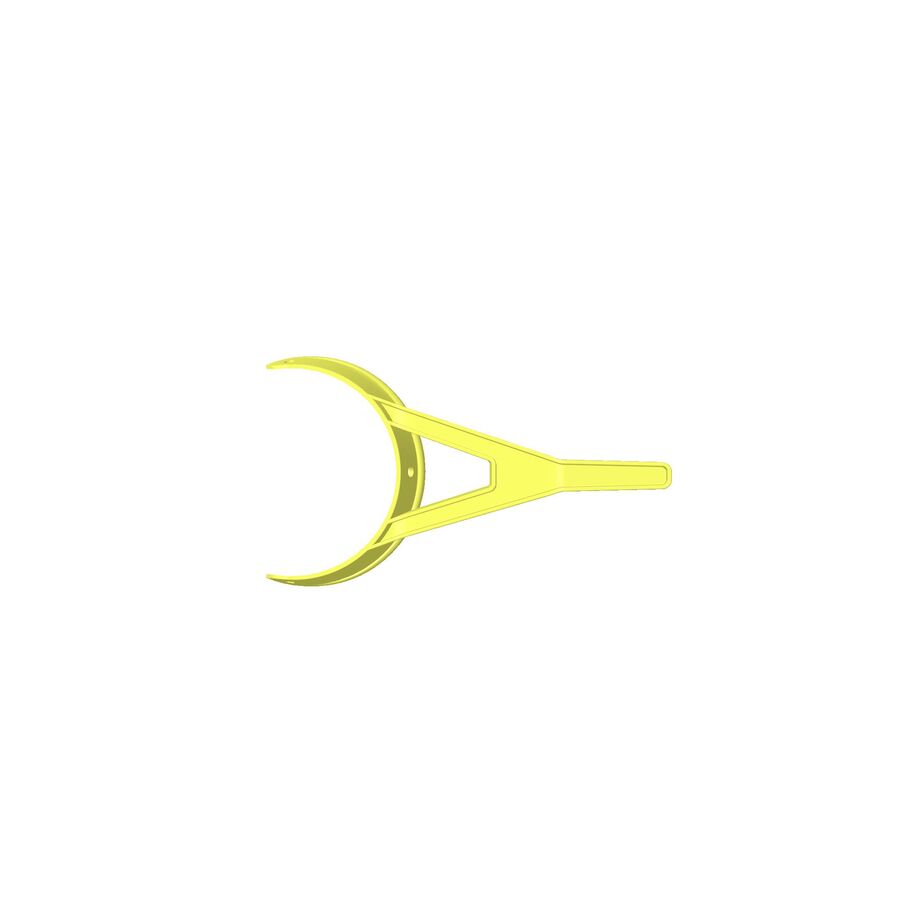

Toro OEM 94-9914 Chute Control Handle
Restore smooth and precise chute rotation on your Toro snowblower with this genuine Toro OEM 94-9914 Chute Handle. This handle is part of the chute control system and allows the operator to easily adjust the discharge direction while clearing snow. 94-9914 Fastens to the Lower Side of the Discharge Chute and Chute Ring/Retainer and Enable the Operator to Manually Adjust the Discharge Chute from Left to Right. Manufactured to Toro’s original specifications, this OEM handle ensures proper fit, durability, and reliable operation in cold-weather conditions.
- OEM Part Number: 94-9914, 94 9914, 949914
- Part Name: Handle – Chute Control
- Function: Allows operator to rotate and position the discharge chute
- Genuine OEM: Correct fit and performance on Select Toro Quick Clear (Only Model 38564), Power Clear & Older CCR single-stage snow throwers.
Fits These Toro Models (By Family)
Verify your model number (and serial range when applicable) from the machine tag before ordering.
QUICK CLEAR Series – Model Numbers – (* Model Numbers 38564)
POWER CLEAR Series – Model Numbers – (* Model Numbers 38451, 38452, 38587, 38593, 38741, 38742, 38751)
CCR Series – Model Numbers – (* Model Numbers 38409, 38410, 38411, 38412, 38413, 38414, 38415, 38416, 38417, 38418, 38419, 38420, 38421, 38425, 38426, 38428, 38429, 38515, 38516, 38535, 38536)

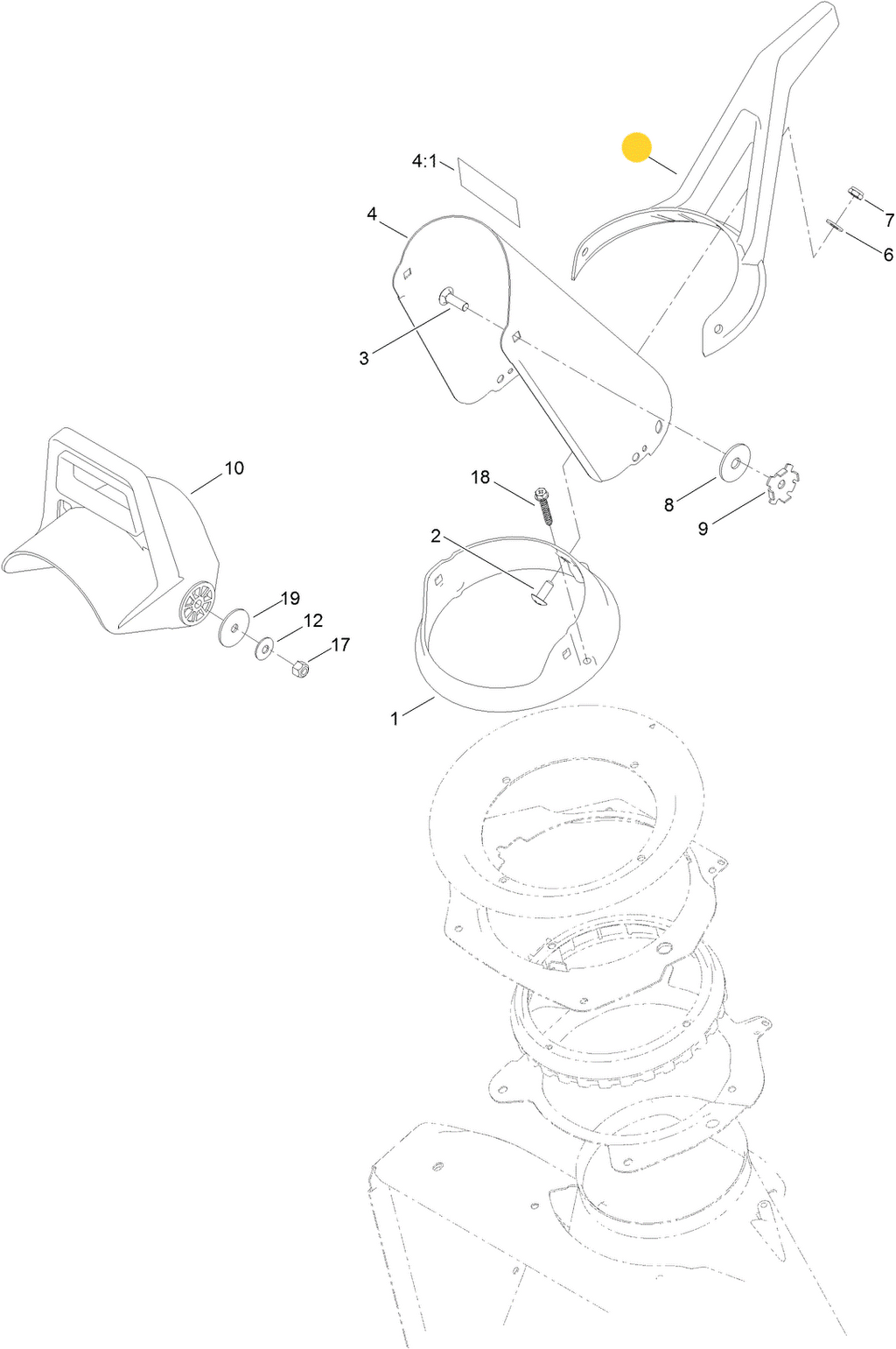

Associated Parts & Hardware
If Removal of the Discharge Chute or Replacement of any Lower Chute Components refer to the Install Directions for Removal and Installation for The Correct Discharge Chute or Detent Ring Associated to the Model Number on your Unit.
- 94-9914 – Chute Handle (Fastens to the Lower Side of the Discharge Chute and Chute Ring/Retainer Using Carriage Bolt 100-5487 and Enable the Operator to Manually Adjust the Discharge Chute from Left to Right)
- 100-5487 – Carriage Bolt (Assembled from Inside the Discharge Chute - Pointing Out - Retaining the Discharge Chute & Chute Handle to the Chute Ring Retainer)
- 3256-70 – Flat Washer (Assembled on the Outside Surface Against the Chute Handle & Discharge Chute and Supports Lock Nut 3296-47)
- 3296-47 – Lock Nut (Assembled Against Flat Washer 3256-70 and Retains the Discharge Chute & Chute Handle to the Chute Ring Retainer)
- 120-0131 – Discharge Chute (Replace if Discharge Chute is Crack or Broken) * Select Models Only Review the Model Fit Chart under each Individual Part Numbers
- 104-4115 – Discharge Chute (Replace if Discharge Chute is Crack or Broken) * Select Models Only Review the Model Fit Chart under each Individual Part Numbers -DISCONTINUED
- 112-1546 – Chute Ring/Retainer (Assembled Above the Chute Seal and the Discharge Detent Ring, and Retains the Discharge Chute Via Side Fasteners - Carraige Bolt Fasten from Inside the Chute Out - Enable the Connection Between the Discharge Chute and the Chute Detent Ring)
- 114-3772 – Chute Ring Seal (Assembled Between the Detent Chute Ring and the Chute Ring/Retainer, Over the Upper Ring Retainer and Eliminates Snow Build Up in the Mechanical Components of the Discharge Chute) * Select Models Only - Review Model Fit Chart Associated to each Model Number
- 108-4922 – Chute Detent Ring (Assembled Between two Retaining Chute Retainers and Retains the Discharge Chute Via the Chute Ring/Retainer and the Appropriate Fasteners - Enables the Discharge Chute to Rotate)
Need Help Verifying Fit?
Send us your Toro model number and serial number and we’ll confirm the correct part before you order.
