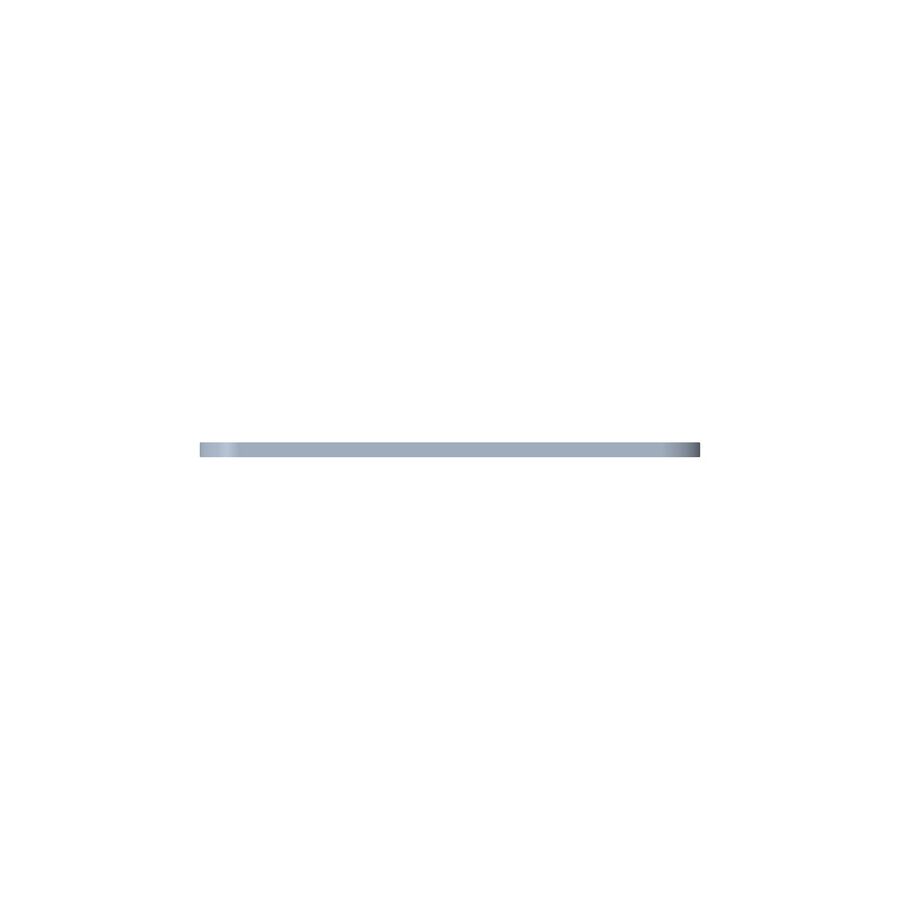

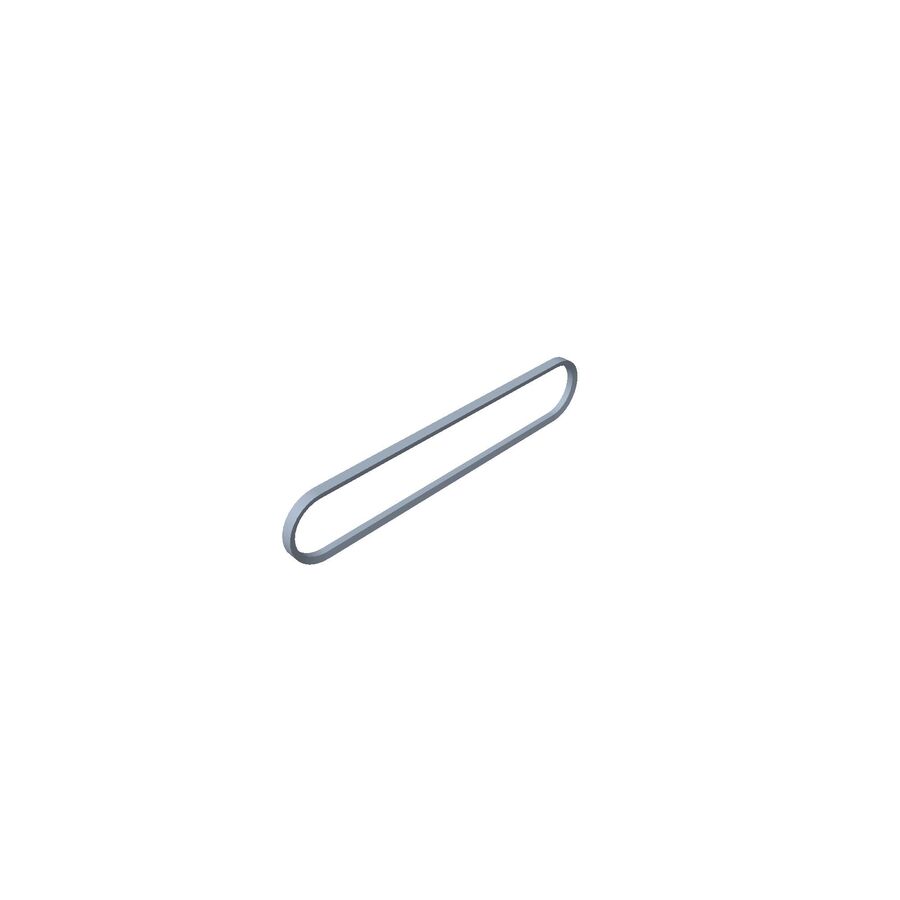

Toro OEM 94-8812 Snowblower Traction Drive Belt Fits Select Standard Power Max and Early Model Power Throw/Snowthrower Snowblower Models - Select Power Broom Models. TORO DEALER

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.





• PRODUCT NUMBER AND VARIATIONS: 94-8812, 94 8812, 948812
• PRODUCT TYPE: Traction Drive V-Belt
• SIZE: Length N/A in. - Width N/A in. - Height N/A in. - Weight 0.100 lbs.
• NOTES & DETAILS: Toro OEM  94-8812 IS COMMINLY USED - 94-8812 Traction Belt Travels from the Engine Pulley to the Traction Pulley - Tension on the Drive Belt and Idler Pulley or Constant Allowing the Traction Pulley Rotation to be Constant.  When the Operator Engages the Traction Control Handle/Lever it Applies Pressure Between the Traction Pulley and the Rubber Friction Wheel causing the Shaft and Drive Components Parts to Rotate with the Traction Pulley and the Rubber Friction Wheel. Speed of the Snowblower travel as well as Forward and Reverse is Select by the Amount of Friction, Rotational Speed, and Location of the Friction Wheel Against the Beveled Style Traction Pulley as Selected by the Operator.
• COMMON SERIES APPLICATIONS: Toro Select Standard Power Max and Early Model Power Throw/Snowthrower Snow Blower Models - Power Broom Models.





• MODEL FIT CHART:



SNOWBLOWER’S & POWERBROOM



POWER MAX Series – Model Numbers – (* Model Numbers 38595, 38597, 38614, 38620, 38621, 38622, 38624, 38629, 38630, 38631, 38632, 38633, 38634, 38635, 38637, 38639, 38640, 38641, 38642, 38644, 38645, 38650, 38651, 38652, 38654, 38657, 38680, 38800, 38803, 38805, 38828)



POWER THROW/SNOWTHROWER Series – Model Numbers – (* Model Numbers 38053, 38066, 38078, 38083, 38084, 38086)



MISC. LAWNBOY Series – Model Numbers – (* Model Numbers 28232)



Power Broom Series – Model Numbers – (* Model Numbers 23740, 38700)

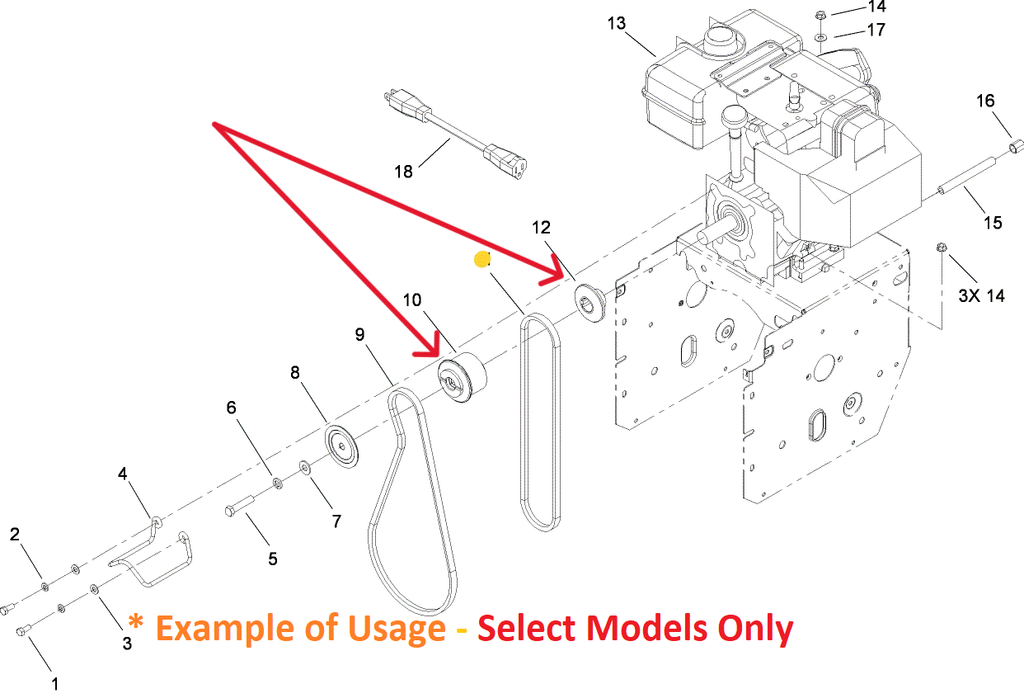

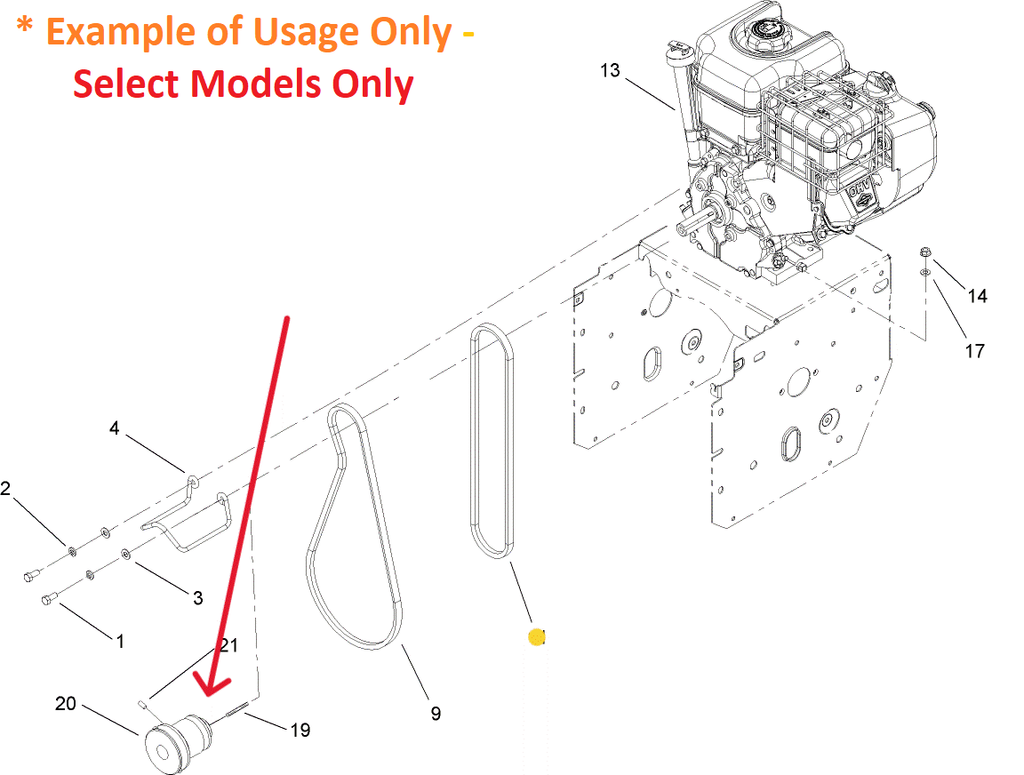

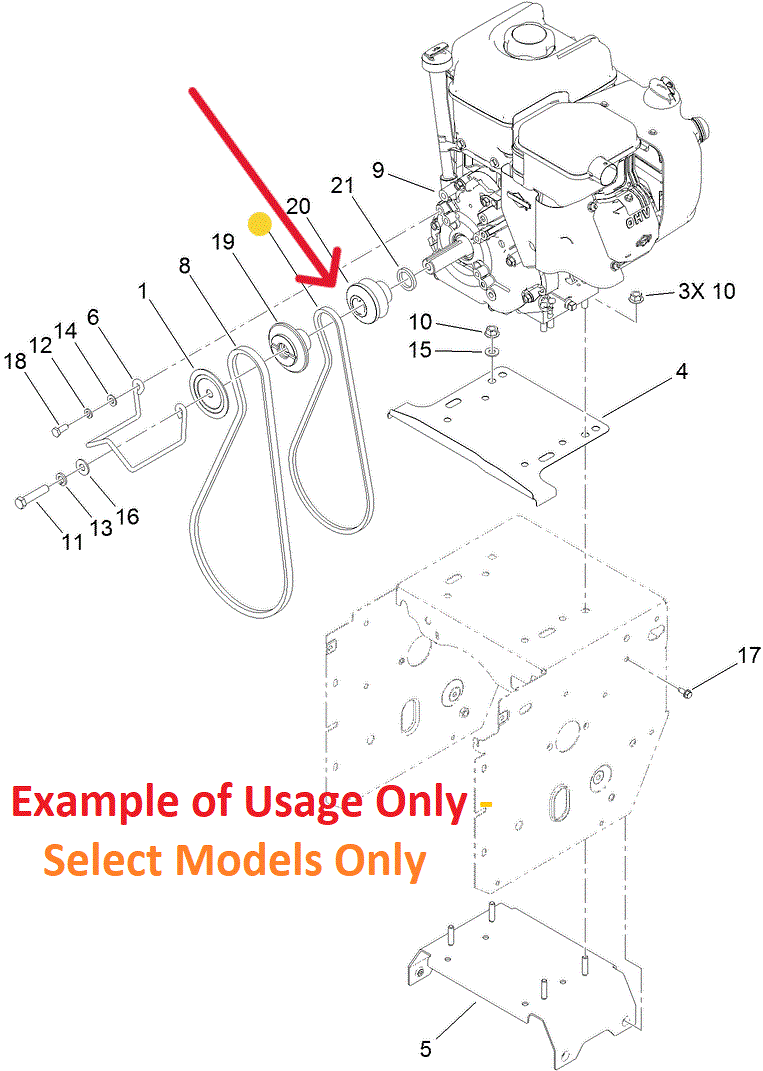

• ASSOCIATED PARTS CHART:





ASSOCIATED PARTS REFERENCES FOR PART NUMBER 94-8812 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





COMMOM SNOWBLOWERS MODELS ONLY

Select Early Model Might not be Referred to.



1. 106-7333 - CENTER TWO-PIECE ENGINE TRACTION/DRIVE & AUGER PULLEY  (Transfers Engine Rotation to the Traction Pulley via Traction Drive Belt - Is the Front Pulley Piece for the Traction Two Piece Traction/Drive Engine Pulley and the Rear Piece for the Two-Piece Auger Pulley and is Assembled Directly to the Engine Crankshaft - Two Piece Pulleys are Assembled with the Beveled Ends Directed Towards Each Other - Installed Between the Front Section of the Two-Piece Auger Engine Pulley and the Rear Engine Section of the Two-Piece Traction/Drive Pulley - Enables the Engine to Rotate the Traction/Drive Belt, Pulley and Other Drive Components) x1 Per Snowblower Unit * Select Models Only - Review Model Fit Chart - Paired to 106-7334
2. 106-7334 - REAR TWO-PIECE ENGINE TRACTION/DRIVE PULLEY (Transfers Engine Rotation to the Traction Pulley via Traction Drive Belt - Rear Section of a Two-Piece Engine Traction Pulley and is Assembled Directly to the Engine Crankshaft with the Beveled Ends Directed Towards Each Other - Installed Between the Center Two-Piece Auger & Traction Drive Engine Pulley and the Engine Crankcase - Enables the Engine to Rotate the Traction/Drive Belt, Pulley and Other Drive Components) x1 Per Snowblower Unit * Select Models Only - Review Model Fit Chart - Paired to 106-7333
3. 114-9252 - ONE-PIECE ENGINE AUGER & TRACTION/DRIVE PULLEY (Transfers Engine Rotation to the Traction Pulley via Traction Drive Belt - Is a One-Piece Pulley and is Assembled Directly to the Engine Crankshaft Contains Both Auger and Traction Drive Belt V's - Enables the Engine to Rotate the Traction/Drive Belt, Pulley and Other Drive Components) x1 Per Snowblower Unit * Select Models Only - Review Model Fit Chart
4. 121-6617 - ONE-PIECE ENGINE TRACTION/DRIVE PULLEY (Transfers Engine Rotation to the Traction Pulley via Traction Drive Belt - Is a One-Piece Pulley and is Assembled Directly to the Engine Crankshaft - Installed Between the Two-Piece Auger Engine Pulley and Engine Pulley Spacer Washer and the Engine Crankcase - Enables the Engine to Rotate the Traction/Drive Belt, Transmission Pulley and Other Drive Components) x1 Per Snowblower Unit * Select Models Only - Review Model Fit Chart

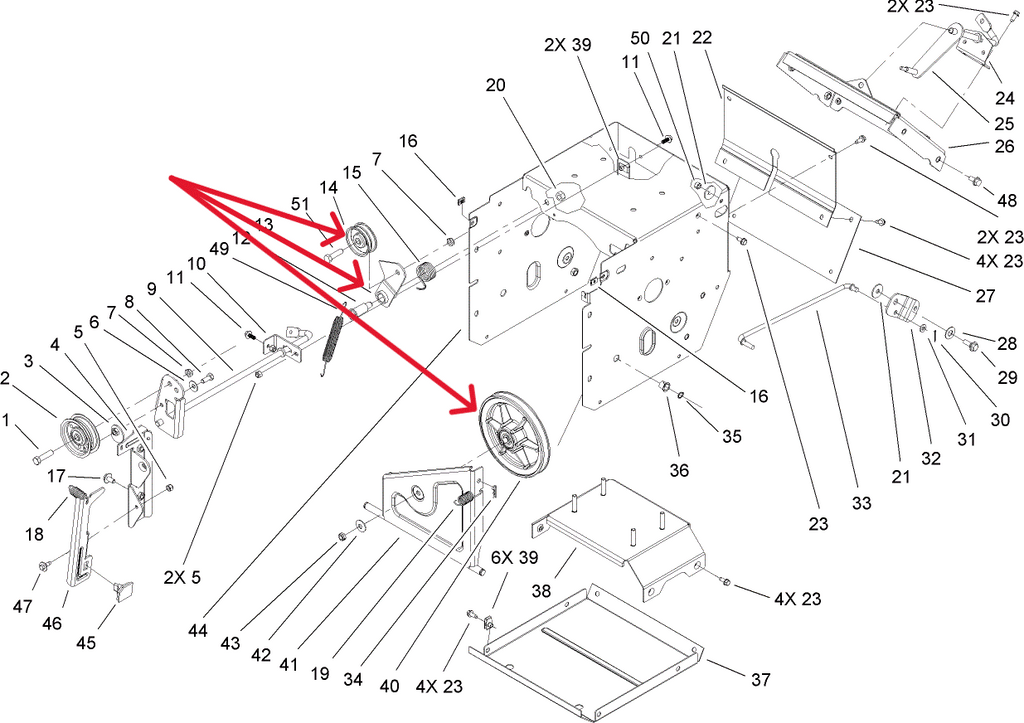

5. 136-7319 - TRACTION PULLEY (Receives Constant Engine Rotation from the Engine Via Traction Drive Belt - Is Assembled with the use of a Bearing and Bearing Collar Directly to the Friction Wheel Plate Which Rotates Towards and Away from the Rubber Friction Wheel as the Operator Engages Traction Drive Bail Lever) x1 Per Snowblower Unit
6. 3-4244 - IDLER PULLEY (Contains Roller Bearing that Allow the Pulley to Match the Speed of the Engine RPM's and is Retained to the Idler Pulley Tensioner Arm - Used to Retain Constant Pressure on The Traction Drive Belt via a Torsion Spring Allowing the Rotation of the Traction Pulley to remain Constant) x1 Per Snowblower Unit
7. 108-7332 - IDLER PULLEY TORSION SPRING (Assembled over the Flange on the Idler Pulley Tensioner Arm and Retains Constant Pressure on Between the Idler Pulley and Traction Drive Belt) x1 Per Snowblower Unit * Select Models Only - Review Model Fit Chart
8. 120-3060 - IDLER PULLEY TORSION SPRING (Assembled over the Flange on the Idler Pulley Tensioner Arm and Retains Constant Pressure on Between the Idler Pulley and Traction Drive Belt) x1 Per Snowblower Unit * Select Models Only - Review Model Fit Chart
9. 108-5058 - IDLER PULLEY TENSIOM ARM (Fasten to the Snowblower Frame or Brackets and Retains the Idler Pulley and a Torsion Spring and Enable Tension to be Constantly Applied to the Auger Belt as well as Giving the Idler Pulley Correct Spacing to Travel in-line with the Traction Drive Belt) x1 Per Snowblower Unit * Select Models Only - Review Model Fit Chart
10. 108-0011 - IDLER PULLEY TENSIOM ARM (Fasten to the Snowblower Frame or Brackets and Retains the Idler Pulley and a Torsion Spring and Enable Tension to be Constantly Applied to the Auger Belt as well as Giving the Idler Pulley Correct Spacing to Travel in-line with the Traction Drive Belt) x1 Per Snowblower Unit * Select Models Only - Review Model Fit Chart

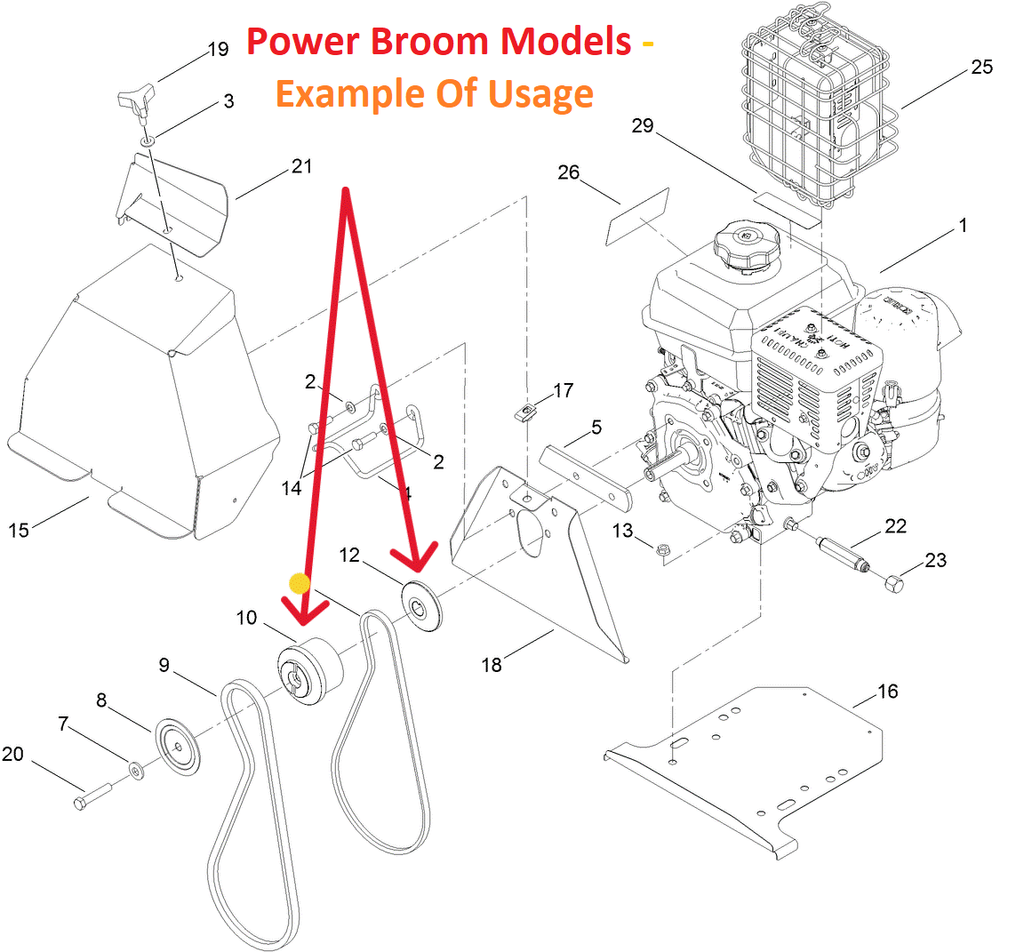

POWERBROOM MODELS ONLY





1. 112-8117 - CENTER TWO-PIECE ENGINE TRACTION/DRIVE & AUGER PULLEY  (Transfers Engine Rotation to the Traction Pulley via Traction Drive Belt - Is the Front Pulley Piece for the Traction Two Piece Traction/Drive Engine Pulley and the Rear Piece for the Two-Piece Auger Pulley and is Assembled Directly to the Engine Crankshaft - Two Piece Pulleys are Assembled with the Beveled Ends Directed Towards Each Other - Installed Between the Front Section of the Two-Piece Auger Engine Pulley and the Rear Engine Section of the Two-Piece Traction/Drive Pulley - Enables the Engine to Rotate the Traction/Drive Belt, Pulley and Other Drive Components) x1 Per Snowblower Unit * Select Models Only - Review Model Fit Chart - Paired to 94-8812
2. 94-8812 - REAR TWO-PIECE ENGINE TRACTION/DRIVE PULLEY (Transfers Engine Rotation to the Traction Pulley via Traction Drive Belt - Rear Section of a Two-Piece Engine Traction Pulley and is Assembled Directly to the Engine Crankshaft with the Beveled Ends Directed Towards Each Other - Installed Between the Center Two-Piece Auger & Traction Drive Engine Pulley and the Engine Crankcase - Enables the Engine to Rotate the Traction/Drive Belt, Pulley and Other Drive Components) x1 Per Snowblower Unit * Select Models Only - Review Model Fit Chart - Paired to 112-8117
3. 136-7319 - TRACTION PULLEY (Receives Constant engine Rotation from the Engine Via Traction Drive Belt - Is Assembled with the use of a Bearing and Bearing Collar Directly to the Friction Wheel Plate Which Rotates Towards and Away from the Rubber Friction Wheel as the Operator Engages Traction Drive Bail Lever) x1 Per Snowblower Unit
4. 3-4244 - IDLER PULLEY (Contains Roller Bearing that Allow the Pulley to Match the Speed of the Engine RPM's and is Retained to the Idler Pulley Tensioner Arm - Used to Retain Constant Pressure on The Traction Drive Belt via a Torsion Spring Allowing the Rotation of the Traction Pulley to remain Constant) x1 Per Snowblower Unit
5. 108-7332 - IDLER PULLEY TORSION SPRING (Assembled over the Flange on the Idler Pulley Tensioner Arm and Retains Constant Pressure on Between the Idler Pulley and Traction Drive Belt) x1 Per Snowblower Unit
6. 108-5058 - IDLER PULLEY TENSIOM ARM (Fasten to the Snowblower Frame or Brackets and Retains the Idler Pulley and a Torsion Spring and Enable Tension to be Constantly Applied to the Auger Belt as well as Giving the Idler Pulley Correct Spacing to Travel in-line with the Traction Drive Belt) x1 Per Snowblower Unit
