Toro OEM 93-1622 Hydraulic Flat Idler Fits Current/Late 36", 40", 48", 52", 60" Grandstand Standard and MultiForce Models - Early ZMaster 2000 Models (Tube Style Framing) - and More ...

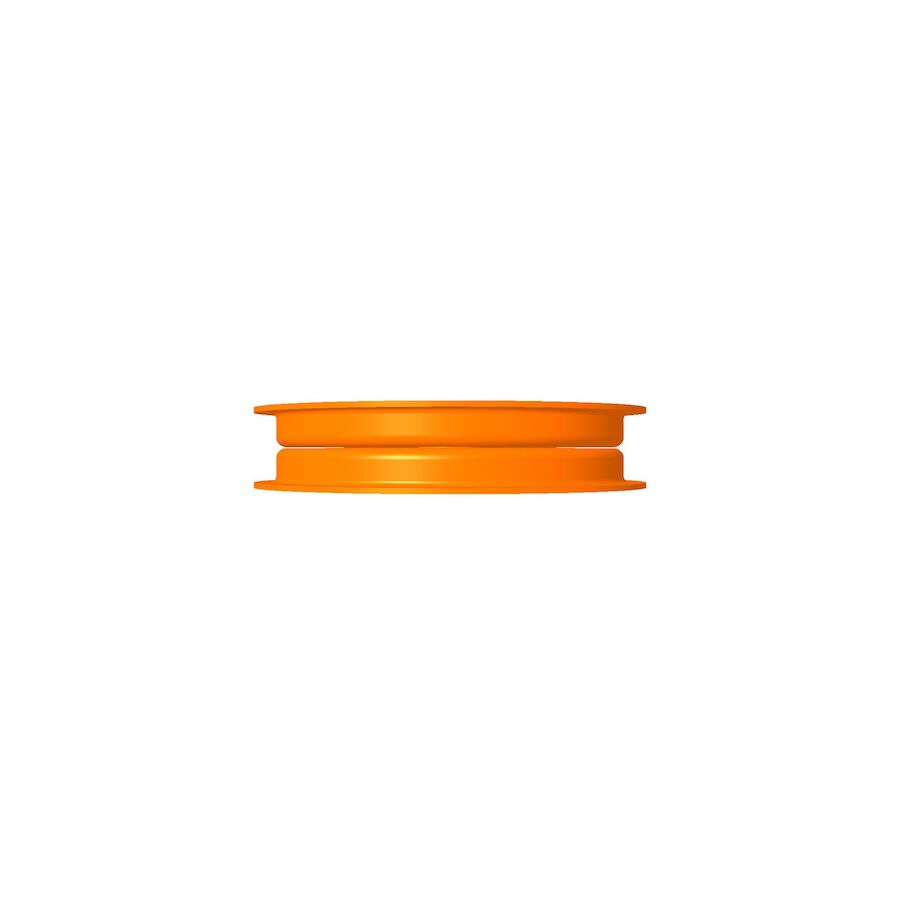

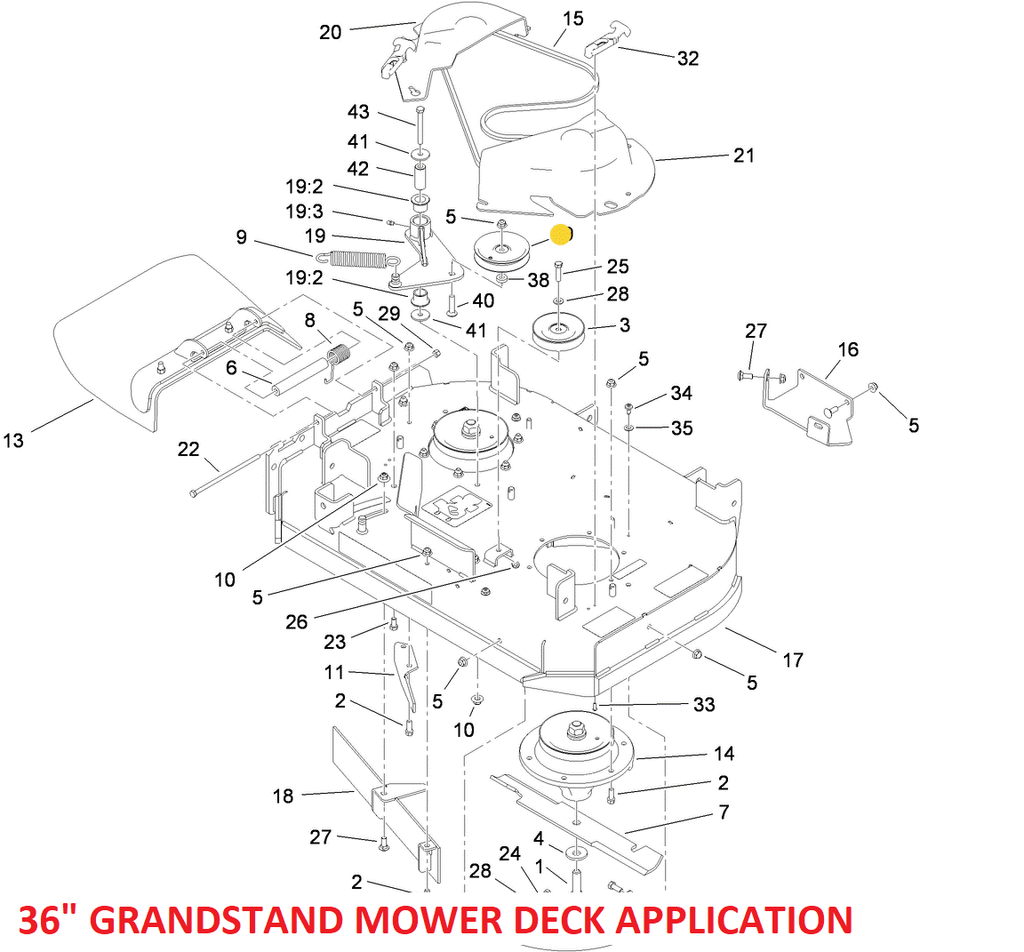

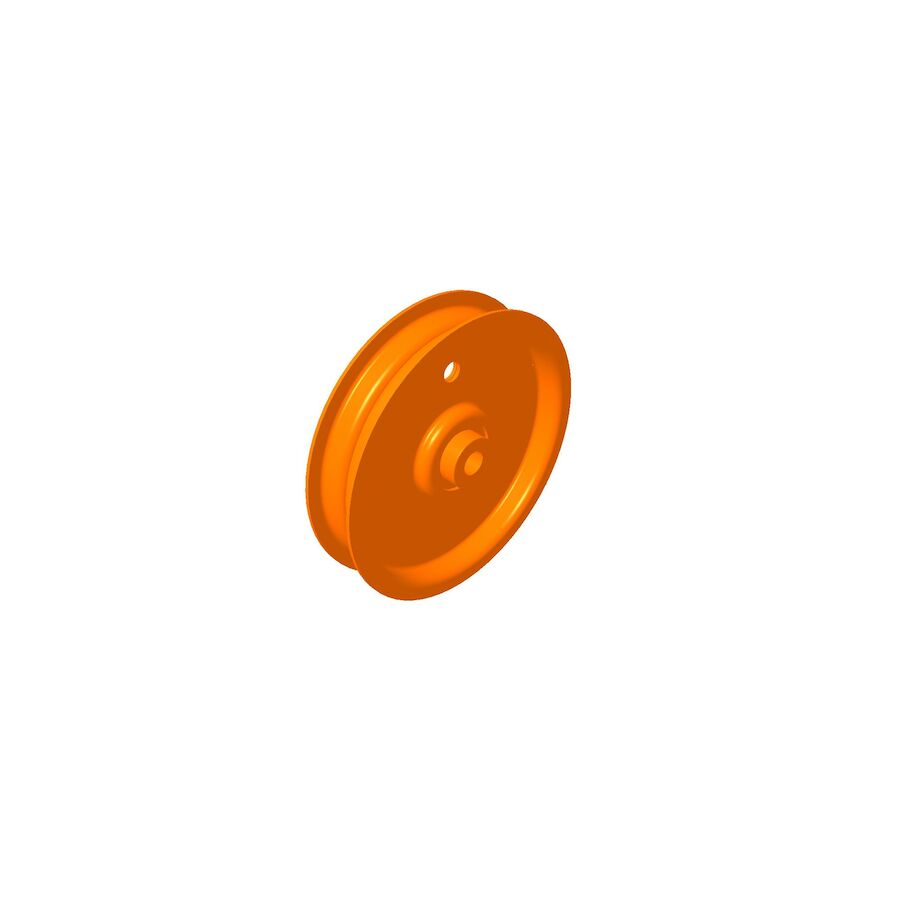

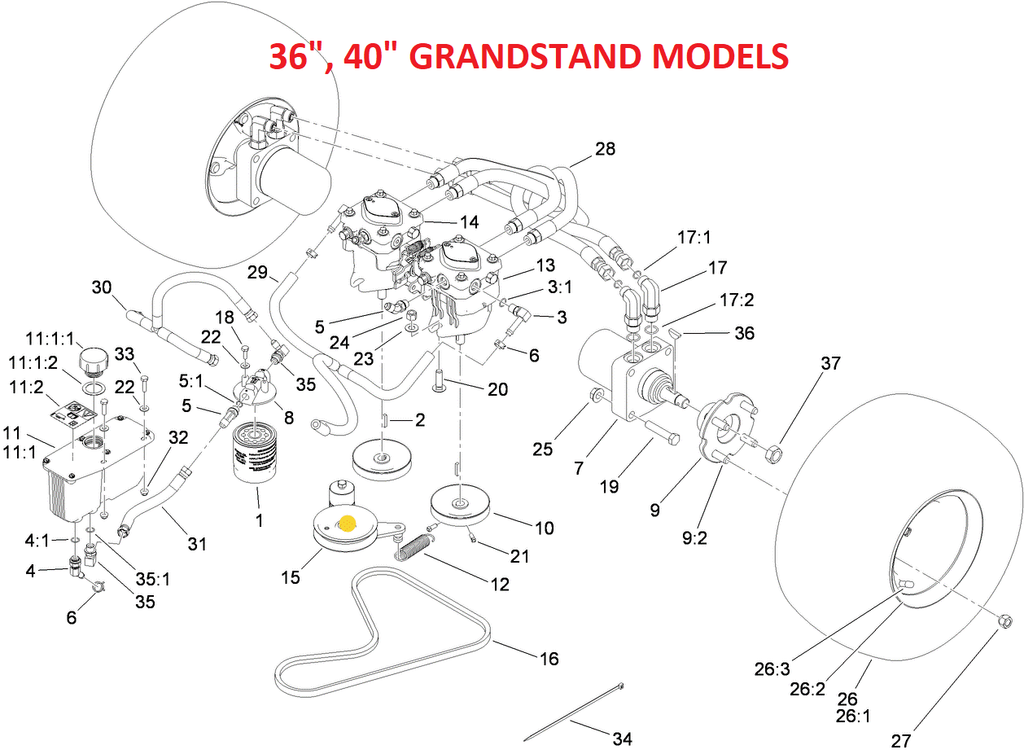

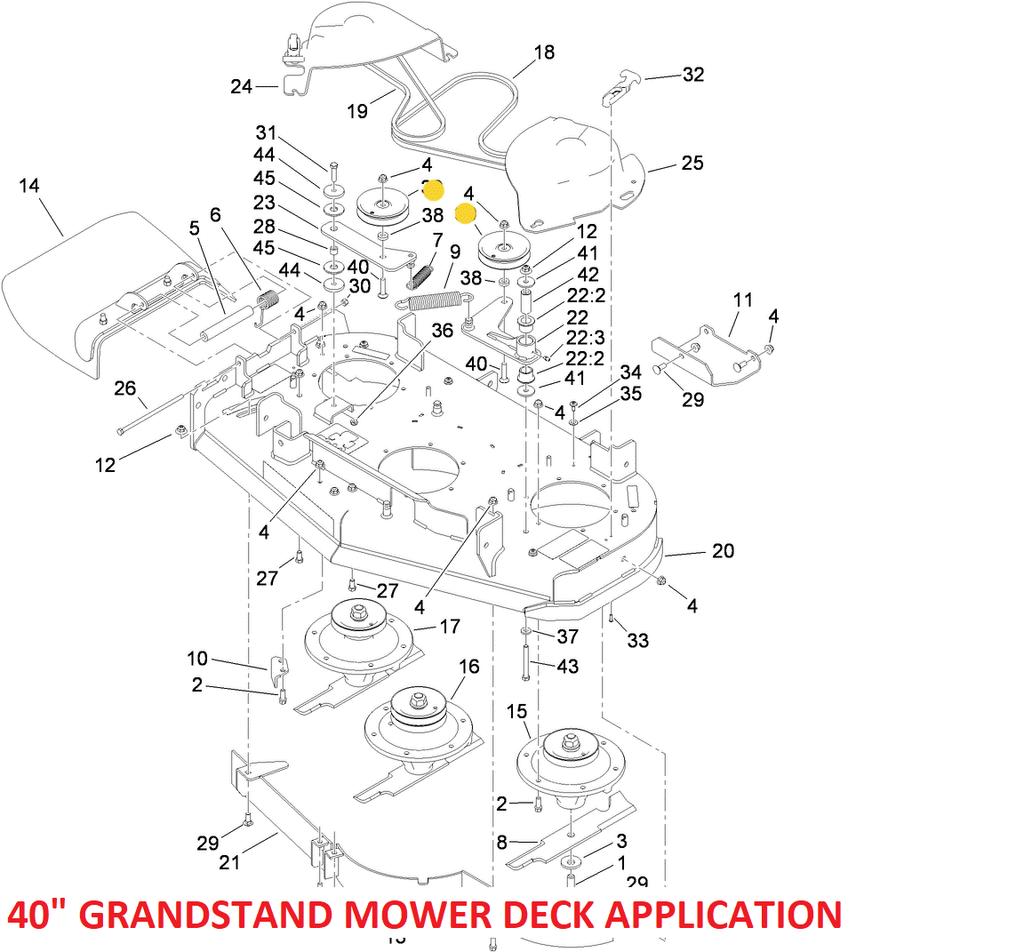

The Toro OEM 93 1622 Hydraulic Drive and Mower Deck Flat Idler is manufactured with strong steel alloy and high-quality ball bearings to ensure dependable operation in harsh, wet, hot, and dirty conditions. Built to original specifications, this Flat Idler is designed to maintain correct tension on Hydraulic and/or Traction Drive Belts. 93 1622 OEM Flat Idler is compatible with a variety of Toro models, including the Current/Late 36", 40", 48", 52",60" Grandstand Standard & Multi-Force Models (Note 36", 40" Use it on the Mower Deck as well as the Hydrostatic Drive)   - Early 48", 52", 60" Z Master 2000 Models (with Tube Style Framing) - Early Z Master Z Models - EZ-VAC Models - Early Proline & Walk Behind Models - Early Garden Tractor, Recycler and Bagger Component Models and More .... * Review the Model Fit Chart for a Complete List of Models. Idler Pulley 93-1622 is Used as Hydrostatic Drive Idler on Late and Current Models However on some Late/Early Models it may have different applications. For Additional Fastner & Associated Part references for Idler Pulley 93-1622 review the Associated Parts Link Below the Model Fit Chart. Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below for an Accurate Break down of Specific Model Number Usage.  If You are Having Trouble Finding the Correct Hydraulic Idler Pulley Combination for Your Model, there is also a Chart with Detailed Break Down with Common Family and Model Numbers with the Correct Idler Pulley Part Number Combination Above in the Images as well as Below the Model Fit Guide and The Associated Part References. If this still doesn't prove helpful feel free to contact us with your questions. Part Number 106144, 112895 and 6769 Supersedes to Part Number 93-1622







NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Part Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Page to Find the correct Model/Pulley Part Number Combo.







Specification

Product Number:	106144, 112895, 6769, 931622
Brand:	Toro
Length:	4.500 IN (11.430 CM)
Width:	4.500 IN (11.430 CM)
Height:	0.800 IN (2.032 CM)
Weight:	0.740 LB (0.336 KG)

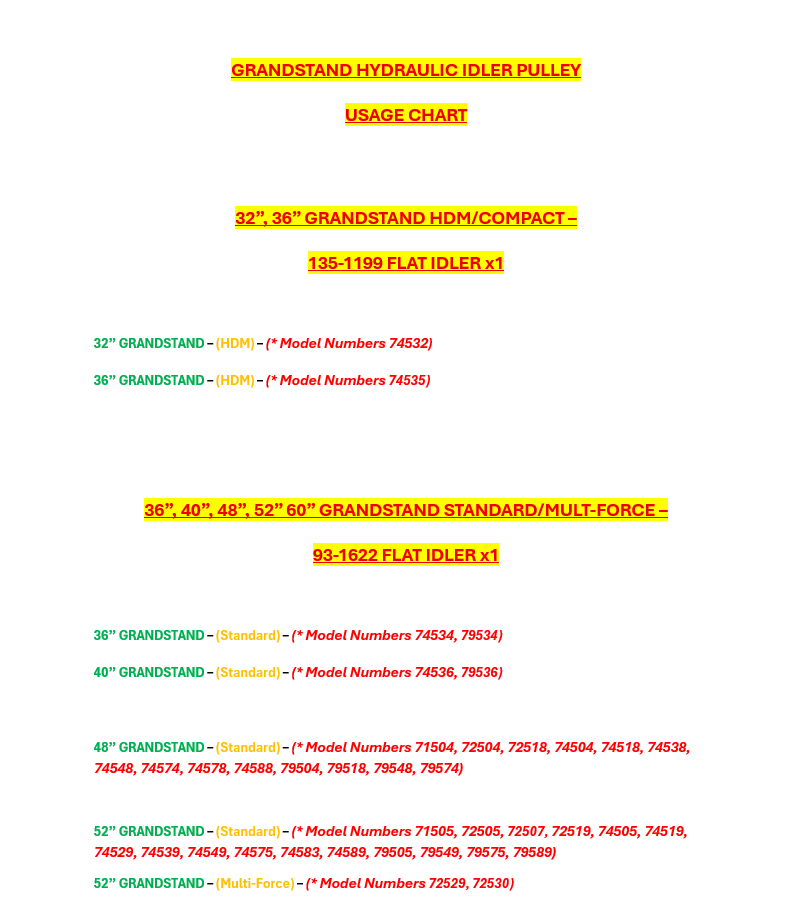

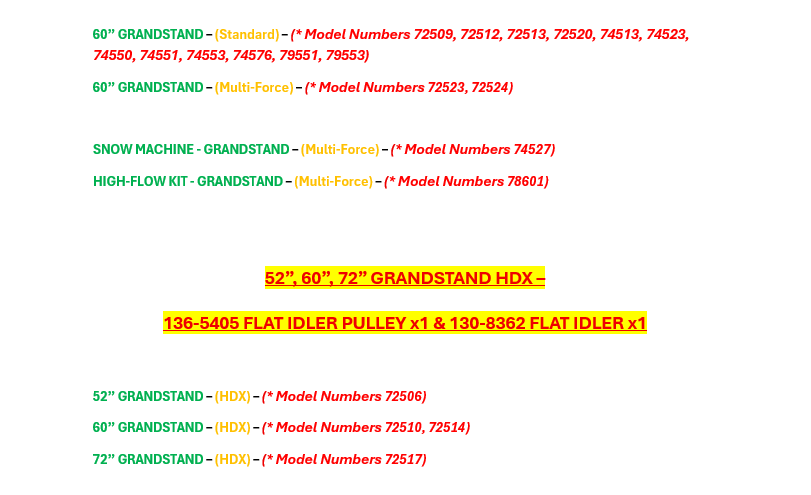

Model Fit:





Z-Master 2000 – 93-1622 MODEL/SERIES USAGE



Z Master 2000 Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) - (* Model Numbers 74141, 74143, 74145)



Z-Master Z – 93-1622 MODEL/SERIES USAGE



Z MASTER Z MODELS – EARLY MODELS – (MODEL NUMBERS 74180, 74181, 74182, 74183, 74187, 74189, 74191, 74195, 74805)



GRANDSTAND STANDARD/MULT-FORCE – 93-1622 MODEL/SERIES USAGE



36” GRANDSTAND – (Standard) – (* Model Numbers 74534, 79534)



40” GRANDSTAND – (Standard) – (* Model Numbers 74536, 79536)



48” GRANDSTAND – (Standard) – (* Model Numbers 71504, 72504, 72518, 74504, 74518, 74538, 74548, 74574, 74578, 74588, 79504, 79518, 79548, 79574)



52” GRANDSTAND – (Standard) – (* Model Numbers 71505, 72505, 72507, 72519, 74505, 74519, 74529, 74539, 74549, 74575, 74583, 74589, 79505, 79549, 79575, 79589)

52” GRANDSTAND – (Multi-Force) – (* Model Numbers 72529, 72530)



60” GRANDSTAND – (Standard) – (* Model Numbers 72509, 72512, 72513, 72520, 74513, 74523, 74550, 74551, 74553, 74576, 79551, 79553)

60” GRANDSTAND – (Multi-Force) – (* Model Numbers 72523, 72524)



SNOW MACHINE - GRANDSTAND – (Multi-Force) – (* Model Numbers 74527)

HIGH-FLOW KIT - GRANDSTAND – (Multi-Force) – (* Model Numbers 78601)



PROLINE/WALK BEHIND – 93-1622 MODEL/SERIES USAGE



WALKBEHIND MODELS – Early Models Only – (MODEL NUMBERS 30032, 30071, 30076, 30078, 30079, 30096, 30098, 30099, 30280, 30284, 30286, 30288, 30289, 30488, 30489, 30494, 30496, 30498, 30499, 38096, 39096, 39488, 39494, 39496, 39498)



EZ-VAC Models – 93-1622 MODEL/SERIES USAGE



EZ-VAC – Model Numbers – (* Model Numbers 79102, 79203, 79301, 79401, 79104, 79162, 79163, 79166, 79167, 79305, 79310, 79448, 79480)



MISC. Lawn Mower, Riding Tractor, Bagger, Etc. Models – 93-1622 MODEL/SERIES USAGE



EARLY Garden Tractor MODELS – (MODEL NUMBERS 78290, 78294, 78295, 78449)



EARLY G, GT, NGT, YGT MODELS – (PRE - Current IBEAM – Framing – Tube Framing Models Only) – (MODEL NUMBERS 78281, 78253, 78361, 78363, 78364, 78365, 78370, 78448, 78452)



Recycler Mower Models, Walk behind Models, Bagger Components and other Misc. Models – Model Numbers – (* Model Numbers 62570, 78280, 78285, 78360, 78368, 78410, 78460, 79160, 79161, 98294, 99480, 99162, 99163, 99166, 717318006, 715699016, 715700016, 715703006, 716257016)







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 93-1622 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECT

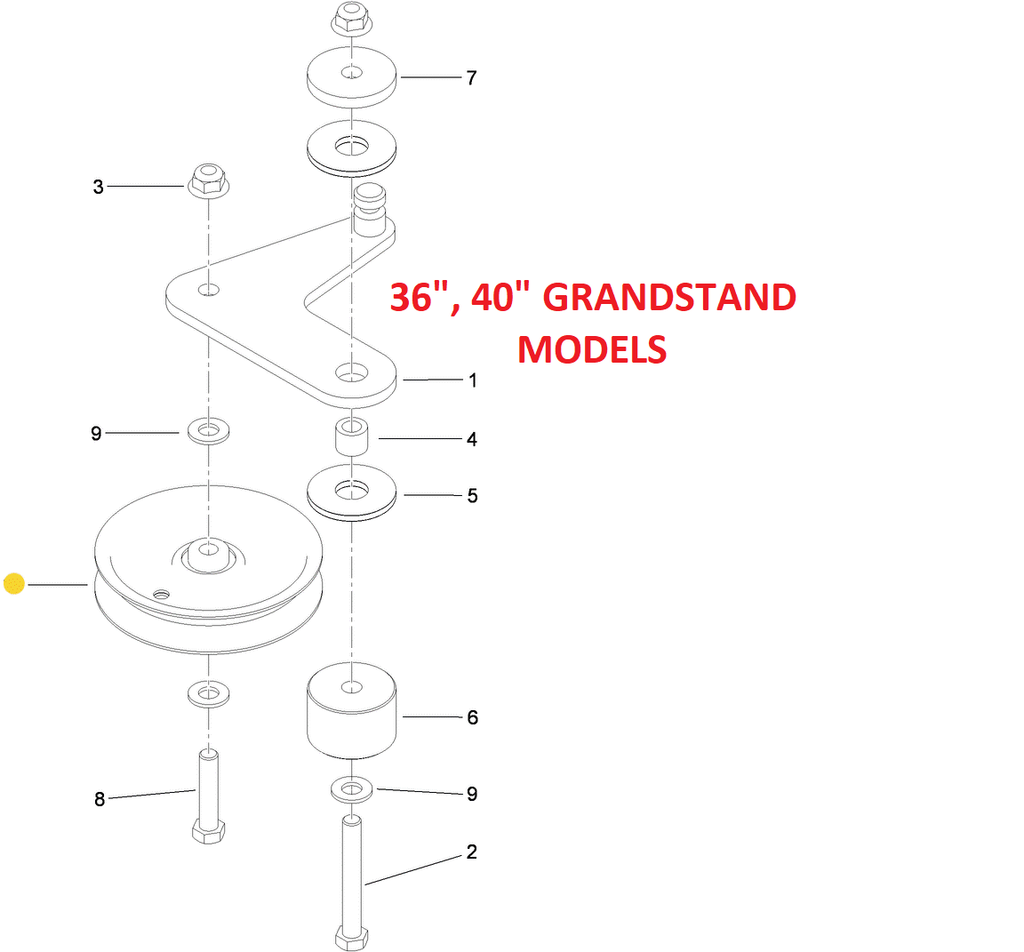

36" & 40" GRANDSTAND MODELS ONLY



1. 323-9 - IDLER PULLEY BOLT - (Retains Flat Idler) x1 Per Flat Idler Pulley
2. 117-7684 - IDLER ARM - (Retains One Flat Idler Pulley for Belt Tensioning Purposes) x1 Per Unit
3. 3256-24 - IDLER PULLEY WASHER - (Enables the Correct Tightening Diameter and Spacing Against the Flat Idler Bearing Surface and is Used on Both Side of the Idler Pulley Between Idler Pulley and Bolt Head as well as Between Idler Pulley and Idler Arm) x2 Per Flat Idler Pulley * One on Each Side of the Idler Pulley.
4. 104-8301 - IDLER PULLEY NUT - (Retains Flat Idler) x1 Per Flat Idler Pulley





48", 52", 60" GRANDSTAND STANDARD & MULTI-FORCE MODELS ONLY



1. 3231-4 - IDLER PULLEY BOLT - (Retains Flat Idler) x1 Per Flat Idler Pulley
2. 131-1175 - IDLER ARM - (Retains One Flat Idler Pulley for Belt Tensioning Purposes) x1 Per Unit * Model Numbers 71504, 71505, 72504, 72505, 72507, 72509, 72512, 72513, 72518, 72519, 72520, 72523, 72524, 72529, 72530, 74504, 74505, 74513, 74518, 74519, 74523, 74527, 74529, 79504, 79505, 79518
3. 119-8737 - IDLER ARM - (Retains One Flat Idler Pulley for Belt Tensioning Purposes) x1 Per Unit * Model Numbers 74538, 74539, 74548, 74549, 74550, 74551, 74553, 74574, 74575, 74575, 74583, 74588, 74589, 79548, 79549, 79551, 79553, 79574, 79575, 79589
4. 104-8301 - IDLER PULLEY NUT - (Retains Flat Idler) x1 Per Flat Idler Pulley

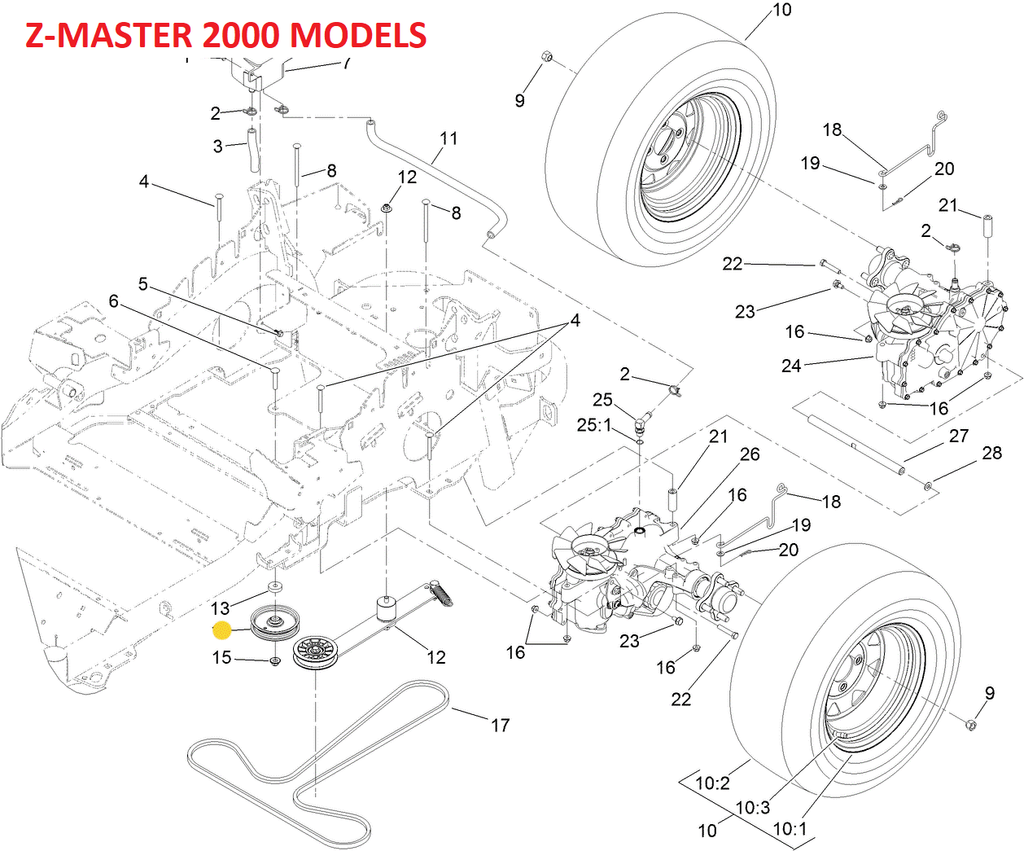

Z-MASTER 2000 MODELS ONLY



1. 3231-4 - IDLER PULLEY BOLT - (Retains Flat Idler) x1 Per Flat Idler Pulley
2. 105-7788 - IDLER PULLEY SPACER - (Enables Hydraulic V-Idler to be Tightened Within Correct Spacing from Mower Frame/Engine Platform) x1 Per Flat Idler Pulley Fastened to Engine Platform/Mower Frame.

3. 104-8301 - IDLER PULLEY NUT - (Retains Flat Idler) x1 Per Flat Idler Pulley
