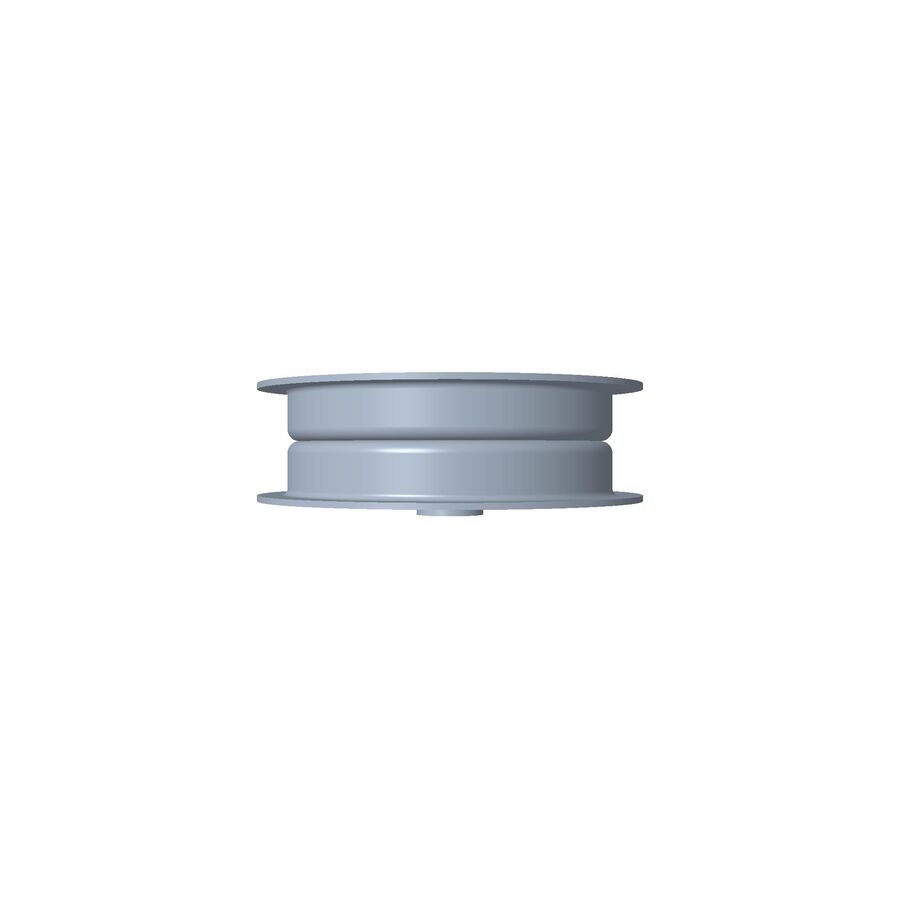

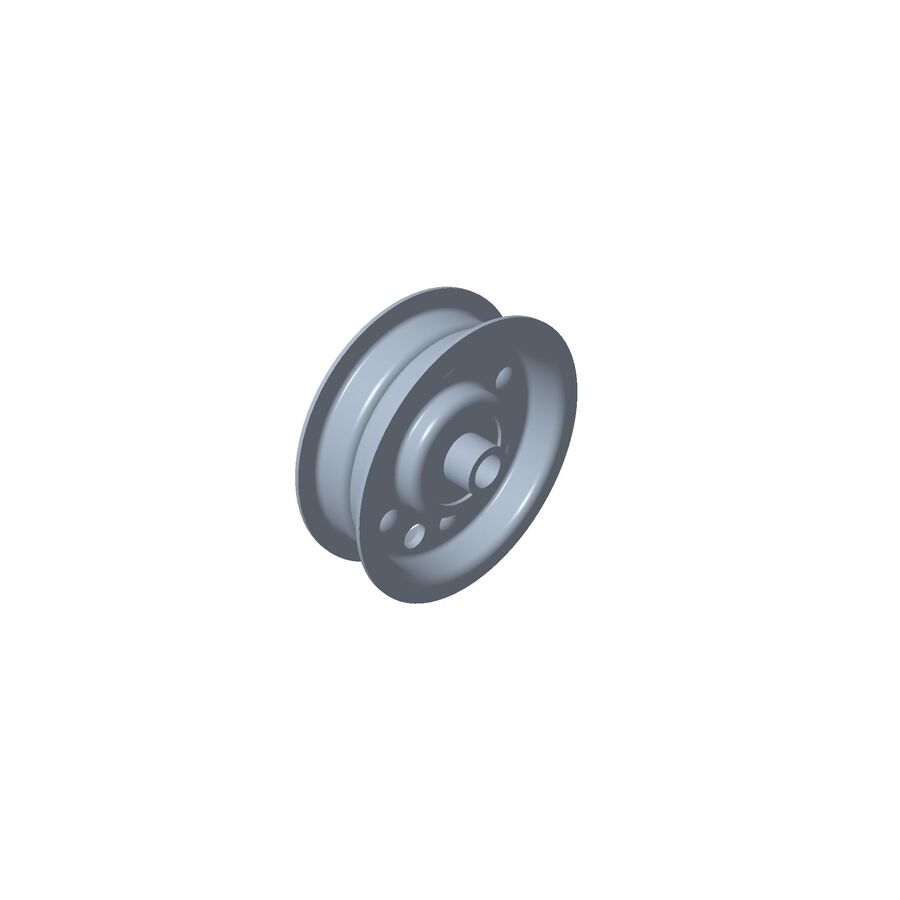

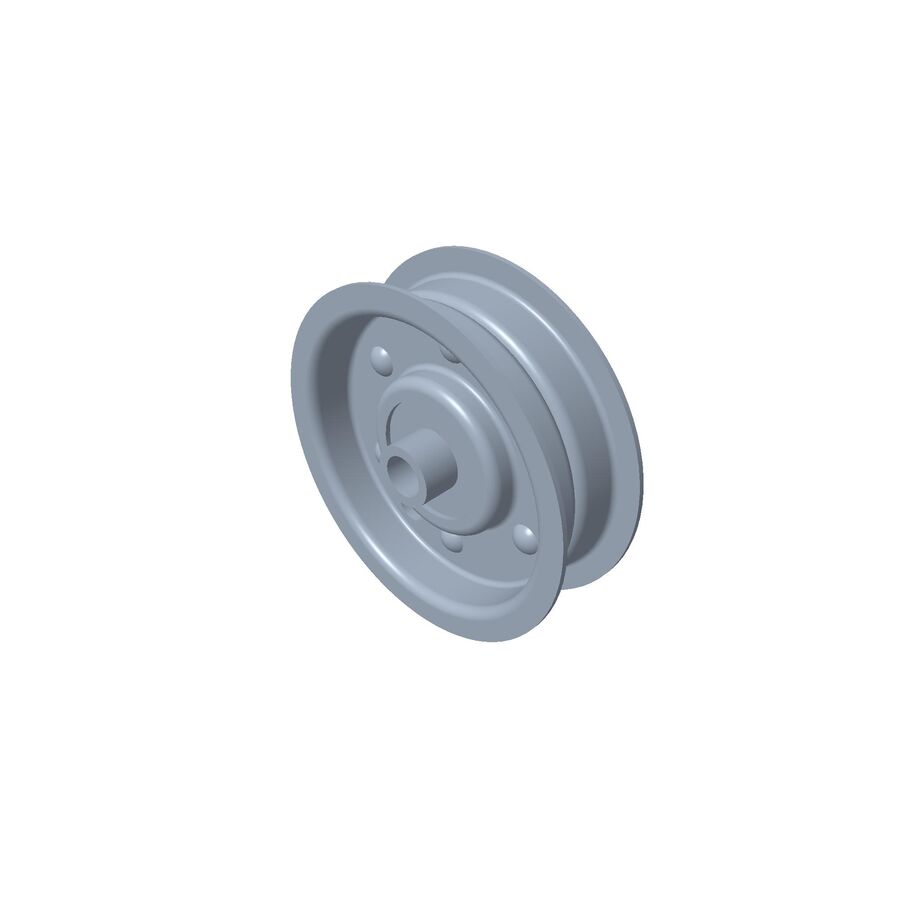

Toro OEM 92-7104 Flat Idler Pulley Commonly Fits Select Toro Snowblower Models (Auger Belt) and a Wide Range of other Series, Models and Usages. TORO DEALER

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.



Part Number 105874 Supersedes to Part Number 92-7104





• PRODUCT NUMBER AND VARIATIONS: 92-7104, 92 7104, 927104, 105874
• PRODUCT TYPE: Flat Idler Pulley
• SIZE: Length 3.400 in. - Width 3.400 in. - Height 1.100 in. - Weight 0.390 lbs.
• NOTES & DETAILS: Toro OEM  92-7104 IS COMMINLY USED - 92-7104 Flat Idler is Often Used as a Traction Drive, Belt Tension Idler, Mower Deck Belt Flat Idler on Riding Tractors, Tillers, Attachment, Kits and Many More Usages. However, it's Most Common Usage is Used as the Tensioner Auger Flat Idler for the Auger V-Belts on a Wide Range of Snowblower Model and is Fastened to the Pulley/Auger Clutch Arm applying Pressure to the Auger Belt When the Operator Engages the Operators Auger Bail Lever. Most Common Snowblower Models are Categorized Below in the Model Fit Chart as well as the Fuel Model List for 92-7104 Flat Idler Pulley Usages.
• COMMON SERIES APPLICATIONS: Toro Select Snow Blower Models and A Wide Range of other Usage as well.





• MODEL FIT CHART:



COMPLETE MODEL/SERIES USAGES



106-8255, 23740, 38595, 38597, 38610, 38611, 38614, 38620, 38621, 38622, 38624, 38629, 38630, 38631, 38632, 38633, 38634, 38635, 38637, 38639, 38640, 38641, 38642, 38644, 38645, 38650, 38651, 38652, 38654, 38657, 38660, 38661, 38662, 38663, 38664, 38674, 38680, 38700, 38800, 38801, 38802, 38803, 38805, 38806, 38820, 38822, 38823, 38824, 38826, 38828, 38830, 38833, 38834, 38836, 38840, 38841, 38850, 38855, 715704016, 72200, 72201, 72202, 72211, 72212, 725055006, 725055016, 725055026, 79271, 79370, 79375, 79484, 92200, 92201, 92202, 99484





COMMOM SNOWBLOWER USAGES



POWER MAX Series – Model Numbers – (* Model Numbers 38595, 38597, 38610, 38611, 38614, 38620, 38621, 38622, 38624, 38629, 38630, 38631, 38632, 38633, 38634, 38637, 38639, 38640, 38641, 38642, 38644, 38645, 38650, 38651, 38652, 38654, 38657, 38660, 38661, 38662, 38663, 38664, 38674, 38680, 38800, 38801, 38802, 38803, 38805, 38806, 38820, 38822, 38823, 38824, 38826, 38828, 38830, 38833, 38834, 38836, 38838, 38840, 38841, 38850, 38855)

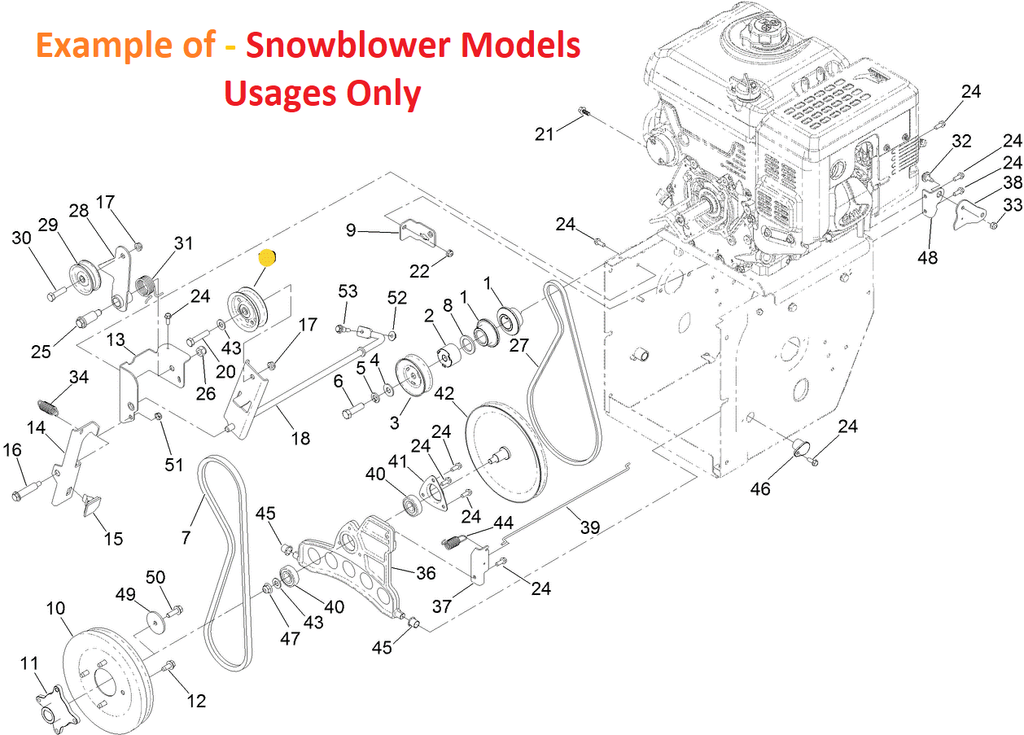

• ASSOCIATED PARTS CHART:





REFERENCES FOR SNOWBLOWER USAGES ONLY



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 92-7104 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 138-0722 - HEX HEAD BOLT (Retains Idler Pulley to Pulley/Impeller Clutch Arm) x1 Per Idler Pulley
2. 115-1166 - FLAT WASHER (Enables the Correct Tightening Diameter Against the Flat Idler Bearing Surface) x1 Per Flat Idler Pulley
3. 121-4600 - HEX NUT (Retains Idler Pulley to Pulley/Impeller Clutch Arm) x1 Per Idler Pulley
4. 137-6234-03 - PULLEY/IMPELLER CLUTCH ARM (Is Retained to the Snowblower Frame by Using a Couple Retaining Brackets and Retains the Idler Pulley as well as Enables it to Rotate. Rotation of the Impeller Clutch Arm is Initiated by Operation of the Operator Clutch/Control Handle or Lever, Engagement of the Clutch Control Handle Operates the Impeller Clutch Arm Via a Clutch Cable, this Rotation of the Impeller Clutch Arm Applies or Neutralizes Pressure Between the Clutch Belt and Idler Pulley) x1 Per Snowblower Unit (Select Models Only - Review Model Fit Chart)
5. 120-0144-03 - PULLEY/IMPELLER CLUTCH ARM (Is Retained to the Snowblower Frame by Using a Couple Retaining Brackets and Retains the Idler Pulley as well as Enables it to Rotate. Rotation of the Impeller Clutch Arm is Initiated by Operation of the Operator Clutch/Control Handle or Lever, Engagement of the Clutch Control Handle Operates the Impeller Clutch Arm Via a Clutch Cable, this Rotation of the Impeller Clutch Arm Applies or Neutralizes Pressure Between the Clutch Belt and Idler Pulley) x1 Per Snowblower Unit (Select Models Only - Review Model Fit Chart)
6. 107-3838-03 - PULLEY/IMPELLER CLUTCH ARM (Is Retained to the Snowblower Frame by Using a Couple Retaining Brackets and Retains the Idler Pulley as well as Enables it to Rotate. Rotation of the Impeller Clutch Arm is Initiated by Operation of the Operator Clutch/Control Handle or Lever, Engagement of the Clutch Control Handle Operates the Impeller Clutch Arm Via a Clutch Cable, this Rotation of the Impeller Clutch Arm Applies or Neutralizes Pressure Between the Clutch Belt and Idler Pulley) x1 Per Snowblower Unit (Select Models Only - Review Model Fit Chart)
7. 106-7339-03 - PULLEY/IMPELLER CLUTCH ARM (Is Retained to the Snowblower Frame by Using a Couple Retaining Brackets and Retains the Idler Pulley as well as Enables it to Rotate. Rotation of the Impeller Clutch Arm is Initiated by Operation of the Operator Clutch/Control Handle or Lever, Engagement of the Clutch Control Handle Operates the Impeller Clutch Arm Via a Clutch Cable, this Rotation of the Impeller Clutch Arm Applies or Neutralizes Pressure Between the Clutch Belt and Idler Pulley) x1 Per Snowblower Unit (Select Models Only - Review Model Fit Chart)
