Description

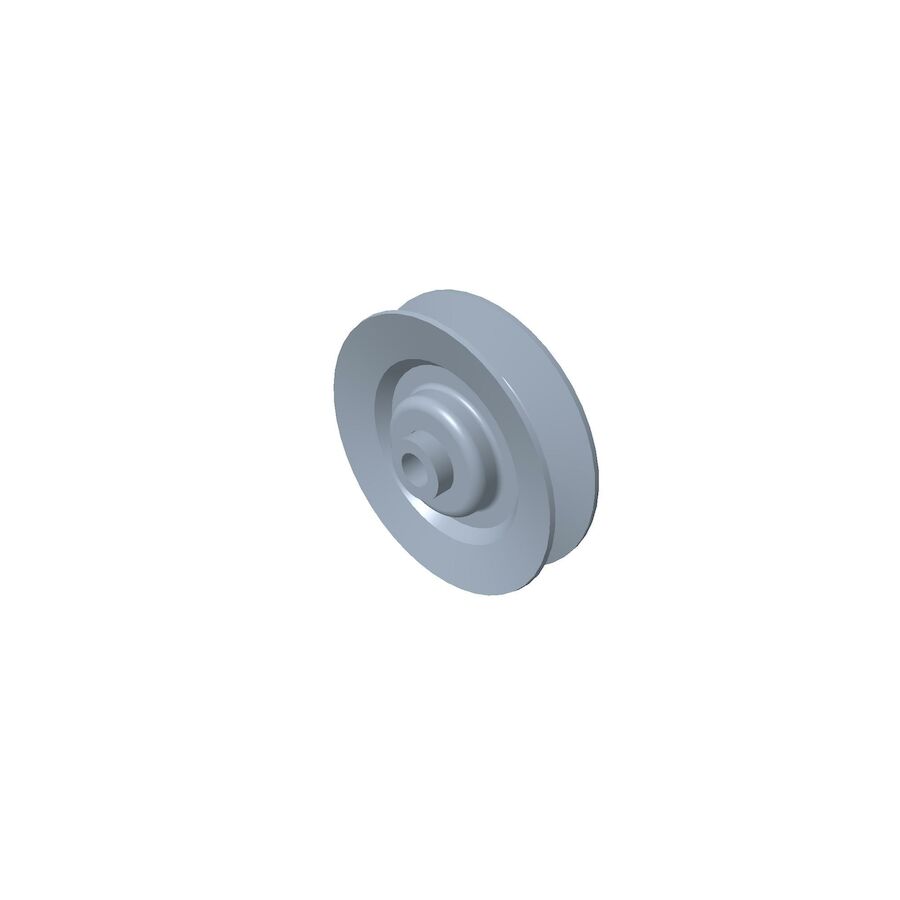

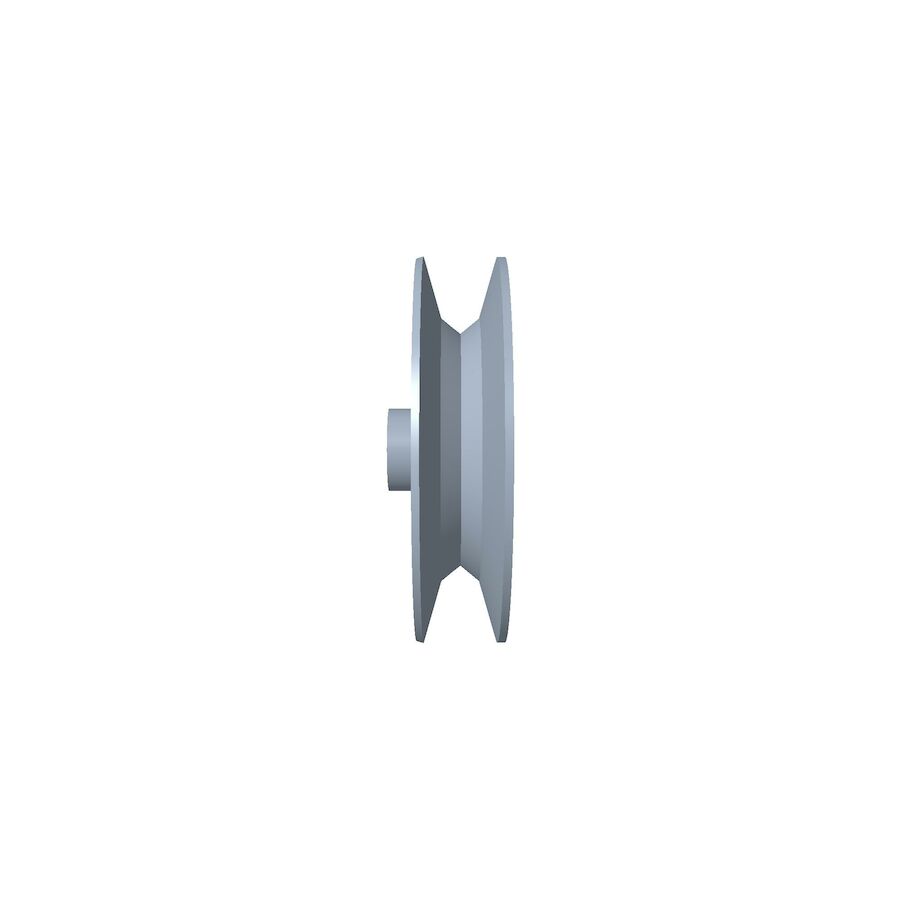

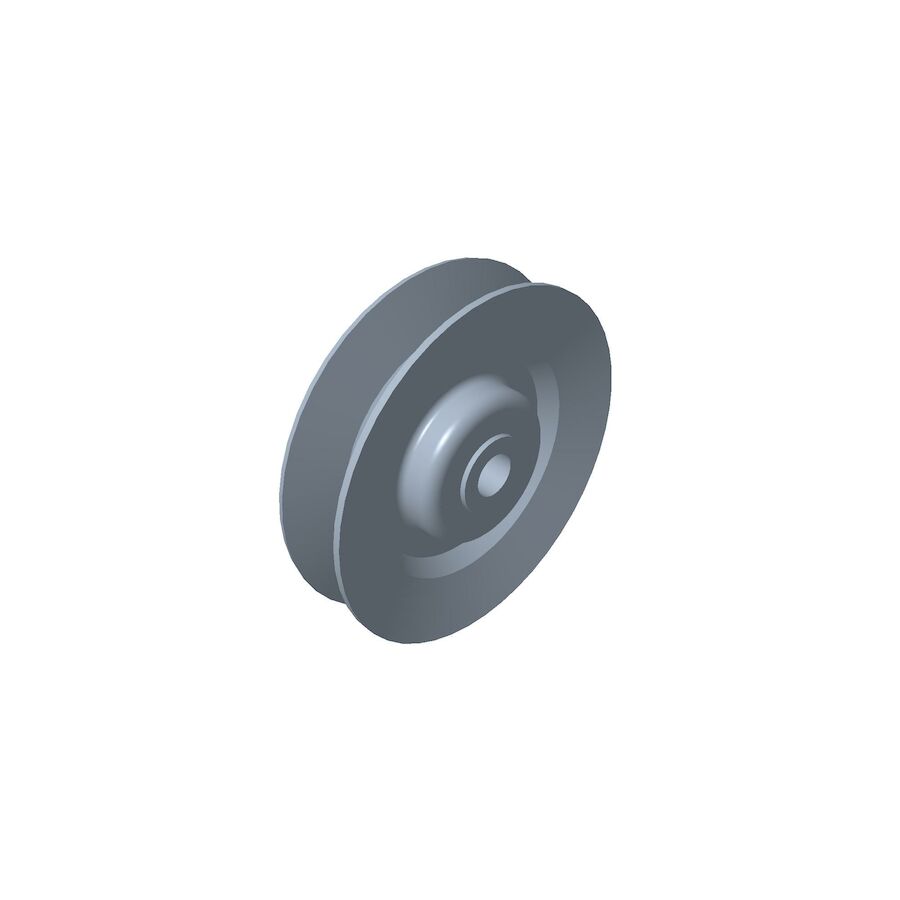

The Toro OEM 92 7101 Hydraulic Drive Flat Idler is manufactured with strong steel alloy and high-quality ball bearings to ensure dependable operation in harsh, wet, hot, and dirty conditions. Built to original specifications, this Flat Idler is designed to maintain correct tension on Hydraulic and/or Traction Drive Belts. 92 7101 OEM Flat Idler is compatible with a variety of Toro models, including the Current/Late 36", 48", 52",60" PROLINE Models - Early Riding Tractor, Tiller, Snow Blower, Snow Blade Models (Review Model Numbers in the Models Fit Chart for Additional Info.). * Review the Model Fit Chart for a Complete List of Models. Idler Pulley 93-1622 is Used as Hydrostatic Drive Idler on Late/Current PROLINE Models However on some Early Models it may have different applications. For Additional Fastner & Associated Part references for Idler Pulley 92-7101 review the Associated Parts Link Below the Model Fit Chart. Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below for an Accurate Break down of Specific Model Number Usage. If You are Having Trouble Finding the Correct Hydraulic Idler Pulley Combination for Your Model, there is also a Chart with Detailed Break Down with Common Family and Model Numbers with the Correct Idler Pulley Part Number Combination Above in the Images as well as Below the Model Fit Guide and The Associated Part References. If this still doesn't prove helpful feel free to contact us with your questions. Part Number 112425, 519537 and 6719 Supersedes to Part Number 92-7101.
NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Part Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Page to Find the correct Model/Pulley Part Number Combo.
Specification
|
Product Number: |
112425, 519537, 6719, 927101 |
|
Brand: |
Toro |
|
Length: |
3.900 IN (9.906 CM) |
|
Width: |
3.900 IN (9.906 CM) |
|
Height: |
0.900 IN (2.286 CM) |
|
Weight: |
0.610 LB (0.277 KG) |
Model Fit:
36”, 48”, 54”, 60” PROLINE – 92-7101 MODEL/SERIES USAGE
36” Proline Series – 36” Current/Late Models Only - (* Model Numbers 44409, 44410, 44436)
48” Proline Series – 48” Current/Late Models Only - (* Model Numbers 44423, 44424, 44448)
54” Proline Series – 54” Current/Late Models Only - (* Model Numbers 44427, 44454)
60” Proline Series – 60” Current/Late Models Only - (* Model Numbers 44430, 44460)
MISC. Lawn Mower, Riding Tractor, Snow Blowers & Blades, Tillers Models – 92-7101 MODEL/SERIES USAGE
Snow Blowers, Recycler Mower Models, Snow Blades, Mower Deck Conversion Kits, Tiller Models – Model Numbers – (* Model Numbers 79165, 79271, 79360, 79362, 79484, 98294, 99165, 99484, 715704016, 716266006, 106-8252, 106-8253)
EARLY H, G, GT, NGT, YGT, C LC, CQ LC, XT, MY, Riding Tractor MODELS – (PRE - Current IBEAM – Framing – Tube Framing Models Only) – (MODEL NUMBERS 72042, 72043, 72045, 72046, 72047, 72048, 72049, 72050, 72051, 72052, 72062, 72063, 72064, 72070, 72071, 72072, 72083, 72084, 72085, 72086, 72087, 72102, 72103, 72104, 72105, 72106, 72107, 72108, 72110, 72115, 72116, 72211, 72212, 72200, 72201, 72202, 78290, 78291, 78292, 78294, 78295, 78345, 78346, 78347, 78350, 78351, 78352, 78353, 78442, 78455, 98290, 98292, 98425, 92200, 92201, 92202, 715699016, 715700016, 716523006, 725055006, 725055016, 725055026)
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 92-7101 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECT

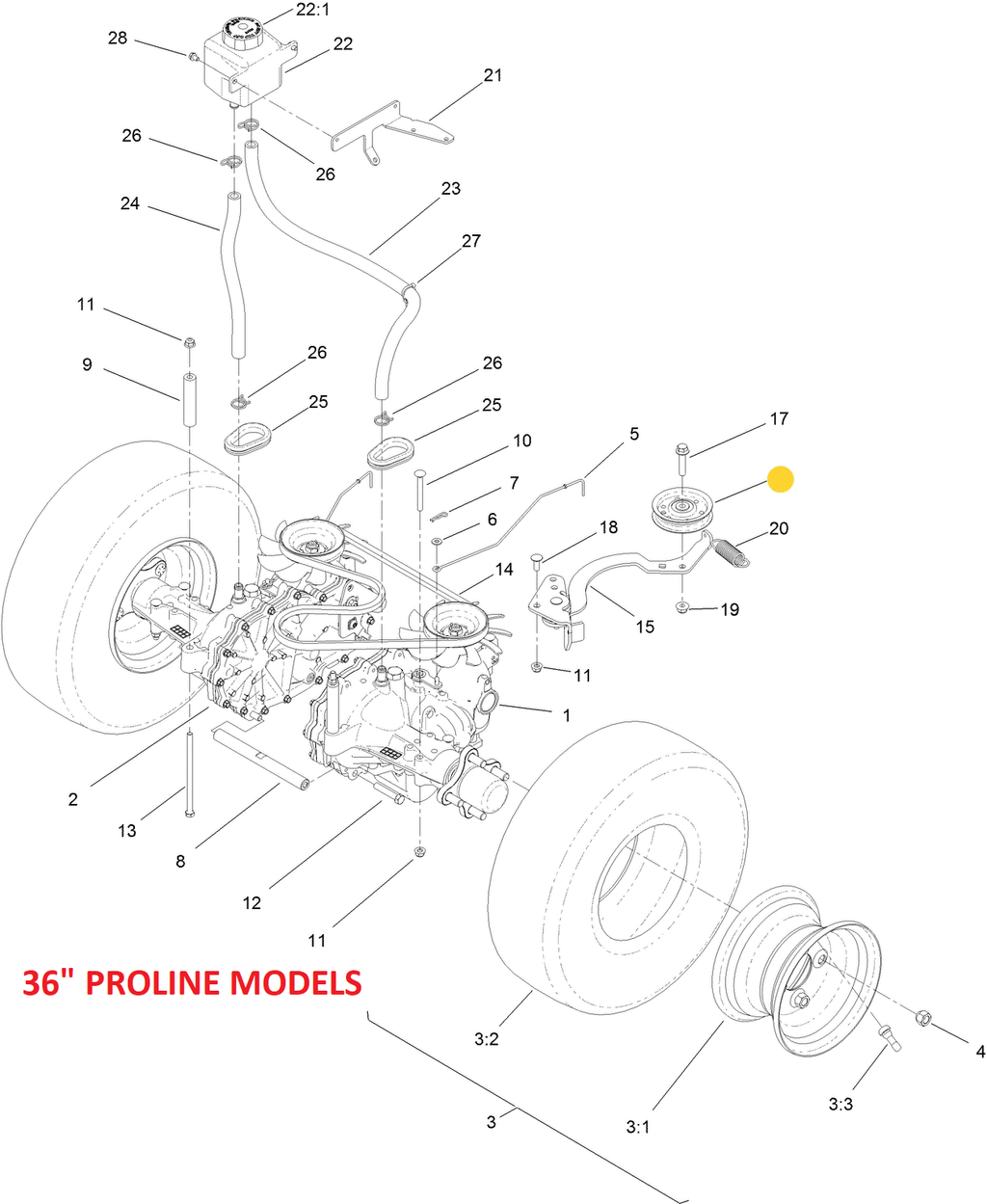

36" PROLINE MODELS ONLY
- 3234-19 - IDLER PULLEY BOLT - (Retains Flat Idler) x1 Per Flat Idler Pulley
- 138-1027 - IDLER ARM ASSEMBLY - (Retains One Flat Idler Pulley for Belt Tensioning Purposes) x1 Per Unit
- 104-8301 - IDLER PULLEY NUT - (Retains Flat Idler) x1 Per Flat Idler Pulley

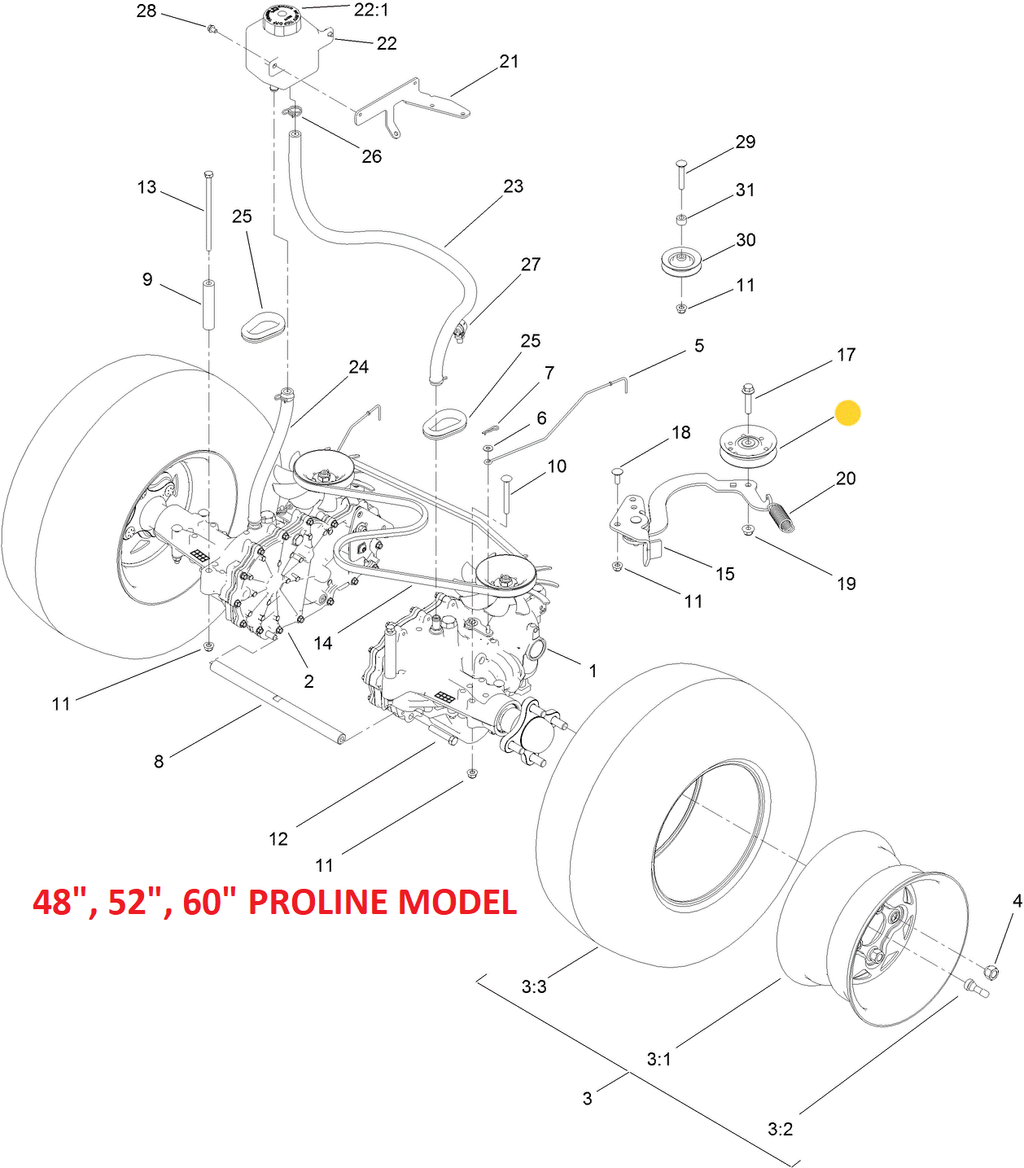

48", 52", 60" PROLINE MODELS ONLY
- 3234-19 - IDLER PULLEY BOLT - (Retains Flat Idler) x1 Per Flat Idler Pulley
- 139-2899 - IDLER ARM - (Retains One Flat Idler Pulley for Belt Tensioning Purposes) x1 Per Unit
- 104-8301 - IDLER PULLEY NUT - (Retains Flat Idler) x1 Per Flat Idler Pulley
