Description
Hustler OEM 797928 Mower Deck Belt is Crafted only from the Finest of Materials and Rigorously and Extensively Tested to verify it withstands the toughest of Operating Conditions. Expertly crafted from premium Aramids and/or Kevlar materials, the Hustler OEM 797928 Is made to Fit Hustler
- 72" 2013 - 2017 Super Z & Super Z HD Models (Rear Discharge VX4 & XR7 Mower Deck - * REFER PART REFERENCE CHART)
- 54" Pre 2011 Side Discharge Super Z HD & Super Z Models (Side Discharge XR7 Mower Deck - * REFER PART REFERENCE CHART).
797928 Mower Deck Belt Serves as the Primary Belt to a Two Mower Deck Belt System for Rear Discharge Models. Don't settle for imitations or substitutes when you can have - worry-free, designed to fit options, knowing that your Hustler Mower Deck Belts are built, tested, and designed specifically to OEM Standards and Expectations. Please refer to the Images above; Product Specifications, Special Notes and the Model Fit guide below to ensure proper fit.
MOWER DECK BELT ASSOCIATED PART NUMBER REFERENCE
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
Note: Below the Individual Part Numbers is a Belt Fit Chart that will List the Mower Deck Belt Part Number Combination that is Correct for each Select Model Number. Using the Mower Deck Belt Chart Click on anyone of the Associated Part Numbers to be Redirected as Needed.

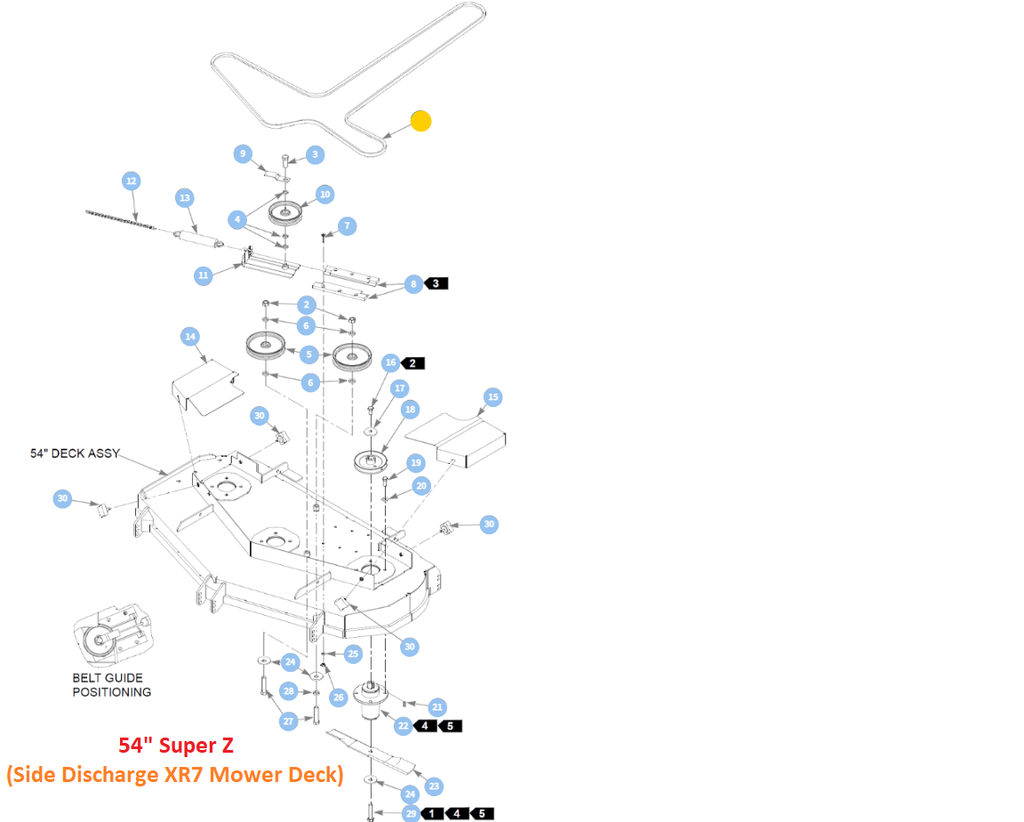

54" Super Z (Side Discharge Mower Deck)
- 782292 - 54" Super Z (2023 - Current)
- 606873 - 54" Super Z (2018 - 2022)
- 601715 - 54" Super Z (2015- 2017)
-
797928 - 54" Super Z (Pre 2011 - XR7 Mower Deck)

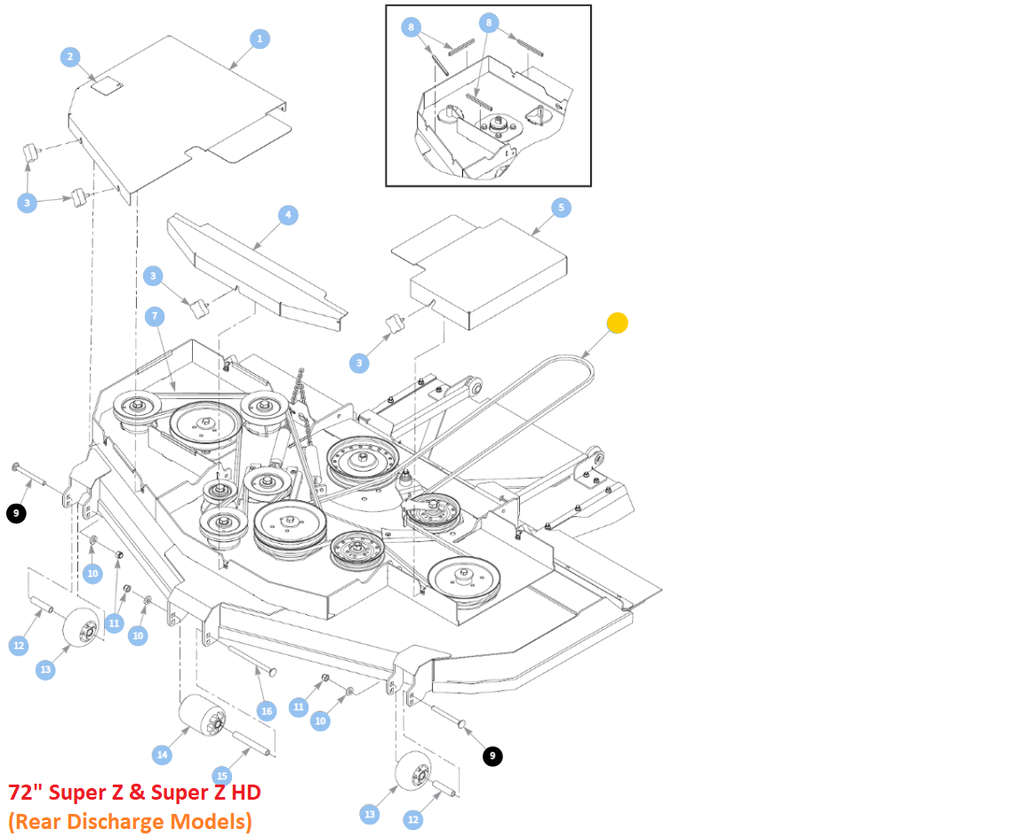

72" Super Z & Super Z HD (REAR DISCHARGE MODELS)
Note: Super Z and Super Z HD 72" Rear Discharge Models Require Two Mower Deck Belts. The Primary Belt Travels from the Engine to the Mower Deck and Around Select Pulleys - Whereas the Secondary Mower Deck Belt is used only on the Mower Deck Itself between Mower Deck Pulleys.
- 601715 - 72" Super Z & Super Z HD (2018 - Current) Primary Belt
- 797928 - 72" Super Z & Super Z HD (2013 - 2017) Primary Belt
- 782292 - 72" Super Z (2011- 2012) Primary Belt
- 603422 - Secondary Mower Deck Belt For all Listed Models
Specification
|
Product Number: |
797928 |
|
Brand: |
Hustler |
|
Length: |
160 1/4 IN |
|
Width: |
5/8 IN |
|
Height: |
NA |
|
Weight: |
1.735 LB |
Model Fit:
54" Super Z (Approximately 2005 - 2007 Models XR7 Side Discharge Mower Deck)
Model Numbers: Not Listed
72" Super Z and Super Z HD (Approximately 2013 - 2017 Models VX4 & XR7 Rear Discharge Mower Deck)
Model Numbers: 932061, 932186, 934224, 934315, 934976, 935064
