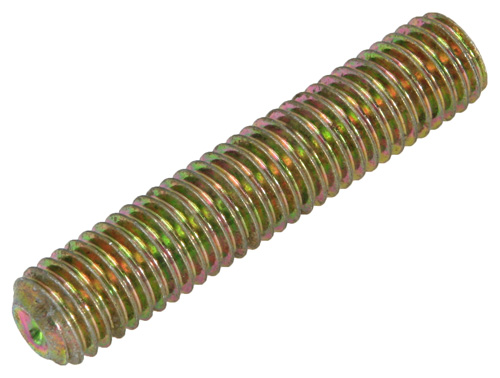

Hustler OEM 797738 Inside Steering Box Stop Stud (.500 x 2.00 - 13) OR (1/2 x 2 - 13) Fits Hustler X-ONE, Super Z, Super Z HD, Super 104 Models and Diesel Z (Select Models).

• Part Number: 797738

• Supersession: n/a

• Description: Steering Box Stop Stud (.500 x 2.00 - 13) OR (1/2 x 2 - 13) Thread Size - Stop Stud.

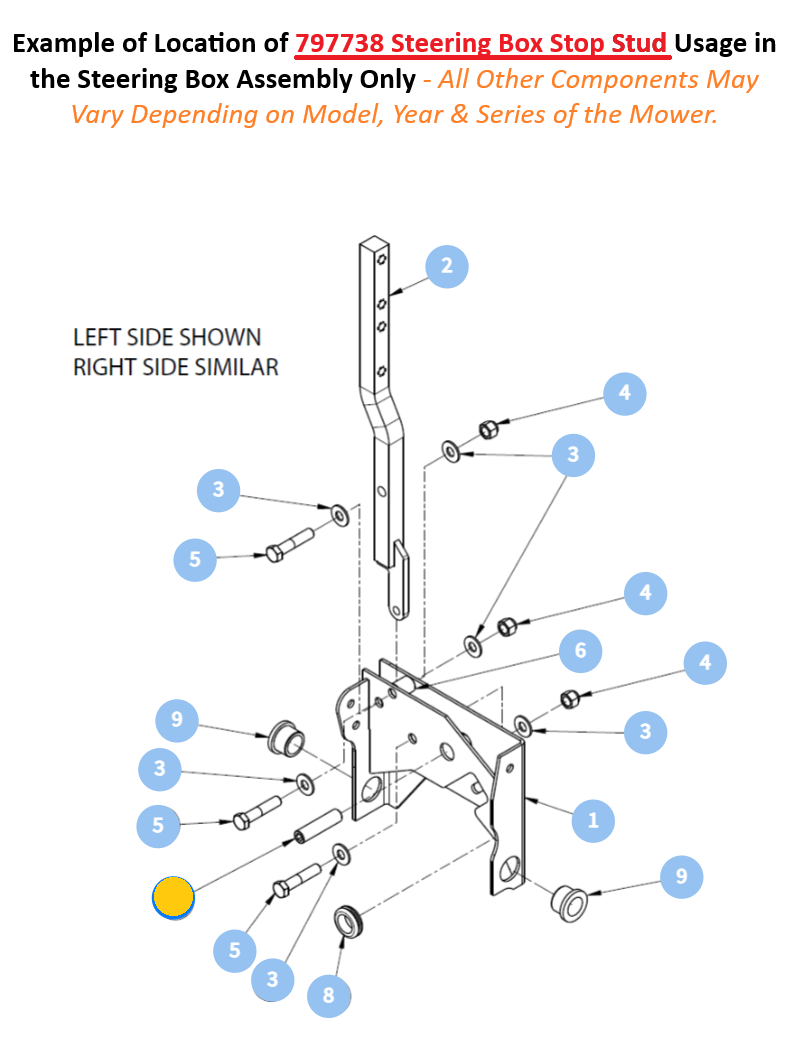

• Application: 797738 is commonly used as a Preventive Steering Box Stop Stud and Screws Directly into the Steering Box Weldment Nut. 797738 Prevents the Steering Box From Traveling To Far In the Forward Position if the Main 603055 Outside Steering Lever Stop Screw is out of Adjustment or In a Assembly and Disassembly of Steering Component & Linkage - Important To Note If the Steering Box is Missing the Steering Box Stop Stud Then  Hydraulic Adjuster Rod and Other Components Could Become at Risk of Damage From Too Much Leverage/Force Being Applied Via the Operator Control Handles - 797738 is Not The Main Steering Lever Stop Stud It's Only Purpose is to Be Preventive Stop for the Steering Box Assembly . Adjustment is Typically Made Only to the 603055 Outside Main Steering Lever Stop (Accessible Via the Operator Station) For Maintaining Proper Steering Control Handle Adjustments and Stop.



Keep your equipment performing the way it was designed with this genuine OEM replacement part. Manufactured to the original equipment manufacturer's specifications, this part is engineered for the proper fit, dependable performance, and long service life.

Whether you're performing routine maintenance or repairing a broken component, using genuine OEM parts helps maintain the reliability and performance of your equipment.

Choosing genuine OEM parts helps ensure your machine continues to operate as the manufacturer intended.

Please verify that Part Number 797738 is the correct replacement for your equipment before placing your order.

Model Fit Chart

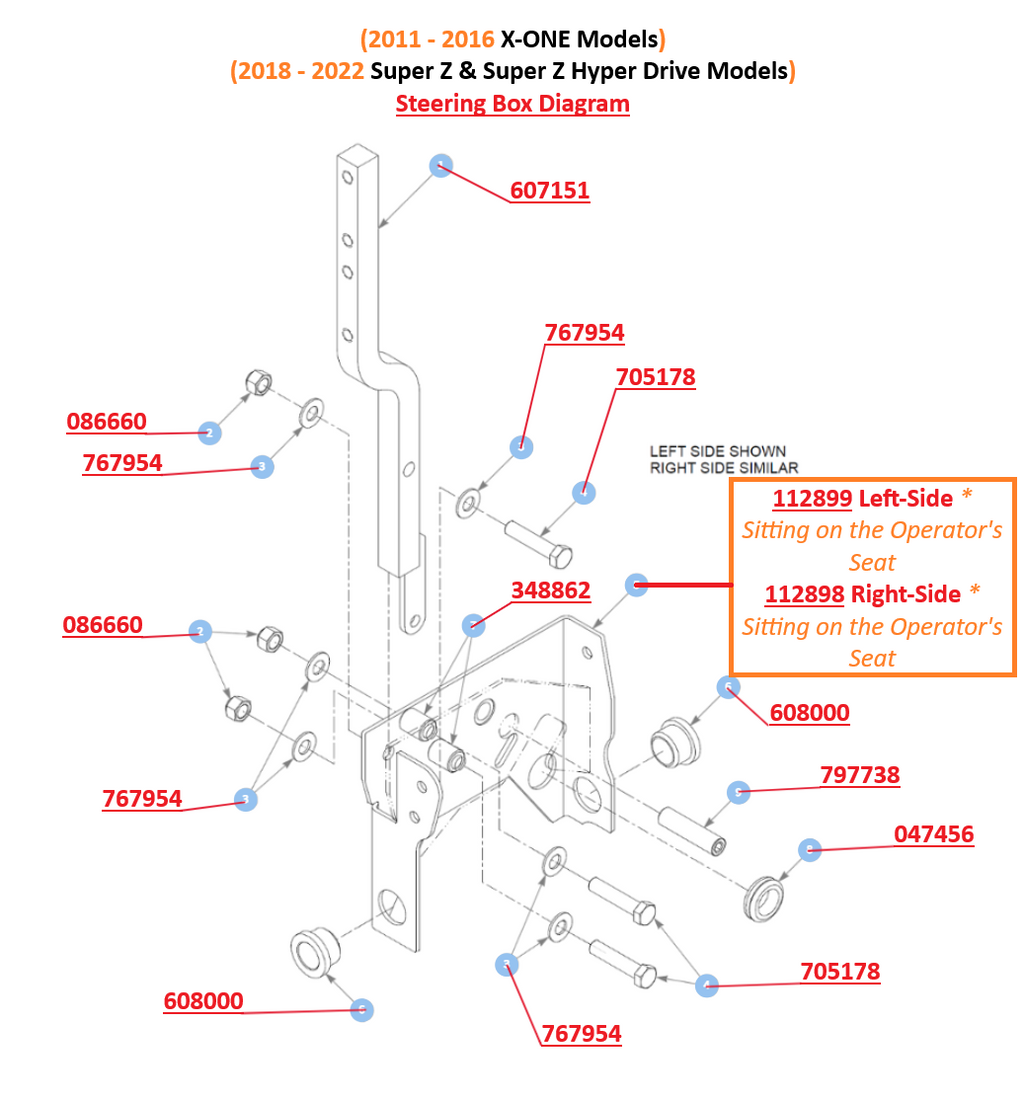

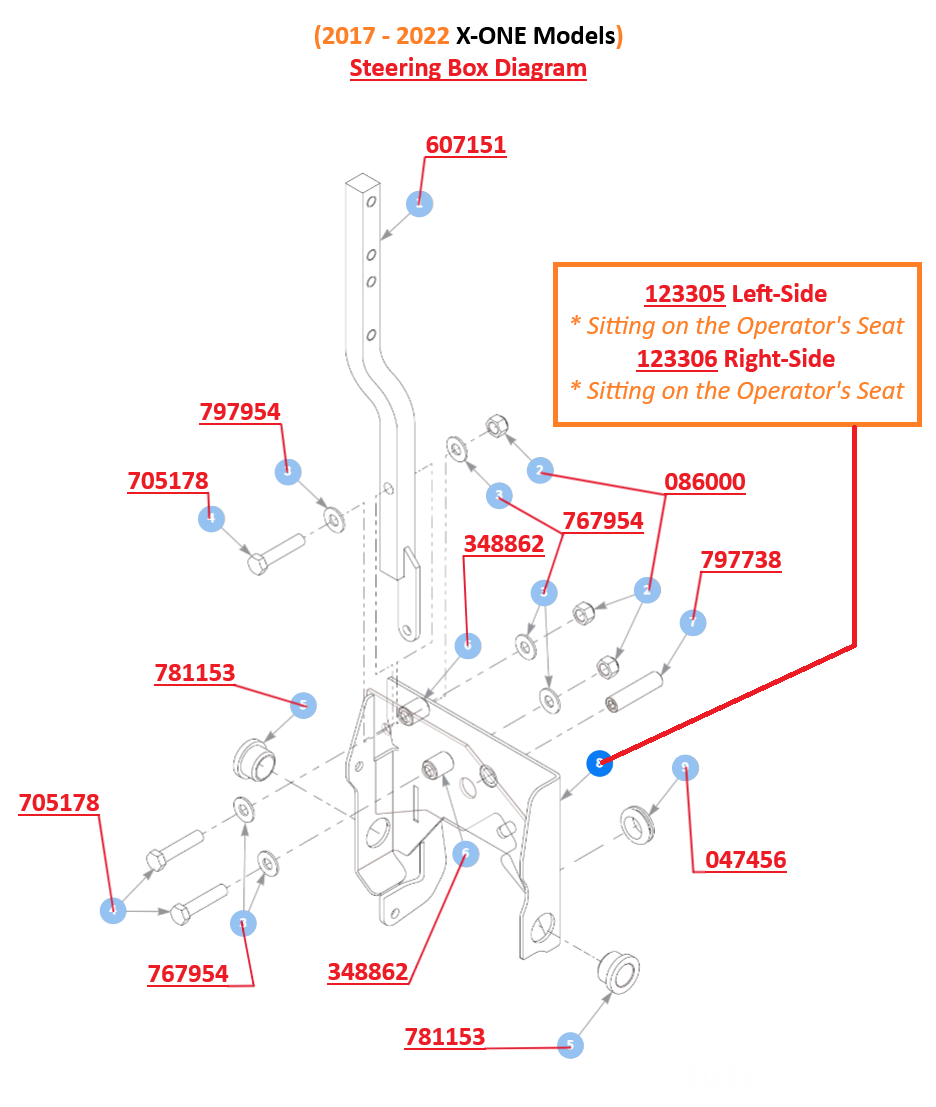

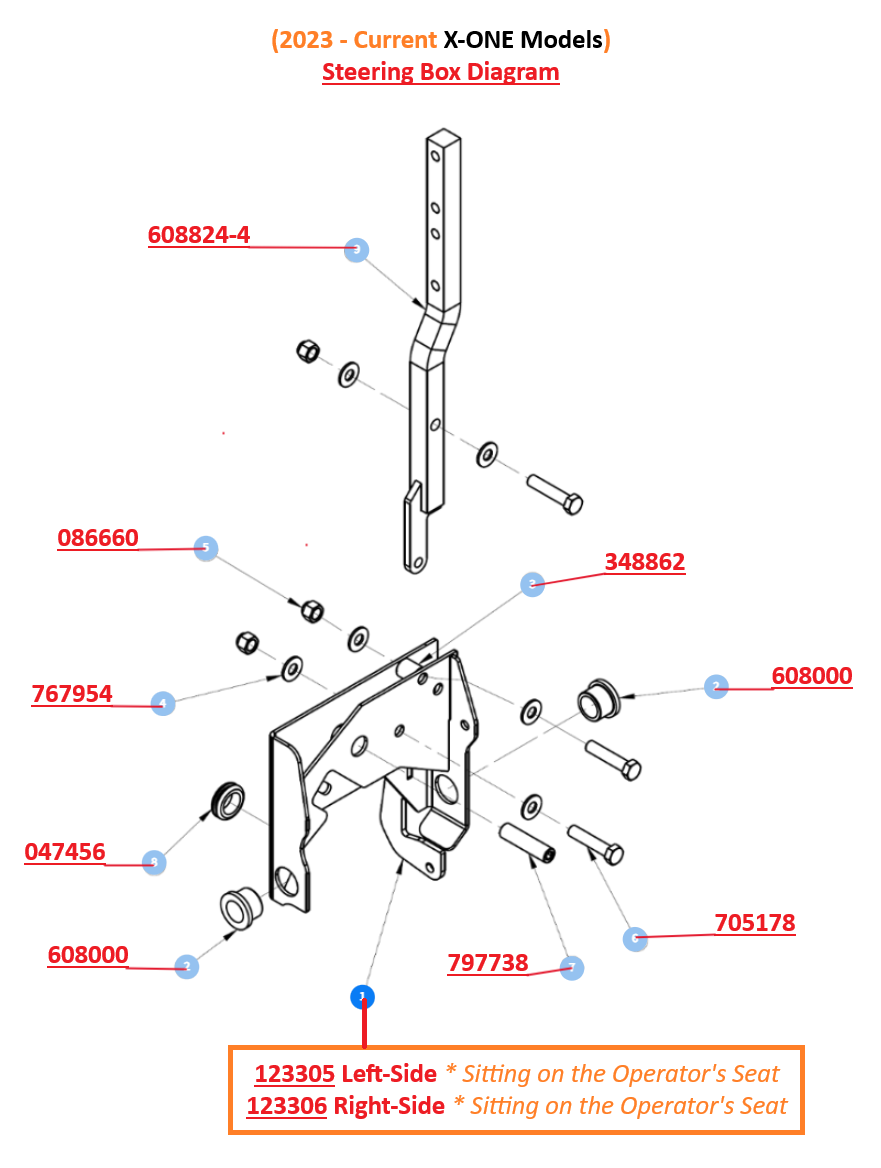

X-ONE (2011 – Current)



930503, 930503US, 930511, 930529, 930529US, 930537, 930537US, 930545, 930552, 930560, 930578, 930586, 930594, 930883, 930891, 931006, 931055, 931055US, 931774, 931782, 932194, 932202, 932210, 932228, 932236, 932244, 932251, 932269, 932715, 932723, 932731, 932749, 932756, 932764, 932772, 932780, 932798, 933317US, 933887US, 933895US, 933978US, 933986US, 933994US, 934117, 934125, 934133, 934141, 934158, 934166, 934174, 936237, 936245US, 936252, 936260, 936278, 936286, 936294US, 936302, 936310, 936328, 936336, 936740, 936765, 936773, 936781, 936799, 936815, 936823, 936831, 936849, 939314, 939322, 940056, 940064, 940072, 940080, 940106, 940114, 940122, 940130, 940197, 941062, 941070, 941369, 941831, 941856, 941864, 941872, 941880, 941898, 941922, 941930, 941971, 942201, 942334, 942797, 943399, 943407, 943787, 943795, 943803, 943811, 943829, 943837, 943845

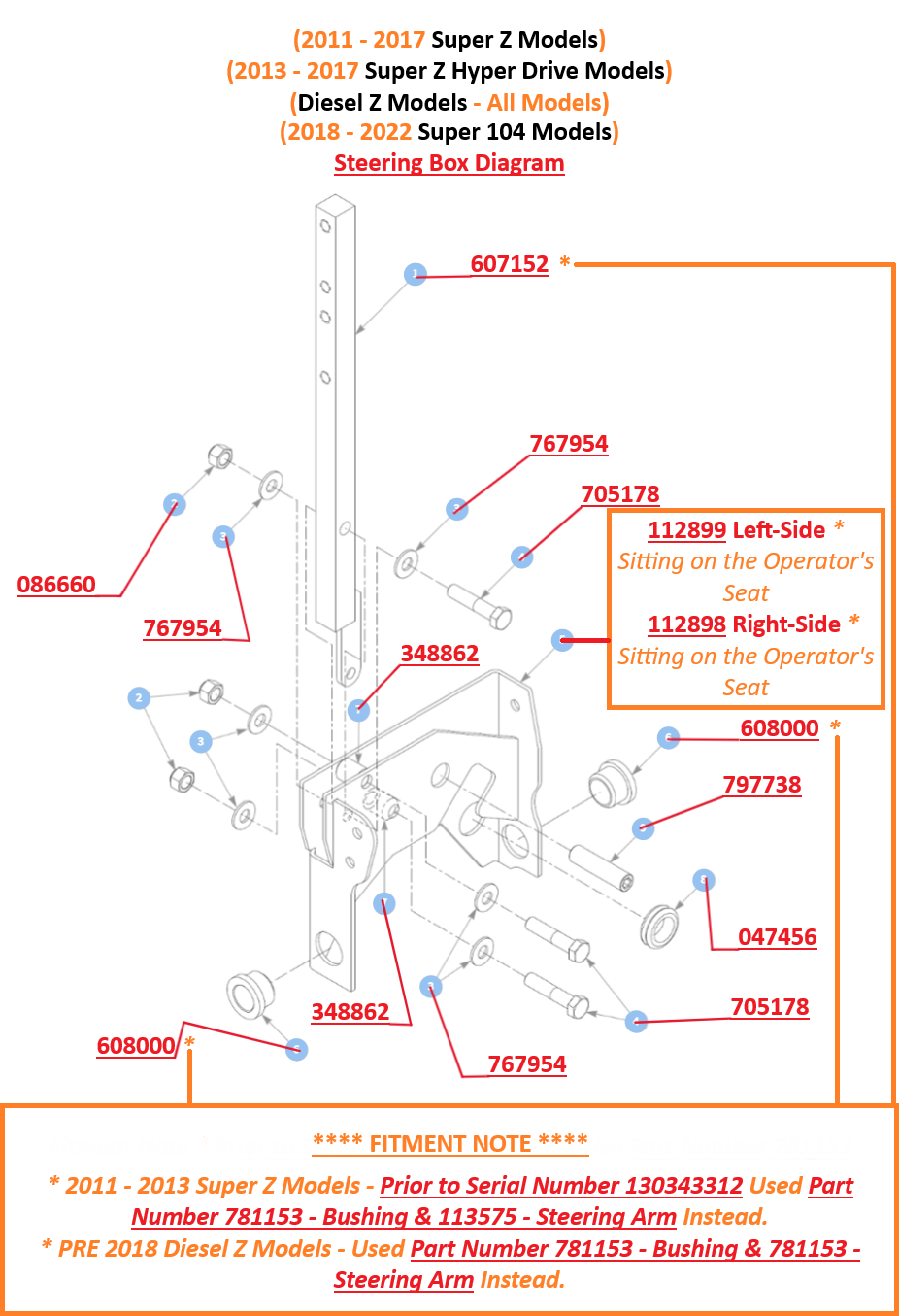

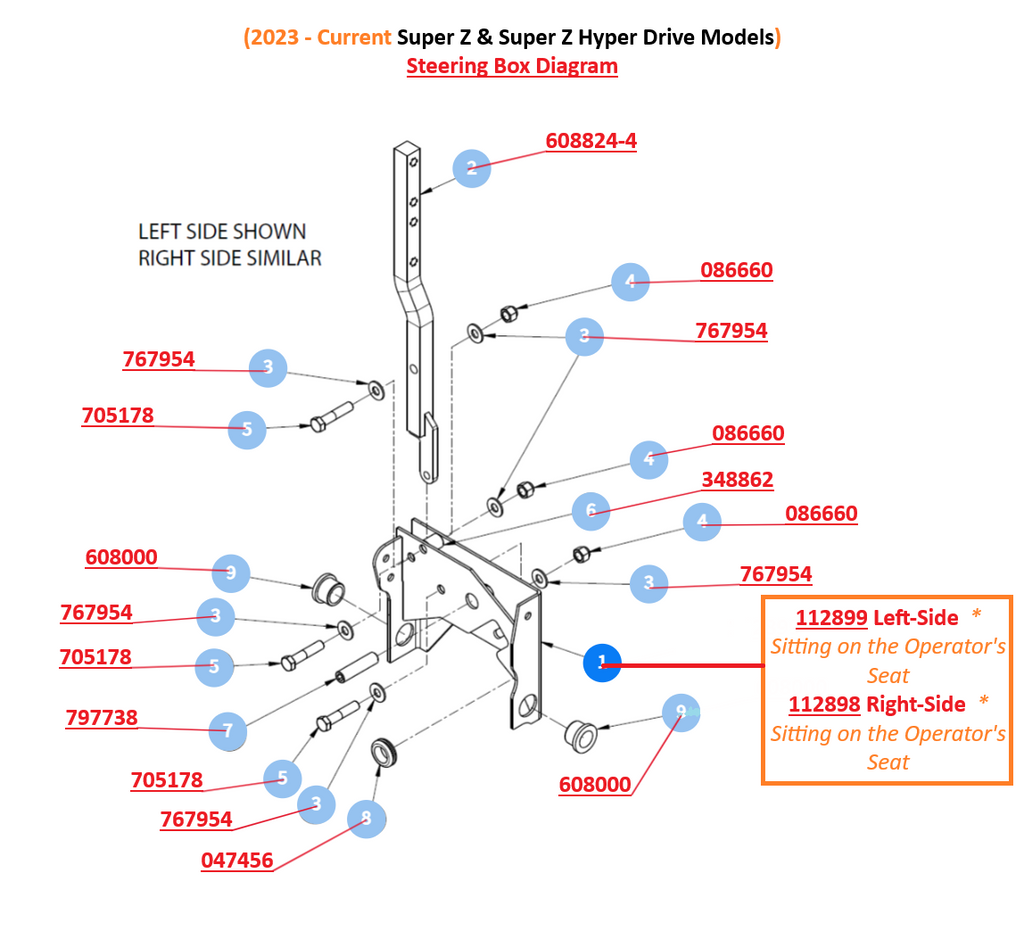

Super Z (2011 - Current Models)



929927, 929935, 929943, 929950, 930024, 930065, 930875, 931048, 931725, 932012, 932020, 932038, 932046, 932053, 932061, 932129, 932137, 932970, 932988, 933457, 933929US, 934216, 934224, 934232, 934240, 934265, 934273, 934281, 934299, 934984US, 934992, 935007, 935015US, 935023, 935031, 935049, 935056US, 935064, 936872, 936880, 936898US, 936914, 936922, 936930, 936948US, 936955, 936989, 937714, 937722, 937730, 938985, 938993, 940031, 940049, 941138, 941146, 941153, 941161, 941179, 941187, 941195, 941203, 941377, 941385, 942342, 942763, 942771, 942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943878, 943886, 943894, 943910, 943928, 943936, 943944





Super Z Hyper Drive (2013 - Current Models)



932145, 932152, 932160, 932178, 932186, 932384US, 932392US, 932996, 933002, 934307, 934315, 934323, 934331, 934349, 934356, 934687, 934695, 934703, 934711, 934919, 934927, 934935, 934943, 934950, 934968, 934976, 936625, 936997, 937003, 937011, 937029, 937045, 937037, 937052, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941245, 941252, 941260, 941278, 941286, 941294, 941302, 941310, 941328, 941534, 941542, 941559, 941567, 942219, 942227, 942235, 942243, 942250, 942359, 942961, 942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943951, 943969, 943977, 943993, 943985, 944017, 944041, 944025, 944033





Diesel Z (2014 - Current Models)



932665US, 932673US, 932681US, 932699US, 932707US, 938233US, 938241US, 938258US, 938266US, 940452US, 940460US, 940478US, 940486US, 943233US, 943241US, 943249US, 943266US

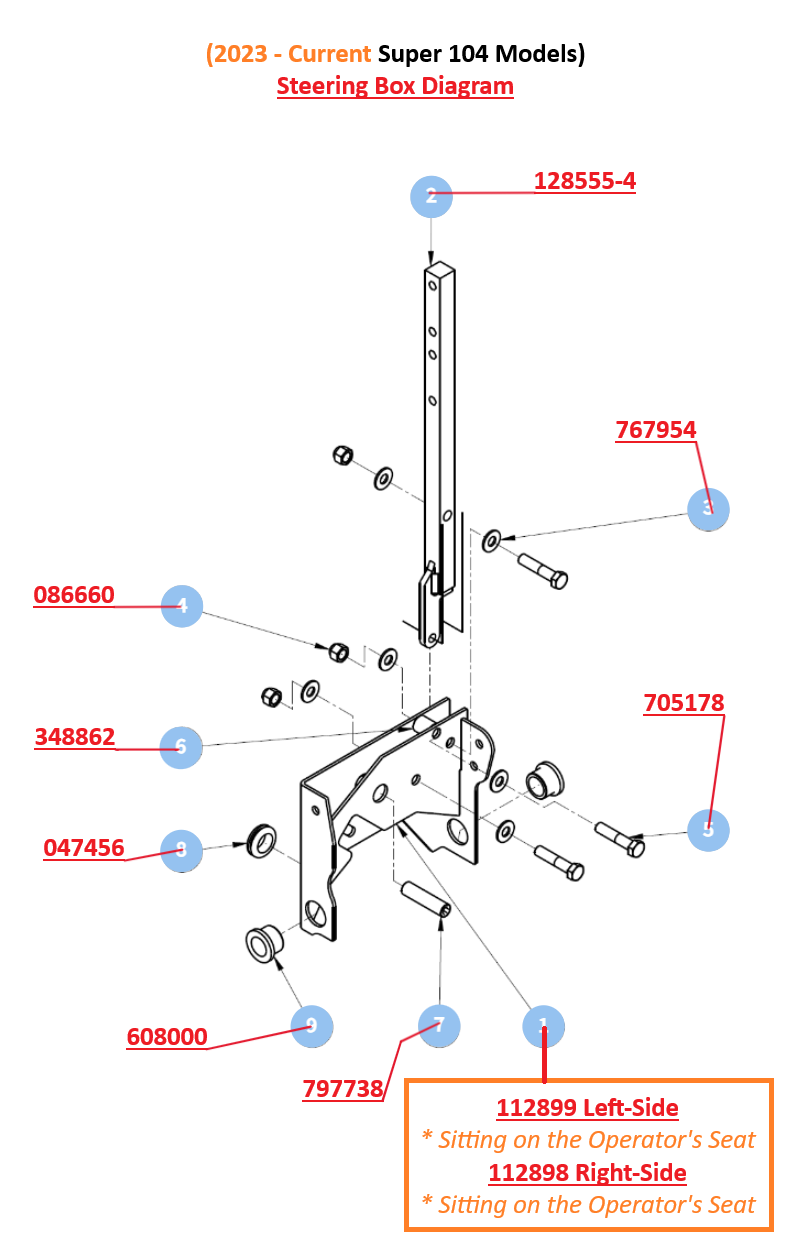

Super 104 (All Models)



937201, 937219, 939462, 939470, 939603, 939652, 941005, 941526, 942318, 943217, 943225, 944058, 944066





If you're unsure, send us your model and serial number, and we'll be happy to verify the correct part before you order.

Your order is shipped by a knowledgeable outdoor power equipment dealership—not a general warehouse.

Every order is carefully packed, and our experienced parts specialists are available to help if you have questions before or after your purchase.

Thank you for choosing Hilly Ridge Sales & Service for your genuine OEM parts needs.

Part Number: 797738

Description: Steering Box Stop Stud (.500 x 2.00 - 13) OR (1/2 x 2 - 13) Thread Size - Stop Stud.
