Description

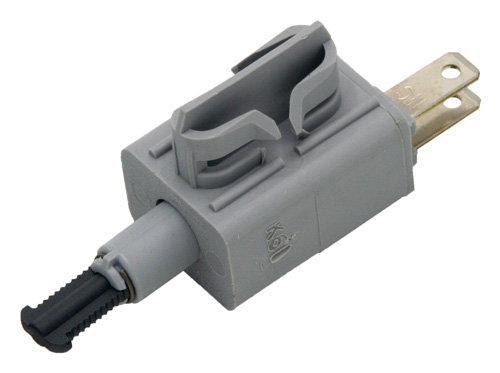

The Hustler OEM 792374 Snap Plunger-Style Safety Switch is used Primarily on the Hustler Trimstar Models as a brake Safety Switch. This Special Safety Switch communicate to each of the operator handle to determine if the Operator is present when the Brake is Disengaged. Eliminate the Guessing Games and Depend on Hustler OEM 792374 to be wired to the correct Polarity for you Unit. Refer to Images Above, Model Fit Chart and the Special Notes Below to verify a Correct Fit.
NOTE: Not all Trimstars will use a Hustler Snap-Plunger Style Brake Safety Switch 792374. Select Models Require a Double Pole Bolt-On Style Safety Brake Safety Switch 023002. Discover the Distinct Visual Variations Between the Two Styles by Referring to the Images Provided. To be Redirected Hustler OEM Snap-Plunger Style Brake Safety Switch 023002 Click on the Part Number.
Specification
|
Product Number: |
792374 |
|
Brand: |
Hustler |
|
Length: |
2.20 IN |
|
Width: |
1.15 IN |
|
Height: |
0.90 IN. |
|
Weight: |
0.030 LB |
Model Fit:
927426, 927400, 929240, 929265, 929273, 929232, 930388, 930388US, 930396, 930404
