Description
Hustler OEM 782292 Mower Deck Belt is Crafted only from the Finest of Materials and Rigorously and Extensively Tested to verify it withstands the toughest of Operating Conditions. Expertly crafted from premium Aramids and/or Kevlar materials, the Hustler OEM 782292 Is made to Fits
- 54" 2023 - Current Super Z & Super Z HD (Side Discharge VX4 Mower Deck - * REFER PART REFERENCE CHART)
- 60" X-One & X-ONEi Model (Wide Range of Years - Side Discharge XR7 & VX4 Mower Deck - * REFER PART REFERENCE CHART if Applicable)
- 72" Hustler 2011 - 2012 Super Z Models (Rear Discharge VX4 Mower Deck - REFER PART REFERENCE CHART). * 782292 Mower Deck Belt Serves as the Primary Belt to a Two Mower Deck Belt System

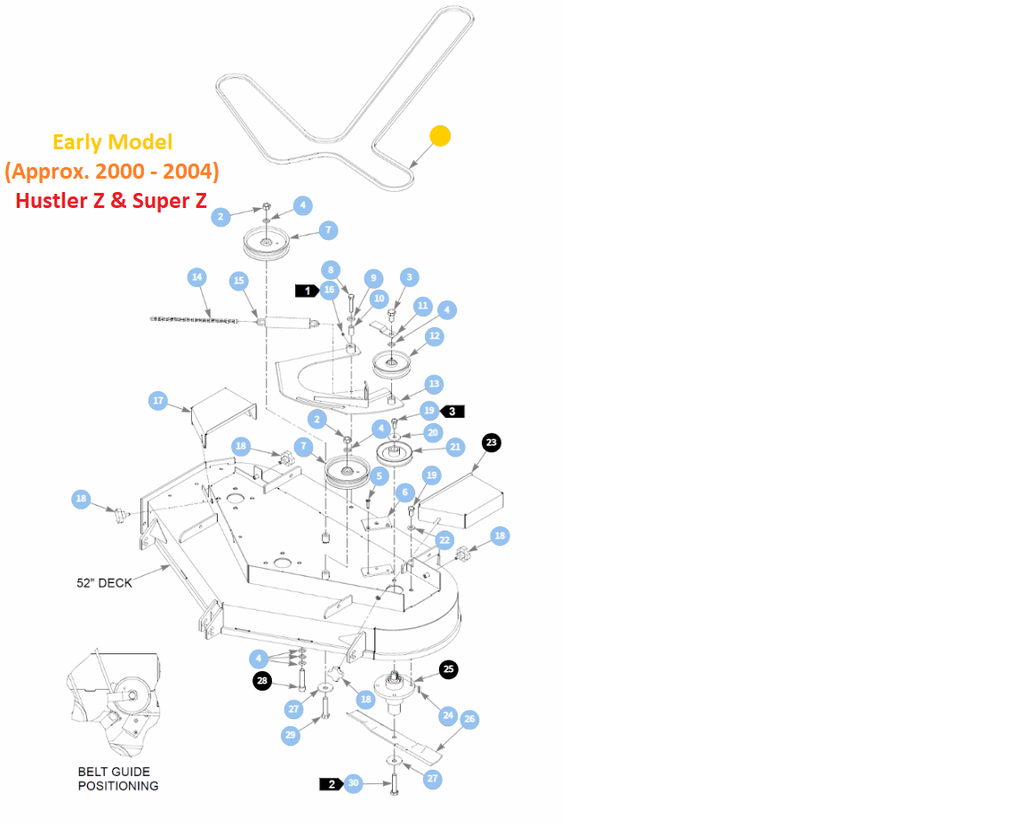

- 52" Approx. 2000-2004 Hustler Z & Super Z Models (Side Discharge XR7 Mower Deck)
- 60" Select Early Model FasTrak Models
782292 Mower Deck Belt Serves as the Primary Belt to a Two Mower Deck Belt System for Select Rear Discharge Models. Don't settle for imitations or substitutes when you can have - worry-free, designed to fit options, knowing that your Hustler Mower Deck Belts are built, tested, and designed specifically to OEM Standards and Expectations. Please refer to the Images above; Product Specifications, Special Notes and the Model Fit guide below to ensure proper fit.
MOWER DECK BELT ASSOCIATED PART NUMBER REFERENCE
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
Note: Below the Individual Part Numbers is a Belt Fit Chart that will List the Mower Deck Belt Part Number Combination that is Correct for each Select Model Number. Using the Mower Deck Belt Chart Click on anyone of the Associated Part Numbers to be Redirected as Needed.

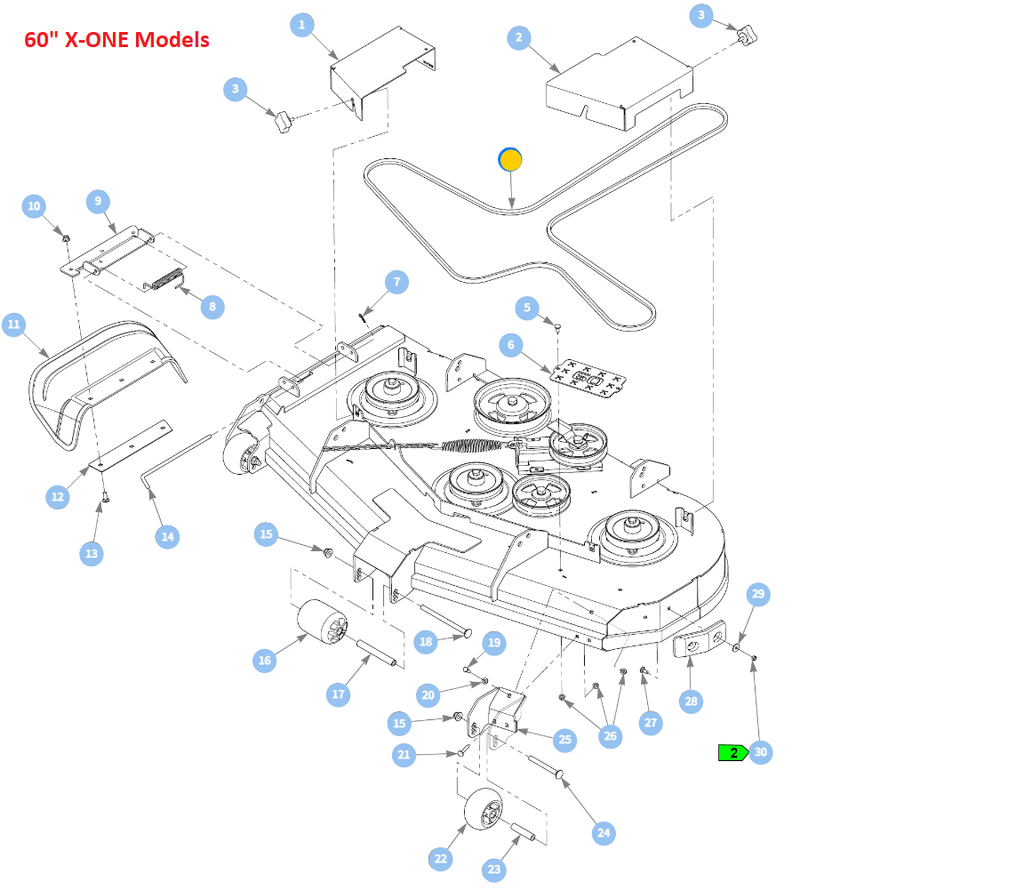

60" X-ONE (Side Discharge Models)
-
602078 - 60" X-ONE Side Discharge (Early Model)

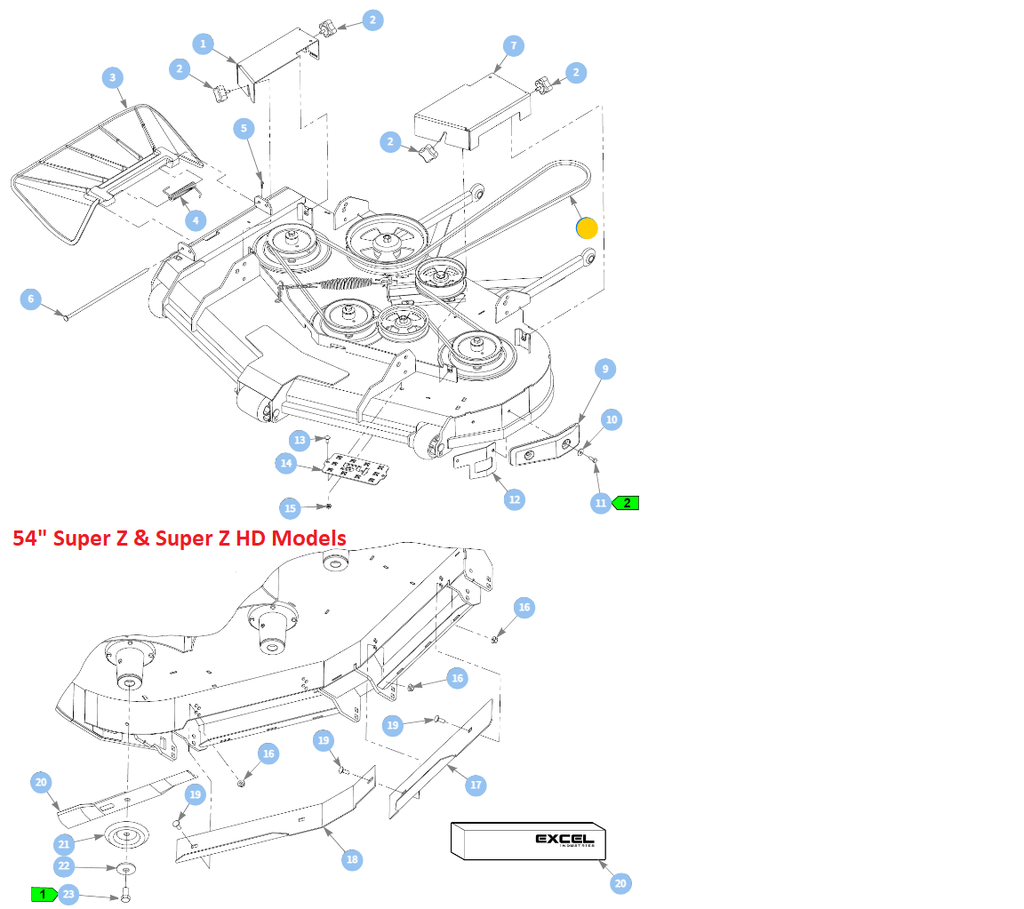

54" Super Z & Super Z HD (Side Discharge Models)
- 782292 - 54" Super Z (2023 - Current)
- 606873 - 54" Super Z (2018 - 2022)
-
601715 - 54" Super Z (2015- 2017)
- 797928 - 54" Super Z (Pre 2011 - XR7 Mower Deck)

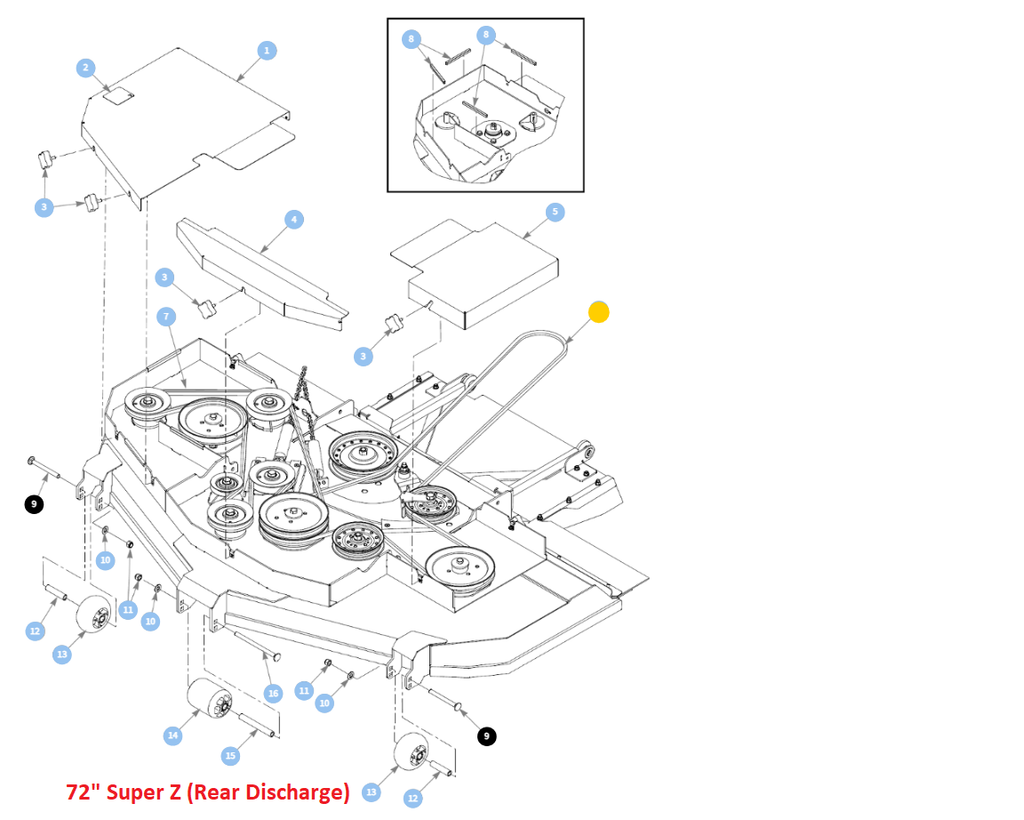

72" Super Z (REAR DISCHARGE MODELS)
Note: Super Z and Super Z HD 72" Rear Discharge Models Require Two Mower Deck Belts. The Primary Belt Travels from the Engine to the Mower Deck and Around Select Pulleys - Whereas the Secondary Mower Deck Belt is used only on the Mower Deck Itself between Mower Deck Pulleys.
- 601715 - 72" Super Z & Super Z HD (2018 - Current) Primary Belt
- 797928 - 72" Super Z & Super Z HD (2013 - 2017) Primary Belt
- 782292 - 72" Super Z (2011- 2012) Primary Belt
- 603422 - Secondary Mower Deck Belt For all Listed Models

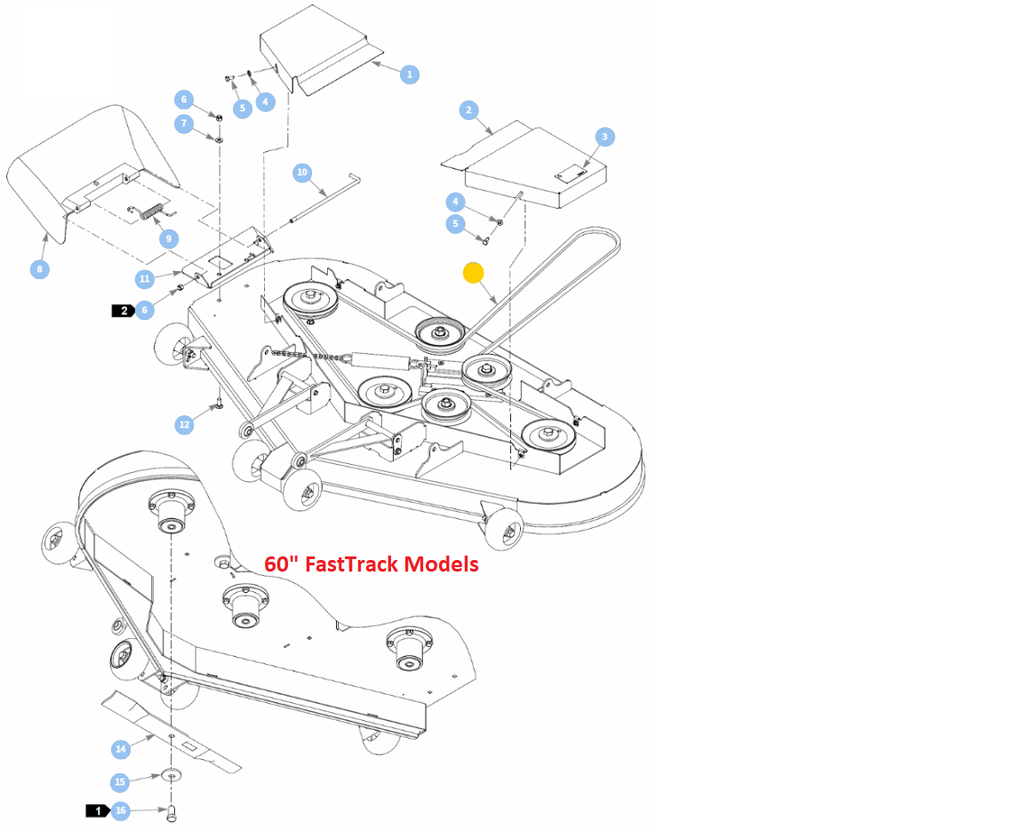

60" Fastrack
-
605510 - 60" FasTrak Side Discharge (Late - Current Model)
Specification
|
Product Number: |
782292 |
|
Brand: |
Hustler |
|
Length: |
165 1/2 IN |
|
Width: |
5/8 IN |
|
Height: |
NA |
|
Weight: |
1.745 LB |
Model Fit:
60" X-ONE (Early - Late Side Discharge Models)
54" Super Z & Super Z HD (Approximately 2023 - Current Models VX4 Side Discharge Models)
Model Numbers: 942805, 943852
72" Super Z (Approximately 2011 - 2012 Models XR7 Rear Discharge Mower Deck)
Model Numbers: 930065
60" Fastrack (Early Models Only)
60" X-ONEi (Side Discharge Models)
52" Hustler Z & Super Z (Early Models)
