Description
Ensure Proper Mower Deck Blade tightness with the Hustler 781872 OEM Blade Bolt. Expertly crafted to maintain blade tension without compromising the shear point, this bolt is essential for ALL HUSTLER MODELS EXCEPT THE DASH and SURFER PRO MODELS. Important to Note Hustler OEM 781872 may have other application as well such as Idler Pulley Fastener Ect. Please Refer to the Images above, Special Notes and Help Links below to ensure a proper fit. Click on the Part Numbers and Help Links to be redirected. Part Number 802-050C, 802050C Supersede to Part Number 781872.
Bolt Size: (.625 x 1.25 - 11) or (5/8 X 1 1/4 - 11) Grade 5
Important Note: Required Torque Specs. for 781872 When used on Mower Blades is 118 ft. lbs. or 160 NM.

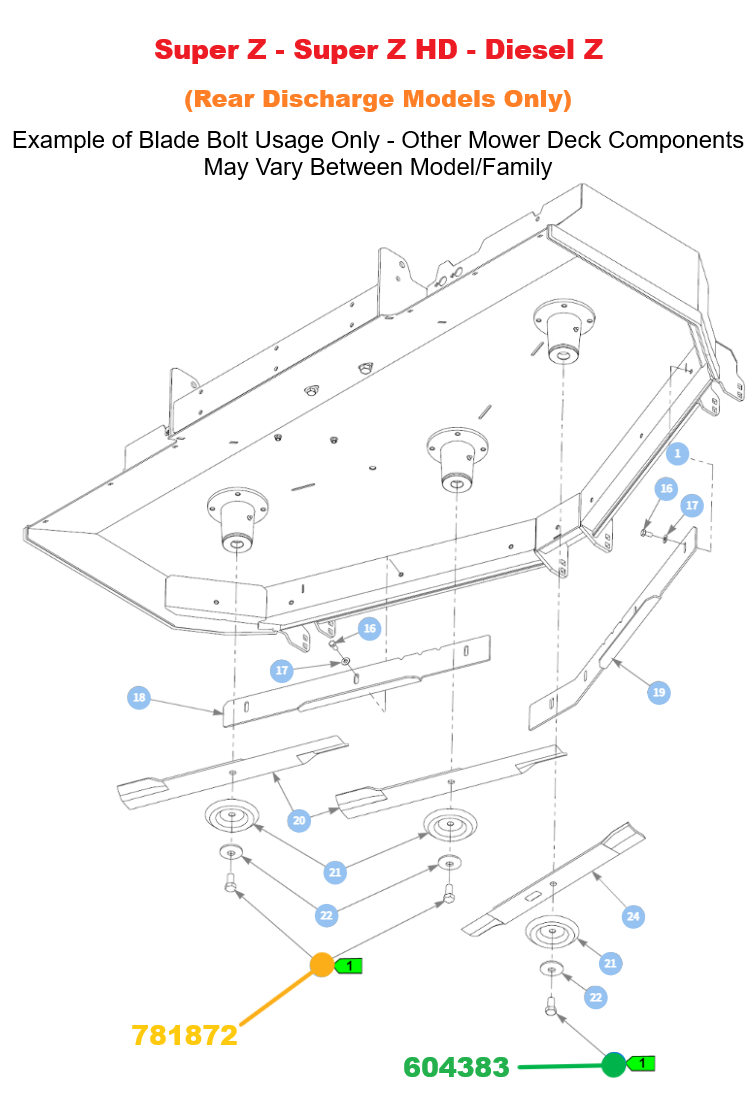

Important Note: All Rear Discharge Models Will Require Two Different Blade Bolts 781872 Will Be Used on Standard Right-Hand Rotation Spindle Assemblies & Mower Deck Blades (Mower Deck Blades & Spindle Assemblies will be Painted Black) Whereas 604383 Will be Used on Reversed Spindle Assemblies & Mower Deck Blades (Mower Deck Blade & Spindle Assemblies will be Painted Red).

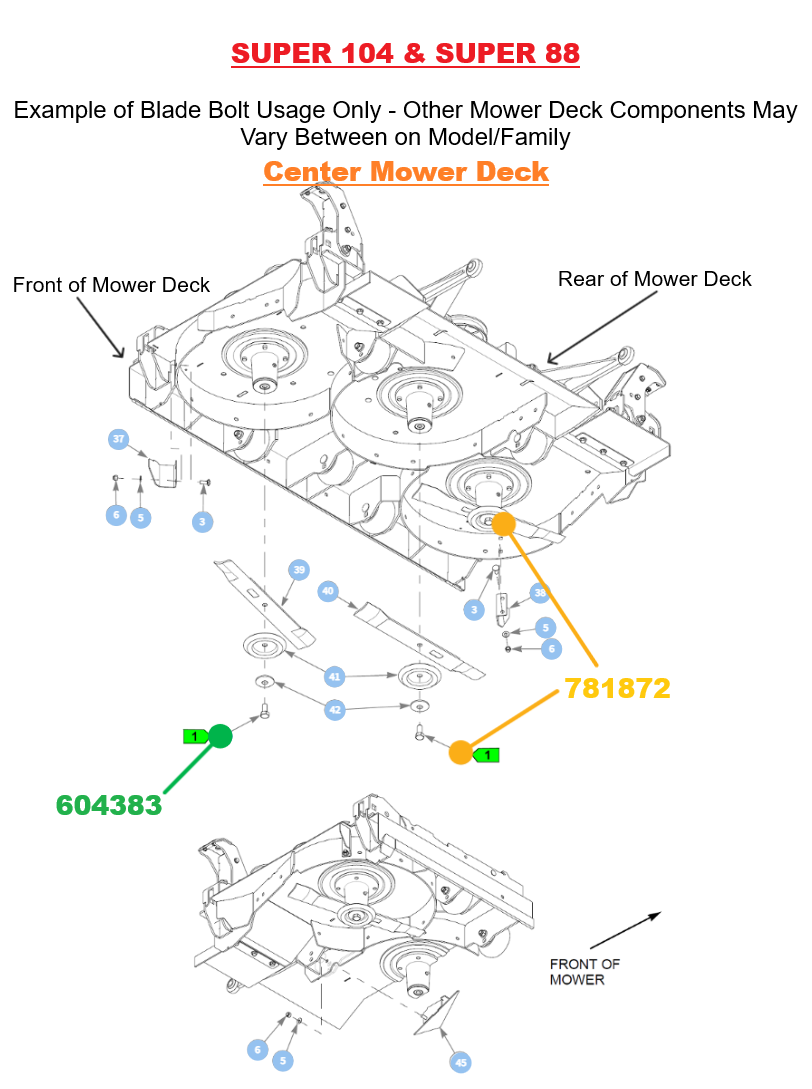

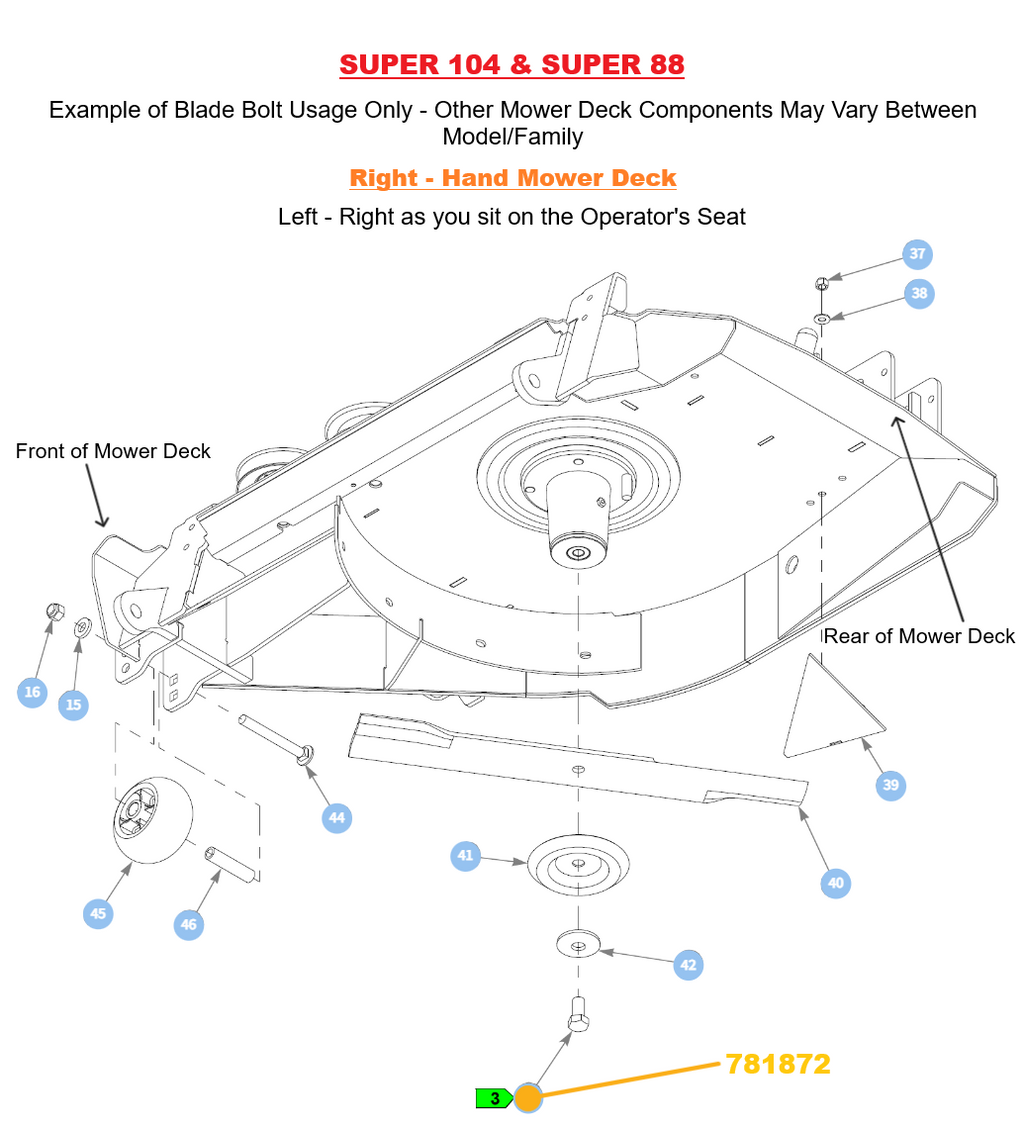

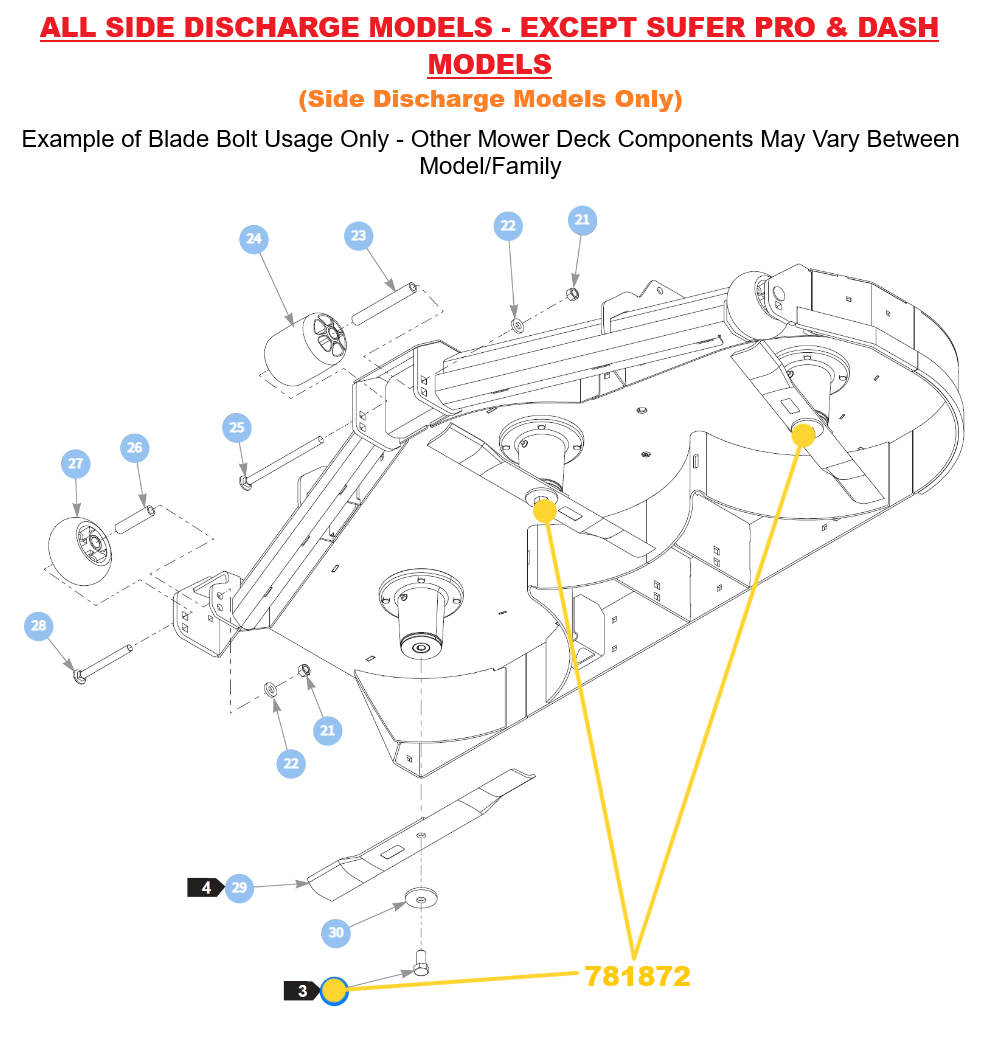

REVIEW EXAMPLE'S IN THE IMAGES ABOVE TO DETERMINE THE PROPER BOLT & LOCATIONS
COMMON ASSOCIATED PART (For Mower Deck Blade Application Only)
- 114988 - BLADE BOLT SHIELD
-
782474 - REMOVEABLE BELLEVILLE BLADE BOLT WASHER
- 604383 - BLADE BOLT * Reverse or Left-Hand Threads - For Reverse Rotation Spindle Assemblies and Mower Deck Blades Only - Used at Select Locations on Rear Discharge Mower Models (Will be Used in Conjunction with 781872) - OEM Mower Blades and Spindle Ass. are Painted Red to Determine the Difference.
- 607407P - Right-Hand, Standard or Common Mower Blade Spindle Assembly (Used on Side & Rear Discharge Models)
Model Fit Chart
* 781872 May Be Used on Additional Usages Other Than as a Mower Blade Fastner it is Also Commonly Used as an Idler Pulley Fastner as Well Common Way to Determine if it is the Correct Bolt is by Checking the Size as Well as the Application of Usage - If you Have any Questions on Exact Fit Feel free to Message or Call us.
Raptor
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
Models are Currently Not Listed Will Be Eventually
FasTrack (2015 - Current Models)
933424, 933432, 933440, 934851, 935627, 936054, 936062, 936070, 936088, 936104, 936112, 936120, 936138, 936146US, 936153US, 936161US, 938043, 938050, 938704, 938712, 938720, 938738, 938746, 938753, 938761, 938779, 938787, 938795, 940346, 940353, 940361, 940379, 940387, 940395, 940403, 940411, 940429, 940437, 941724, 941732, 941740, 941757, 941765, 941773, 941781, 941674, 941682, 941708, 943704, 943753, 943761
X-ONE - Side & Rear Discharge Models
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
Models are Currently Not Listed Will Be Eventually
X-RIDE - ALL MODELS
944074, 944868
Super Z - Side & Rear Discharge Models
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
929927, 929935, 929943, 929950, 930024, 930065, 930875, 931048, 932012, 932020, 932038, 932046, 932053, 932061, 932129, 932137, 932970, 932988, 933457, 933929US, 934216, 934224, 934232, 934240, 934265, 934273, 934281, 934984US, 934992, 935007, 935015US, 935023, 935031, 935049, 935056US, 935064, 936872, 936880, 936898US, 936914, 936922, 936930, 936948US, 936955, 936989, 937714, 937722, 937730, 938985, 938993, 940031, 940049, 941138, 941146, 941153, 941161, 941179, 941187, 941195, 941203, 941377, 941385, 942342, 942771, 942763, 942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943878, 943886, 943894, 943910, 943928, 943936, 943944
Super Z Hyper Drive - Side & Rear Discharge Models
(Models 2013 and Later are Listed - Models Listed Prior To 2013 May Not Be Listed If Applicable)
932145, 932152, 932160, 932178, 932186, 932996, 933002, 934315, 934307, 934323, 934349, 934687, 934695, 934919, 934927, 934935, 934943, 934950, 934968, 934976, 936997, 937003, 937011, 937029, 937037, 937045, 937052, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941245, 941252, 941260, 941278, 941286, 941294, 941302, 941310, 941534, 941542, 941559, 941567, 942219, 942227, 942235, 942243, 942250, 942359, 942961, 942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943951, 943969, 943977, 943993, 943985, 944017, 944041, 944025, 944033
Diesel Z - Side & Rear Discharge Models
Models are Currently Not Listed Will Be Eventually
Super ATZ
No Listed Model Numbers
Super 104
Models are Currently Not Listed Will Be Eventually
Trimstar
(Models 2013 and Later are Listed - Models Listed Prior To 2013 May Not Be Listed If Applicable)
Models are Currently Not Listed Will Be Eventually
Super S (All Models)
933325, 933333, 933341, 933358, 935353, 935361, 935387US, 935395US, 937128, 937136, 937144, 937151, 937169, 937177, 939439, 939447, 939454, 940205, 940213, 940221, 940247, 940254, 940288, 940296, 940304, 941393, 942292, 943126, 943134, 943142, 943167, 943175
Super SF
Models are Currently Not Listed Will Be Eventually
Super 88
936617, 939546
Not sure if this is the correct part?
Contact us with your Hustler model and serial number and our parts team will verify fitment before you order.
