Description

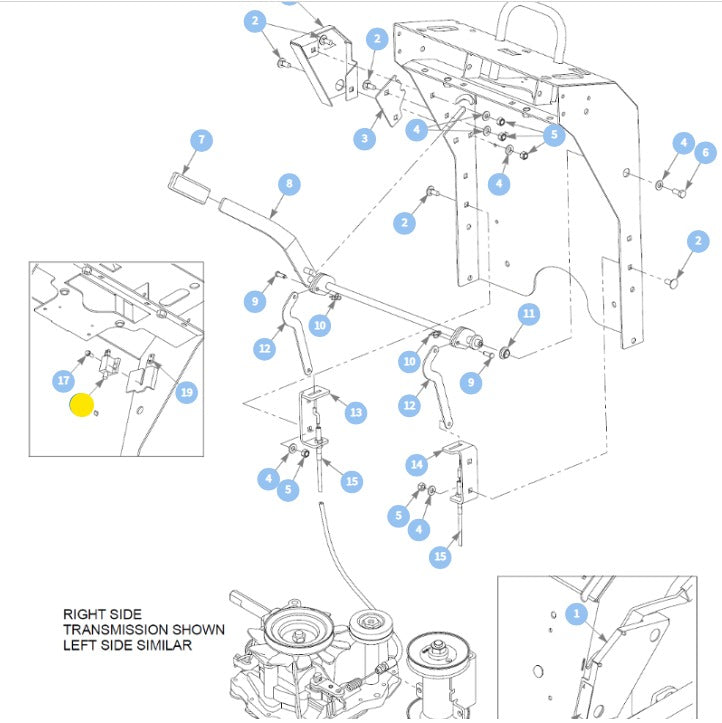

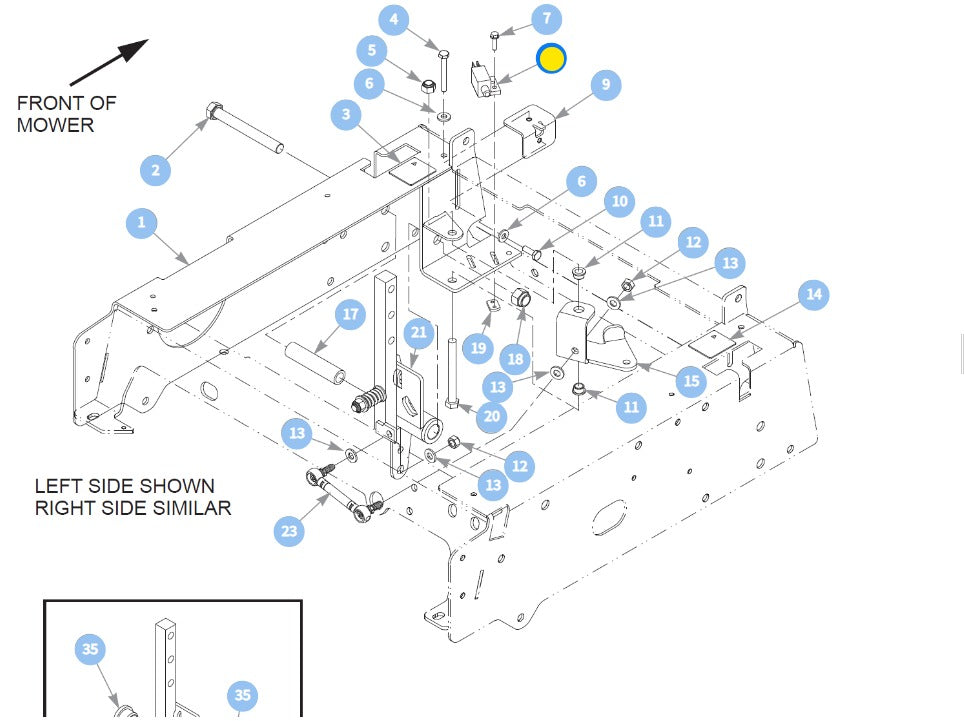

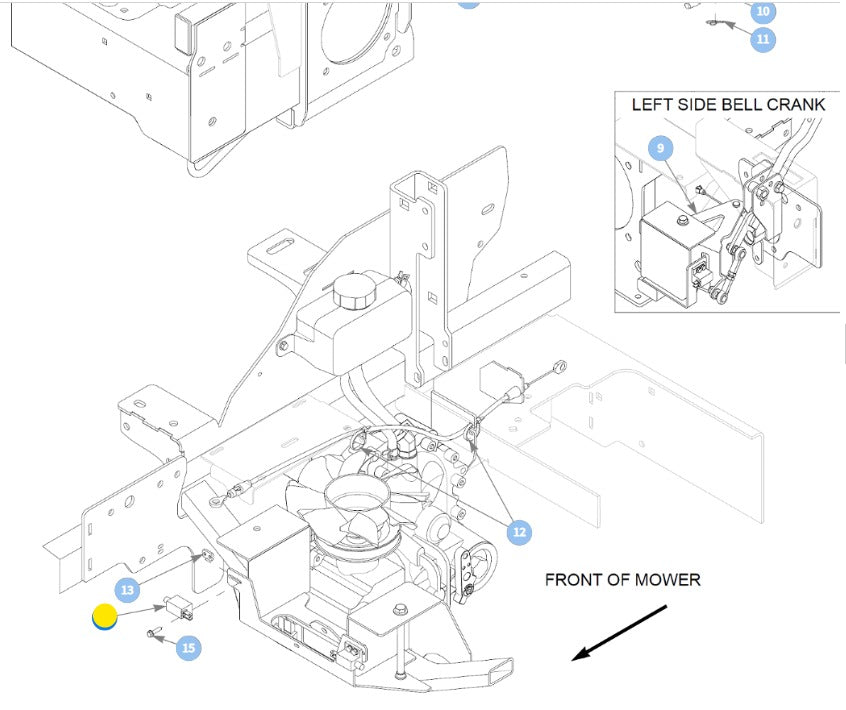

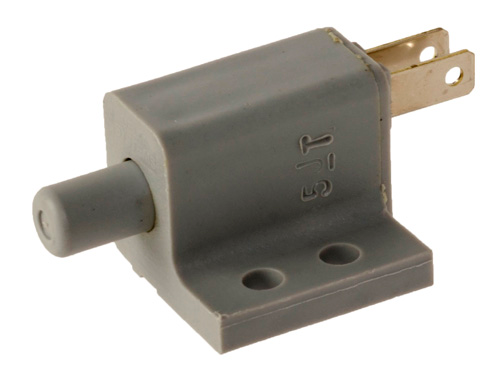

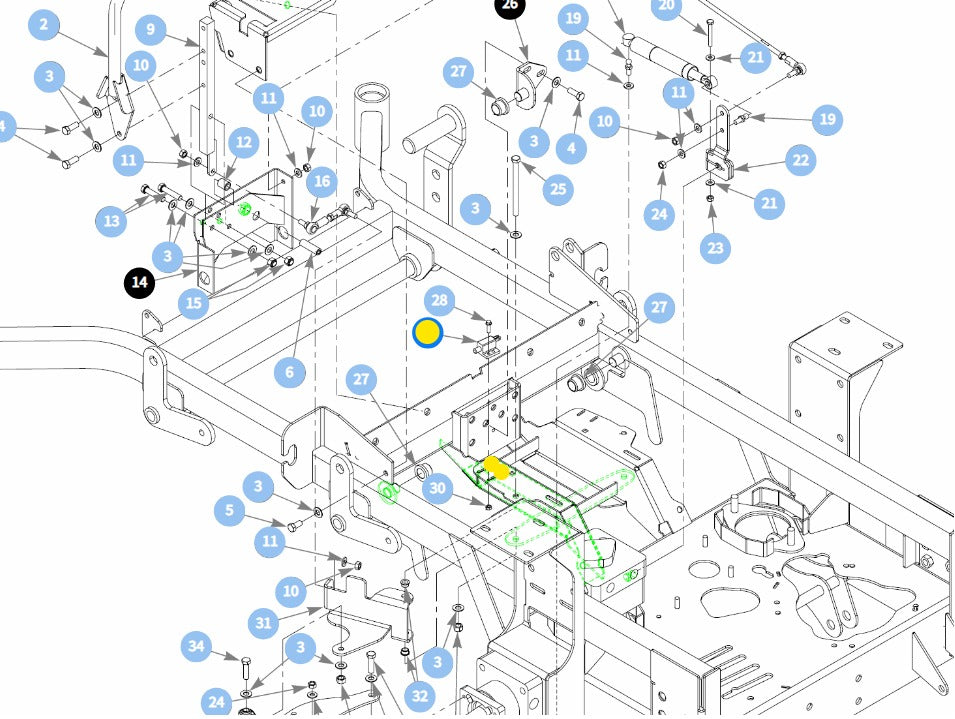

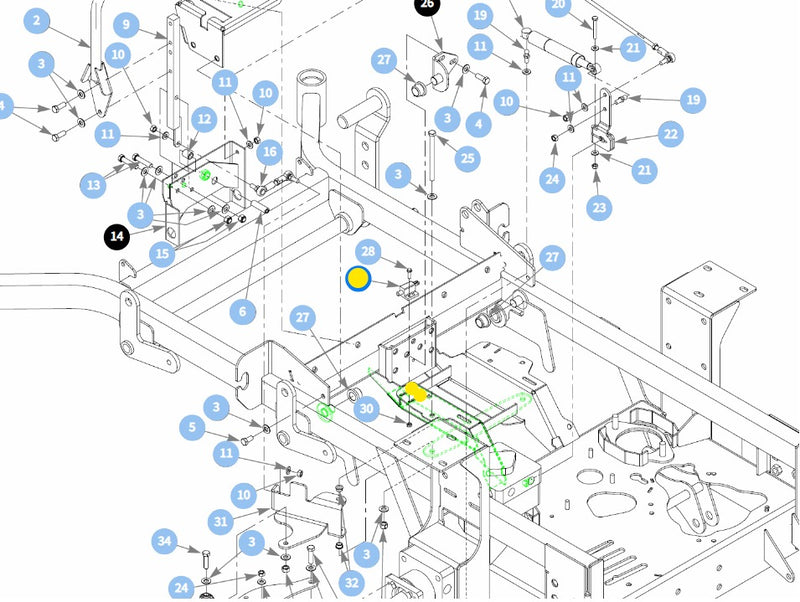

Eliminate the Guessing Game and Replace your Problematic Safety Switch, knowing that the Hustler OEM 781211 Plunger/Push Buton Style Safety Switch contains the right Wiring Polarity For your Hustler Machine. The Hustler 781211 BOLT ON STYLE Safety Switch is not limited to but Often Used as a Brake Safety Switch and is located Under the Operators Seat by the Steering/Brake Control Linkage area. This Safety Switch Allows the Plunger to be pushed in as the Operator Control Handles are move out to the Park Position and will Have One Safety Switch Per Operator Control Arm Requiring One per Side. The Hustler OEM 781211 Plunger Style Safety Switch is Used on Current Hustler Surfer PRO and X-RIDE Models and Older Hustler Sit-on Zero Turn Raptor, FasTrak, Z, Super Z, Super Z HD, and Super Z Diesel, Z Diesel Models. Refer to Images Above and the Special Notes Below to verify a Correct Fit. Click on the Additional Part References Below to be Redirected. Part Number 839-062C Supersedes to Part Number 781211
NOTE 1: Some Earlier Model Series Might have used a Bolt on Style Brake Safety Switch Instead of a Clip in or Push in Style. If you Need a Clip in or Push in Style Brake Safety Switch for a newer or Current Models, Click on Part Number 793315 or 601087 To be Redirected. Also due to the Bolt on Style Safety Switch not being used on some current Models as a Brake Safety Switch your Model Series may not be listed under it.
NOTE 2: Some Raptor Flip-up Models may Have a difference in Brake Safety Switch a Visual Inspection of the Wire Harness Connecter that connects to the Safety Switch will tell you as to which one is the correct Safety Switch for your unit. Hustler OEM 781211 will have exposed Spade on The Safety Switch When removing the Wiring Connector from the Safety Switch. If you Have Non-Expose Spade Style of Safety Switch, click on part Number 602538 to be Redirected.
COMMON HUSTLER OEM 781211 SAFETY SWITCH FASTENER REFERENCE
- 060731 - Hex Head Screw (Size 10-24 x .500 Shorter) - x 2
- 063198 - Hex Head Screw (Size 10-24 x .750 Longer) - x 2
- 601822 - Nut Plate - x 1
Specification
|
Product Number: |
839062C, 781211 |
|
Brand: |
Hustler |
|
Length: |
1.80 IN |
|
Width: |
1.15 IN |
|
Height: |
0.95 IN |
|
Weight: |
0.030 LB |
Model Fit:
