Description

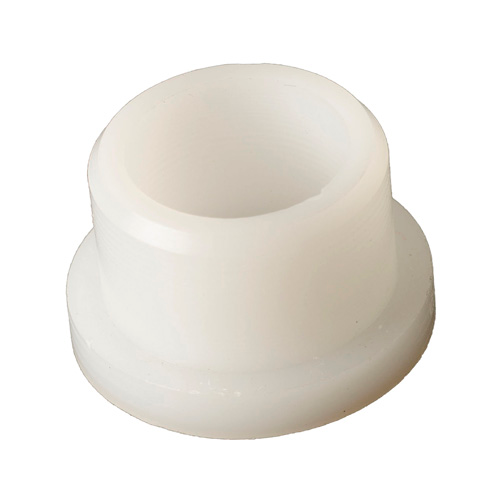

Hustler OEM 781153 UHMW Bushing
The Hustler OEM 781153 UHMW Bushing is a Genuine Replacement Wear Component Designed for Select Hustler Mower Applications. This Bushing Helps Maintain Proper Alignment, Reduce Friction, and Minimize Wear Between Moving Components.
Note: Many of the Mower Series that Utilized 781153 in the Mower Steering Box/Linkage & Hydraulic Tensioner Arm Will Now Utilize 608000 in the Later & Current Models - 781153 and 608000 Have the Same Fitment and Size and Could Be Interchange the Only Difference is in a Slight Material Differences, Tapered versus Square Insert End as well as Color to Be Redirect to Later Version - Refer to 608000. In Most Application 781153 & 608000 Could Be Interchanged
⚠️ Before You Order – Verify Fitment
This Bushing may be used in Multiple Locations Depending on Mower Model, Production Version, and Application. Refer to the Image Above, Usage References & Model Fit Chart for an Accurate Break down of Specific Model Number Usage.
Not sure? Contact us with your Hustler Model and Serial Number and We’ll Help Verify Fitment.
What This Part Does
- Supports Moving Components and Pivot Points
- Reduces Friction and Wear Between Mating Parts
- Helps Maintain Proper Component Alignment
- Genuine Hustler OEM Replacement Component
Part Details
- Brand: Hustler
- Part Number: 781153
- Supersession: Part Number 839-059C, 839059C Supersedes to Part Number 781153
- Material: UHMW Polyethylene
- Type: Wear Bushing
- OEM Replacement: Yes
Model Fit Chart

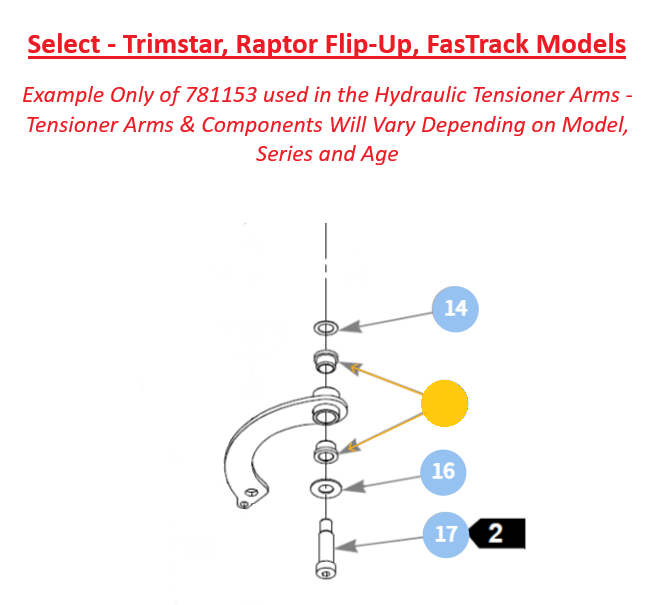

Trimstar
(2010 - 2019 Models) * 36", 48", 54" Models Only - Hydraulic Tensioner Arm
929240, 929265, 929273, 929232, 930388, 930388US, 930396, 930404, 930412
Raptor
Raptors Models (2019 & Prior Models) * Except Raptor Flip-Up Models

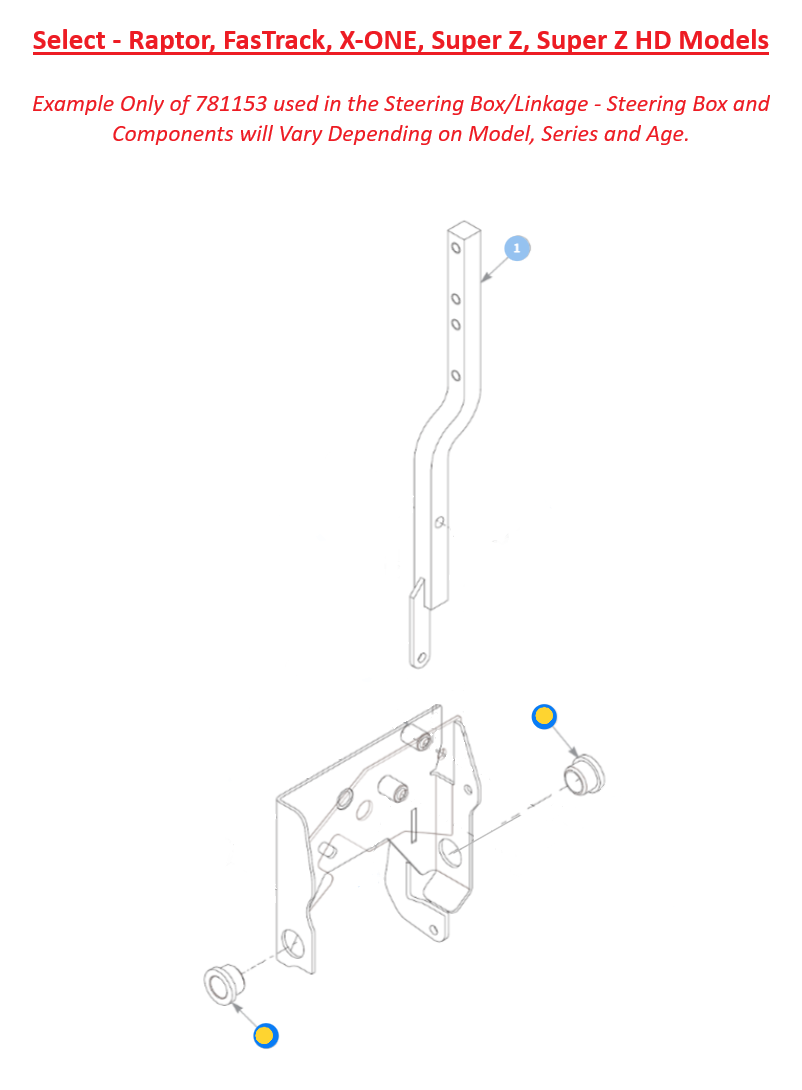

- Steering Box/Linkage
Raptor Flip-Up Models (All Models)
- Steering Box/Linkage & Hydraulic Tensioner Arm
933614, 933622, 933846US, 933853US, 934505US, 934513US, 934547US, 934760, 934778, 934786, 934794, 934802, 935734, 935742, 935759, 935767US, 935817, 935825, 935833, 935841, 935858US, 935866US, 935882, 935916, 936476, 936484, 936492, 936500, 936682, 936708, 936716US, 937748, 937755, 937763, 937771, 937813, 937847, 937854, 937862, 937789, 937797, 937805, 937821, 937839, 937870, 937888, 938019, 938027, 938035, 938134, 938142, 938159, 938167, 938464, 938472, 938530, 938548, 938555, 938563, 938571, 938589, 938597, 938605, 938613, 938621, 938639, 938647, 938654, 938662, 938670, 938688, 938696, 938977, 939165, 939173, 939181, 939199, 939207, 939215, 939223, 939256, 939264, 939397, 939389, 939405, 940312, 940320
FasTrack (2015 - 2021 Models)
- Steering Box/Linkage (2015 - 2017)
- Hydraulic Tensioner Arm (2015 - 2021)
933424, 933432, 933440, 934851, 935627, 936054, 936062, 936070, 936088, 936104, 936112, 936120, 936138, 936146US, 936153US, 936161US, 938043, 938050, 938704, 938712, 938720, 938738, 938746, 938753, 938761, 938779, 938787, 938795, 940346, 940353, 940361, 940379, 940387, 940395, 940403, 940411, 940429, 940437
X-ONE (2016 - 2021 Models)
- Steering Box/Linkage
936237, 936245US, 936252, 936260, 936278, 936286, 936294US, 936302, 936310, 936328, 936336, 936740, 936765, 936773, 936781, 936799, 936815, 936823, 936831, 936849, 939314, 939322, 940056, 940064, 940072, 940080, 940106, 940114, 940122, 940130, 940197, 941062, 941070, 941369, 941831, 941856, 941864, 941872, 941880, 941898, 941922, 941930, 941971, 942201, 942334, 942797, 943399, 943407
Super Z (Select Models)
- Steering Box/Linkage

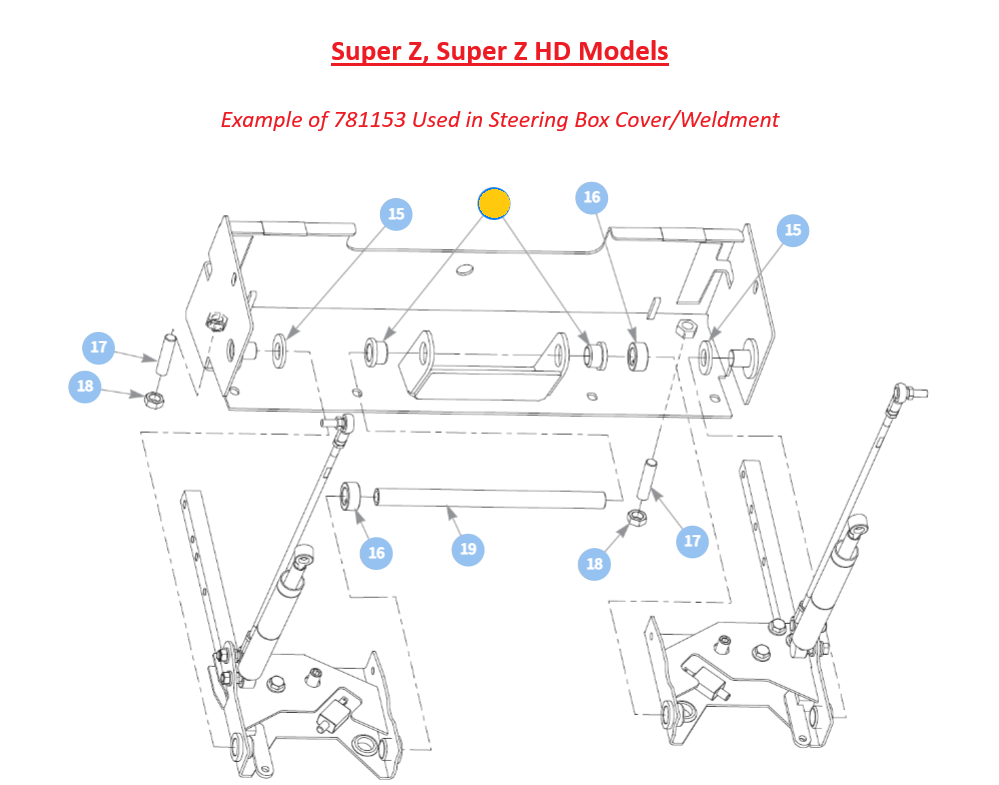

- Steering Box Cover/Weldment
929927, 929935, 929943, 929950, 930024, 930065, 930875, 931048, 932012, 932020, 932038, 932046, 932053, 932061, 932129, 932137, 932970, 932988, 933457, 933929US, 934216, 934224, 934232, 934240, 934265, 934273, 934281, 934984US, 934992, 935007, 935015US, 935023, 935031, 935049, 935056US, 935064, 936872, 936880, 936898US, 936914, 936922, 936930, 936948US, 936955, 936989, 937714, 937722, 937730, 938985, 938993, 940031, 940049, 941138, 941146, 941153, 941161, 941179, 941187, 941195, 941203, 941377, 941385, 942342, 942763, 942771, 942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943878, 943886, 943894, 943910, 943928, 943936, 943944
Super Z Hyper Drive (Select Models)
- Steering Box/Linkage
- Steering Box Cover/Weldment
932145, 932152, 932160, 932178, 932186, 932996, 933002, 934307, 934315, 934323, 934331, 934349, 934356, 934687, 934695, 934919, 934927, 934935, 934943, 934950, 934968, 934976, 936997, 937003, 937011, 937029, 937037, 937045, 937052, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941245, 941252, 941260, 941278, 941286, 941294, 941302, 941310, 941328, 941534, 941542, 941559, 941567, 942219, 942227, 942235, 942243, 942250, 942359, 942961, 942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943951, 943969, 943977, 943985, 943993, 944017, 944025, 944033, 944041

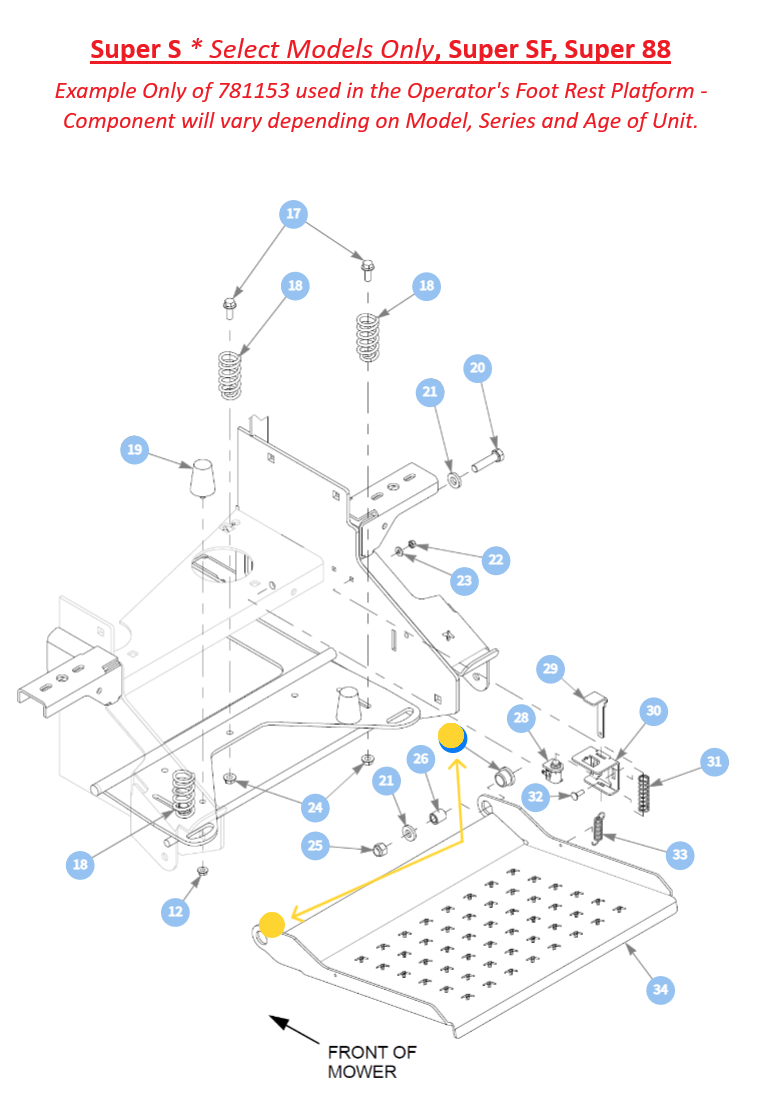

Super S (All Models)
- Operator's Foot Platform (2017 - 2020 Models)
- Hydraulic Tensioner Arm (All Models)
933325, 933333, 933341, 933358, 935353, 935361, 935387US, 935395US, 937128, 937136, 937144, 937151, 937169, 937177, 939439, 939447, 939454, 940205, 940213, 940221, 940247, 940254, 940288, 940296, 940304, 941393, 942292, 943126, 943134, 943142, 943167, 943175
Super SF (All Models)
- Operator's Foot Platform
942029, 942037, 942045, 942052, 943506, 943514, 943522, 943530
Super 88 (All Models)
- Operator's Foot Platform
936617, 939546
