Description
Hustler OEM 777185 Mower Deck Belt is Crafted only from the Finest of Materials and Rigorously and Extensively Tested to verify it withstands the toughest of Operating Conditions. Expertly crafted from premium Aramids and/or Kevlar materials, the Hustler OEM 777185 Is made to Fit Hustler 54" Raptor XDX, 54" Raptor SDX (938548 and 939256) - 2013 - 2017 60" Rear Discharge Super Z and Super Z HD (* REFER PART REFERENCE CHART) - Early X-ONE Models with a 60" Rear Discharge XR7 Mower Deck (Require two Mower Deck Belts versus Newer Models Require One) - 54" Early Trimstar Models. Don't settle for imitations or substitutes when you can have - worry-free, designed to fit options, knowing that your Hustler Mower Deck Belts are built, tested, and designed specifically to OEM Standards and Expectations. Please refer to the Images above; Product Specifications, Special Notes and the Model Fit guide below to ensure proper fit.
54" RAPTOR XDX RAPTOR SDX, EARLY MODEL TRIMSTARS,
60" X-ONE (REAR-DISCHARGE)
MOWER DECK BELT ASSOCIATED PART NUMBER REFERENCE
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 604817 - 54" Raptor SDX Side Discharge (Early Models)
- 601788 - 54" Trimstar Side Discharge (Late - Current Models)
- 604494 - 60" X-ONE Rear Discharge (Late - Current Models)
- 603397 - 60" X-ONE Rear Discharge (Early Models) Secondary Mower Deck Belt - * Use Only with Part Number 777185
Note 1: Unlike Current X-ONE 60" Rear Discharge Models, Early Models with the SQUARE XR7 MOWER DECK Require Two Mower Deck Belts. Part Number 777185 Is used as the Primary Belt and Runs from the Engine to the Mower Deck. Part Number 603397 is used as the Secondary Mower Deck Belt and is used only on the Mower Deck Itself between Mower Deck Pulleys. Click on anyone of the Associated Part Numbers to be Redirected.
NOTE 2: Due to Changes within Model/Series there might occur instances where Hustler Mower Deck Belt Part Number Might Have Some Variation in Part Numbers depending on the Age and Serial Number of the Unit. One way to Eliminate Confusion is by Searching your Belt Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Page to Find the correct Model/Belt Part Number Combo. Second way to Eliminate Confusion is to perform a visual inspection of your Mower Deck and Compare it to the Images above. Key Differences in each Mower Deck Images to Look at are note with a red arrow along with the Part Number that is associated for that Mower Deck Type. If this does not prove helpful and you still need assistance with finding the correct part number feel free to text us, email or give us a call and we can try to help you. Remember if further assistance is needed you will need to provide Models and Serial Number of the Unit you are wishing to receive Help with. If you wish to be Redirected to a different Mower Deck Belt Part Number Refer to the Mower Deck Belt Part Number Reference Chart Above and Click on Associated Part Numbers to Redirected.

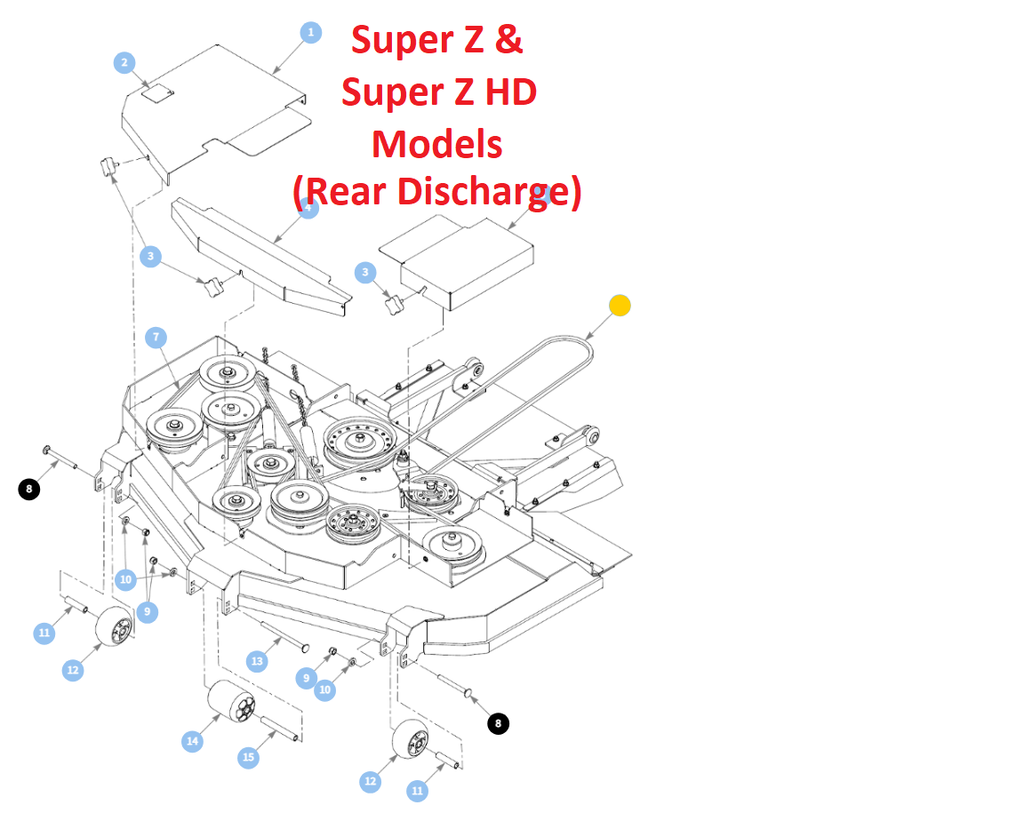

60" Super Z & Super Z HD (REAR DISCHARGE MODELS)
MOWER DECK BELT ASSOCIATED PART NUMBER REFERENCE
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
Note 1: Super Z and Super Z HD 60" Rear Discharge Models Require Two Mower Deck Belts. The Primary Belt Travels from the Engine to the Mower Deck and Around Select Pulleys - Whereas the Secondary Mower Deck Belt is used only on the Mower Deck Itself between Mower Deck Pulleys.
Note 2: Below the Individual Part Numbers Under Each Family Type is a Belt Fit Chart that will List the Mower Deck Belt Part Number Combination that is Correct for each Select Model Number. Using the Mower Deck Belt Chart Click on anyone of the Associated Part Numbers to be Redirected as Needed.
- 606877 - 60" Super Z & Super Z HD (2018 - Current) Primary Belt
- 777185 - 60" Super Z & Super Z HD (2013 - 2017) Primary Belt
- 789388 - 60" Super Z (2011- 2012) Primary Belt
- 027284 - Secondary Mower Deck Belt For all Listed Models
Specification
|
Product Number: |
777185 |
|
Brand: |
Hustler |
|
Length: |
NA |
|
Width: |
5/8 IN |
|
Height: |
NA |
|
Weight: |
1.300 LB |
Model Fit:
54" RAPTOR SDX
938548, 939256
54" RAPTOR XDX
939835
Super Z and Super Z HD (2013 – 2017 XR7 & VX4 Rear Discharge Mower Deck)
Model Numbers: 932053, 932178, 934216, 934307, 934935, 935023
EARLY MODEL TRIMSTAR
EARLY MODEL 60" X-ONE
