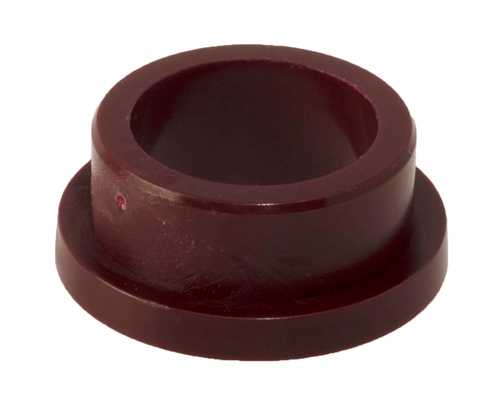

Hustler OEM 770867 Plastic Idler Arm and Steering Pivot Linkage Bushing (3/4 X 1) Fits (Early Model FasTrack) - (All Super Z, Super Z HD, Diesel Z, Super 88, Super 104 Rear Discharge Models) - (Select Trimstar and Bac-Vac Usages).

• Application: Commonly Used in Early Model Fastrack Models (Steering Pivot Linkage) and in The Super Z, Super Z HD, Diesel Z, Super 88, Super 104 Rear Discharge Models (Idler Tensioner Arm) - Select Trimstar & BAC-VAC (Idler Tensioner Arm)
• Size: (1/2 X 1)
• Supersession: Part Numbers 773572, 839211C & 839-211C Supersede to Part Number 770867.

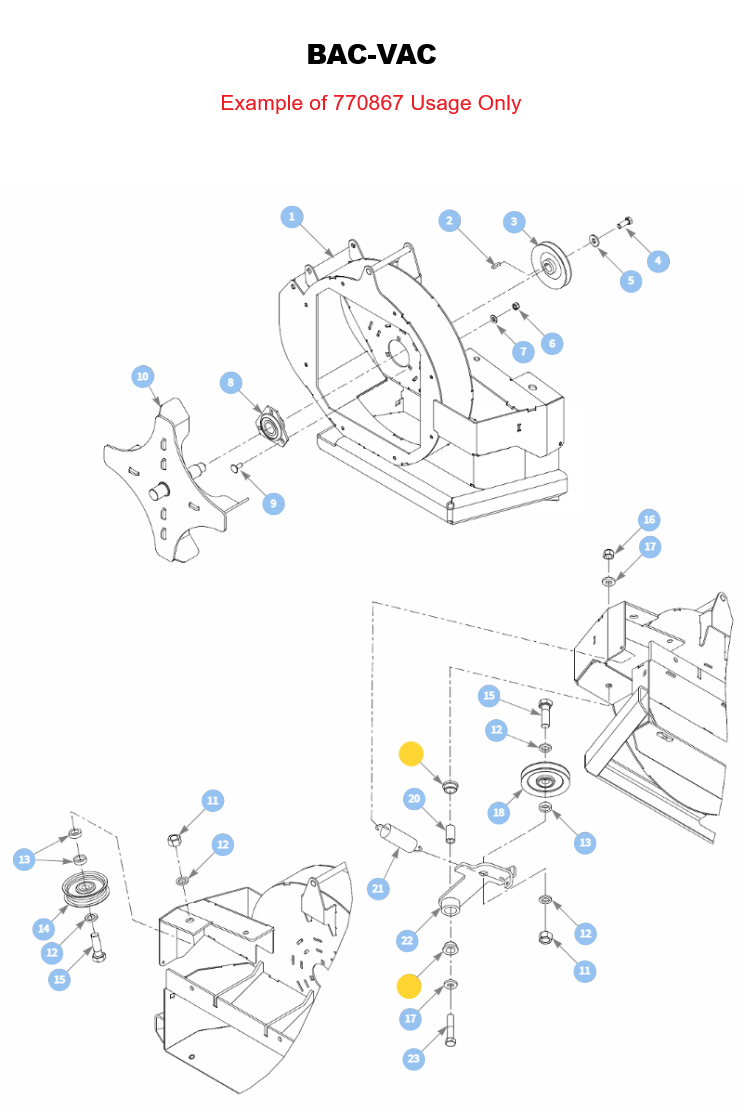

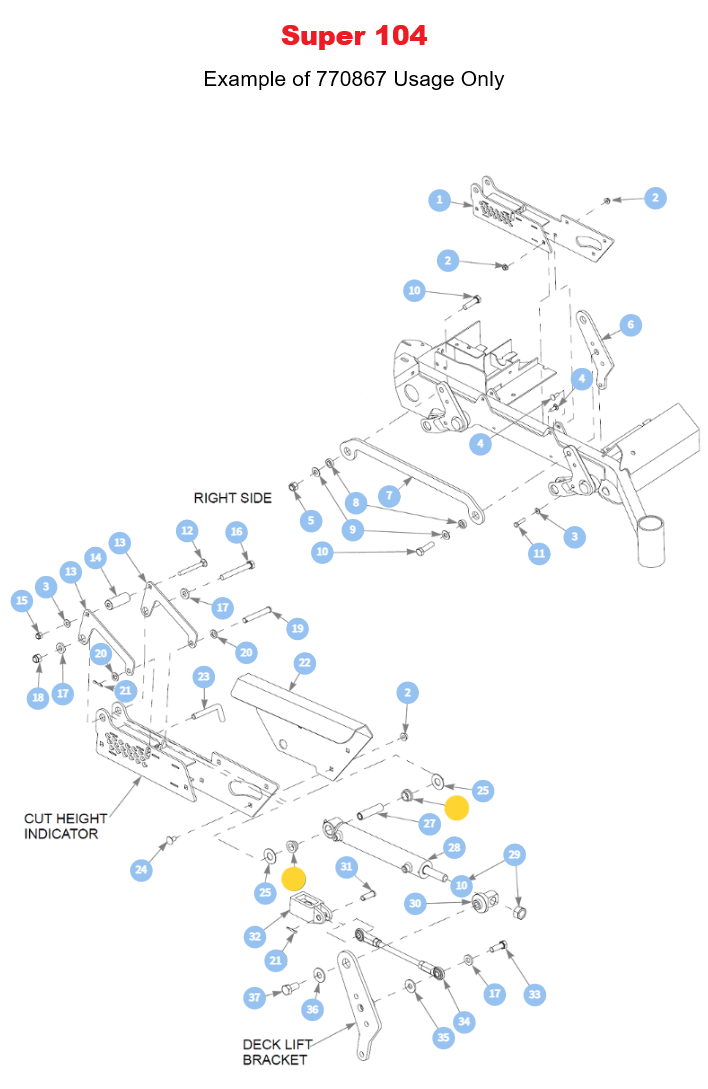

Review the Parts Diagrams in the Images Above (Organized by Family/Series & Usage Type) & and Model Fit Chart Below to Ensure a Correct Fit.

770867 Plastic Bushings are Often Used With 109549 Steel Bushing Inserts when used in Idler Pulley Tensioner Arm Applications - 770867 Plastic Bushing is the Wear Item Separating Rotational Metal Part from Each Other - 109549 Steel Pivot Idler Bushings Inserts Into 770867 and Enable the Idler Arms to Rotate as Well as Giving a Stable Center Point to Allow a Fasteners to Retain the Idler Arms.





Model Fit Chart

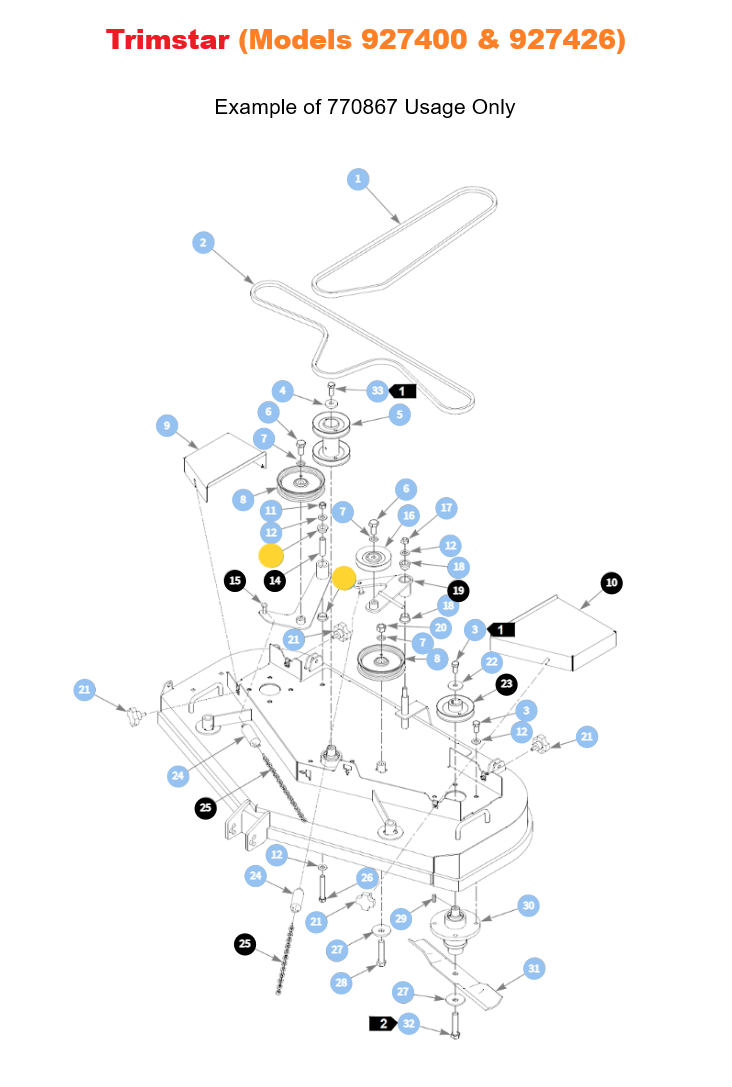

Model 927400 & 927426 - Trimstar Models - Mower Deck Idler Tensioner Arm



927400, 927426

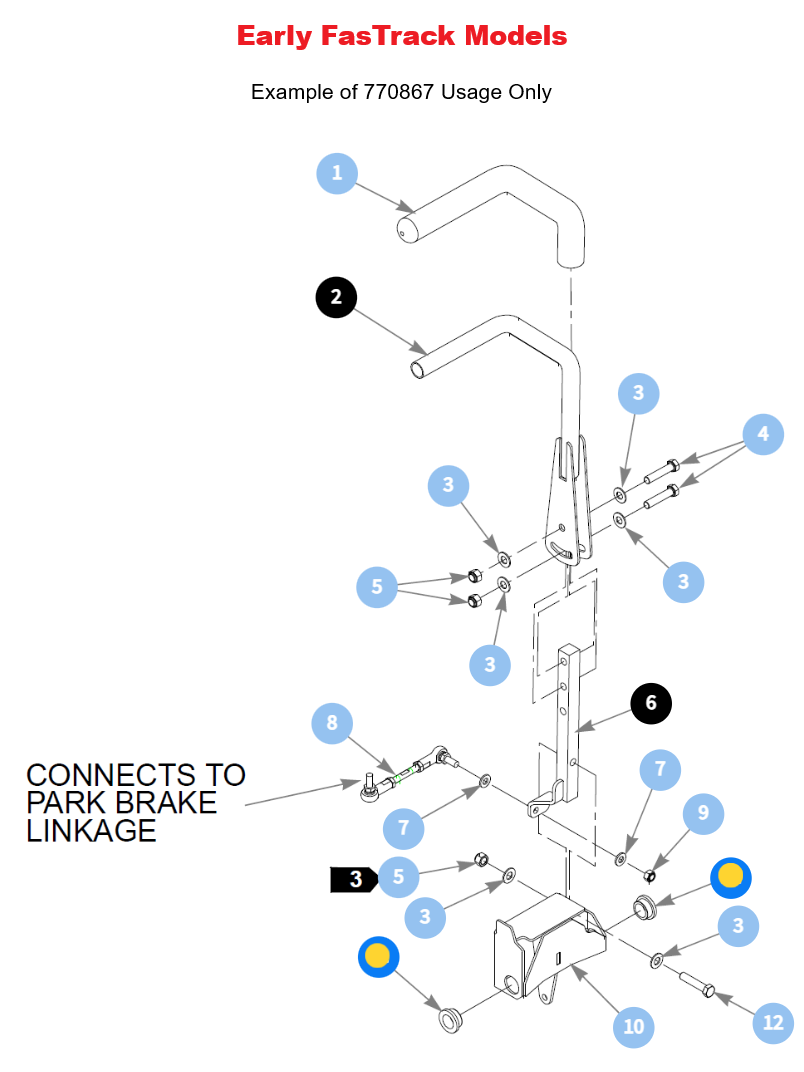

Select Early Models - Fastrack Models - Steering Pivot Linkage



Models are Currently Not Listed



Select Early Models - X-ONE Models - Idler Tensioner Arm, Same as Super Z



Models are Currently Not Listed

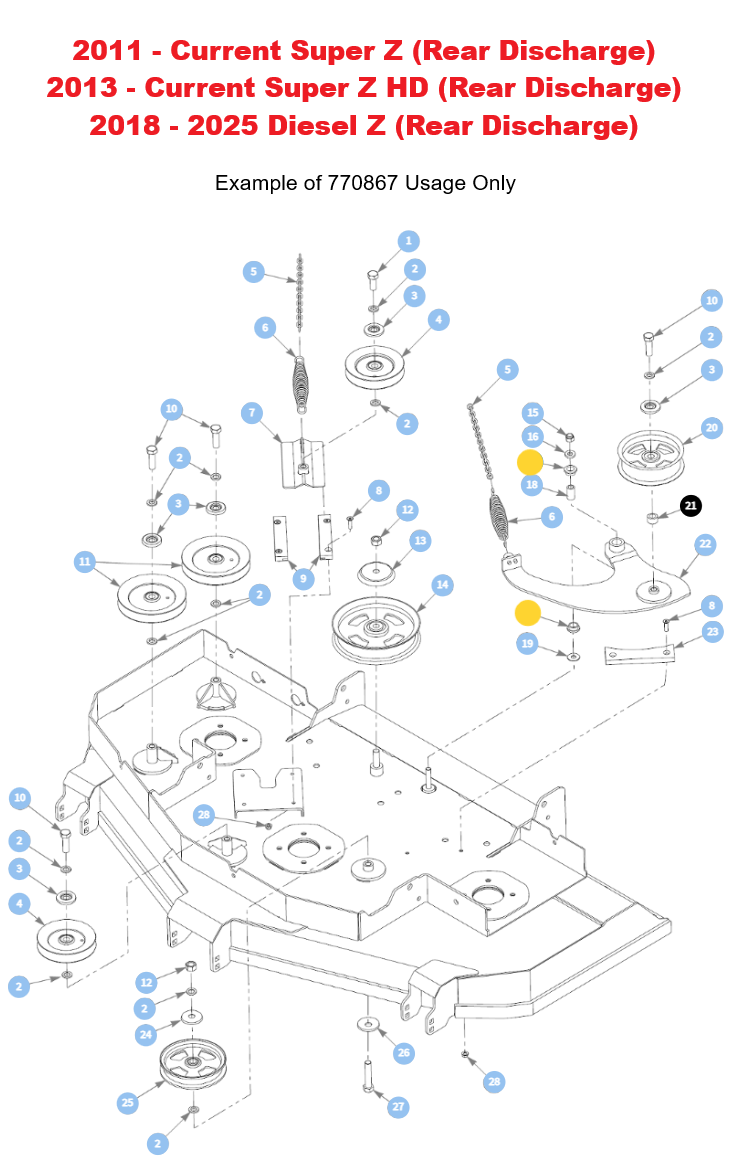

2011 - Current Rear Discharge - Super Z Models - Idler Tensioner Arm



930024, 930065, 932053, 932061, 934216, 934224, 935023, 935064, 936914, 936955, 940031, 940049, 941195, 941203, 942862, 942912, 943910, 943944



2013 - 2022 Rear Discharge - Super Z HD Models - Idler Tensioner Arm



932178, 932186, 934307, 934315, 934935, 934976, 937011, 937052, 941245, 941286, 941559, 941567, 943035, 943043, 944025, 944033



2018 - 2025 Rear Discharge - Diesel Z Models - Idler Tensioner Arm



Models are Currently Not Listed Will Be Eventually

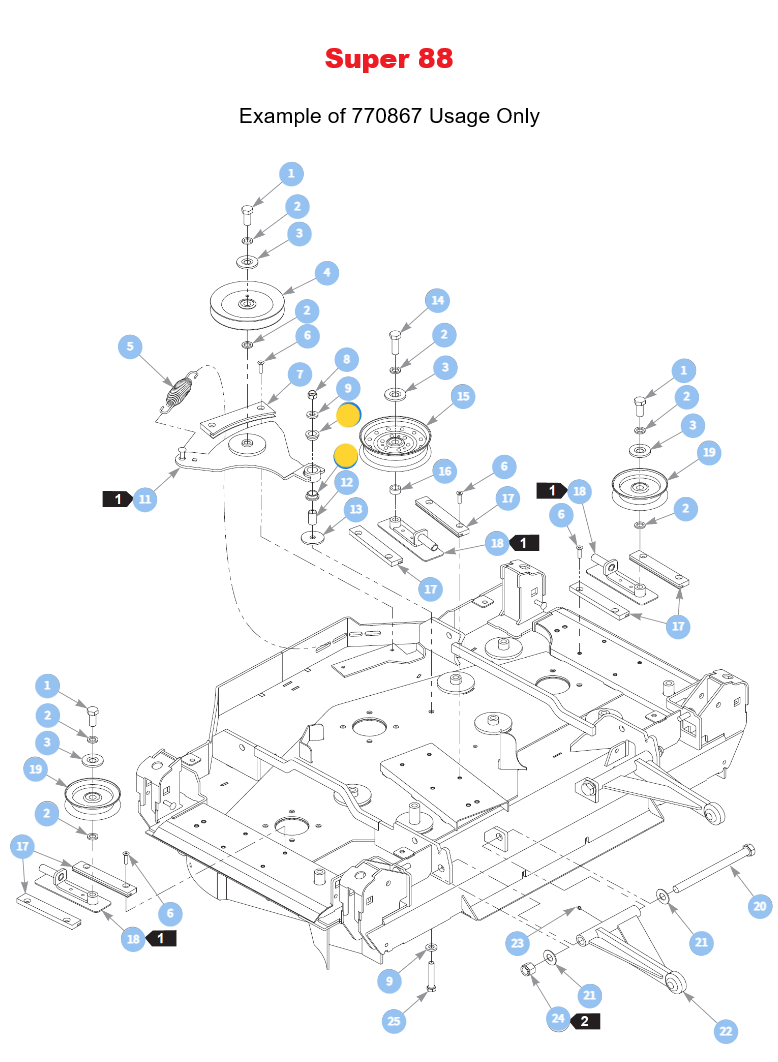

All Models - Super 88 - Idler Tensioner Arm





Not sure if this is the correct part?

Contact us with your Hustler model and serial number and our parts team will verify fitment before you order.
