ToroSKU: 680030
Price:
$20.06

View Financing Disclaimer

Pickup available, Usually ready in 24 hours

r

Apply for Financing

Description

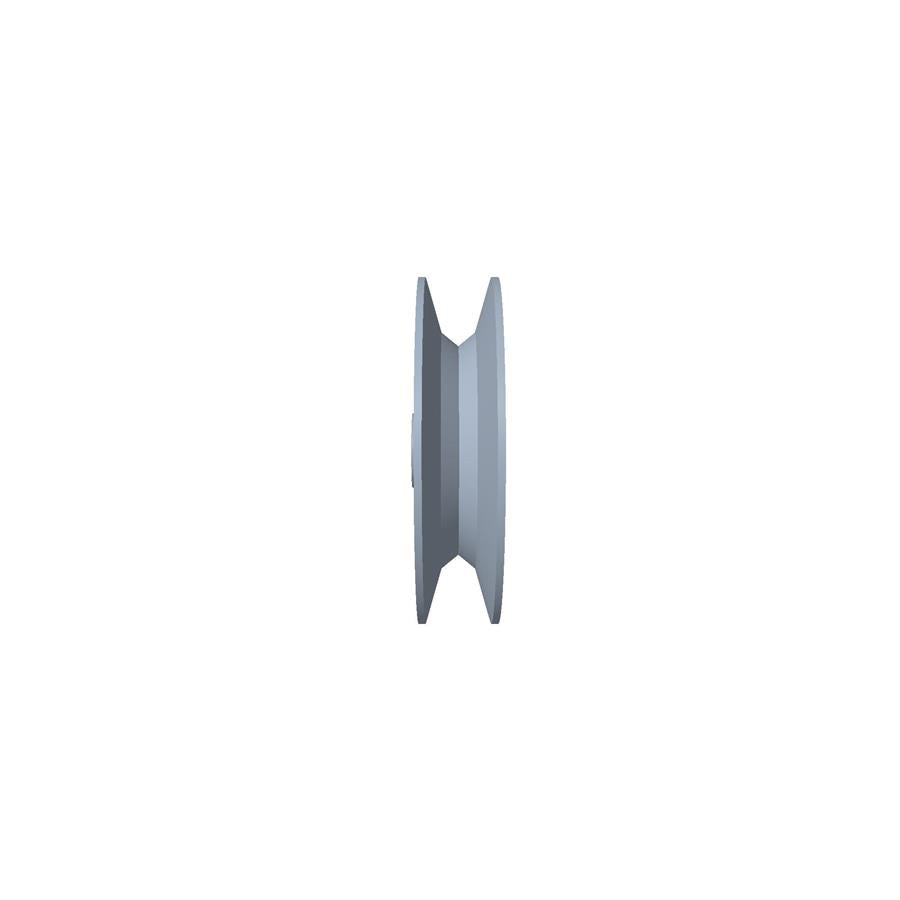

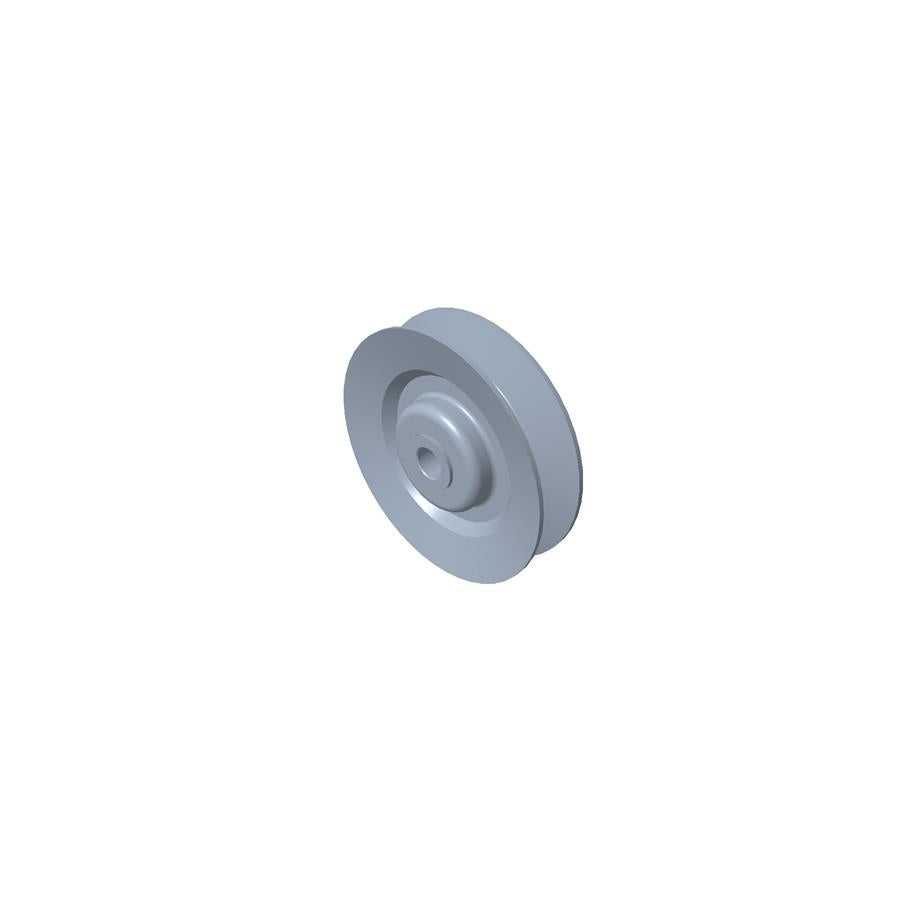

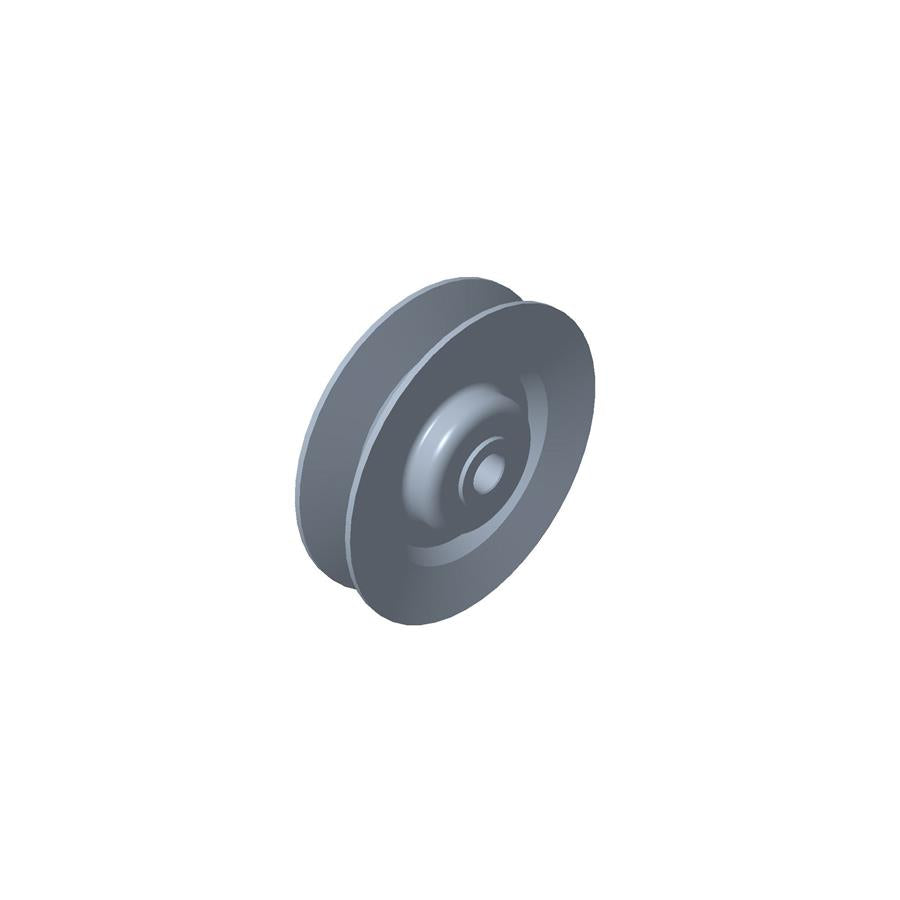

The Toro OEM 68 0030 Hydraulic Drive V-Idler is manufactured with strong steel alloy and high-quality ball bearings to ensure dependable operation in harsh, wet, hot, and dirty conditions. Built to original specifications, this V-Idler is designed to maintain correct tension on Hydraulic and/or Traction Drive Belts. 68 0030 OEM V-Idler is compatible with a variety of Toro models, including the Current/Late 34", 42", 50", 54",60", Timecutter ZS, MX, 4200, 5000, Standard, My-Ride, MAX Models (Models will Range from the Series with Replaceable Cast Aluminum Axle's to the Current Timecutter Max Series) - Current 48", 54", 60" TITAN Standard, My-Ride, MAX (Current Series with I-Beam Framing) - Spray Pump Models. Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below for an Accurate Break down of Specific Model Number Usage. For Additional Fastner & Associated Part references for Idler Pulley 68-0030 review the Associated Parts Link Below the Model Fit Chart. If You are Having Trouble Finding the Correct Hydraulic Idler Pulley Combination for Your Model, there is also a Chart with Detailed Break Down with Common Family and Model Numbers with the Correct Idler Pulley Part Number Combination Above in the Images as well as Below the Model Fit Guide and The Associated Part References. If this still doesn't prove helpful feel free to contact us with your questions. Part Number 68-0030-03 Supersedes to Part Number 68-0030







NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Part Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Page to Find the correct Model/Pulley Part Number Combo.







 Specification

Product Number:

68003003, 680030

Brand:

Toro

Length:

2.700 IN (6.858 CM)

Width:

2.700 IN (6.858 CM)

Height:

0.700 IN (1.778 CM)

Weight:



0.230 LB (0.104 KG)





Model Fit:





34”, 42”, 50”, 54”, 60” TIMECUTTER – 63-0030 MODEL/SERIES USAGE



34” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75734, 77301)



42” TIMECUTTER ZS Series – Model Numbers – (* Model Numbers 74677, 74683, 74685, 74687)

42” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74690, 74691)

42” TIMECUTTER 4200 & ZR 4200 Series – Model Numbers – (* Model Numbers 74679, 75740)

42” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404)

42” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74692, 75743, 75745, 75747)

42” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77402)

42” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77403)



50” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74694, 74695)

50” TIMECUTTER 5000 Series – Model Numbers – (* Model Numbers 75751)

50” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75750, 75753)

50” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74696, 75755, 75759)

50” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77501, 77505)

50” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77502)



54” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75754, 75756, 75757)

54” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77504, 77506)

54” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77503, 77507)



60” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75760, 75762)

60” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75763)

60” TIMECUTTER MAX (STANDARD) Series – Model Numbers – (* Model Numbers 77601)

60” TIMECUTTER MAX (My-Ride) Series – Model Numbers – (* Model Numbers 77602, 77603)



48”, 54”, 60” TITAN – 63-0030 MODEL/SERIES USAGE



48” TITAN Standard, My-Ride (48” Newer/Current Models I-Beam Frame) – 48” Current Models - (* Model Numbers 76401, 76411, 76420, 76425, 76448)



54” TITAN Standard, My-Ride (54” Newer/Current Models I-Beam Frame) – 54” Late/Current Models Only - (* Model Numbers 76501, 76511, 76530, 76554)



60” TITAN, TITAN My-Ride, Titan ZXM 6075 (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76604, 76605, 76614, 76635, 76660)



60” TITAN MAX (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76606, 76607, 76608, 76609, 76610)



SPRAY PUMP SYSTEMS – 63-0030 MODEL/SERIES USAGE



SPRAY PUMP SYSTEMS – Model Numbers – (* Model Numbers 55600, 55620, 41080, 41021, 41220, 41223, 41222, 41031, 41230)

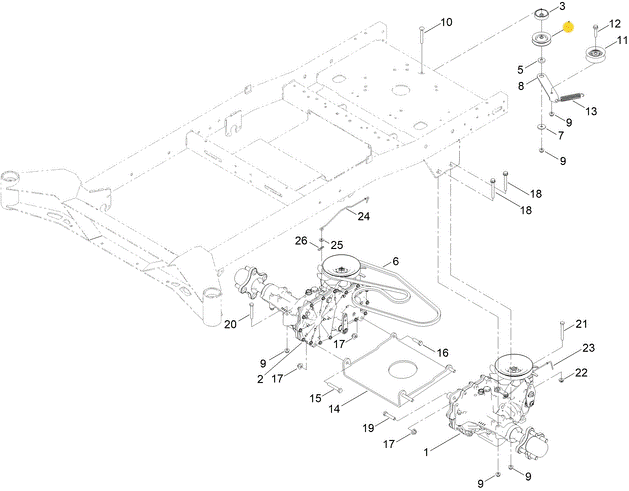

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 68-0030 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECT





TIMECUTTER, TITAN, TITAN MAX MODELS ONLY



  1. 139-2588 - IDLER PULLEY BOLT - (Retains V-Idler) x1 Per V-Idler Pulley
  2. 138-9809 - IDLER PULLEY SPACER - (Enables Hydraulic V-Idler to be Tightened Within Correct Spacing from Mower Frame/Engine Platform) x1 Per Pulley Fastened to The Mower Frame/Engine Platform
  3. 138-7276 - IDLER ARM - (Retains One Flat Idler Pulley for Belt Tensioning Purposes and Fastened to the Engine Platform/Frame with the V-Idler) x1 Per Unit * Timecutter Models (with Cast Aluminum Replaceable Axles)
  4. 147-2925 - IDLER ARM - (Retains One Flat Idler Pulley for Belt Tensioning Purposes and Fastened to the Engine Platform/Frame with the V-Idler) x1 Per Unit * Current Timecutter MAX (Without Replaceable Cast Aluminum Axel's), Current TITAN, TITAN MAX (With I Beam Framing)
  5. 138-7277 - IDLER ARM SPACER - (Inserts into Idler Pulley Arm and Spaces V-Idler Pulley to Correct Height Above the Ilder Pulley Arm as Well as Enabling Idler Pivot Arm to Pivot After It’s Tightened) x1 Per Idler Pulley Tensioner Arm
  6. 5-4460 - IDLER PIVOT WASHER - (Tightens Against the Flange of the Idler Arm Spacer and Supports the Idler Arm on the Bottom Side) x1 Per Idler Pulley Tensioner Arm
  7. 119-4041 - IDLER PULLEY NUT - (Retains V-Idler) x1 Per V-Idler Pulley
