ToroSKU: 632290
Price:
$2.27

View Financing Disclaimer

Pickup available, Usually ready in 24 hours

GET MORE INFO OR QUOTE
×

Description

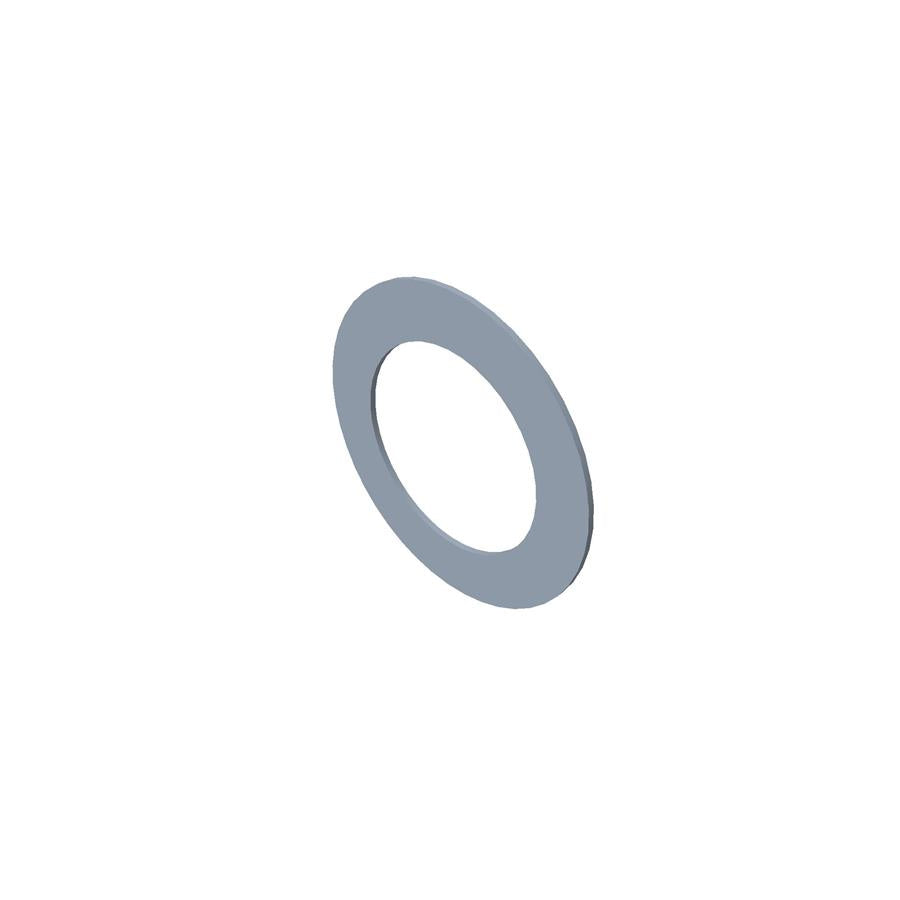

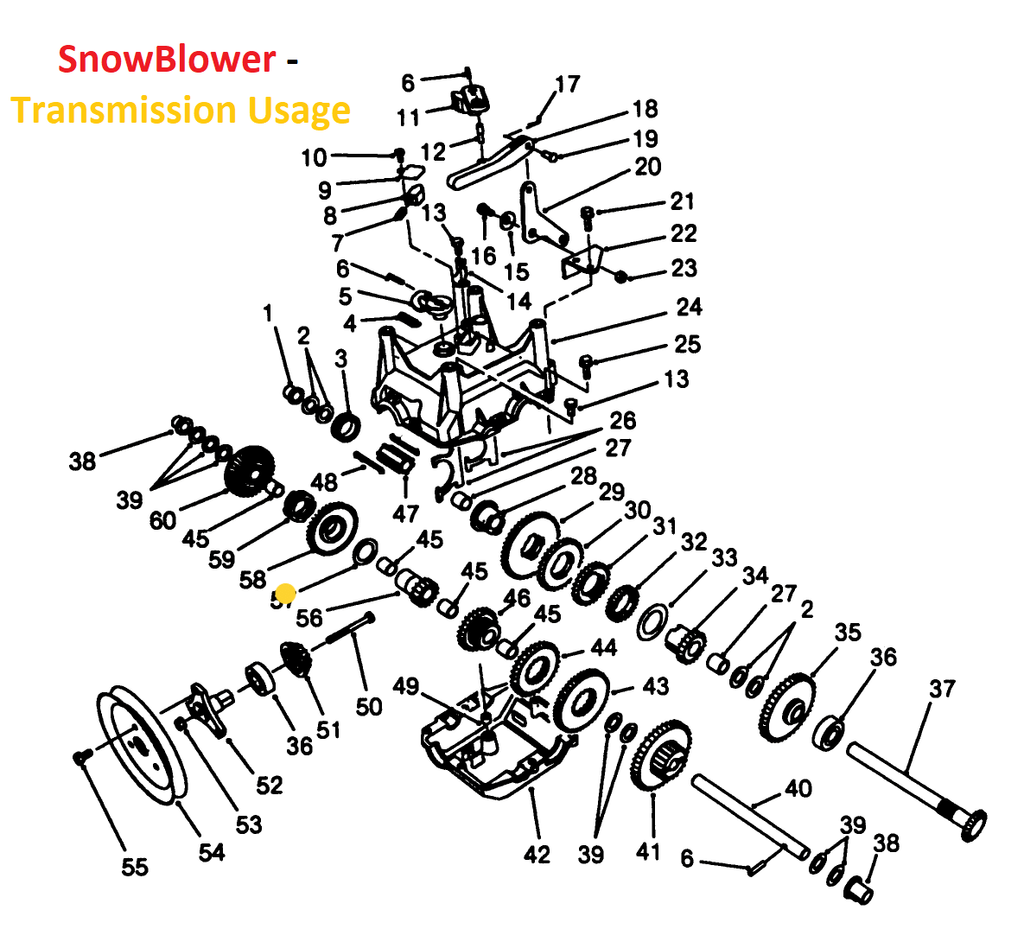

Toro OEM 63 2290 Thrust Washer is used on Older Toro Snow Blower Models (Between Gears Inside the Transmission), on Greenmaster Models (Rear Hitch/Pull Frame Assembly) but Most Commonly Used on the Timecutter Models - with Cast Aluminum Axle's Only (Installed Over Mower Deck Lift-Leverage-Pivot Rod on Each Side of the Mower Deck Handle and Reduces the Amount of Play or Slop in the Mower Deck Lift Handle). Toro OEM 63 2290 Comes Assembled Standard on 50", 54" Timecutter Models and is use only with Optional Mower Deck Assist Foot Petal Kit for 34", 42" Timecutter Models. Refer to the Model Fit Chart Below for an Accurate Break Down of Models that Part Number 63-2290 would or could be used on. Part Number 161-4527 Deck Assist Lift Kit is for 34" & 42" Models Listed below in the Model Fit Chart - 161-4527 Contains the Individual Part Listed Below - For Individual Replacement Part Refer to the Foot Pedal Associated Parts Reference Below.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 63-2290 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

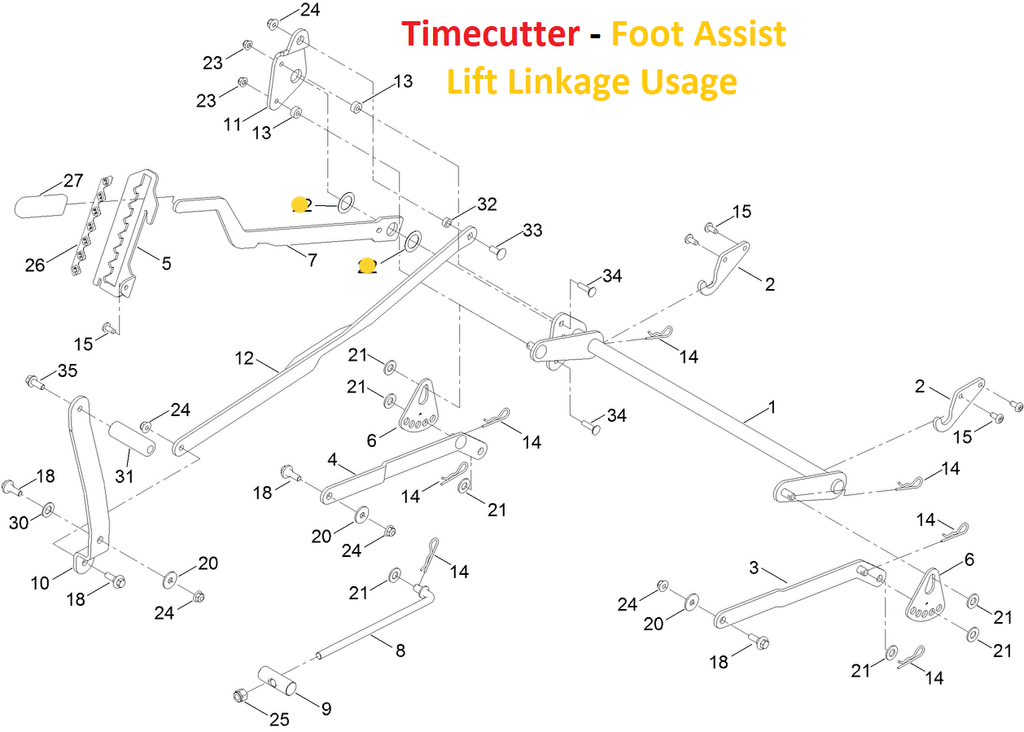

PARTS REFERENCES FOR MODELS WITH MOWER DECK FOOT-ASSIST PEDAL KITS

*50", 54" Came with Foot assist Petal Whereas 34", 42" Models did Not - Part combination is the same except for lift handle Fastners and Spacers as noted



  1. 139-7452 - FOOT PEDAL - (The Cylinder Shape Foot Pedal That Bolt to the Foot Pedal Bracket) x1 Per Unit
  2. 139-2597 - FLANGE BOLT - (Threads into the Foot Pedal and Retains the Foot Pedal to the Foot Pedal Bracket) x1 Per Foot Pedal
  3. 138-2549-03 - FOOT PEDAL BRACKET - (Fastens to Mower Frame and Retains the Foot Assist Pedal and connect to the Foot Lift Link) x1 Per Unit
  4. 137-9847 - FLANGE SHOULDER BOLT - (Retains the Foot Pedal Bracket to the Mower Frame as well as the Foot Lift Link to the Foot Pedal Bracket) x2 Per Foot Pedal Bracket
  5. 120-2273 - NYLON WASHER - (Installed Over the Flange Against the Flange Bolt Head and Reduces the Amount of Play or Slop there is in the Foot Pedal Bracket but still allows it to Rotate - Installed on the Shoulder Bolt that Retains it to the Frame) x1 Per Foot Pedal Bracket
  6. 93-8806 - FLAT WASHER - (Installed Over the Flange Bolt Threads Against the Flange Bolt Flange Between the Foot Pedal Bracket and the Mower Frame and Spaces the Foot Pedal Bracket Away from the Frame) x1 Per Foot Pedal Bracket
  7. 104-8301 - FLANGE LOCK NUT - (Retains Foot Pedal Bracket to Mower Frame and the Foot Lift Link to Foot Pedal Bracket) x2 Per Foot Pedal Bracket
  8. 140-2746-03 - FOOTLIFT LINK - (Connects Foot Assist Pedal to Mower Deck Lift Handle and Mower Deck Pivot Arm) x1 Per Assist Foot Pedal
  9. 119-4042 - FLANGE NUT - (Retains the Foot Pedal Link to the Foot Lift Plate) x1 Per Foot Pedal Lift Plate
  10. 139-2590 - CARRIAGE BOLT - (Retains Foot Pedal Lift Link to the Foot Lift Plate) x1 Per Foot Pedal Lift Plate
  11. 137-7086 - FOOTLIFT PLATE - (Fastens Overtop Mower Deck Lift Handle to the Pivot Lift/Leverage Arm and Enables you to Connect Mower Deck Foot Assist Lift Link) x1 Per Mower Deck Lift Handle
  12. 140-3461 - SPACER - (Spaces Mower Deck Lift Handle Away from Mower Deck Lift/Leverage Arm and Foot Lift Plate) x2 Per Mower Deck Lift Handle
  13.  63-2290 - THRUST WASHER - (Installed Over Mower Deck Lift-Leverage-Pivot Rod on Each Side of the Mower Deck Handle and Reduces the Amount of Play or Slop in the Mower Deck Lift Handle) x2 Per Mower Deck Lift Handle
  14. 140-2093 - SPACER (Foot-Lift Assist Linkage/Handle) - (Inserts in the Mower Deck Lift Handle Between Mower Deck Lift Plate and Mower Deck Pivot Arm Allowing them to be Fastened Together without Eliminating the Necessary Rotational Movement) x1 Per Mower Deck Lift Handle
  15. 137-7087-03 - MOWER DECK LIFT HANDLE - (Fastens Between the Mower Deck Pivot-Leverage-Lift Arm and the Foot Lift Plate) x1 Per Unit
  16. 139-1702 - CARRIAGE BOLTS - (Retains Thrust Washers, Spacers, Footlift Plate and Mower Deck Lift Handle to Mower Deck Pivot Lift/Leverage Arm) x2 Per Mower Deck Lift Handle, Foot Lift Plate
  17. 119-4041 - FLANGE LOCK NUT - (Retains Thrust Washer, Spacers, Footlift Plate and Mower Deck Lift Handle to Mower Deck Pivot Lift/Leverage Arm) x2 Per Mower Deck Handle, Foot Lift Plate
  18. 137-7093-03 - MOWER DECK PIVOT LIFT/LEVARGE ARM - (Attaches to The Frame and Travels Between/Across the Frame of the Mower and assist with lifting the Mower Deck by Leveraging the weight of Mower Deck into a Rotational Pivot Point - Attaches to the Lift Linkage Lift Link Handle and Foot Lift Link) x1 Per Mower Deck or Unit





MOWER DECK FOOT-ASSIST PEDAL KIT



161-4527 - FOOT PEDAL ASSIST KIT FOR TIMECUTTER - 34" & 42" Timecutter Models (161-4527 is for 34" & 42" Models Listed below in the Model Fit Chart - 161-4527 Contains the Individual Part Listed Above - For Individual Replacement Part Refer to the Foot Pedal Associated Parts Reference Above)







Product Number:

632290

Brand:

Toro

Length:



1.570 IN (3.988 CM)

Width:



1.570 IN (3.988 CM)

Height:

0.030 IN (0.076 CM)

Weight:

0.010 LB (0.005 KG)





Model Fit:





Model Factory Assemble Usages



Timecutter: 74694, 74695, 74696, 75750, 75751, 75753, 75754, 75755, 75756, 75757, 75759, 75851

Snowblower: 38500, 38505, 38510, 38513, 38520, 38525, 38540, 38543, 38545, 38565, 38570, 38573, 38580

Greenmaster: 04380, 04381, 04382, 04383, 04384, Suspension Kits - 98-4611, 99-4100





USAGE IN FOLLOWING KITS:



Foot Assist Mower Deck Lift Kit: 161-4527

Foot Assist Mower Deck Lift Kit: 140-2059





TIMECUTTER STANDARD AND OPTIONAL USAGE WITH FOOT ASSIST LIFT PEDAL



34” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75734, 77301)



42” TIMECUTTER ZS Series – Model Numbers – (* Model Numbers 74677, 74683, 74685, 74687)

42” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74690, 74691)

42” TIMECUTTER 4200 & ZR 4200 Series – Model Numbers – (* Model Numbers 74679, 75740)

42” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404)

42” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74692, 75743, 75745, 75747)

42” TIMECUTTER (Standard & My-Ride - Battery) Series – Model Numbers – (* Model Numbers 75841, 75642)



50” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74694, 74695)

50” TIMECUTTER 5000 Series – Model Numbers – (* Model Numbers 75751)

50” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75750, 75753)

50” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74696, 75755, 75759)



54” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 75754, 75756, 75757)

54” TIMECUTTER (My-Ride - Battery) Series – Model Numbers – (* Model Numbers 75851)
