Description
Hustler OEM 608776-4 Discharge Chute Pivot Pin
- Application: Commonly Used in Select

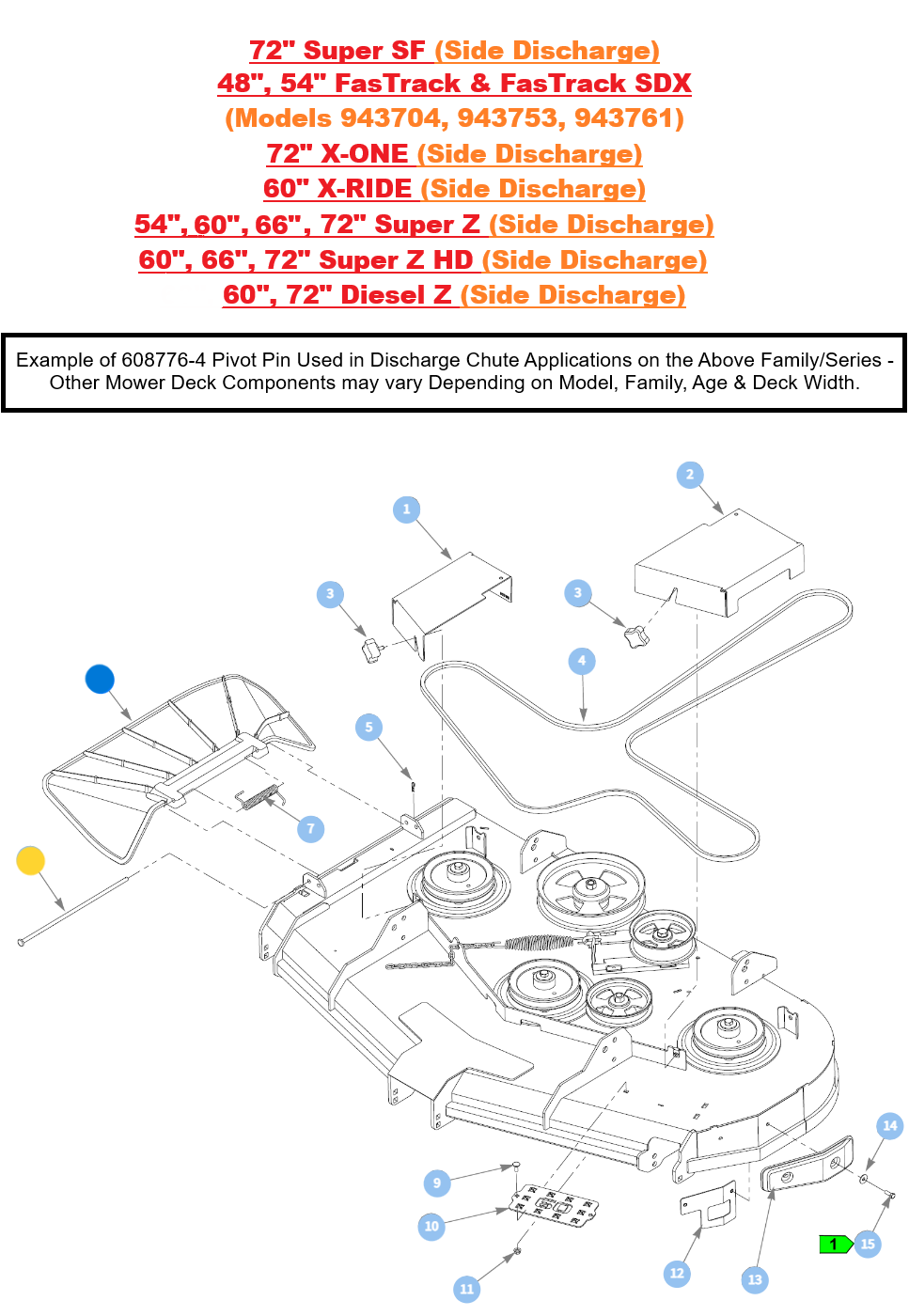

DISCHARGE CHUTE RETAINING PIVOT PIN
- FasTrack (Model 943704, 943753, 943761),
- 72" X-ONE (Side Discharge)
- 60" X-RIDE,
- 72" Super SF
- 54", 60", 66", 72" Super Z
- 60", 66", 72" Super Z HD
- 60", 72" Diesel Z

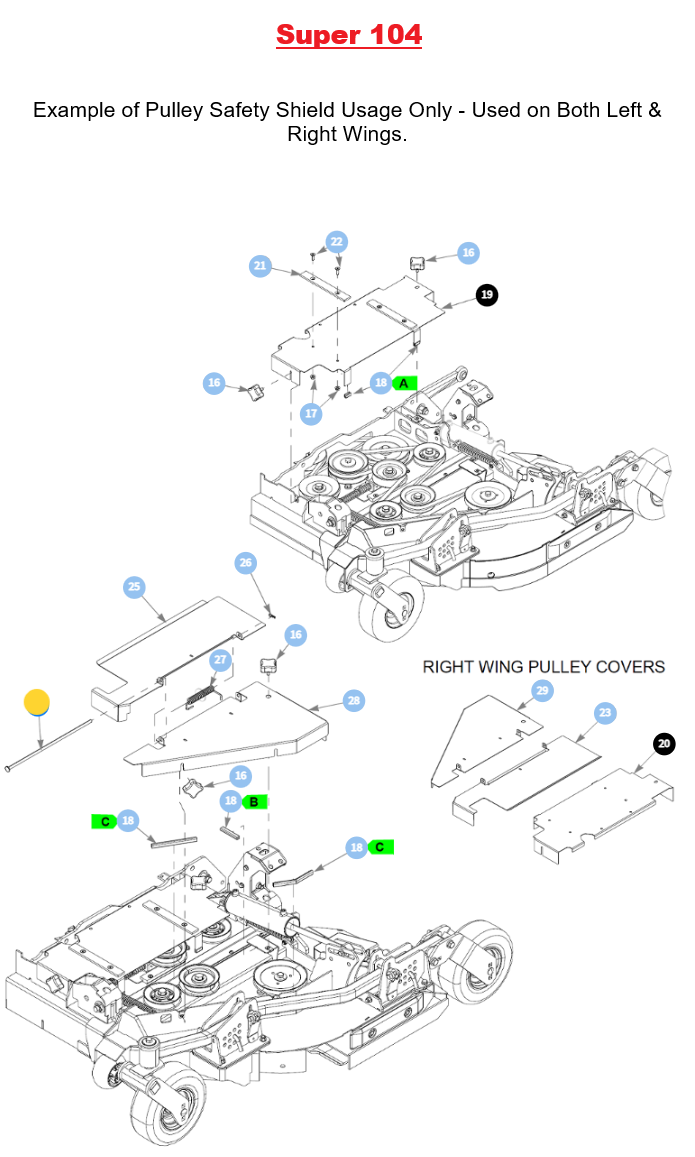

LEFT & RIGHT MOWER DECK BELT/PULLEY SAFETY SHIELD PIVOT PIN
- Super 104
Refer to Images Above, Special Notes and Part References Below to verify a Correct Fit. Click on the Additional Part References Below to be Redirected.
ASSOCIATED RETAINING CLIP PIN & TORSION SPRING
Note: In Most Application 608776-4 & 602432 Pivot Pins can be Interchanged with Right Retaining Hardware (Nut or Clip-Pin).
- 706549 - Discharge Chute Clip Pin (Used With 608776-4)
- 602435 - Discharge Chute Torsion Spring
Model Fit Chart
Select FasTrack & FasTrack SDX
943704, 943753, 943761
X-ONE (72" Side Discharge Models)
Models are Currently Not Listed Will Be Eventually
X-RIDE (ALL MODELS)
944074, 944868
Super Z (2023 - Current 54", 60", 66", 72" Side Discharge Models)
942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943886, 943894, 943910, 943928, 943936, 943944
Super Z Hyper Drive (2023 - Current 60", 66", 72" Side Discharge Models)
942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943969, 943977, 943985, 943993, 944017, 944041, 944025, 944033
Diesel Z (2023 - 2025 60", 72" Side Discharge Models)
943233US, 943249US
Super 104 (2023 - Current)
944058, 944066
Super SF (2023 - Current 72" Side Discharge Models)
943514, 943530
Not sure if this is the correct part?
Contact us with your Hustler model and serial number and our parts team will verify fitment before you order.
