Description

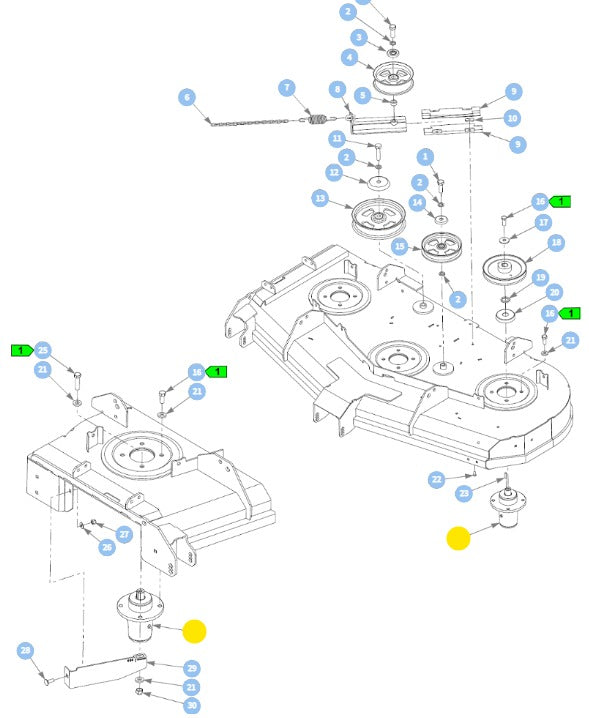

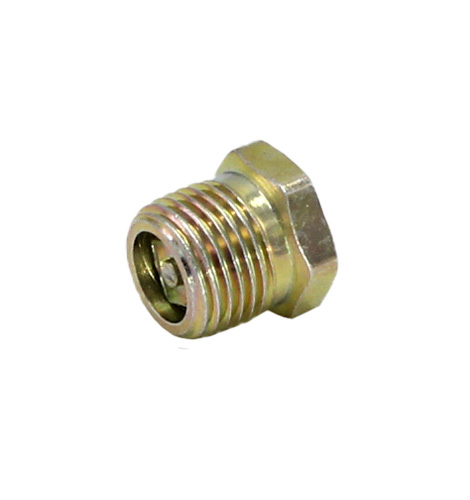

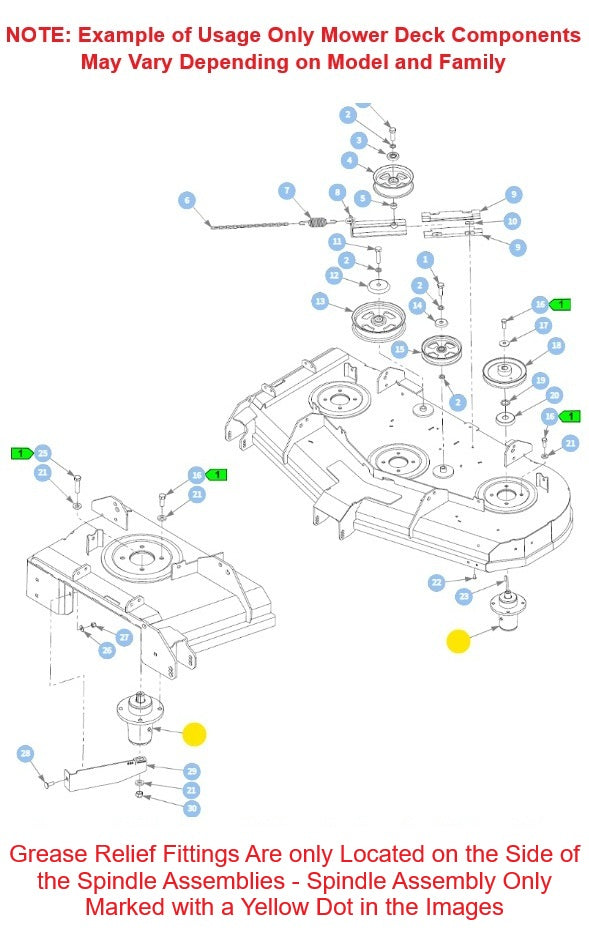

The Hustler OEM 607478 Grease Relief Fitting is an expertly designed and integral part of the Hustler Greaseable Spindle Assembly. It effectively prevents over-greasing and ensures that your Spindle Assemblies are fully greased. With the Hustler 607478 Relief Valve, grease pressure is released from the side of the Spindle Assembly, preventing the buildup of pressure that can damage the outside seal of your sealed roller bearings. This also prevents dirt and debris from entering the roller bearing balls, ensuring smooth and efficient operation. The Hustler OEM 607478 Pressure relief Valve is used with the Hustler Commercial Spindle Assemblies 607407P & 607408P that are used on the Hustler Commercial X-ONE, X-RIDE, Super Z, Super Z HD, Diesel Z, Super S, Super 104, Super SF and Super 88 Series Mower Decks. Please Refer to the Images above, Special Notes and Help Links below to ensure a proper fit. Click on the Part Numbers and Help Links to be redirected.
- 607407P - Right-Hand, Standard or Common Mower Blade Spindle Assembly (Used on Side & Rear Discharge Models)
- 607408P - Left-Hand Mower Blade Spindle Assembly (Used at Select Locations on Rear Discharge Mower Models - OEM Mower Blades and Spindle Ass. are Painted Red to Determine the Difference)
Specification
|
Product Number: |
607478 |
|
Brand: |
Hustler |
|
Length: |
0.40 IN |
|
Width: |
0.40 IN |
|
Height: |
0.50 IN |
|
Weight: |
0.030 LB |
Model Fit:
* 607478 May Be Used on Additional Models/Families like Deisel Z & X-One Models - Due to Lack of Information and Details - Hilly Ridge Will Continue to MANUELLY Improve the Model Fit Chart with Time - If you Have any Questions on Exact Fit Feel free to Message or Call us.
X-ONE - Side & Rear Discharge Models
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
Models are Currently Not Listed Will Be Eventually
X-RIDE - ALL MODELS
944074, 944868
Super Z - Side & Rear Discharge Models
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
929927, 929935, 929943, 929950, 930024, 930065, 930875, 931048, 932012, 932020, 932038, 932046, 932053, 932061, 932129, 932137, 932970, 932988, 933457, 933929US, 934216, 934224, 934232, 934240, 934265, 934273, 934281, 934984US, 934992, 935007, 935015US, 935023, 935031, 935049, 935056US, 935064, 936872, 936880, 936898US, 936914, 936922, 936930, 936948US, 936955, 936989, 937714, 937722, 937730, 938985, 938993, 940031, 940049, 941138, 941146, 941153, 941161, 941179, 941187, 941195, 941203, 941377, 941385, 942342, 942771, 942763, 942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943878, 943886, 943894, 943910, 943928, 943936, 943944
Super Z Hyper Drive - Side & Rear Discharge Models
(Models 2013 and Later are Listed - Models Listed Prior To 2013 May Not Be Listed If Applicable)
932145, 932152, 932160, 932178, 932186, 932996, 933002, 934315, 934307, 934323, 934349, 934687, 934695, 934919, 934927, 934935, 934943, 934950, 934968, 934976, 936997, 937003, 937011, 937029, 937037, 937045, 937052, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941245, 941252, 941260, 941278, 941286, 941294, 941302, 941310, 941534, 941542, 941559, 941567, 942219, 942227, 942235, 942243, 942250, 942359, 942961, 942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943951, 943969, 943977, 943993, 943985, 944017, 944041, 944025, 944033
Diesel Z - Side & Rear Discharge Models
Models are Currently Not Listed Will Be Eventually
Super ATZ
No Listed Model Numbers
Super 104
Models are Currently Not Listed Will Be Eventually
Super S
Models are Currently Not Listed Will Be Eventually
Super SF
Models are Currently Not Listed Will Be Eventually
Super 88
936617, 939546
Not sure if this is the correct part?
Contact us with your Hustler model and serial number and our parts team will verify fitment before you order.
