Description
Replace your spindle ass. with the OEM replacement Part that was designed, tested and engineered to withstand the sheer point without sacrificing the strength and durability of your Lawn Mower Deck. Hustler OEM Heavy Duty replacement Spindle Ass. 607407P is designed for Multiple Commercial Hustler Model/Series Including: 2011 - Current X-ONE, X-RIDE, Super Z, Super Z HD, Diesel Z, Super 104, Super 88, Super S, Super SF Models. Please Refer to the Images above, Model Fit Chart, Special Notes and Help Links below to ensure a proper fit. Click on the Part Numbers and Help Links to be redirected. Part Number 604255 and 607407 Supersede to Part Number 607407P.

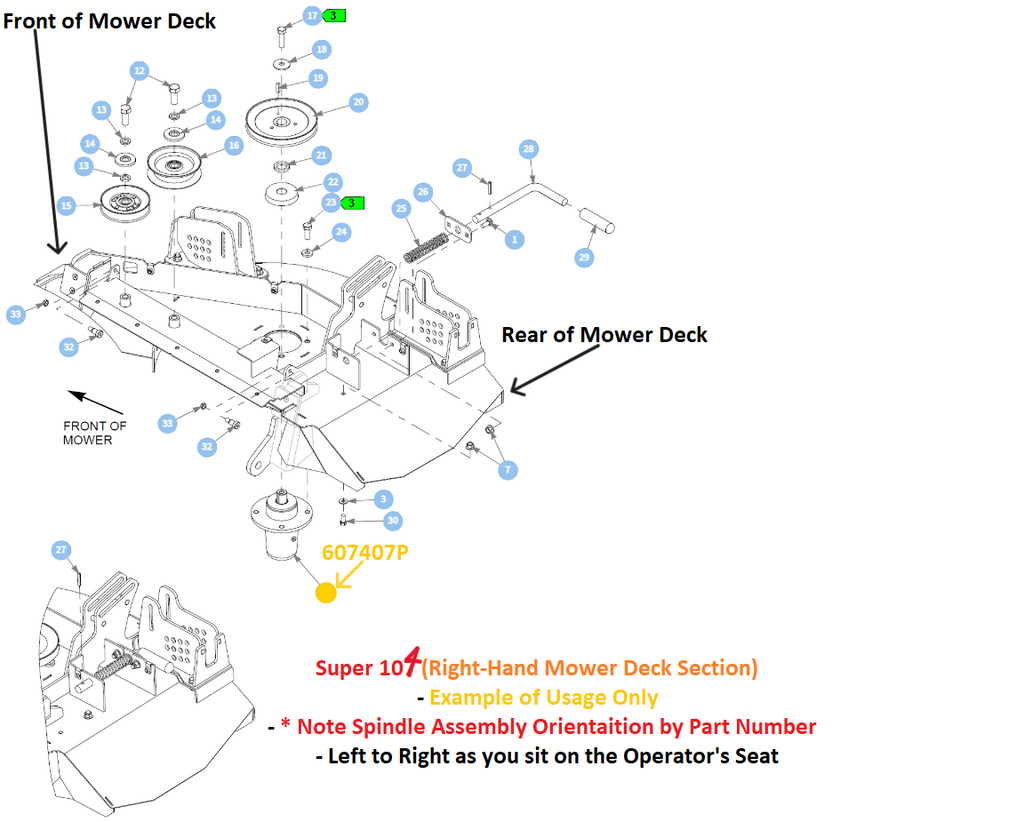

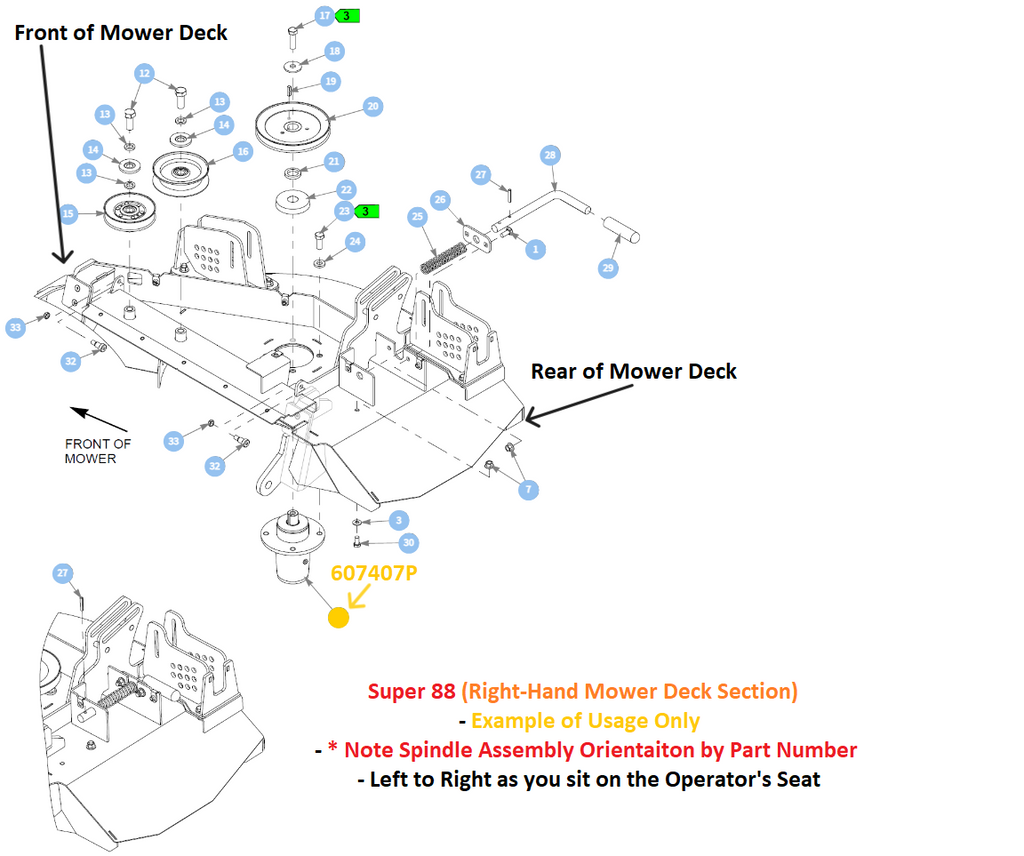

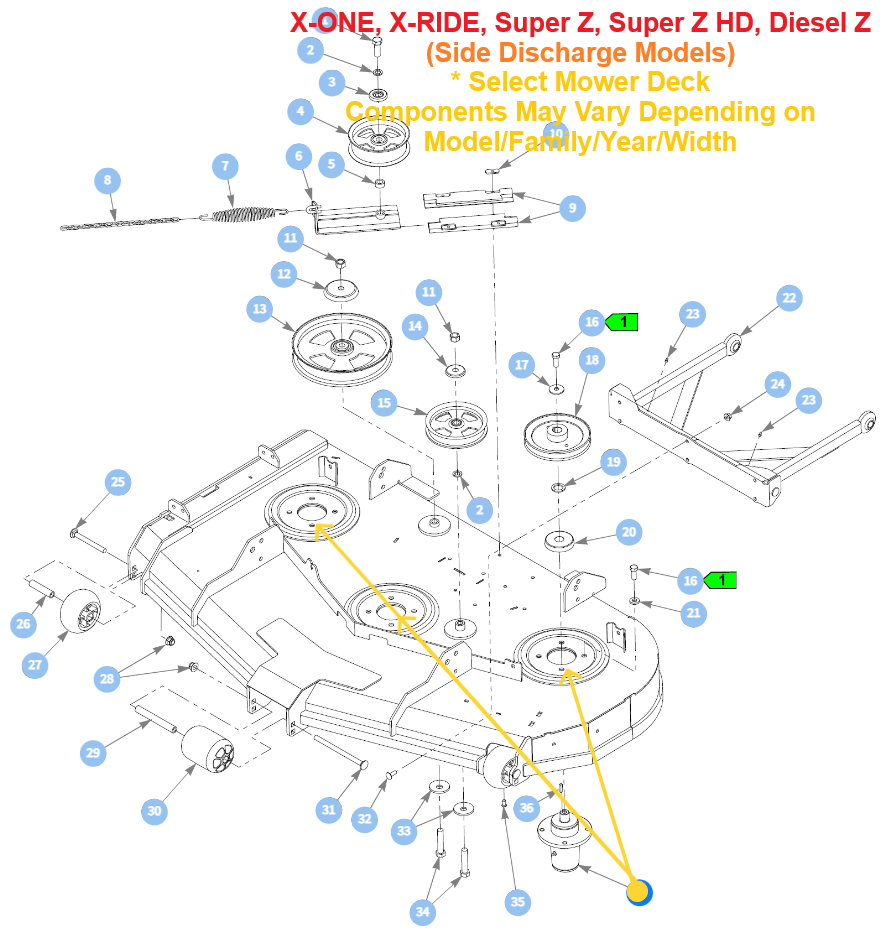

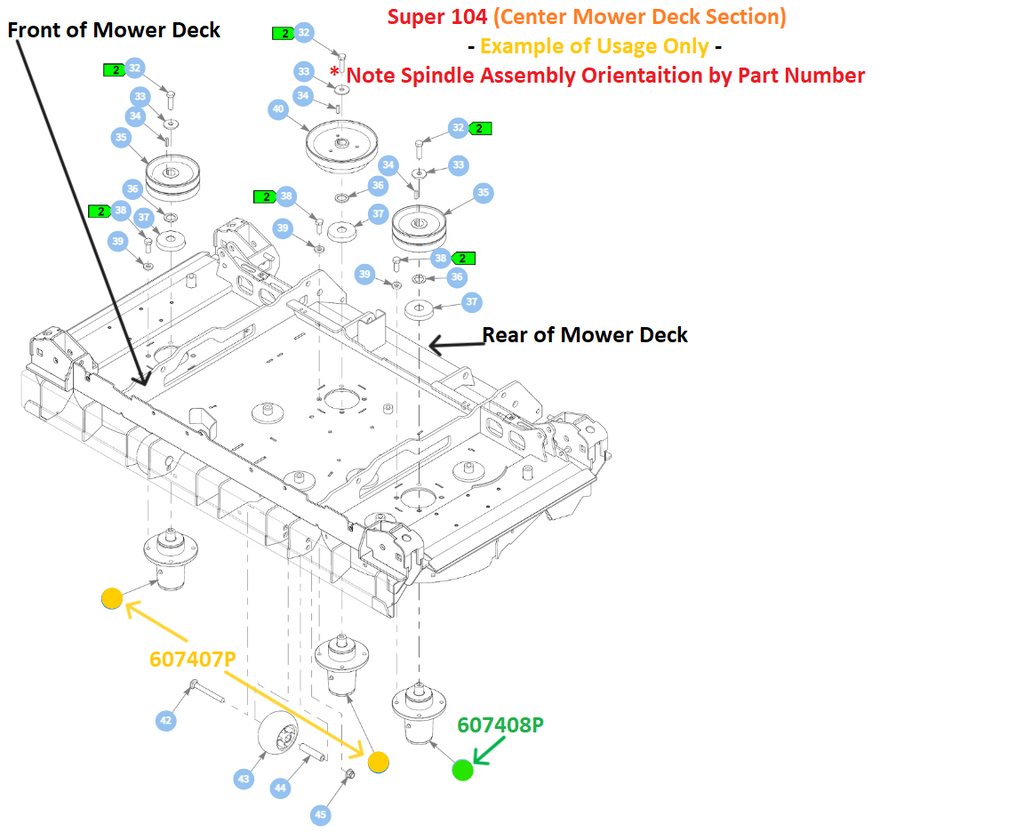

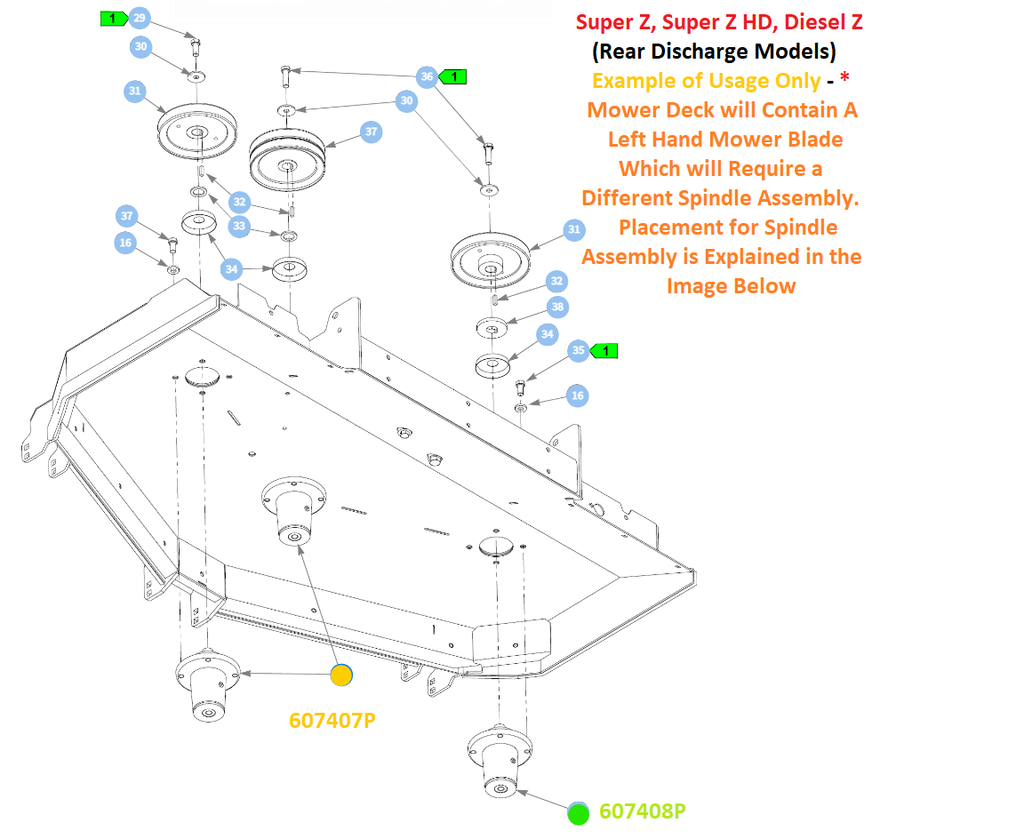

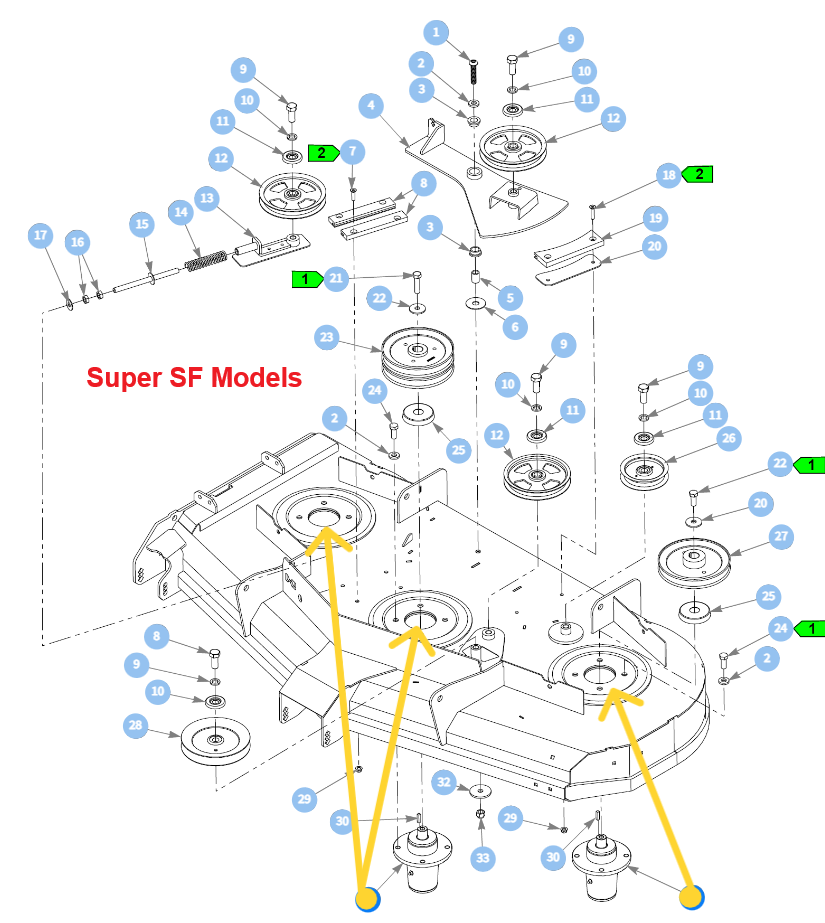

Important Note: 607407P will be used on Side and Rear Discharge Whereas 607408P will Only Be Used on Only Rear Discharge Models and Will be Used in Conjunction with 607407P. In Oder to Eliminate Confusion as to Which Spindle Assembly is Required for Each Location on your Mower Deck Refer to the Images Above - Images are Organized for Each Family/Series of Mower that 607408P Will be Used On.

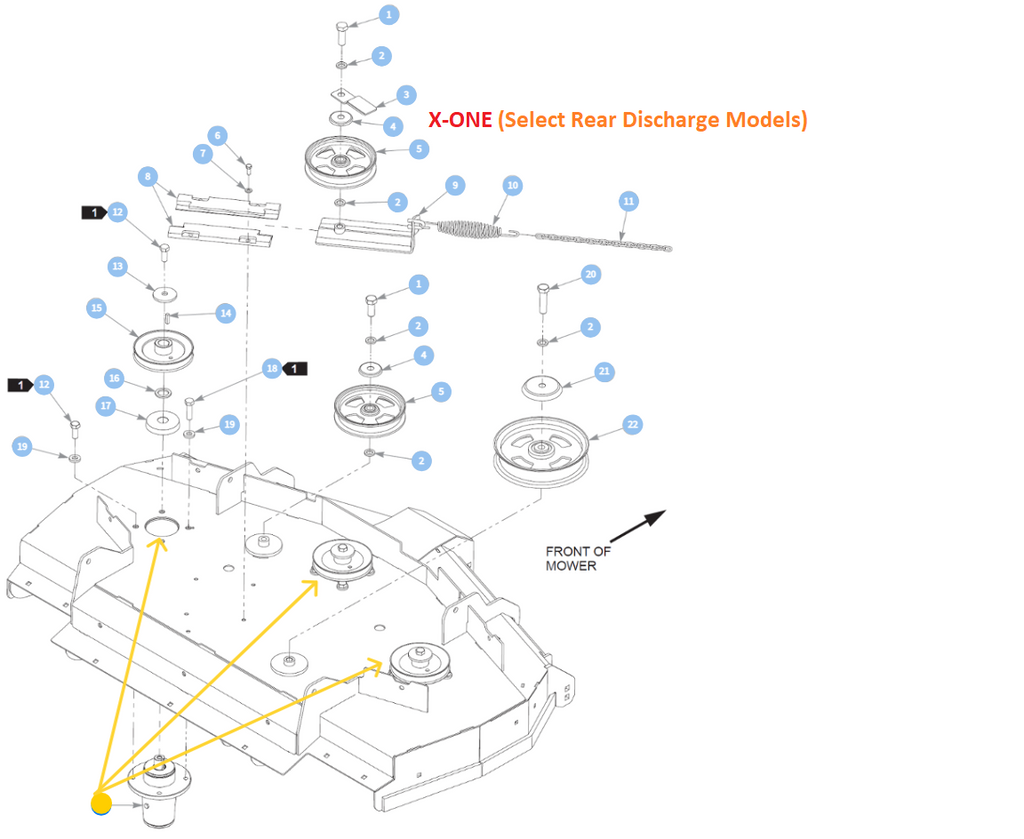

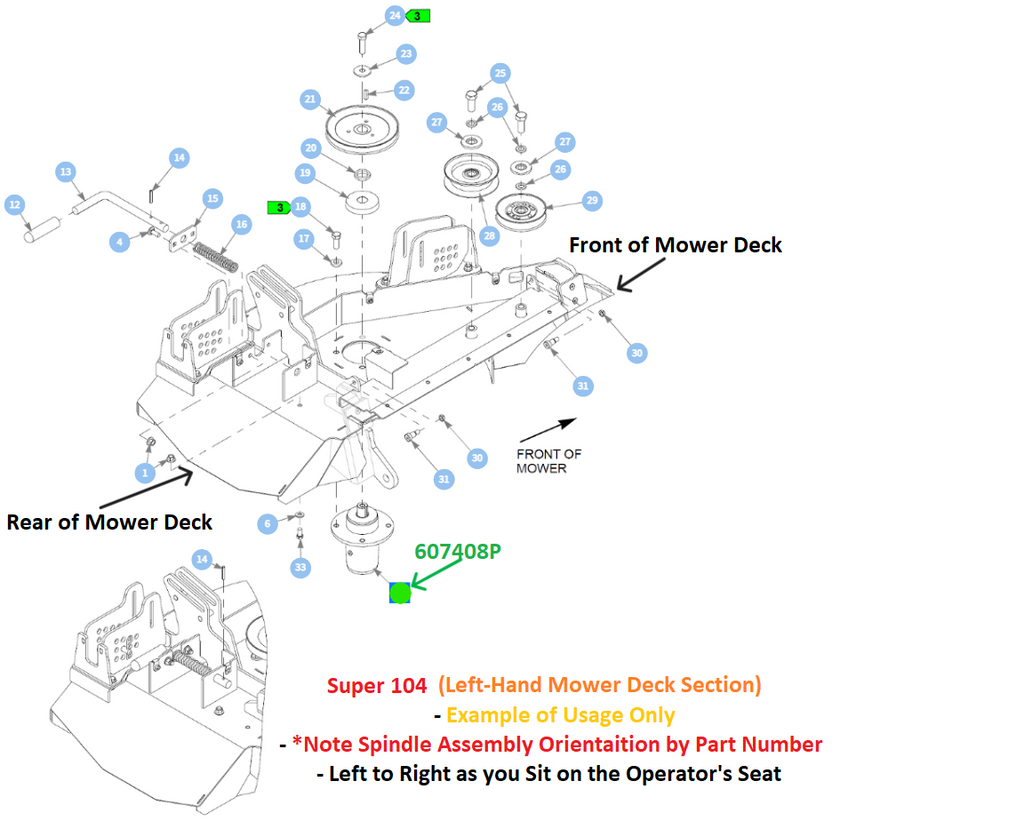

NOTE: Select Rear Discharge Models Will Require a Reverse or Left-Hand Mower Blade (OEM Left-Hand Mower Blades are Always Painted Red) and for those Mower Blades they will Require a Different Spindle Assembly than the Normal Right Hand Mower Deck Blades - Refer to the Images Above for Detailed Location, Placement, Quantity and Required Part Numbers for the Listed Models
- 607407P - Normal Right Hand Mower Blades Spindle Assembly

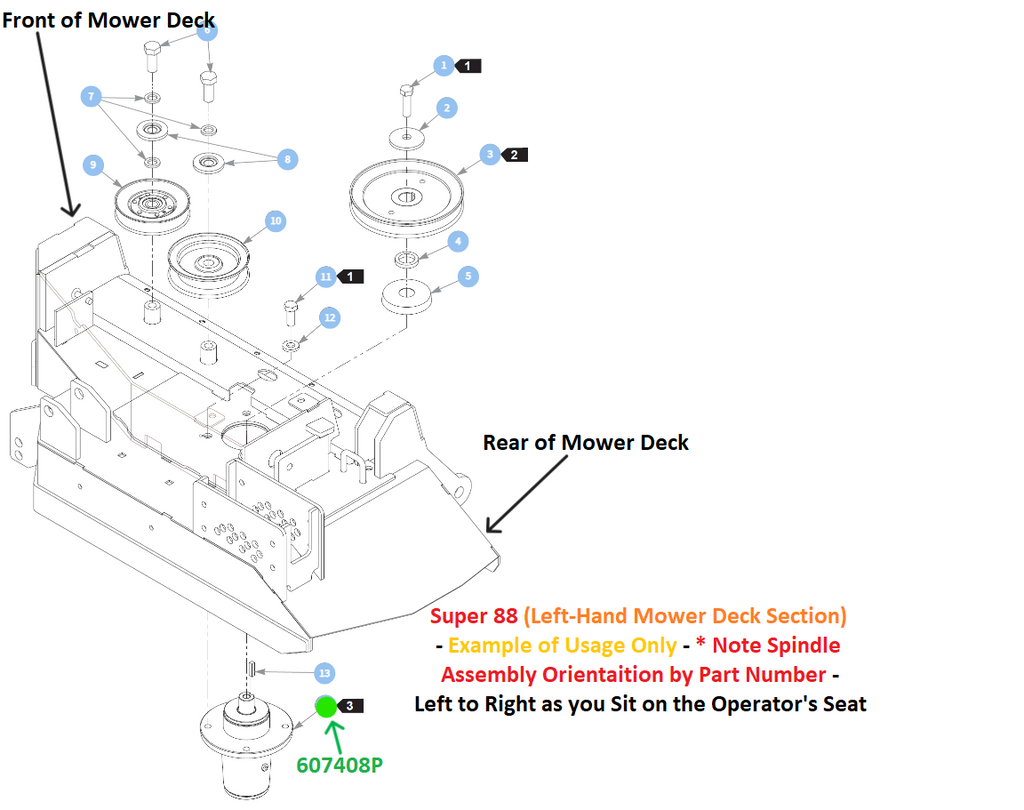

- 607408P - Left Hand Mower Blade Spindle Assembly (OEM Mower Blade are Painted Red)
- 607409-4 - UPPER DUST CAP X 1
- 607407P BEARING KIT X 1 (Comes as a Bearing Kit) *Contains Both Upper and Lower Bearings for Spindle Assembly 607407P
- 607955 - UPPER AND LOWER BEARINGS X 2 (Comes as Individual Bearings)
- 607478 - GREASE RELIEF FITTING X 1
- 607477 - GREASE ZERK X 1
- 114988 - BLADE BOLT SHIELD X 1
- 782474 - REMOVEABLE BELLEVILLE BLADE BOLT WASHER X 1
- 781872 - BLADE BOLT X 1
- 212472 - SHAFT/PULLEY KEY X 1
607407P SPINDLE ASSEMBLY/MOWER DECK FASTENERS
- 016527 - BOLT X 4 Per Spindle Assembly - Assembled through the Mower Deck and then through the Spindle Assembly (1/2 X 1.00 - 13) * Select Models Only

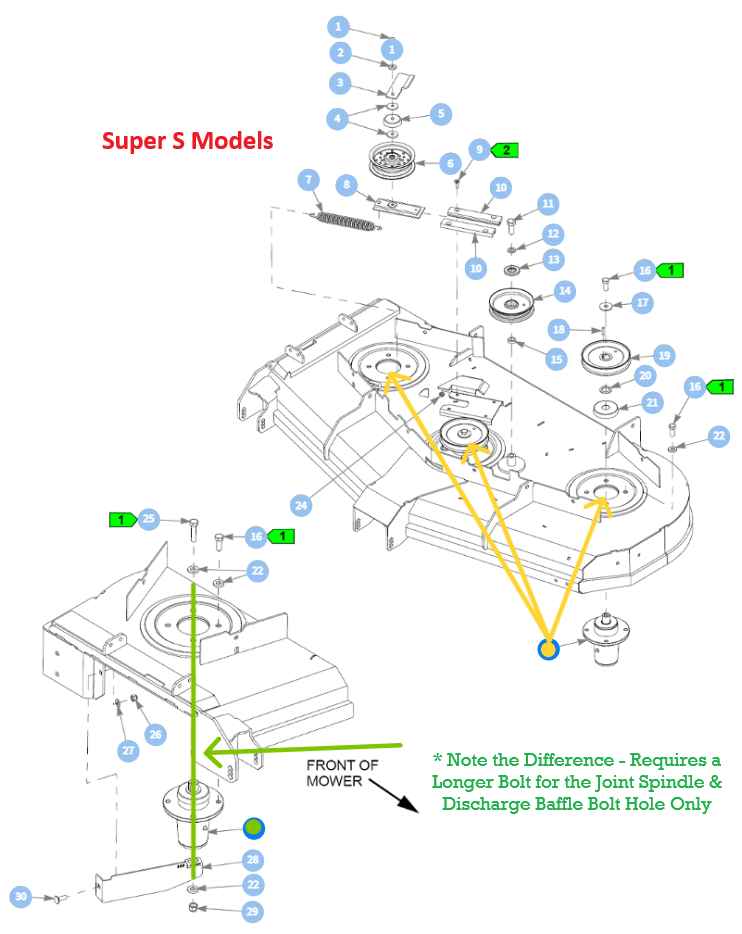

- 705954 - BOLT X 4 - Per Spindle Assembly - Assembled through the Mower Deck and then through the Spindle Assembly (1/2 X 1.25 - 13) * Select Models Only - Select Side Discharge Models that Contains a Discharge Baffle - Requires X3 705954 and X1 078949 Longer Bolt for the Joint Spindle Assembly & Discharge Baffle Hole Only on the Discharge Spindle - Marked in Image Above with a Green Dot.
- 017616 - BOLT X 4 Per Select Spindle Assembly - Assembled through the Mower Deck and then through the Spindle Assembly (1/2 X 1.75 -13) * Select Models Only

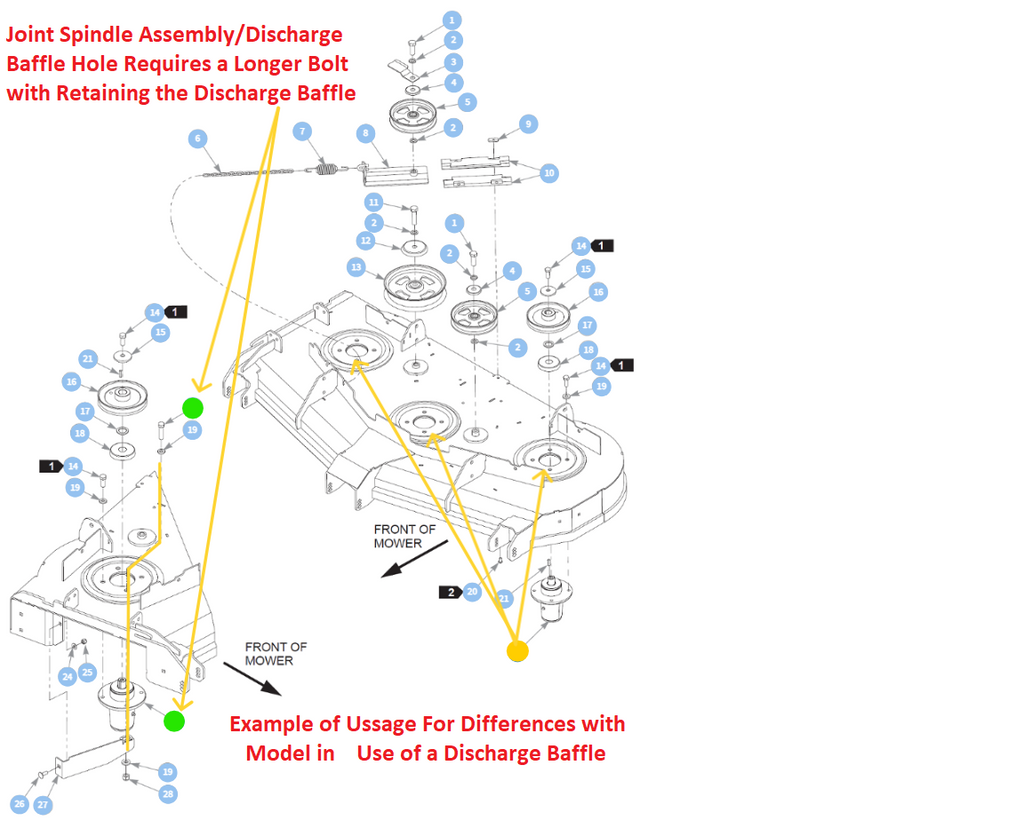

- 078949 - BOLT X 1 - Per Select Spindle Assembly - Assembled through the Mower Deck and then through the Spindle Assembly (1/2 X 2.00 -13) * Select Side Discharge Models that Contain a Discharge Baffle - Requires X3 705954 and X1 078949 Longer Bolt for the Joint Spindle Assembly & Discharge Baffle Hole Only on the Discharge Spindle - Marked in Image Above with a Green Dot.
- 767962 - FLAT WASHER X 8 Per Spindle - Assembled Against the Bolt Head and Against the Nut.
- 781567 - NUT X ? Per Spindle - Assembled Against the Bottom of the Spindle Assembly - On the Inside of the Mower Deck - * Spindle Ass. are Thread so it is Typically Used Only to Retain the Discharge Baffle to the 078949 Bolt Referred to Above - Could Be Used in Application with a Longer Bolt as well if you wanted to Install a Lock Nut in Addition to the Threaded Spindle Assembly Hole.
SPECIAL TOOLS
- 115776 - DECK STRAIGHTENER - Designed To Bolt in Place of the Spindle Assembly and Allows you Pound on it to Straighten the Mower Deck (Damage May Occur to the Erea of the Spindle Assembly and Twist the Mower Deck Shell if the Blade Hit something that Cause Damage to the Spindle Assembly or Causes the Unit to Shut Off - Easy Way To Determine if the Mower Deck is Twisted is to Verify the Mower Blade Ends Line up from Point to Point [Could Turn them Inline of Each other and Use a Straight Edge if it Simplify the Process] if they Do Not Line up your Mower Deck Shell is Twisted and will need Straighten often the Twist Happens in the Erea of Impact or Around the Spindle Assembly - Mower Blade End Should Be Within 1/16 - 1/8 of Each - Always Verify the Mower Blades are Not Bent).
Specification
|
Product Number: |
604255, 607407, 607407P |
|
Brand: |
Hustler |
|
Length: |
NA |
|
Width: |
NA |
|
Height: |
NA |
|
Weight: |
NA |
Model Fit:
* 607407P May Be Used on Additional Models/Families like Deisel Z & X-One Models - Due to Lack of Information and Details - Hilly Ridge Will Continue to MANUELLY Improve the Model Fit Chart with Time - If you Have any Questions on Exact Fit Feel free to Message or Call us.
X-ONE
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
X-RIDE (ALL MODELS)
944074, 944868
Super Z
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
929927, 929935, 929943, 929950, 930024, 930065, 930875, 931048, 932012, 932020, 932038, 932046, 932053, 932061, 932129, 932137, 932970, 932988, 933457, 933929US, 934216, 934224, 934232, 934240, 934265, 934273, 934281, 934984US, 934992, 935007, 935015US, 935023, 935031, 935049, 935056US, 935064, 936872, 936880, 936898US, 936914, 936922, 936930, 936948US, 936955, 936989, 937714, 937722, 937730, 938985, 938993, 940031, 940049, 941138, 941146, 941153, 941161, 941179, 941187, 941195, 941203, 941377, 941385, 942342, 942771, 942763, 942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943878, 943886, 943894, 943910, 943928, 943936, 943944
Super Z Hyper Drive
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
932145, 932152, 932160, 932178, 932186, 932996, 933002, 934315, 934307, 934323, 934349, 934687, 934695, 934919, 934927, 934935, 934943, 934950, 934968, 934976, 936997, 937003, 937011, 937029, 937037, 937045, 937052, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941245, 941252, 941260, 941278, 941286, 941294, 941302, 941310, 941534, 941542, 941559, 941567, 942219, 942227, 942235, 942243, 942250, 942359, 942961, 942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943951, 943969, 943977, 943993, 943985, 944017, 944041, 944025, 944033
Diesel Z
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
Super ATZ
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
No Listed Model Numbers
Super 104
Super S
Super SF
Super 88
936617, 939546
Not sure if this is the correct part?
Contact us with your Hustler model and serial number and we will verify the correct part before you order.
