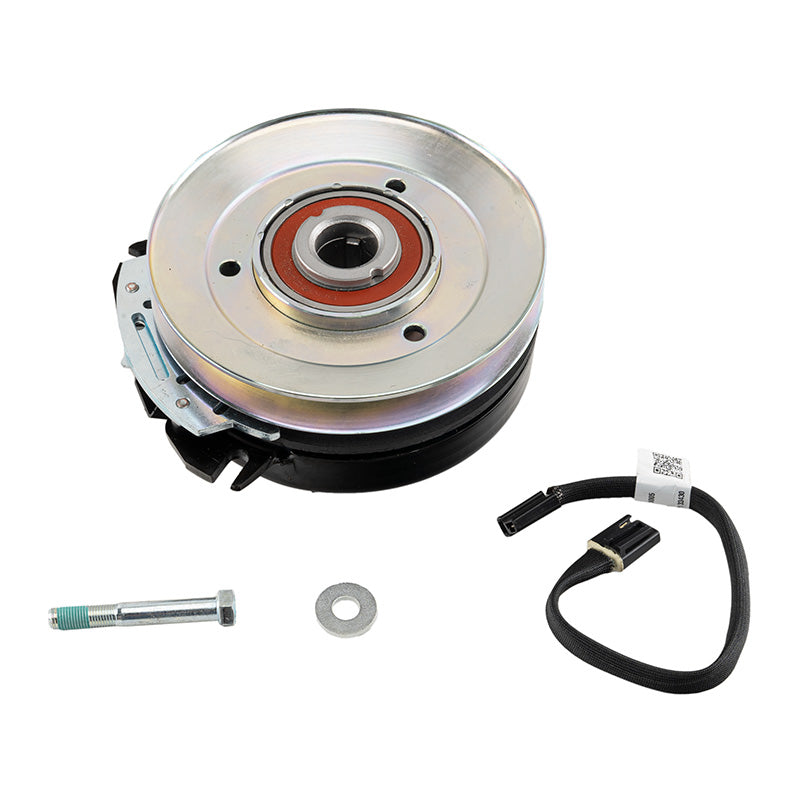

Hustler OEM 606936P PTO Clutch Kit (CMS250)
The Genuine Hustler OEM 606936P PTO Clutch is known for its Precision Engineering, Durability, and Reliable Performance. Designed to Allow the Correct Torque, Delay and Engagement Optimal for Engine and Mower Deck Components for Performance and Durability with the Push or Pull of a PTO switch. Enabling High-Quality Electronic Control over Mower Deck and Attachments. Hustler OEM 606936P PTO Clutch Fits Select Hustler Commercial Mowers.
⚠️ Before You Order – Verify Fitment
PTO Clutches can vary by Mower Model, Serial Range, Engine Setup, Crankshaft Size, Pulley Style, Belt Configuration, and Clutch Version. Do not order by appearance only. Hilly Ridge does not offer any Type of Return on Electrical Items Unless it was an Error in Our Listings. So, Due to Variation Within Model Numbers/Series, Refer to the Model Fit Chart for an Accurate Break down of Specific Model Number Usage.
Not sure? Contact us with your Hustler model and serial number and we’ll help verify fitment.
What This Part Does
- Enables the correct Torque, Delay and Engagement Optimal for Engine and Mower Deck Components
- Enable Proper Mower Blade Engagement with the Push or Pull of a PTO switch
- Replaces Worn, Slipping, Weak, or Failed PTO clutch assemblies * Common Diagnosis - Clutch Bearing May Overheat or Lock Up from Extended Usage, Weather (Water & Heat) or Other Factors Causing the Blades to Constantly act Like They are Engaged When the PTO Switch is Disengaged or the Engine May Seem to Be Lock Up and Not Turn Over.
- Genuine Hustler OEM Replacement Part for Proper Fit and Performance
Part Details & Specifications
- Brand: Hustler
- Part Number: 606936P
- Part Type: PTO Clutch Kit
- Clutch Series: CMS250
- Supersession: Part Numbers 603336K, 606936, 606936K Supersedes to Part Number 606936P
Fits Select Hustler Models
Used on select commercial Hustler mower applications including:
- Hustler Super Z (2011 - Current Models)
- Hustler Super Z HD (2013 - Current Model)
- Super SF (All Models)
- Hustler Super 88 (All Models)
- Hustler Super 104 (Select Models)
Associated Parts List
- 036236 - Clutch Anchor Bolt (5/16 x 1.00 - 18) - Reference Number 1
- 768523 - Clutch Anchor Washer (SAE 0.343 - Fits 5/16)- Reference Number 2
- 113347 - Clutch Anchor - Reference Number 3
- 000331 - Wire Tie - Reference Number 4
-
034272 - Clutch Anchor Lock Nut (5/16 - 18) - Reference Number 5
- 791251P - Clutch Harness Wire Pigtail - Reference Number 12
- 602680 - PTO Clutch Washer (.453 x 1.012 x .12 Fits 7/16) - Reference Number 13
- 601834 - PTO Bolt / Loctite (7/16 x 3 1/4 - 20) - Reference Number 14 * Fits Select Models Only
- 785048 - PTO Bolt / Loctite (7/16 x 3.00 - 20) - Reference Number 14 * Fits Select Models Only
- 602755 - Engine Pulley - Refer to the Chart Below the Parts Diagram
- 603734 - Engine Pulley - Refer to the Chart Below the Parts Diagram
- 606736 - Engine Pulley - Refer to the Chart Below the Parts Diagram
Assembly Directions
For Clearer More Readable Assembly Direction Right Click Image and Select Open in a New Window. Direction Can also Be Magnified in the Images as well
Model Fit Chart
Super Z (2011 - Current Side & Rear Discharge Models)
929927, 929935, 929943, 929950, 930024, 930065, 930875, 931048, 932012, 932020, 932038, 932046, 932053, 932061, 932129, 932137, 932970, 932988, 933457, 933929US, 934216, 934224, 934232, 934240, 934265, 934273, 934281, 934984US, 934992, 935007, 935015US, 935023, 935031, 935049, 935056US, 935064, 936872, 936880, 936898US, 936914, 936922, 936930, 936948US, 936955, 936989, 937714, 937722, 937730, 938985, 938993, 940031, 940049, 941138, 941146, 941153, 941161, 941179, 941187, 941195, 941203, 941377, 941385, 942342, 942771, 942763, 942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943878, 943886, 943894, 943910, 943928, 943936, 943944
Super Z Hyper Drive (2013 - Current Side & Rear Discharge Models)
932145, 932152, 932160, 932178, 932186, 932996, 933002, 934307, 934315, 934323, 934331, 934349, 934356, 934687, 934695, 934919, 934927, 934935, 934943, 934950, 934968, 934976, 936997, 937003, 937011, 937029, 937037, 937045, 937052, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941245, 941252, 941260, 941278, 941286, 941294, 941302, 941310, 941328, 941534, 941542, 941559, 941567, 942219, 942227, 942235, 942243, 942250, 942359, 942765, 942961, 942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943951, 943969, 943977, 943985, 943993, 944017, 944041, 944025, 944033, 944041
Super SF (All Models)
942029, 942037, 942045, 942052, 943506, 943514, 943522, 943530
Super 88 (All Models)
936617, 939546
Super 104 (Select Models)
937201, 937219, 939462, 939470, 939603, 939652, 941005, 941526, 942318, 943217
