Hustler OEM 606877 Mower Deck Belt Fits Current Rear Discharge Super Z and Super Z HD Models with 60"VX4 Mower Deck.

Hustler OEM 606877 Mower Deck Belt is Crafted only from the Finest of Materials and Rigorously and Extensively Tested to verify it withstands the toughest of Operating Conditions. Expertly crafted from premium Aramids and/or Kevlar materials, the Hustler OEM 606877 Is made to Fit Hustler 2011 - Current Rear Discharge Super Z Models with a 60" VX4 Mower Deck. Don't settle for imitations or substitutes when you can have - worry-free, designed to fit options, knowing that your Hustler Mower Deck Belts are built, tested, and designed specifically to OEM Standards and Expectations. Please refer to the Images above; Product Specifications, Special Notes and the Model Fit guide below to ensure proper fit.







Note 1: Super Z and Super Z HD 60" Rear Discharge Models from 2008 - Current Require Two Mower Deck Belts. Part Number 789388 (2008 - 2011) and 606877 (2011 - Current) Is used as the Primary Belt and Runs from the Engine to the Mower Deck. Part Number 027284 (2008 - Current) is used as the Secondary Mower Deck Belt and is used only on the Mower Deck Itself between Mower Deck Pulleys. Click on anyone of the Associated Part Numbers to be Redirected.

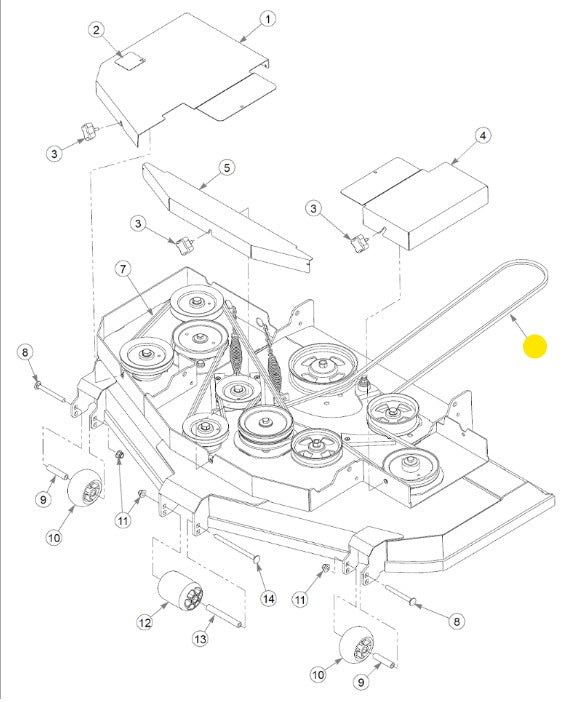

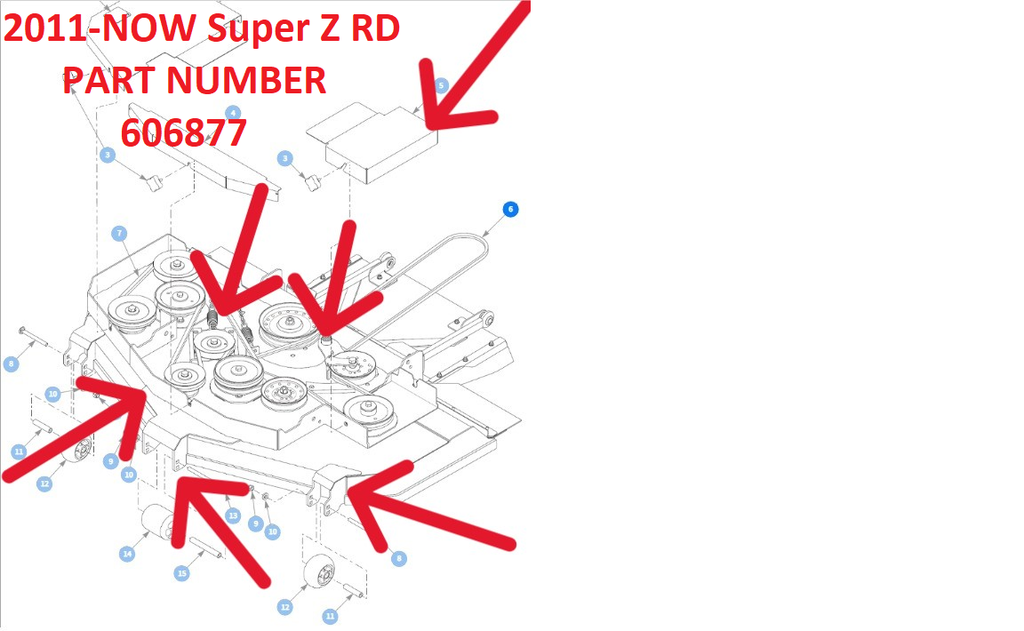

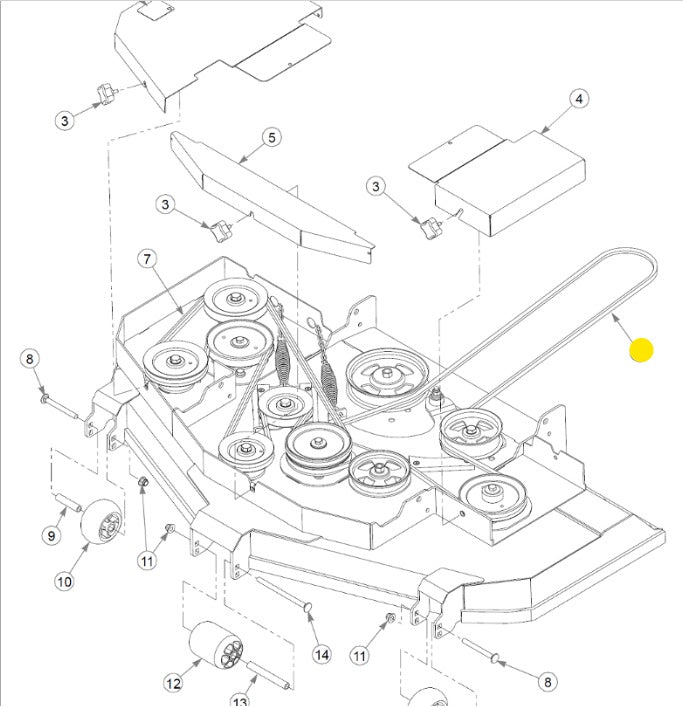

NOTE 2: Due to Changes within Model/Series there might occur instances where Hustler Mower Deck Belt Part Number Might Have Some Variation in Part Numbers depending on the Age and Serial Number of the Unit. One way to Eliminate Confusion is by Searching your Belt Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Page to Find the correct Model/Belt Part Number Combo. Second way to Eliminate Confusion is to perform a visual inspection of your Mower Deck and Compare it to the Images above. Key Differences in each Mower Deck Images to Look at are note with a red arrow along with the Part Number that is associated for that Mower Deck Type. If this does not prove helpful and you still need assistance with finding the correct part number feel free to text us, email or give us a call and we can try to help you. Remember if further assistance is needed you will need to provide Models and Serial Number of the Unit you are wishing to receive Help with. If you wish to be Redirected to a different Mower Deck Belt Part Number Refer to the Mower Deck Belt Part Number Reference Chart Below and Click on Associated Part Numbers to Redirected.

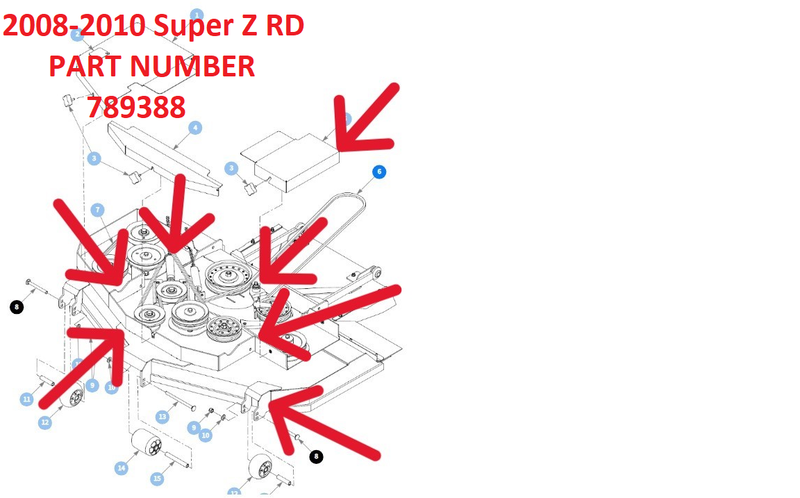

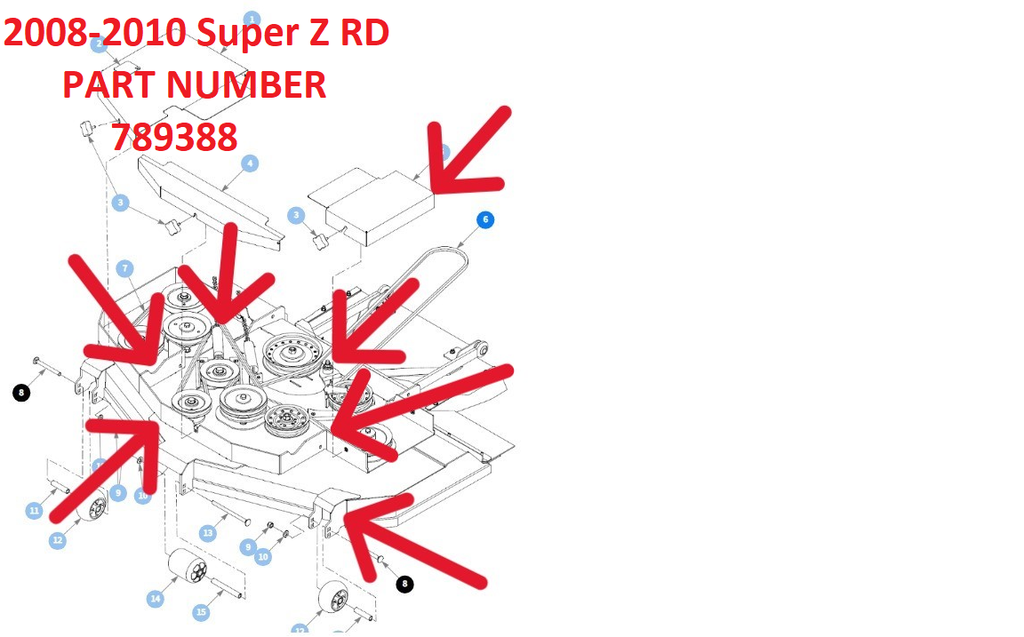

NOTE 3: Date of Changes with Some Mower Decks Might Not Be Exactly Accurate But is used to give you an estimated time of change and an order of the changes. 60" Rear Discharge Mower Decks That use Mower Deck Belt Part Number 606877 and 789388 are really similar. The only significant visual differences are ORIGINAL Tension springs on the 789388 Mower Deck require a rubber sleeve over them. Another difference is the front safety Guard that goes around the pulley on the top of the Mower Deck have slightly different cutouts and has two holes versus one as point out with an arrow on the left side of the Mower Deck in the 789388 images above. Also Important to Note Model Number 938126EX and 932178 will Require A different Primary Mower Deck Belt that is used only on their Model Number. Refer to the Associated Parts Reference Chart Below to be redirected Accordingly.







MOWER DECK BELT ASSOCIATED PART NUMBER REFERENCE

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

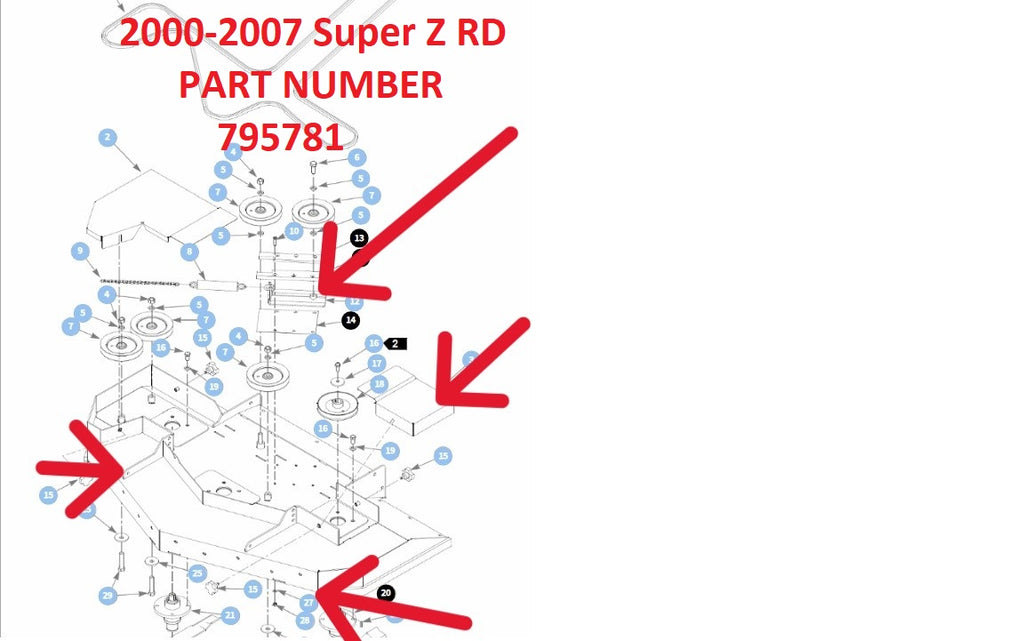

• 795781 - 60" Super Z Rear Discharge (2000 - 2007)
• 789388 - 60" Super Z Rear Discharge (2008 - 2010)
• 027284 - 60" Super Z - HD Rear Discharge (2008 - Current) Secondary Mower Deck Belt
• 777185 - 60" Super Z - HD Rear Discharge (ONLY MODEL 938126EX and 932178)







Specification





Model Fit:



936914, 940031, 937011, 937078EX, 941195, 941245, 941559, 942862, 943035, 943910, 944025
