Description

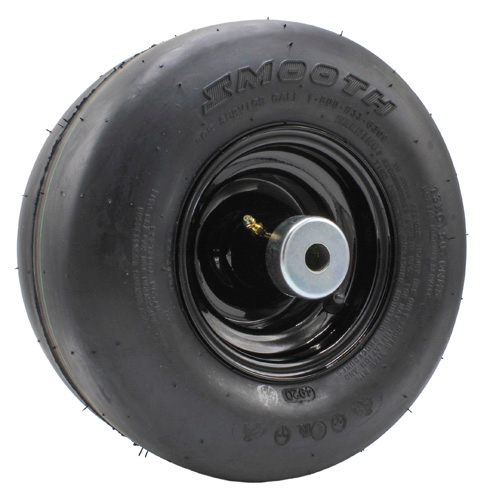

Hustler OEM 606745 Wheel/Tire Assembly
(13x6.50-6)
Hustler OEM 606745 Wheel/Tire Assembly Comes with the Wheel, Wheel Components, Tire & Wheel Bearing all as One Assembly. Having a Spare 606745 Wheel/Tire Assembly in the Trailer or Garage Makes it an Easy Switch and Go - Enabling Less Downtown Waiting for those Unfortunate Tire Repairs. 606745 Is a Fully Pneumatic Tire with Black Rims Commonly used on Late Model Hustler Mower - Although the Color of the Rim as well as Pneumatic Versus Semi-Pneumatic is Optional and Based on Preference.
⚠️ Before You Order – Verify Fitment
Although Hustler 606745 OEM Wheel/Tire Assembly Fits a Wide Variety of Commercial Models & Series - Select Models & Series may vary on their Required Part Number Usages. Important to Note - All 13 x 6.50 - 6 Wheel/Tire Assemblies will Interchange on Commercial Mower Model that Require that Size of Wheel/Tire Assembly and Pneumatic, Semi-Pneumatic & Color of the Rims is only Based Preferences. Be Sure to Verify Your Model is Listed in the Model Fit Chart Below - Models that Come Factory Installed Semi-Pneumatic Tires or with Silver Colored Wheels will also Be Listed in the Model Fit Beings those Options are all Interchangeable Based Upon Preference and Not Fitment.
Not sure? Contact us with your Hustler Model and Serial Number and we’ll help verify fitment.
Benefits of Pneumatic Tires
Superior Ride Comfort
- Air Cushioning (Better) Absorbs Bumps, Reduces Operator Fatigue
Better Traction
- Although Not as Much of a Factor on Front Zero Turn Tire - Enables Tires to Flex more allowing more Surface Contact, Especially on Turf.
Adjustable Performance
- PSI can be Adjusted for Conditions & Ride Preference (Soft Ground vs Hard Surface)
Improved Shock Absorption
- Absorbs Shock & Impact Better - Better Protecting Equipment (Frames, Caster Forks, Caster Fork Components) from Impact
Less Turf Damage
- Because of the Superior Flotation - Creates a Softer Footprint & Helps to Reduce Scuffing, Rutting and Sod Damage.
Part Details
- Brand: OEM Hustler
- Part Number: 606745
- Supersession: n/a
- Tire/Wheel Size: 13 x 6.50 - 6
- Tire Type: Pneumatic
- Wheel Color: Black
Fits Select Hustler Models
Known Fitment Family References Include:
- Fastrack Series: (2022 - Current)
- X-ONE Series: (2016 - Current)
- Super S Series: (2021 - Current) * 52" & 60" Models Only
- Super SF Series: (All Models)
- Super Z Series: (2011 - Current)
- Super Z HD Series: (2013 - Current)
- Diesel Z Series: (2025 - Earlier)
- Super 88 Series (All Models)
Associated Parts List
WHEEL - CASTER FORK
Reference Parts Listings Imaged Below the Part List
- 025296 - Flat Washer - Reference Number 3
- 041475 - Bolt (3/4 x 9 1/2 - 10) - Reference Number 4
- 061101 - Lock Nut (3/4 - 10) - Reference Number 5
WHEEL/TIRE ASSEMBLY ASSOCIATED OPTIONS
- 606745 - Tire/Wheel Assembly - Reference Number 2 (For Individual Rebuild Parts References Refer to the Part Number) - Black Wheel 13 x 6.50 - 6 Pneumatic Tire
- 606744 - Tire/Wheel Assembly - Reference Number 2 (For Individual Rebuild Parts References Refer to the Part Number) - Silver Wheel 13 x 6.50 - 6 Pneumatic Tire
- 607964 - Tire/Wheel Assembly - Reference Number 2 (For Individual Rebuild Parts References Refer to the Part Number) - Black Wheel 13 x 6.50 - 6 Semi-Pneumatic Run Flat
- 607317 - Tire/Wheel Assembly - Reference Number 2 (For Individual Rebuild Parts References Refer to the Part Number) - Silver Wheel 13 x 6.50 - 6 Semi-Pneumatic
WHEEL ASSEMBLY COMPONENTS
- 604843 - Tire Only - Reference 8 * Sold as a 13 x 6.50 - 6 B4R Smooth Tire alone without any other Components.
- 606752 - Wheel Assembly - Reference 7 * Comes Without the Tire but Contains all the Other Wheel Components Listed Below (Reference Numbers 1 - 7).
- 606815 - Dust Cap - Reference Number 1
- 606780 - Seal - Reference Number 2
- 606778 - Spacer - Reference Number 3
- 606753P - Tapered Roller Bearing Assembly - Reference Number 4 * Comes with the Tapered Roller Bearing and Bearing Race.
- 606126 - Grease Fitting/Zirk (M8 x 1.0) - Reference Number 5
- 019521 - Tire Valve Stem (TR412) - Reference Number 6
- T656 - Tire Tube (13x6.50-6) - Not Referenced
- 606753 KIT - Kit Includes Tapered Roller Bearing x 2, Bearing Race x 2, Lower Seal x2 (Bearings and Seals Necessary to Rebuild one Wheel) - Part Reference 2 & 4
Model Fit Chart
FasTrack (2022 - Current)
941724, 941732, 941740, 941757, 941765, 941773, 941781, 941674, 941682, 941708, 943704, 943753, 943761
X-ONE (2016 - Current Side & Rear Discharge Models)
936237, 936245US, 936252, 936260, 936278, 936286, 936294US, 936302, 936310, 936328, 936336, 936740, 936765, 936773, 936781, 936799, 936815, 936823, 936831, 936849, 939314, 939322, 940056, 940064, 940072, 940080, 940106, 940114, 940122, 940130, 940197, 941062, 941070, 941369, 941831, 941856, 941864, 941872, 941880, 941898, 941922, 941930, 941971, 942201, 942334, 942797, 943399, 943407, 943787, 943795, 943803, 943811, 943829, 943837, 943845
X-RIDE (All 60" Models)
944074, 944868
Super Z (2011 - Current Side & Rear Discharge Models)
929927, 929935, 929943, 929950, 930024, 930065, 930875, 931048, 932012, 932020, 932038, 932046, 932053, 932061, 932129, 932137, 932970, 932988, 933457, 933929US, 934216, 934224, 934232, 934240, 934265, 934273, 934281, 934984US, 934992, 935007, 935015US, 935023, 935031, 935049, 935056US, 935064, 936872, 936880, 936898US, 936914, 936922, 936930, 936948US, 936955, 936989, 937714, 937722, 937730, 938985, 938993, 940031, 940049, 941138, 941146, 941153, 941161, 941179, 941187, 941195, 941203, 941377, 941385, 942342, 942771, 942763, 942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943878, 943886, 943894, 943910, 943928, 943936, 943944
Super Z Hyper Drive (2013 - Current Side & Rear Discharge Models)
932145, 932152, 932160, 932178, 932186, 932996, 933002, 934307, 934315, 934323, 934349, 934687, 934695, 934919, 934927, 934935, 934943, 934950, 934968, 934976, 936997, 937003, 937011, 937029, 937037, 937045, 937052, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941245, 941252, 941260, 941278, 941286, 941294, 941302, 941310, 941534, 941542, 941559, 941567, 942219, 942227, 942235, 942243, 942250, 942359, 942961, 942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943951, 943969, 943977, 943993, 943985, 944017, 944041, 944025, 944033
Super S (2021 - Current 52" & 60" Models Only)
940254, 940304, 943167, 943175
Super SF (All Models)
942029, 942037, 942045, 942052, 943506, 943514, 943522, 943530
Diesel Z (2025 - Earlier Models)
938233US, 938241US, 938258US, 938266US, 940452US, 940460US, 940478US, 940486US, 943233US, 943241US, 943249US, 943266US
Super 88 (All Models)
936617, 939546
