Description

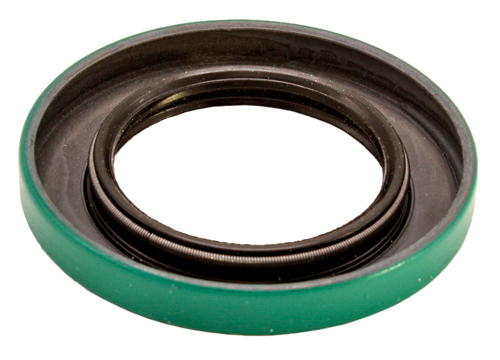

Hustler OEM 606714 Grease Seal

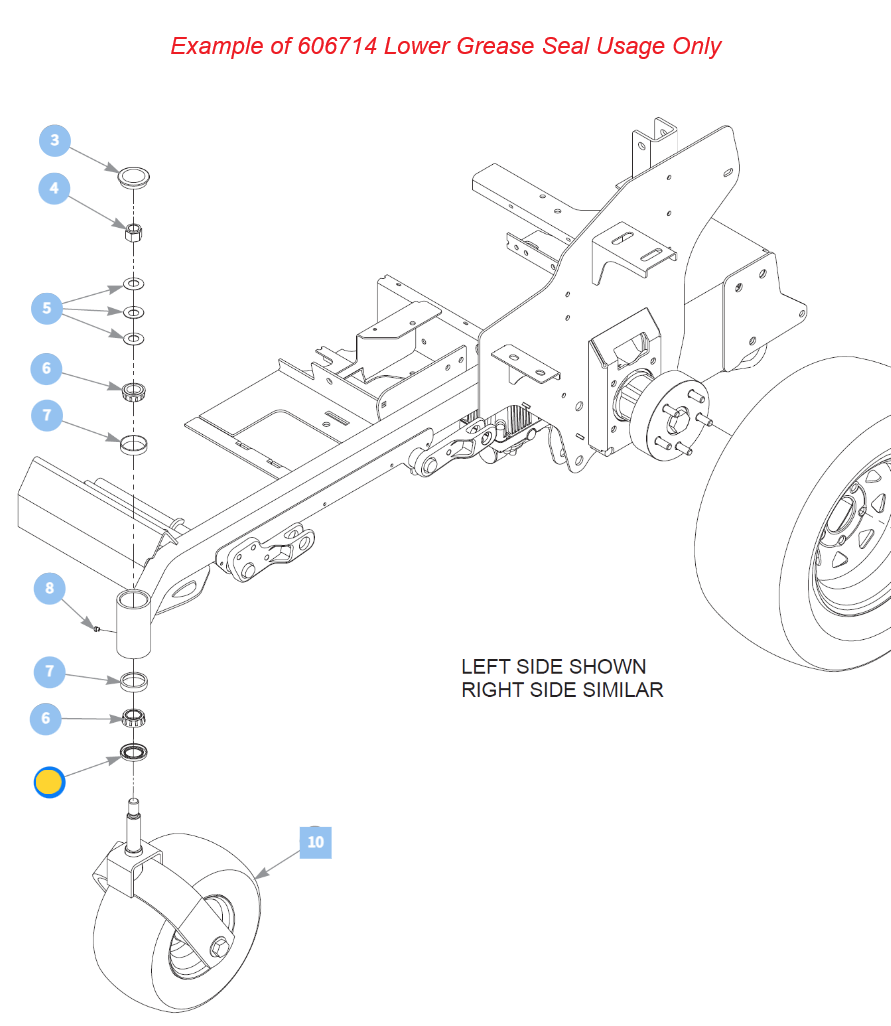

Hustler OEM 606714 Lower Caster Fork Seal is used in the Caster Fork Application and is installed in the Lower Side of the Caster Fork Tube to Contain Grease in the Caster Fork Tube. 606714 Lower Grease Seal is Designed to keep Contaminants Out and Grease/Lubrication In, This Seal Plays a Critical Role in Extending the life of the Caster Fork Bearings.
⚠️ Before You Order – Verify Fitment
Caster Forks Seals can vary by Model Family and Series. This Seal is used only on Select Hustler Models. Please confirm your exact Model Number is listed in the Model Fit Chart Below before Ordering.
Not sure? Contact us with your Hustler Model and Serial Number and we’ll help Verify Fitment.
What This Part Does
- Keeps Dirt, Debris, and Moisture out of Internal Components
- Retains Grease & Lubrication for Longer Component Life
- Helps Prevent Premature Bearing and Caster Fork Failure
- Genuine Hustler OEM Replacement for Proper Fit & Performance (Size 1.25" x 1.98")
Fits Select Hustler Models
Known Fitment Family References Include:
- Trimstar Series: (2020 - Current) * Used in the Front Axle
- X-ONE Series: (2019 - Current) * Used in the Front Axle
- X-RIDE Series: (All Models) * Used in the Front Axle
- Super S Series: (2017 - Current) * Used in the Front Axle
- Super SF Series: (All Models) * Used in the Front Axle
- Super Z Series: (2018 - Current) * Used in the Front Axle
- Super Z HD Series: (2018 - Current) * Used in the Front Axle
Suggested Parts Links
- 606712 - Tapered Roller Bearing
- 606713 - Tapered Roller Bearing Race
- 606712 KIT - Tapered Roller Bearing x 2, Bearing Race x 2, Lower Seal x1 (Does One Caster Side Only)
SPECIAL TOOLS
- 015495 - Grease Zirk
- 124351 - Race Installation Kit
Assembly Notes
WHEN CHANGING 606714 GREASE SEAL:
- When Removing the Lower Seal, It Is Necessary to Remove the Dust Cap - Loosen and Remove the Lock Nut and Remove the Caster Fork.
- When Removing the Lower Seal - After Seal Has Been Remove the Lower Bearing is Prone to Fall out - If this Happens Make Sure It is Re-Assembled with the Taper Fitting into the Outer Bearing Race Taper Properly (the Roller Bearing & the Bearing Race Tapers Should Mate) Before Installing the New Seal.
- Be Sure to Pack the Voided Areas where Grease Had Been Lost inside the Caster Fork Tubing - this will Ensures the Bearing Rollers and Race Surface Don't Overheat from Lack of Lubrication - If Necessary, Remove the Grease Plug After Installing the Caster Fork and Install a 1/4" Grease Zirk to Install Grease Into The Voided Areas of the Caster Tubing.
-
When Assembling the Washer on Caster Fork Ass. - Be Sure to Install the Cup on the Washers as Installed in the Images Below - Requires Three Washers Per Caster Axle.
- Over Tightening the Tapered Bearing into the Bearing Race when Re-Assembling the Caster Fork Could Reduce the Rotation of the Caster Fork and Wheel as Well as Affect Drive Track and Cause Pre-Mature Wear on the Bearing Rollers and Race - Be Sure to Refer to The Correct Caster Fork Directions For your Unit for Complete Caster Fork Installations as well as Caster Fork Fastener Torque Specifications.
-
For a Complete Caster Bearing, Race, Seal Kit to Rebuild one Caster Assembly (Which Contains 606712 Tapered Roller Bearing x 2 - 606713 Bearing Race x 2 - 606714 Lower Grease Seal x 1) Refer to Part Number 606712 KIT
Suggested Caster Fork Links
When Redirecting to Different Part Numbers Be Sure to Verify your Model Number is Listed Under the Part Number Listing in the Model Fit Chart Before Purchasing.
Trimstar Series
125825-1
Super S Series
123651-1 - 126408-1 - 123648-1 - 129670-6
Super SF Series
130055
X-ONE Series - X-RIDE Series - Super Z Series - Super Z HD Series
130055 - 606696
Model Fit Chart
Trimstar (2020 - Current) * Used in the Front Axle Only
939496, 939504, 939512, 939538, 942268, 942276
Super S (2017 - Current Models)
937128, 937136, 937144, 937151, 937169, 937177, 939439, 939447, 939454, 940205, 940213, 940221, 940247, 940254, 940288, 940296, 940304, 941393, 942292, 943126, 943134, 943142, 943167, 943175
Super SF (All Models)
942029, 942037, 942045, 942052, 943506, 943514, 943522, 943530
X-ONE (2019 - Current Models)
936740, 936765, 936773, 936781, 936799, 936815, 936823, 936831, 936849, 939314, 939322, 940056, 940064, 940072, 940080, 940106, 940114, 940122, 940130, 940197, 941062, 941070, 941369, 941831, 941856, 941864, 941872, 941880, 941898, 941922, 941930, 941971, 942201, 942334, 942797, 943399, 943407, 943787, 943795, 943803, 943811, 943829, 943837, 943845
X-RIDE (All Models)
944074, 944868
Super Z (2018 - Current Models)
936872, 936880, 936898US, 936914, 936922, 936930, 936948US, 936955, 936989, 937730, 938985, 938993, 940031, 940049, 941138, 941146, 941153, 941161, 941179, 941187, 941195, 941203, 941377, 941385, 942342, 942771, 942763, 942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943878, 943886, 943894, 943910, 943928, 943936, 943944
Super Z Hyper Drive (2018 - Current Models)
936997, 937003, 937011, 937029, 937037, 937045, 937052, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941245, 941252, 941260, 941278, 941286, 941294, 941302, 941310, 941534, 941542, 941559, 941567, 942219, 942227, 942235, 942243, 942250, 942359, 942961, 942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943951, 943969, 943977, 943993, 943985, 944017, 944041, 944025, 944033
