Description
Hustler OEM 606712 KIT (Caster Fork Bearing Kit)

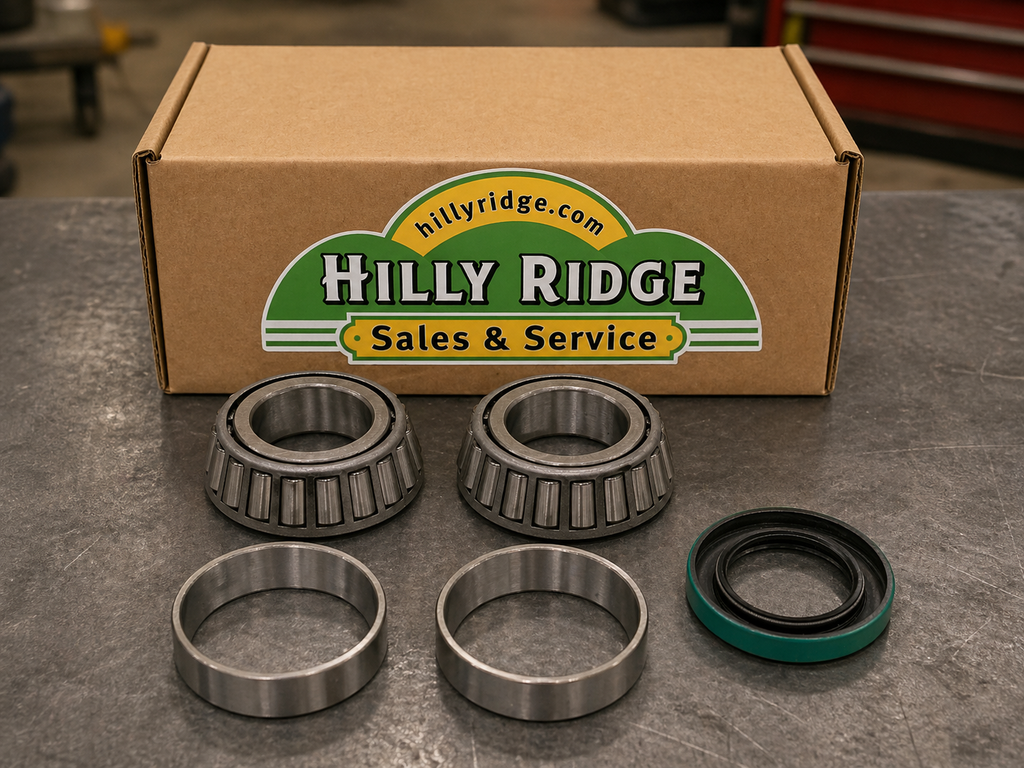

Hustler OEM 606712 KIT Contains the Following Parts Below: 2 x 606712 Roller Bearings 2 x 606713 Bearing Race 1 x 606714 Grease Seal - Below is a Description of each of their Usage and Purpose.
- The Hustler OEM 606712 Caster Fork Tapered Roller Bearings Enable Smooth Rotation of Caster Forks while Reducing Wear on Critical Components, Aiding in Tracking and Steering Performance.
- The genuine Hustler OEM 606713 Bearing Race is a Precision-Machined Component Designed to Support Smooth Bearing Operation. 606713 is the Outside of a 1 of a 2 Piece Bearing System and Provides the Outside Hardened Surface that allows the Inside Roller Bearings to Rotate Against Under Load, Reducing Friction and Extending Bearing Component Life. 606713 Bearing Race is commonly used in the Front Axle with Roller Bearing 606712.
- Hustler OEM 606714 Lower Caster Fork Seal is used in the Caster Fork Application and is installed in the Lower Side of the Caster Fork Tube to Contain Grease in the Caster Fork Tube. 606714 Lower Grease Seal is Designed to keep Contaminants Out and Grease/Lubrication In, This Seal Plays a Critical Role in Extending the life of the Caster Fork Bearings.
⚠️ Before You Order – Verify Fitment
Caster Forks 606712 KIT (Rebuild Kit) can vary by Model Family and Series. This Caster Fork Rebuild Kit is used only on Select Hustler Models. Please confirm your exact Model Number is listed in the Model Fit Chart Below before Ordering.
Not sure? Contact us with your Hustler Model and Serial Number and we’ll help Verify Fitment.
Fits Select Hustler Models
Known Fitment Family References Include:
- Trimstar Series: (2020 - Current) * Used in the Front Axle
- X-ONE Series: (2019 - Current) * Used in the Front Axle
- X-RIDE Series: (All Models) * Used in the Front Axle
- Super S Series: (2017 - Current) * Used in the Front Axle
- Super SF Series: (All Models) * Used in the Front Axle
- Super Z Series: (2018 - Current) * Used in the Front Axle
- Super Z HD Series: (2018 - Current) * Used in the Front Axle
Individual Parts Links
- 606712 - Tapered Roller Bearing
- 606713 - Tapered Roller Bearing Race
-
606714 - Lower Grease Seal
SPECIAL TOOLS
- 015495 - Grease Zirk
- 124351 - Race Installation Kit
Assembly Notes
WHEN INSTALLING 606712 BEARING KIT:
-

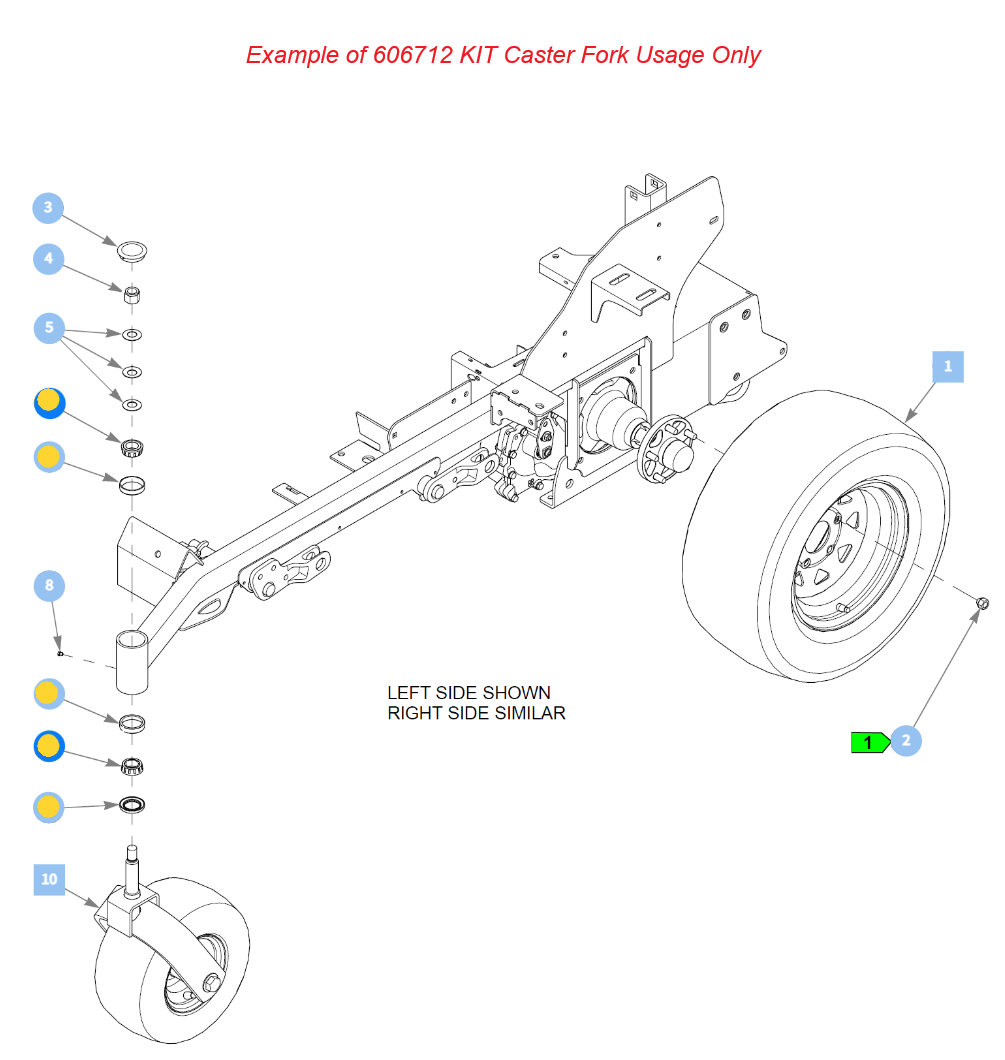

Take Pictures to Document Order of Components When Removing Caster Components - Refer to The Diagrams Above in the Image Section - Or Refer to Caster Fork Installations Directions for the Correct Caster Fork for your Unit for Assembly Help if Needed.
-
When replacing the 606713 Bearing Races it is Important to Note that They are a Press/Friction Fit and Will Require them to be Pressed or Pounded Out of the Caster Fork Tube - When Installing a New 606713 Race it Is Recommended to Utilize a Bearing Race Installation Tool to Ensure No Damage Occur to the Inner Race Surface.
- Pack the Rollers on the Bearing with Grease and Spread Some Along the Outer 606713 Race where the Bearing Rollers Travel as Well as Fill & Pack the Voided Areas where nothing is inside the Caster Fork Tubing - this will Ensures the Bearing Rollers and Race Surface Don't Overheat from Lack of Lubrication - If Necessary, Remove the Grease Plug After Installing the Caster Fork and Install a 1/4" Grease Zirk to Install Grease Into The Voided Areas of the Caster Tubing.
- When Assembling Race & Bearings in Caster Fork Tubes - Be Sure to Assemble the Race with the Thicker Section Installed First into the Caster Tube so the Small Side of Bearing (Tapered Side) Inserts into the Caster Fork Tube First and Sits into the Bearing Race Properly (Should Fit Like a Glove or Mate).
-
When Assembling the Washer on Caster Fork Ass. - Be Sure to Install the Cup on the Washers as Installed in the Images Below - Requires Three Washers Per Caster Axle.
- Over Tightening the Tapered Bearing into the Bearing Race when Re-Assembling the Caster Fork Could Reduce the Rotation of the Caster Fork and Wheel as Well as Affect Drive Track and Cause Pre-Mature Wear on the Bearing Rollers and Race - Be Sure to Refer to The Correct Caster Fork Directions For your Unit for Complete Caster Fork Installations as well as Caster Fork Fastener Torque Specifications.
- For an Individual Caster (Bearing, Race, Seal Reference) Refer to the Listed Parts Reference Above.
Suggested Caster Fork Links
When Redirecting to Different Part Numbers Be Sure to Verify your Model Number is Listed Under the Part Number Listing in the Model Fit Chart Before Purchasing.
Trimstar Series
125825-1
Super S Series
123651-1 - 126408-1 - 123648-1 - 129670-6
Super SF Series
130055
X-ONE Series - X-RIDE Series - Super Z Series - Super Z HD Series
130055 - 606696
Model Fit Chart
Trimstar (2020 - Current) * Used in the Front Axle Only
939496, 939504, 939512, 939538, 942268, 942276
Super S (2017 - Current Models)
937128, 937136, 937144, 937151, 937169, 937177, 939439, 939447, 939454, 940205, 940213, 940221, 940247, 940254, 940288, 940296, 940304, 941393, 942292, 943126, 943134, 943142, 943167, 943175
Super SF (All Models)
942029, 942037, 942045, 942052, 943506, 943514, 943522, 943530
X-ONE (2019 - Current Models)
936740, 936765, 936773, 936781, 936799, 936815, 936823, 936831, 936849, 939314, 939322, 940056, 940064, 940072, 940080, 940106, 940114, 940122, 940130, 940197, 941062, 941070, 941369, 941831, 941856, 941864, 941872, 941880, 941898, 941922, 941930, 941971, 942201, 942334, 942797, 943399, 943407, 943787, 943795, 943803, 943811, 943829, 943837, 943845
X-RIDE (All Models)
944074, 944868
Super Z (2018 - Current Models)
936872, 936880, 936898US, 936914, 936922, 936930, 936948US, 936955, 936989, 937730, 938985, 938993, 940031, 940049, 941138, 941146, 941153, 941161, 941179, 941187, 941195, 941203, 941377, 941385, 942342, 942771, 942763, 942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943878, 943886, 943894, 943910, 943928, 943936, 943944
Super Z Hyper Drive (2018 - Current Models)
936997, 937003, 937011, 937029, 937037, 937045, 937052, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941245, 941252, 941260, 941278, 941286, 941294, 941302, 941310, 941534, 941542, 941559, 941567, 942219, 942227, 942235, 942243, 942250, 942359, 942961, 942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943951, 943969, 943977, 943993, 943985, 944017, 944041, 944025, 944033
