Hustler OEM 606696 Accessory Caster FLEX - Fork Kit Fits X-ONE (2019 - Current)/ X-RIDE (All Models) / Super Z (2018 - Current) / Super Z HD (2018 - Current) / Super S (2021 - Current 60" Only) / Super SF (2021 - Current) Models.

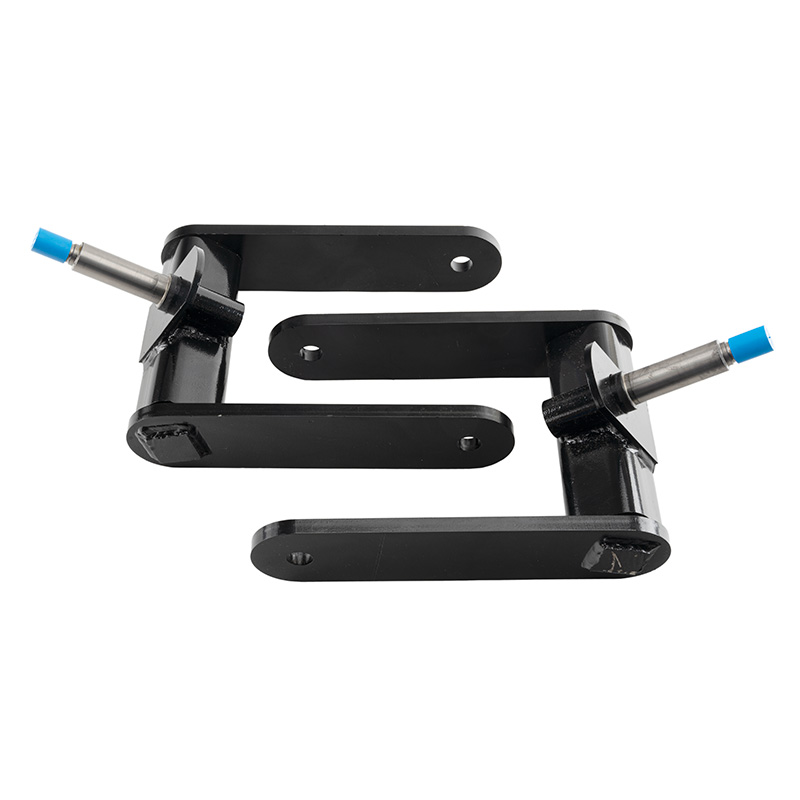

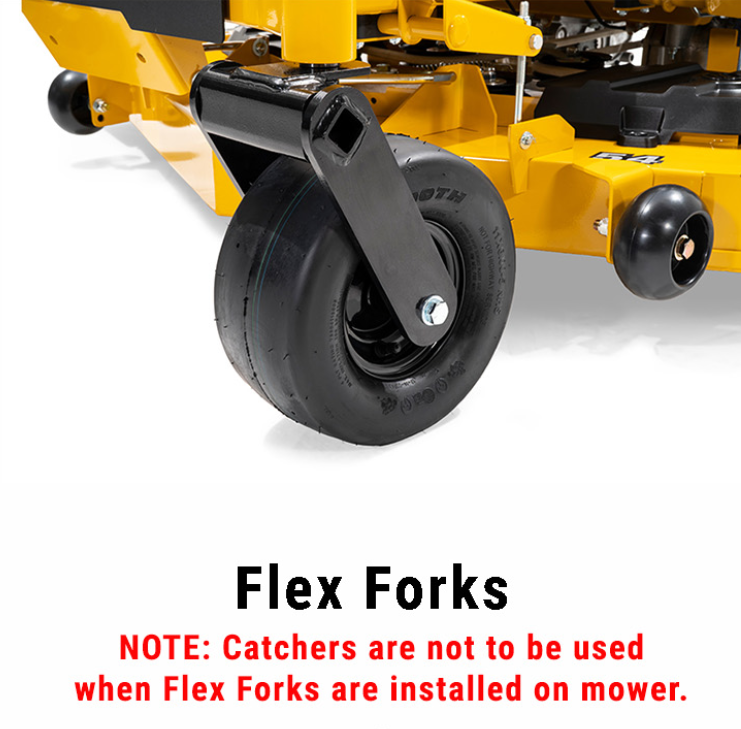

Hustler OEM 606696 Flex Fork Assembly



Add Proper Front-End Suspension Performance and Ride Comfort with this Genuine Hustler OEM 606696 Flex Fork Assembly. Designed for Select Hustler Zero Turn Mowers, this Assembly Helps Absorb Bumps and Uneven Terrain while Maintaining Mower Stability and Caster Wheel Performance. 606696 Flex Fork - Will Flex and Torque against a Thick Rubber Torsion Spring (Which Will Absorb the Strain of the Flex) This Enable a Reduced amount of Shock Absorption to the Operator - Helping to Eliminate Eliminating Proprioception, Fatigue, Soreness and Back Pain and Giving the Operator a Much more Enjoyable Mower Experience Especially on Longer Hours of Operation. 2 Forks Come in 1 Kit - Assembly Directions Listed Below.







What This Part Does



• Reduces Proprioception, Fatigue, Soreness, Back Pain and Etc. on the Operator by Helping to Absorb Bumps and Rough Terrain During Operation
• Reduces Machine Wear by Helping to Absorb Bumps and Rough Terrain During Operation
• Improves Operator Comfort and Ride Quality - Enabling Longer Operation with Less Fatigue and Discomfort.
• Maintains Proper Caster Wheel Alignment and Suspension Movement
• Genuine Hustler OEM replacement component



Part Details



• Brand: Hustler
• Current Part Number: 606696
• Superseded Part Numbers: n/a
• Part Type: Flex Fork Assembly
• Color: Black





Fits Select Hustler Models

Known Fitment Family References Include:



• X-ONE Series: 2019 - Current 52", 54", 60", and 72" Side & Rear Discharge Models
• X-RIDE Series: All 60" Side Discharge Models
• Super Z Series: 2018 - Current 54", 60", 72" Side & Rear Discharge Models
• Super Z HD Series: 2018 - Current 60", 72 Side & Rear Discharge Models
• Super S Series: 2021 - Current 60" Side Discharge Models
• Super SF Series: 2021 - Current 60", 72" Side Discharge Models





Suggested Parts Links



UPPER CASTER WELDMENT & CASTER FORK



• 608751 - Dust Cap (Black) - Reference Number 3
• 606711 - Dust Cap (Gold) - Reference Number 3
• 061101 - Lock Nut (3/4 - 10) - Reference Number 4
• 606715 - Belleville Style Lock Washer - Reference Number 5
• 606712 - Tapered Roller Bearing - Reference Number 6
• 606713 - Tapered Roller Bearing Race - Reference Number 7
• 606817 - Grease Plug - Reference Number 8
• 606714 - Grease Seal - Reference Number 9
• 606712 KIT - Tapered Roller Bearing x 2, Bearing Race x 2, Lower Seal x1 (Does One Side Only)





CASTER FORK & WHEEL



• 606745 - Tire/Wheel Assembly - Reference Number 2 (For Individual Rebuild Parts References Refer to the Part Number) - Black Wheel 13 x 6.50 - 6 Pneumatic Tire
• 606744 - Tire/Wheel Assembly - Reference Number 2 (For Individual Rebuild Parts References Refer to the Part Number) - Silver Wheel 13 x 6.50 - 6 Pneumatic Tire
• 607964 - Tire/Wheel Assembly - Reference Number 2 (For Individual Rebuild Parts References Refer to the Part Number) - Black Wheel 13 x 6.50 - 6 Semi-Pneumatic Run Flat
• 607317 - Tire/Wheel Assembly - Reference Number 2 (For Individual Rebuild Parts References Refer to the Part Number) - Silver Wheel 13 x 6.50 - 6 Semi-Pneumatic
• 025296 - Flat Washer - Reference Number 3
• 041475 - Bolt (3/4 x 9 1/2 - 10) - Reference Number 4
• 061101 - Lock Nut (3/4 - 10) - Reference Number 5





SPECIAL TOOLS



• 015495 - Grease Zirk
• 124351 - Race Installation Kit





Assembly Directions

For Clearer More Readable Assembly Direction Right Click Image, Select Open in a New Window and Left Click to Magnify or Enlarge. Direction Can also Be Magnified in the Images as well as Printed.



Important To: Inspect Caster Wheel & Bearing Components as well as Hardware During Before & During Replacement - Replace any Components that may need Replaced Before Assembling NEW FLEX FORK KIT.







Model Fit Chart





X-ONE (2019 - Current Side & Rear Discharge Models)



936740, 936765, 936773, 936781, 936799, 936815, 936823, 936831, 936849, 939314, 939322, 940056, 940064, 940072, 940080, 940106, 940114, 940122, 940130, 940197, 941062, 941070, 941369, 941831, 941856, 941864, 941872, 941880, 941898, 941922, 941930, 941971, 942201, 942334, 942797, 943399, 943407, 943787, 943795, 943803, 943811, 943829, 943837, 943845



X-RIDE (All 60" Models)



944074, 944868



Super Z (2018 - Current Side & Rear Discharge Models)



936872, 936880, 936898US, 936914, 936922, 936930, 936948US, 936955, 936989, 937730, 938985, 938993, 940031, 940049, 941138, 941146, 941153, 941161, 941179, 941187, 941195, 941203, 941377, 941385, 942342, 942771, 942763, 942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943878, 943886, 943894, 943910, 943928, 943936, 943944



Super Z Hyper Drive (2018 - Current Side & Rear Discharge Models)



936997, 937003, 937011, 937029, 937037, 937045, 937052, 937110,  939561, 939579, 939587, 939595, 941229, 941237, 941245, 941252, 941260, 941278, 941286, 941294, 941302, 941310, 941534, 941542, 941559, 941567, 942219, 942227, 942235, 942243, 942250, 942359, 942961, 942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943951, 943969, 943977, 943993, 943985, 944017, 944041, 944025, 944033



Super S (2021 - Current 52" & 60" Models Only)



940254, 940304, 943167, 943175



Super SF (2021 - Current Models)



942029, 942037, 942045, 942052, 943506, 943514, 943522, 943530
