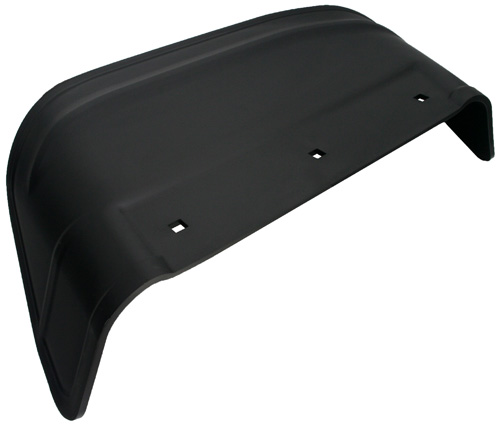

Hustler OEM 605916 Discharge Chute Fits X-ONE (Excluding 72" Models), Super SF and Super S Models.

HustlerSKU: 605916

Price:
Sale price$73.67

Pickup available, Usually ready in 24 hours

Description

Hustler OEM 605916 Discharge Chute Is not only designed to keep your grass clipping from blowing all over you while mowing but also is designed to keep liabilities to a minimum. The Hustler OEM 605916 Discharge Chute is designed to (keep safety first!) by helping to eliminating flying debris and possibly worse amputation.  Hustler OEM 605916 Discharge Chute is designed to Fit Hustler Commercial X-ONE (Excluding 72" Models), Super SF and Super S Models. Please Refer to the Images above, Special Notes and Help Links below to ensure a proper fit. Click on the Part Numbers and Help Links to be redirected.

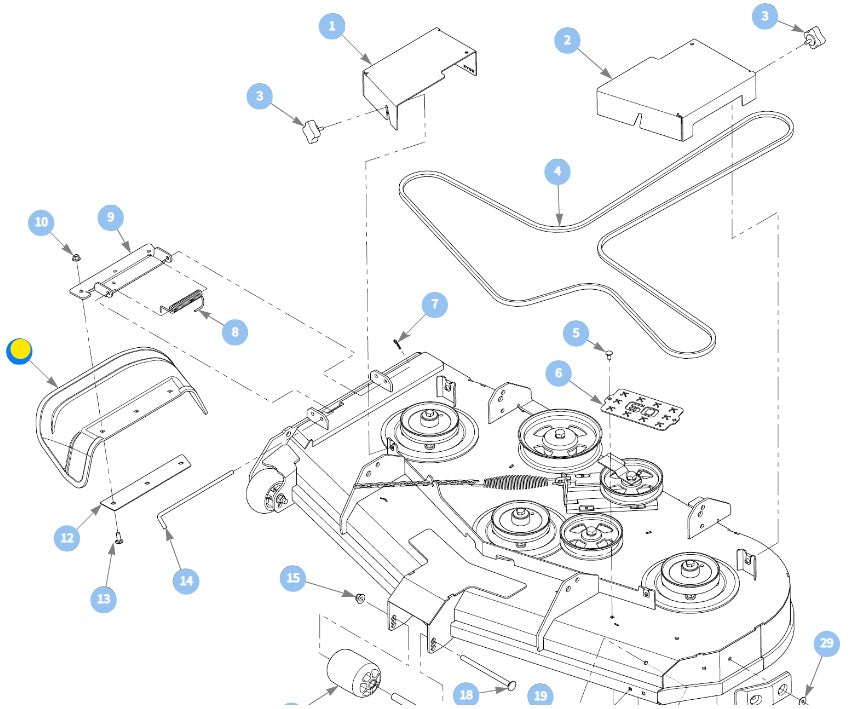

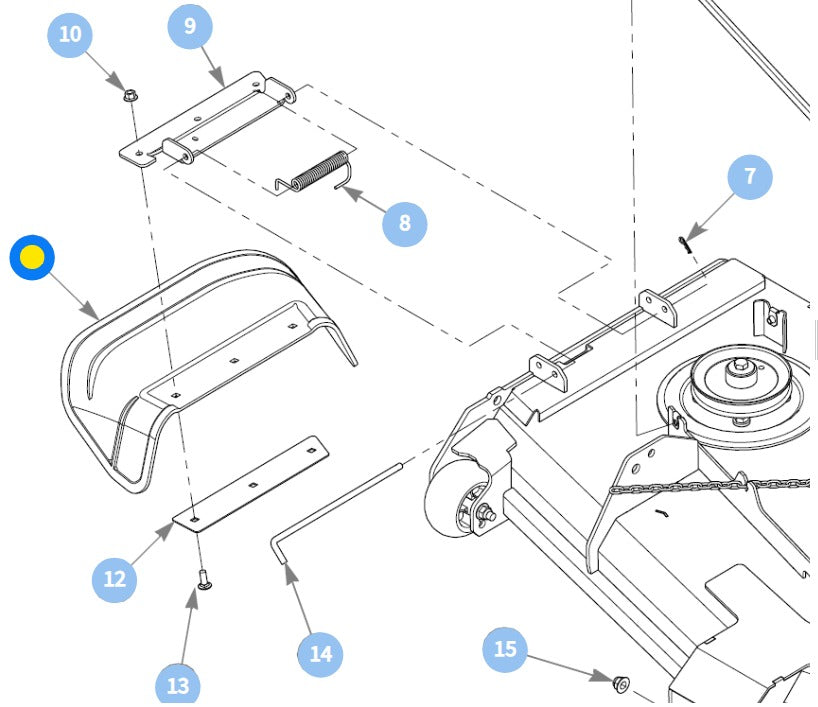

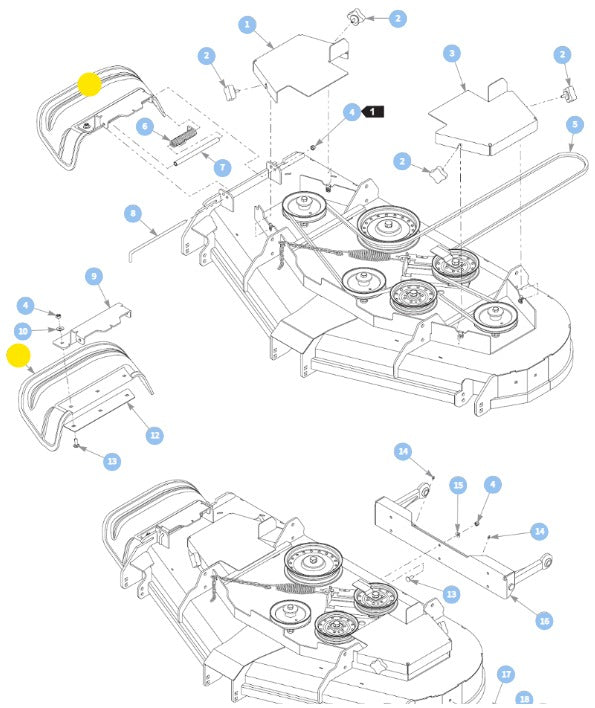

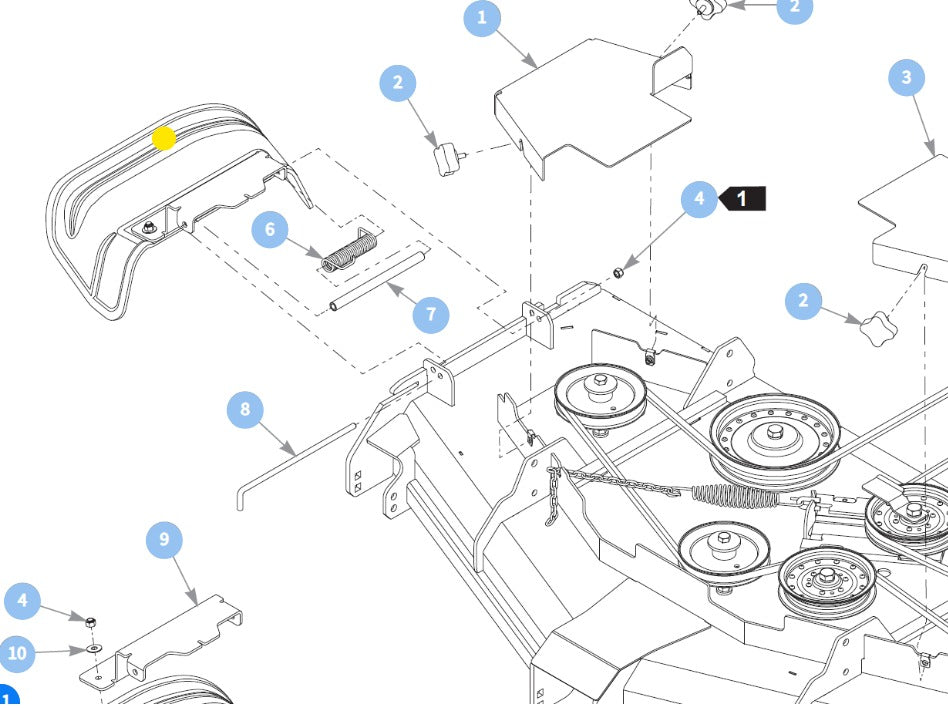

Note: Due to a change within Models Series there is two different variations of Discharge Chutes and Parts that cold overlap with the same Model series. To determine which Discharge Chute Part references are correct for your Unit a visual verification is required. As Displayed in the Images above earlier Models will tend to have a Nut to Retain the Pivot Pin as well as a Spring retainer/Spacer. Whereas More Current Models are minus the Spring Retainer/Spacer and use a Clip Pin to retain the Pivot Pin. Reference to Both Styles Are Listed Below click on the Part Numbers to be redirected.





CLICK ON ASSOCIATED DISCHARGE CHUTE PART LINKS BELOW TO BE REDIRECTED TO INDIVIDUAL PART REFERENCES



  • Discharge Chute Type with Pivot Pin Being Retained by a Nut



  1. 605936 - Discharge Chute Pivot Pin
  2. 606192 - Discharge Chute Torsion Spring
  3. 606166 - Discharge Chute Spacer/Spring Retainer
  4. 086660 - Discharge Chute Pivot Pin Retaining Nut
  5. 123039-5276 - Discharge Chute Top Pivot/Mounting Bracket
  6. 122148 - Discharge Chute Bottom Mounting Bracket





  • Discharge Chute with Pivot Pin Being Retained by a Clip Pin



  1. 605916 - Discharge Chute Pivot Pin
  2. 602435 - Discharge Chute Torsion Spring
  3. 128267-6 - Discharge Chute Top Pivot/Mounting Bracket
  4. 122148-6 - Discharge Chute Bottom Mounting Bracket
  5. 706549 - Discharge Chute Clip Pin







Specification

Product Number:

605916

Brand:

Hustler

Length:

12.00 IN

Width:

21.40 IN

Height:

6.40 IN

Weight:

1.750 LB





Model Fit:
