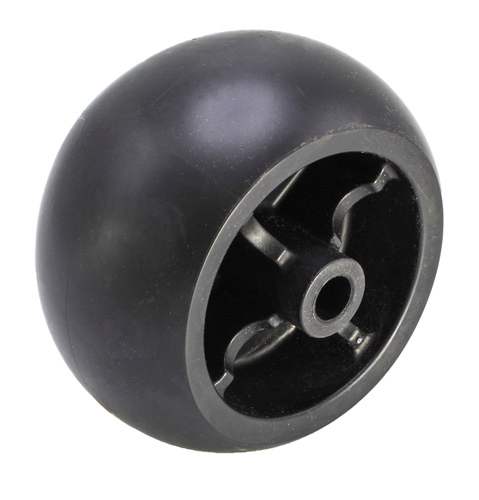

Hustler OEM 604780 Anti-Scalp Wheel



Crafted from durable hard plastic material, the Hustler OEM Anti-Scalp Wheels are designed to withstand frequent contact and rough surfaces. With the ability to lift and transport a mower deck, these wheels eliminate the risk of scalping on uneven terrains and imperfections in your yard. Trust Hustler OEM 604780 to keep your yard looking pristine.  Refer to Images Above, Special Notes and Part References Below to verify a Correct Fit. Click on the Additional Part References Below to be Redirected.



The Hustler OEM 604780 Anti-Scalp Wheel is Designed for Hustler and used for a Couple of Different Applications as follows:





Mower Deck Anti-Scalp Wheel Rollers



Trimstar  (2020 - Current)

Raptor SDX - Raptor XDX (2019 - Current)

FastTrack - Fastrack SDX (2015 - Current)

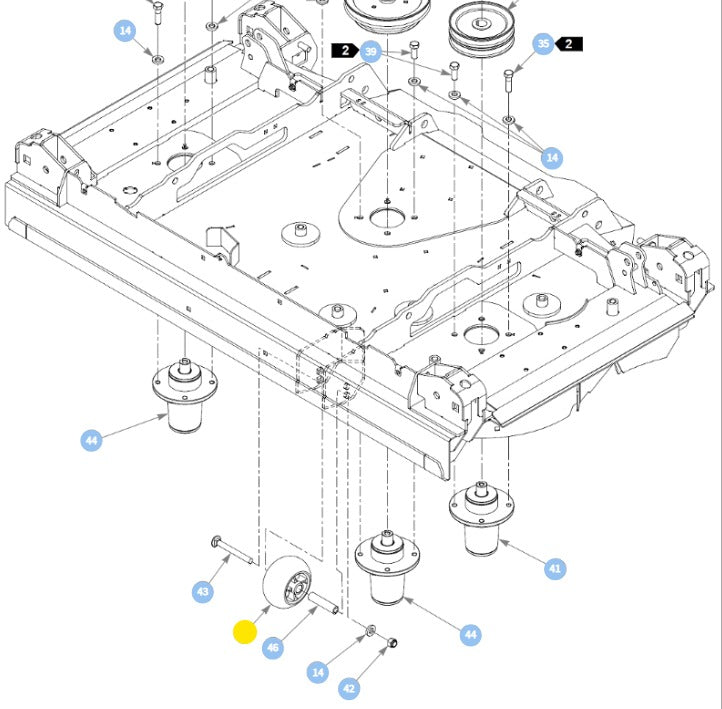

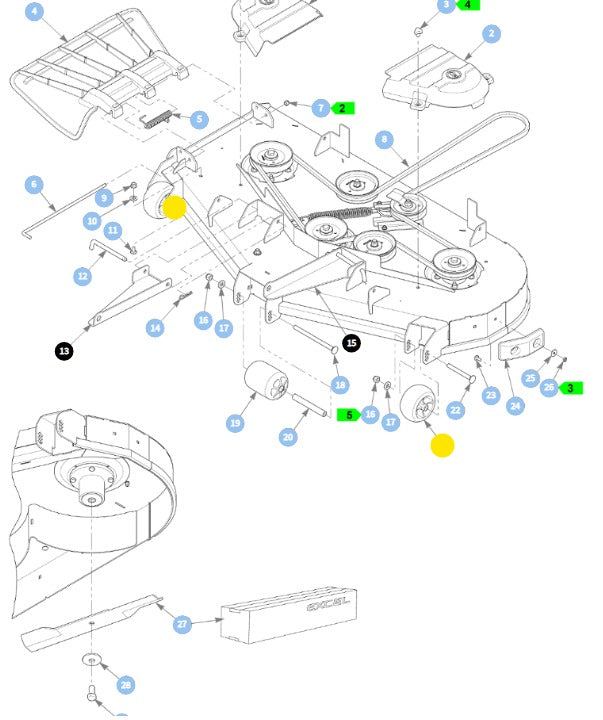

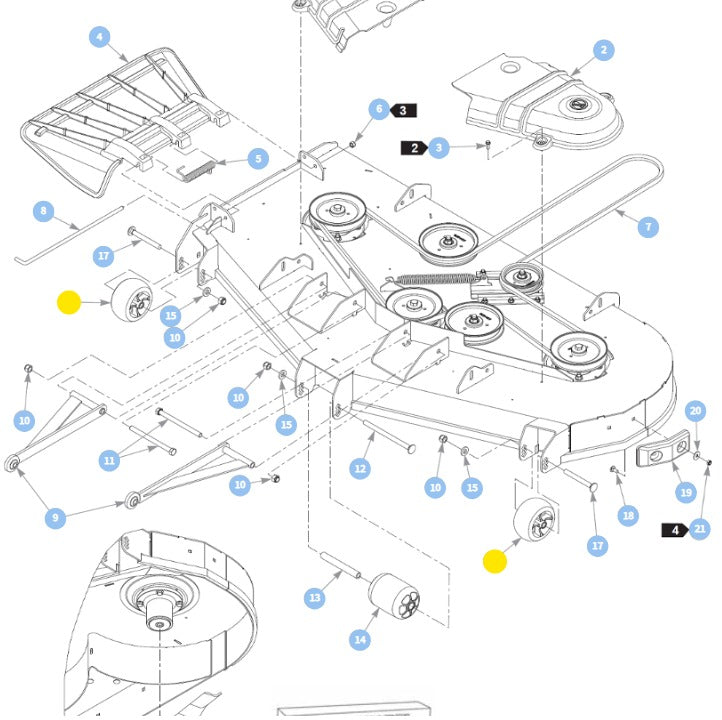

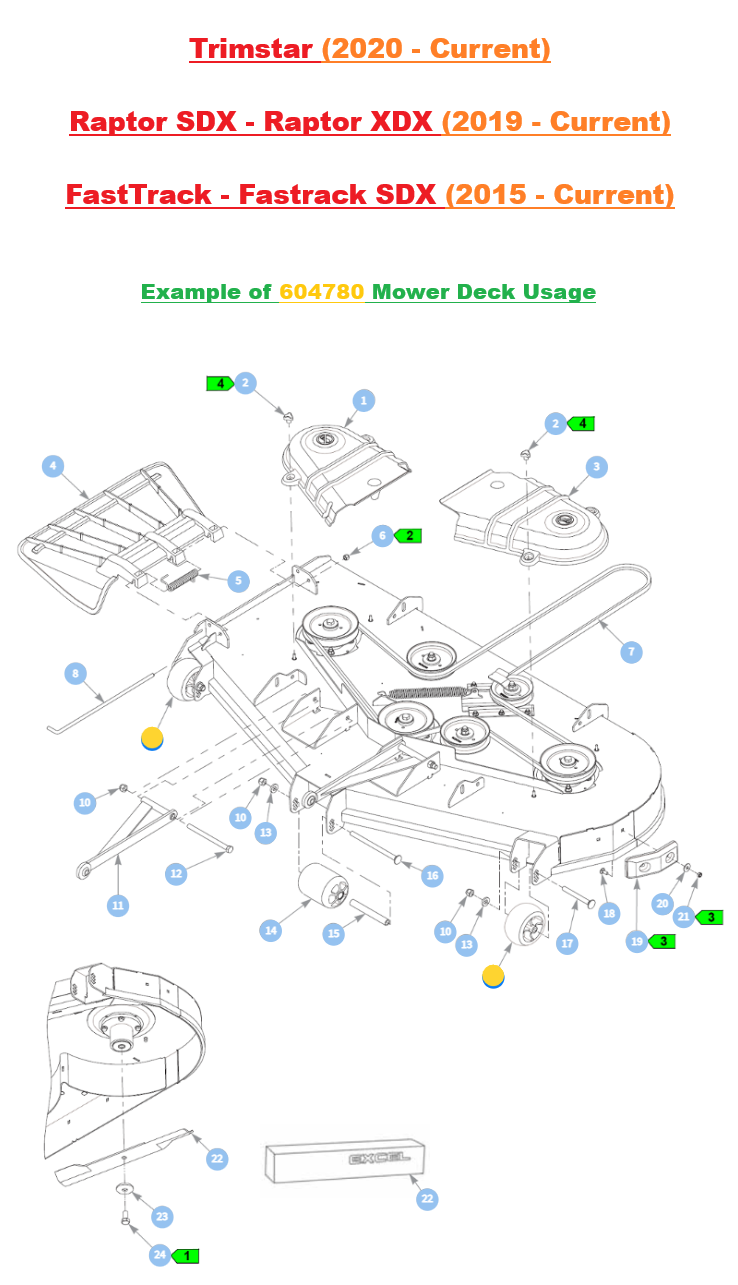

NOTE 1: Some Families/Series Might Overlap with Two Different MOWER DECK Anti-Scalp Wheel Part Numbers. There are a Couple easy ways to verify which Part Number is correct for your Unit. One, is to Compare the Webbing on the Molded Spacer Side of the Anti-Scalp Wheel with the images Above. Second, Determine Whether the Plastic Molded Anti-Scalp Wheel Spacer/Flange Contains Equal Length on Both Side of the Anti-Scalp Wheel or if the One Side is Longer than the Other. Older Part Number 788166P or 031997 will have a One-Sided Anti-Scalp Wheel Spacer/Flange (This is to Enable it to be Fasten to the Side of a Single Anti-Scalp Weldment Ears). Whereas Newer Anti-Scalp Wheel 604780 will have an Equal Dual Length Anti-Scalp Wheel Spacer/Flange molded on both Sides (This is to Enable it to Fit Between Two Anti-Scalp Weldment Ears on the Mower Deck). 604780 will be Used primarily on Current Models/Series. Thirdly, Any Models that require a Different (longer) center Anti-Scalp Wheel from the outside edge Anti-Scalp Wheels will require Part Number 604780. Click on Part Number 788166P or 031997 to be Redirected. For an Example Review the Images Below and Always Verify your Model Number is Listed in the Model Fit Chart before Purchasing.







INDIVIDUAL ANTI-SCALP WHEEL PARTS REFERENCE FOR 604780 ANTI-SCALP WHEEL

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED



• 767962 - Anti-Scalp Wheel Washer
• 781567 - Anti-Scalp Wheel Nut (1/2 - 13 - Nylon Locking Lock Nut - Not Applicable to all Models)
• 602339 - Anti-Scalp Wheel Bolt (1/2 x 4 1/2 -13 - Carriage Bolt - Not Applicable to all Models)







Specification

Product Number:	604780
Brand:	Hustler
Length:	4.80 IN.
Width:	4.80 IN.
Height:	3.00 IN.
Weight:	0.910 LBS.





Model Fit:





Trimstar (2020 - Current)



939504, 939512, 939538, 942268, 942276



Raptor SDX - Raptor XDX (2019 - Current)



938530, 938548, 938555, 939256, 939264, 939827, 939835, 939843



FasTrack (2015 - Current)



933424, 933432, 933440, 936054, 936062, 936070, 936112, 936120, 936138, 936146US, 936153US, 936161US, 938043, 938050, 938704, 938712, 938720, 938753, 938761, 938779, 938787, 938795, 940346, 940353, 940361, 940395, 940403, 940411, 940429, 940437, 941724, 941732, 941740, 941757, 941765, 941773, 941781, 941674, 941682, 941708, 943704, 943753, 943761
