Description
Ensure Proper Mower Deck Blade tightness with the Hustler 604383 OEM Reverse or Left-Hand Blade Bolt. Expertly crafted to maintain blade tension without compromising the shear point, this bolt is essential for ALL HUSTLER REAR DISCHARGE MODELS EXCEPT For Select X-ONE & Fastrack MODELS. Families/Models That Require the Usage of 604383 Include 2011 - Current Hustler Diesel Z, Super Z, Super Z HD (Rear Discharge Models Only) - Super 88, Super 104 Models. Please Refer to the Images above, Special Notes and Help Links below to ensure a proper fit. Click on the Part Numbers and Help Links to be redirected.
Bolt Size: (.625 x 1.25 - 11) or (5/8 X 1 1/4 - 11) Grade 5
Important Note: Required Torque Specs. for 604383 When used on Mower Blades is 118 ft. lbs. or 160 NM.
Important Note: All Rear Discharge Models Will Require Two Different Blade Bolts 781872 Will Be Used on Standard Right-Hand Rotation Spindle Assemblies & Mower Deck Blades (Mower Deck Blades & Spindle Assemblies will be Painted Black) Whereas 604383 Will be Used on Reversed Spindle Assemblies & Mower Deck Blades (Mower Deck Blade & Spindle Assemblies will be Painted Red).

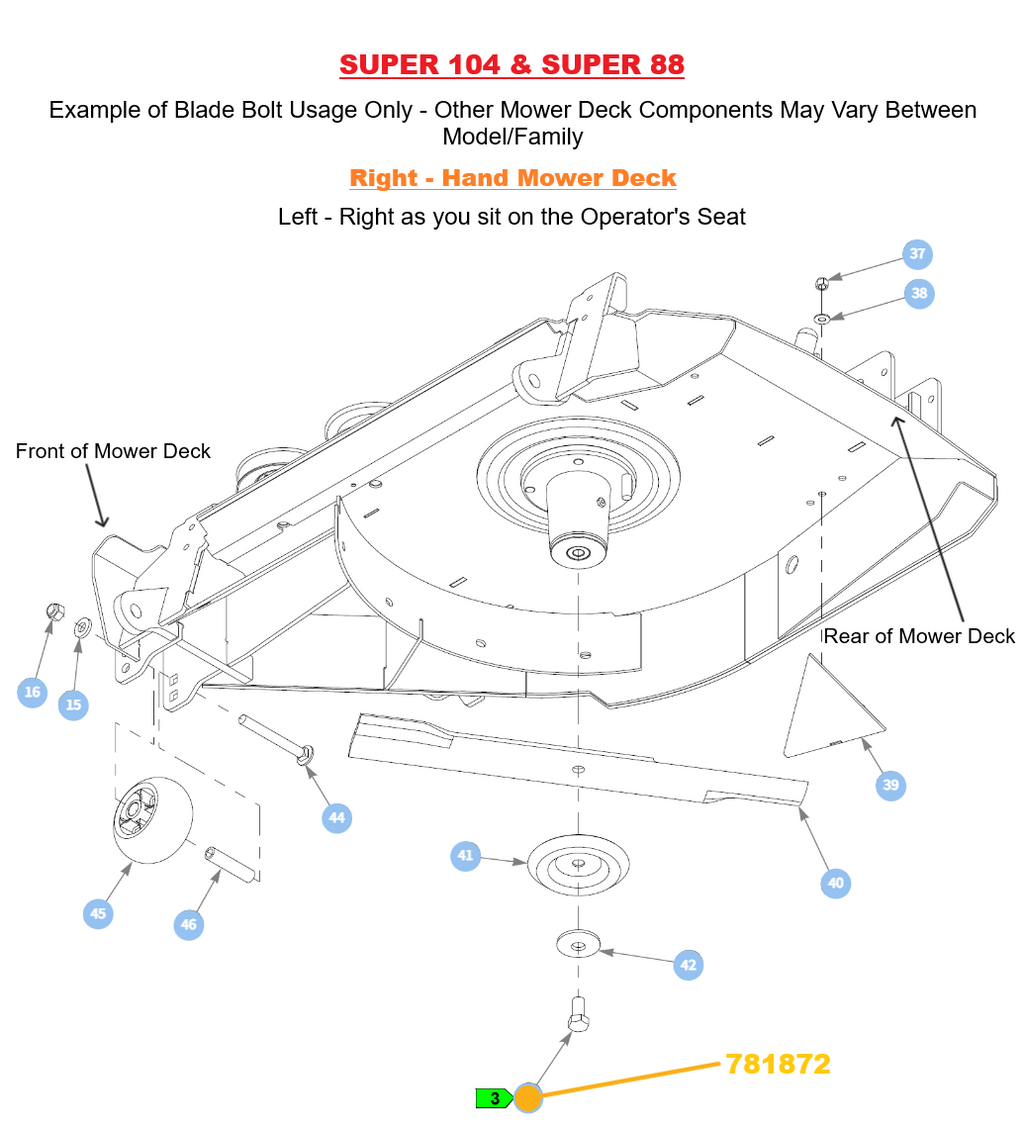

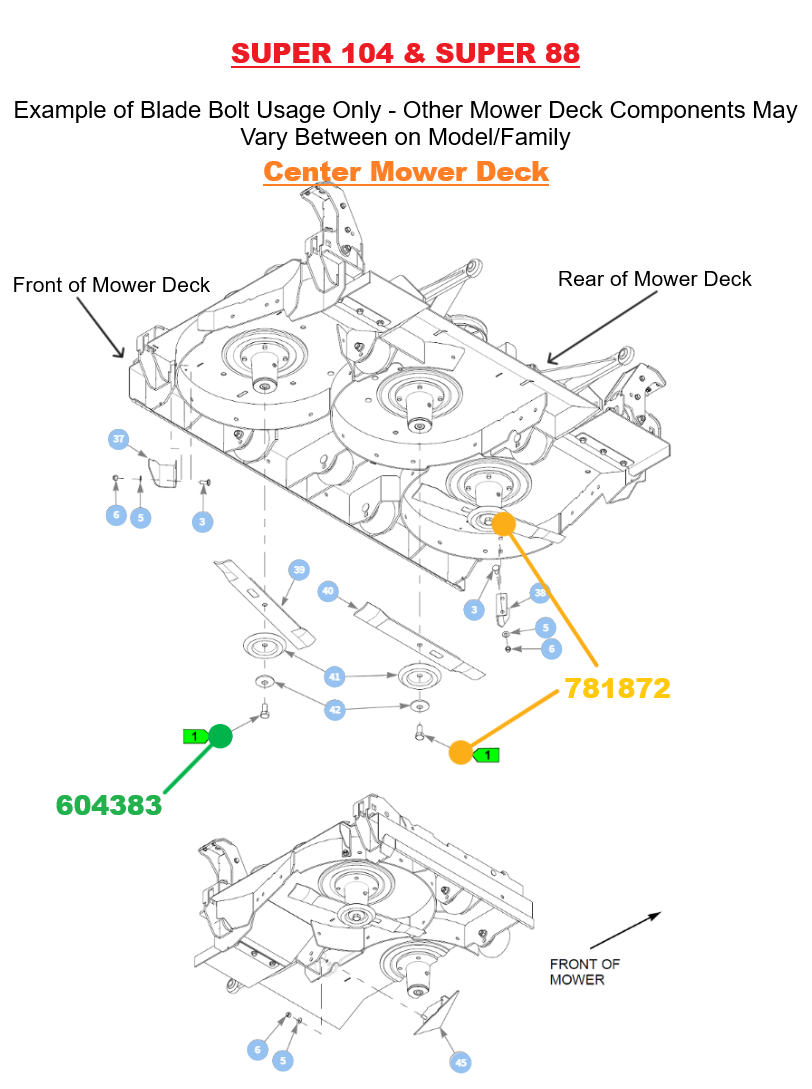

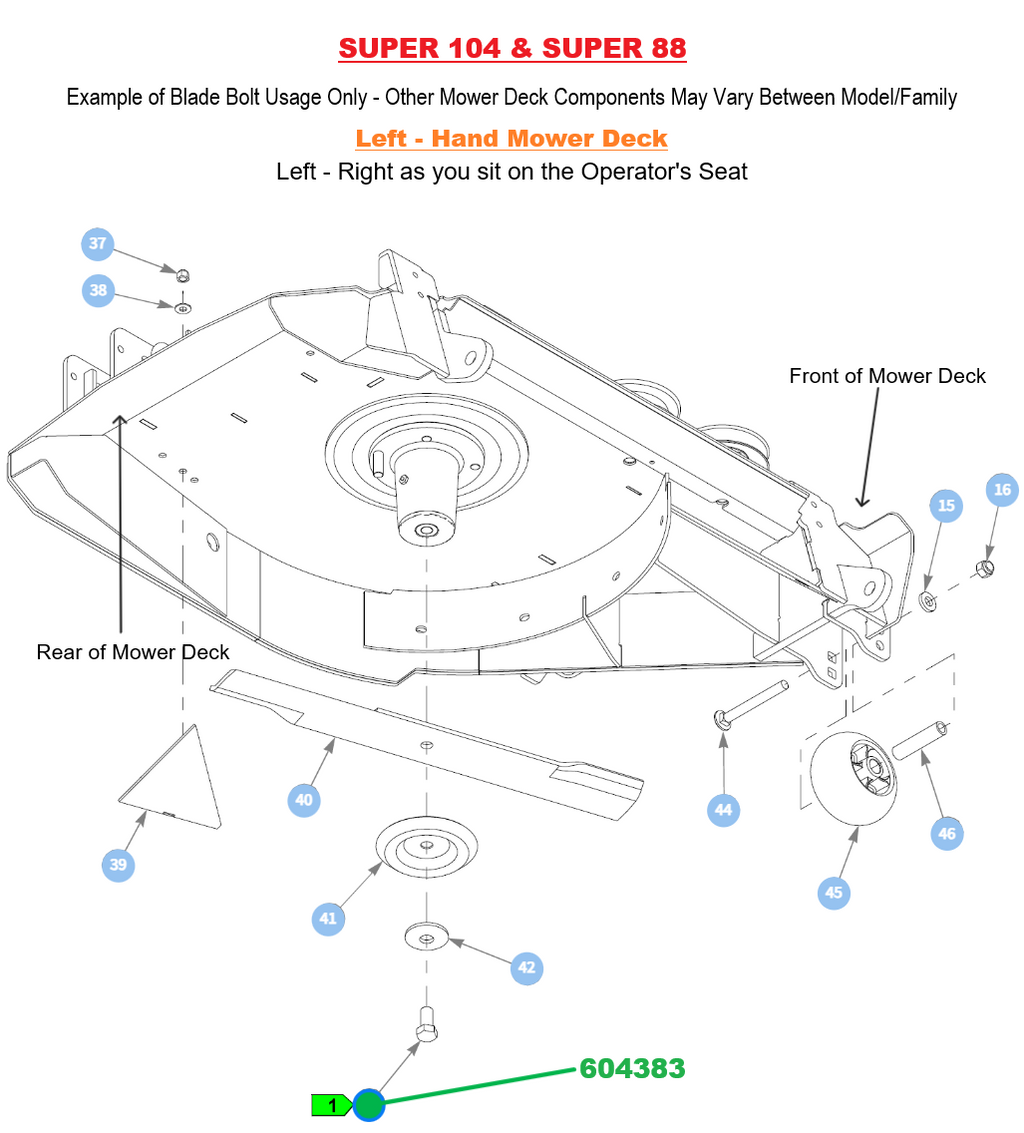

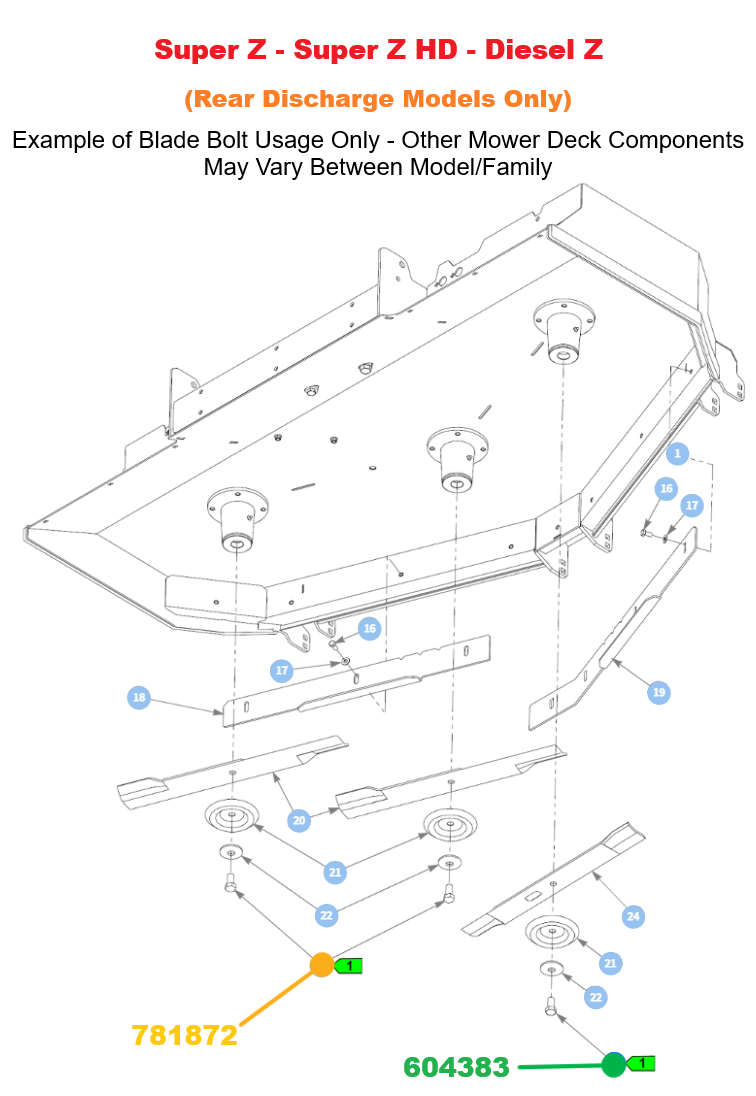

REVIEW EXAMPLE'S IN THE IMAGES ABOVE TO DETERMINE THE PROPER BOLT & LOCATIONS
COMMON ASSOCIATED PART
- 114988 - BLADE BOLT SHIELD
- 782474 - REMOVEABLE BELLEVILLE BLADE BOLT WASHER
- 781872 - BLADE BOLT * Common or Right-Hand Threads - For Standard or Right-Hand Rotation Spindle Assemblies and Mower Deck Blades Only - Used at Select Locations on Rear Discharge Mower Models (Will be Used in Conjunction with 604383) - OEM Mower Blades and Spindle Ass. are Commonly Painted Black Instead of Red.
-
607408P - Left-Hand Mower Blade Spindle Assembly * Used at Select Locations on Rear Discharge Mower Models - OEM Mower Blades and Spindle Ass. are Painted Red to Determine the Difference.
Specification
|
Product Number: |
604383 |
|
Brand: |
Hustler |
|
Length: |
1.25 |
|
Width: |
NA |
|
Height: |
NA |
|
Weight: |
0.175 LB |
Model Fit:
* 604383 May Be Used on Additional Models/Families like Deisel Z & Super 104 Models - Due to Lack of Information and Details - Hilly Ridge Will Continue to MANUELLY Improve the Model Fit Chart with Time - If you Have any Questions on Exact Fit Feel free to Message or Call us.
Super Z - Rear Discharge Models Only
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
930024, 930065, 932053, 932061, 934216, 934224, 935023, 935064, 936914, 936955, 940031, 940049, 941195, 941203, 942862, 942912, 943910, 943944
Super Z Hyper Drive - Rear Discharge Models Only
(Models 2013 and Later are Listed - Models Listed Prior To 2013 May Not Be Listed If Applicable)
932178, 932186, 934307, 934315, 934935, 934976, 937011, 937052, 941245, 941286, 941559, 941567, 943035, 943043, 944025, 944033
Diesel Z - Rear Discharge Models Only
Models are Currently Not Listed Will Be Eventually
Super 104
Models are Currently Not Listed Will Be Eventually
Super 88
936617, 939546
Not sure if this is the correct part?
Contact us with your Hustler model and serial number and our parts team will verify fitment before you order.
