Description

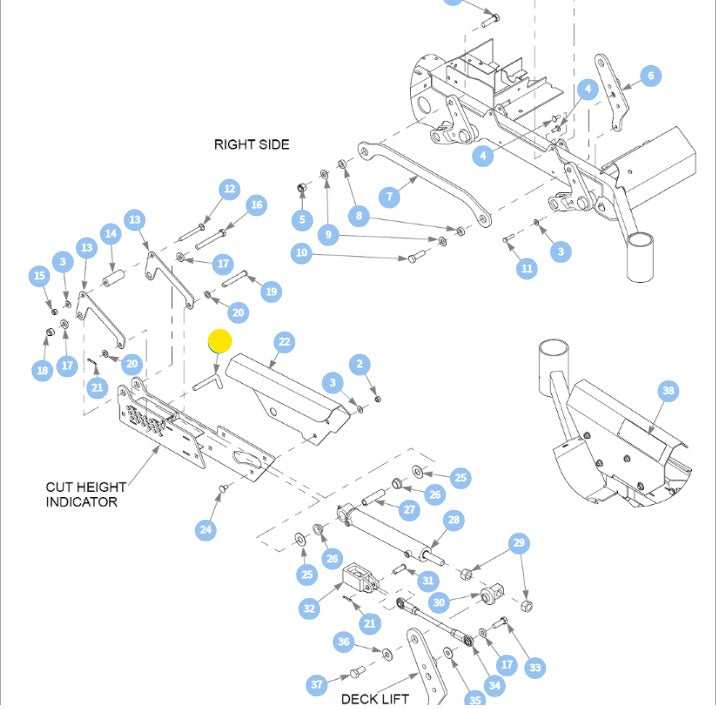

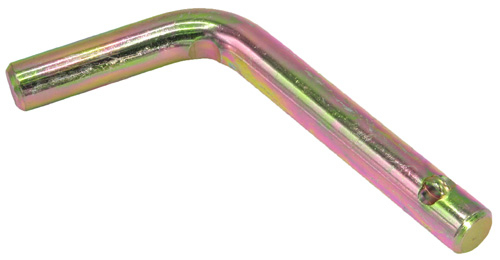

The Hustler OEM 604076 Heavy Duty Deck Pin-Hoc is expertly designed to prevent bending and eliminate the need for additional repairs. Its precise sizing allows for easy deck adjustment, while its sophisticated design ensures it remains secure even on rough terrain. This durable and well-crafted part is compatible with a variety of Hustler models, including the X-ONE, Super S, Super Z HD, and Super 104 series. Please Refer to the Images above and Special Notes below to ensure a proper fit. Click on the Part Numbers and Help Links to be redirected.
Note: Due to a change within Models Series there is three different variations of Mower Deck Adjustment Pins Used within the X-ONE and Super Z HD Mower Series. There is a simple rule of thumb to eliminate any confusion when trying to decide which is the correct Mower Deck Adjustment Pin for your Unit. All Units with a Horizontal entry will Require the Hustler 604076 Hock Style Mower Deck Adjustment Pin. All Units with a Vertical Tube Entry Will Require the Hustler 606918 Magnetic Style Mower Deck Adjustment Pin. All Open Rail with Vertical Wholes that have an external Handle Stop that Rest Against the Mower Deck Height Adjustment Pin and is Retained by a Barrel Spring (Diesel Models and older XR7 Mower Decks) will Require 600437. If You Need Redirected to Part Number 606918 or 600437 Click on the Part Number to be Redirected.
Specification
|
Product Number: |
604076 |
|
Brand: |
Hustler |
|
Length: |
5.00 IN |
|
Width: |
1.75 IN |
|
Height: |
0.55 IN |
|
Weight: |
0.315 LB |
Model Fit:
