Description

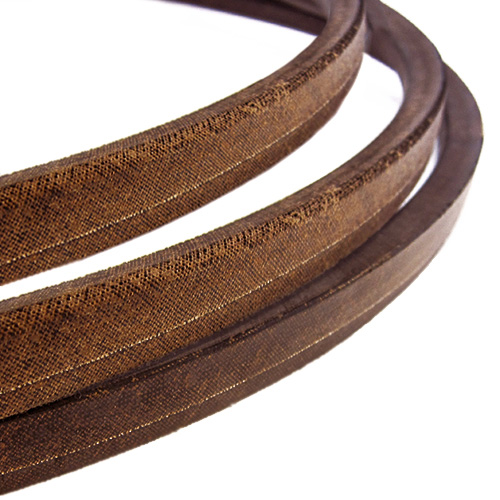

Hustler OEM 603786 Primary Center Mower Deck Belt is Crafted only from the Finest of Materials and Rigorously and Extensively Tested to verify it withstands the toughest of Operating Conditions. Expertly crafted from premium Aramids and/or Kevlar materials, the Hustler OEM 603786 Is made to Fit Hustler Super 104 Model Before/Prior To Serial Number 16010783 (*REFER TO PART REFERNCE CHART). Don't settle for imitations or substitutes when you can have - worry-free, designed to fit options, knowing that your Hustler Mower Deck Belts are built, tested, and designed specifically to OEM Standards and Expectations. Please refer to the Images above; Product Specifications, Special Notes and the Model Fit guide below to ensure proper fit.
Note 1: Super 104" Models Require Two Mower Deck Belts. Part Number 603786 (prior to Serial # 16010783) and 606334 (for Serial # 16010783 and after) and are used as the Primary Belt that Runs from the Engine to the Mower Deck. Part Number 084178 and 609213 (Models 944058 and 944066) is used as the Secondary Mower Deck Belt and is used only on the Mower Deck Itself between Mower Deck Pulleys. Click on anyone of the Associated Part Numbers to be Redirected.
NOTE 2: Due to Changes within Model/Series there might occur instances where Hustler Super 104 Center Primary Mower Deck Belt Part Number Might Have Some Variation in Part Numbers depending on the Age and Serial Number of the Unit. One way to Eliminate Confusion is by Checking your Serial Number and Comparing it with The Associated Part Reference Chart Below and also with That Noted in the Product Description Section as well (SERIAL NUMBER SPLIT @ 16010783). If this does not prove helpful and you still need assistance with finding the correct part number feel free to text us, email or give us a call and we can try to help you. Remember if further assistance is needed you will need to provide Models and Serial Number of the Unit you are wishing to receive Help with. If you wish to be Redirected to a different Mower Deck Belt Part Number Refer to the Mower Deck Belt Part Number Reference Chart Below and Click on Associated Part Numbers to Redirected.

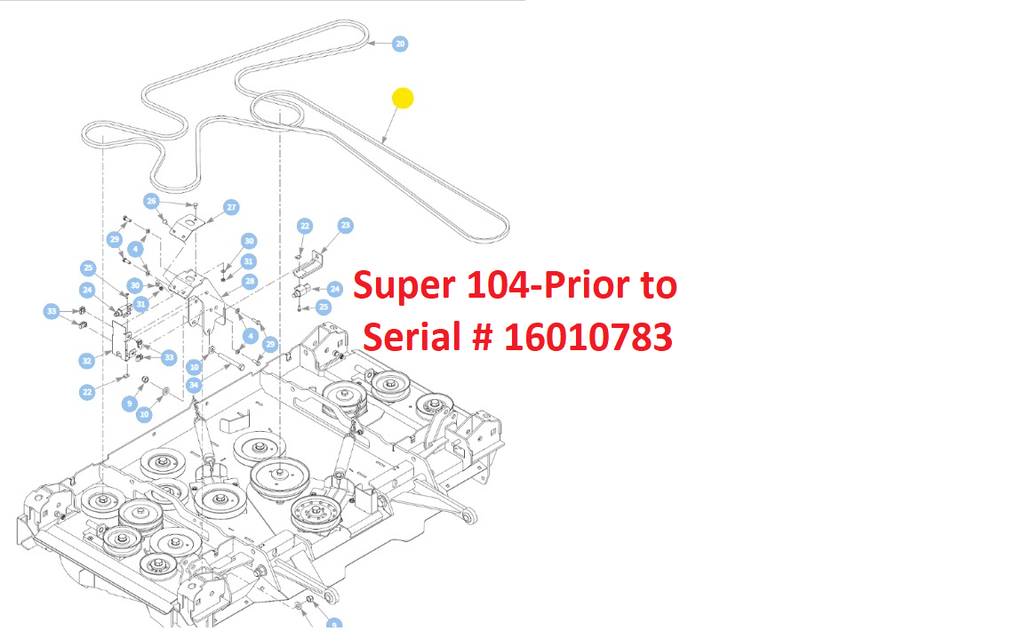

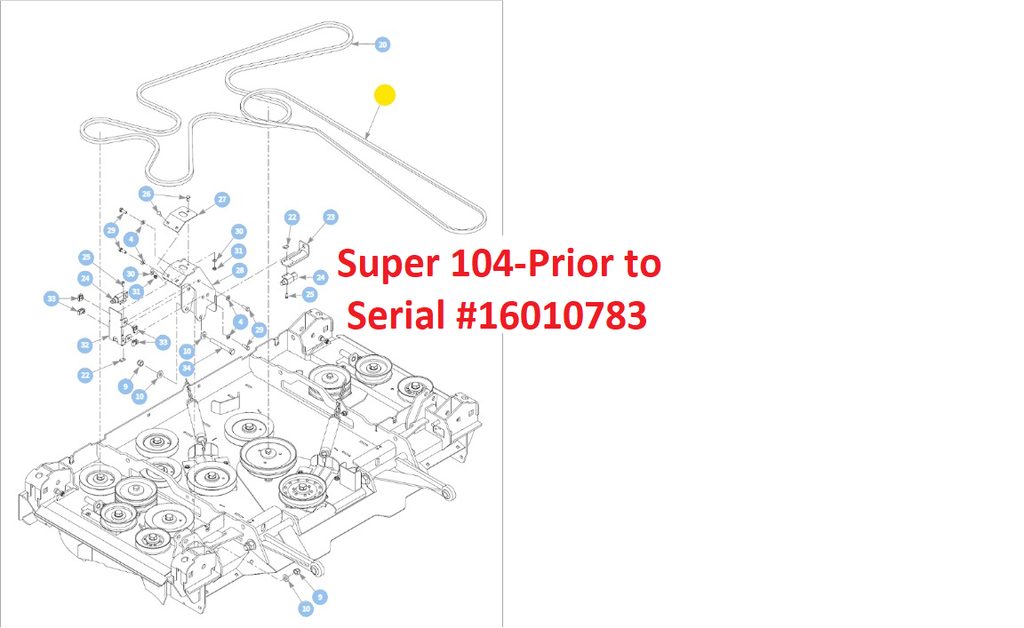

MOWER DECK BELT ASSOCIATED PART NUMBER REFERENCE
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 603786 - Super 104 - Primary Center Mower Deck Belt (Model 931733, 933515)
- 606334 - Super 104 - Primary Center Mower Deck Belt (Model 937201, 937219, 939603, 939462, 939470, 939652, 941005, 941526, 942318, 943217, 943225, 944058, 944066)
- 609213 - Super 104 - Secondary Center Mower Deck Belt (Model 944058, 944066)
- 084178 - Super 104 - Secondary Center Mower Deck Belt (Model 931733, 933515, 937201, 937219, 939603, 939462, 939470, 939652, 941005, 941526, 942318, 943217, 943225)
- 603885 - Super 104 - Left and Right Wing Mower Deck Belt
Specification
|
Product Number: |
603786 |
|
Brand: |
Hustler |
|
Length: |
NA |
|
Width: |
5/8 IN |
|
Height: |
NA |
|
Weight: |
1.005 LB |
Model Fit:
933515, 931733
