Description

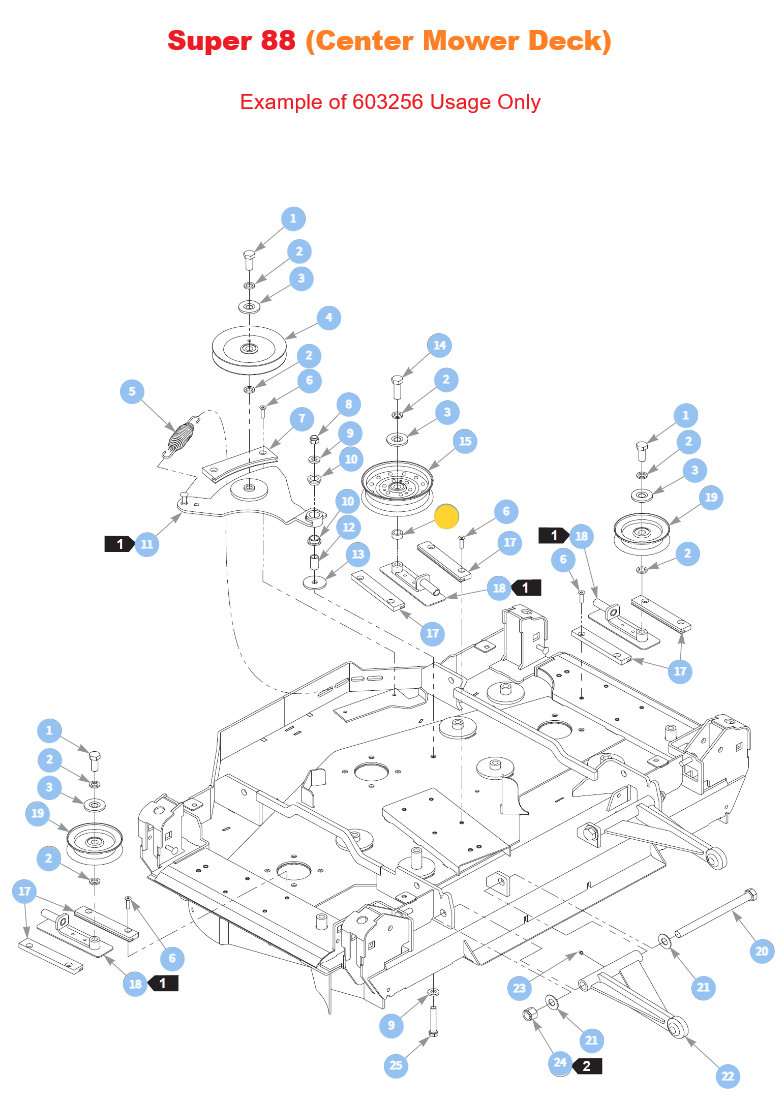

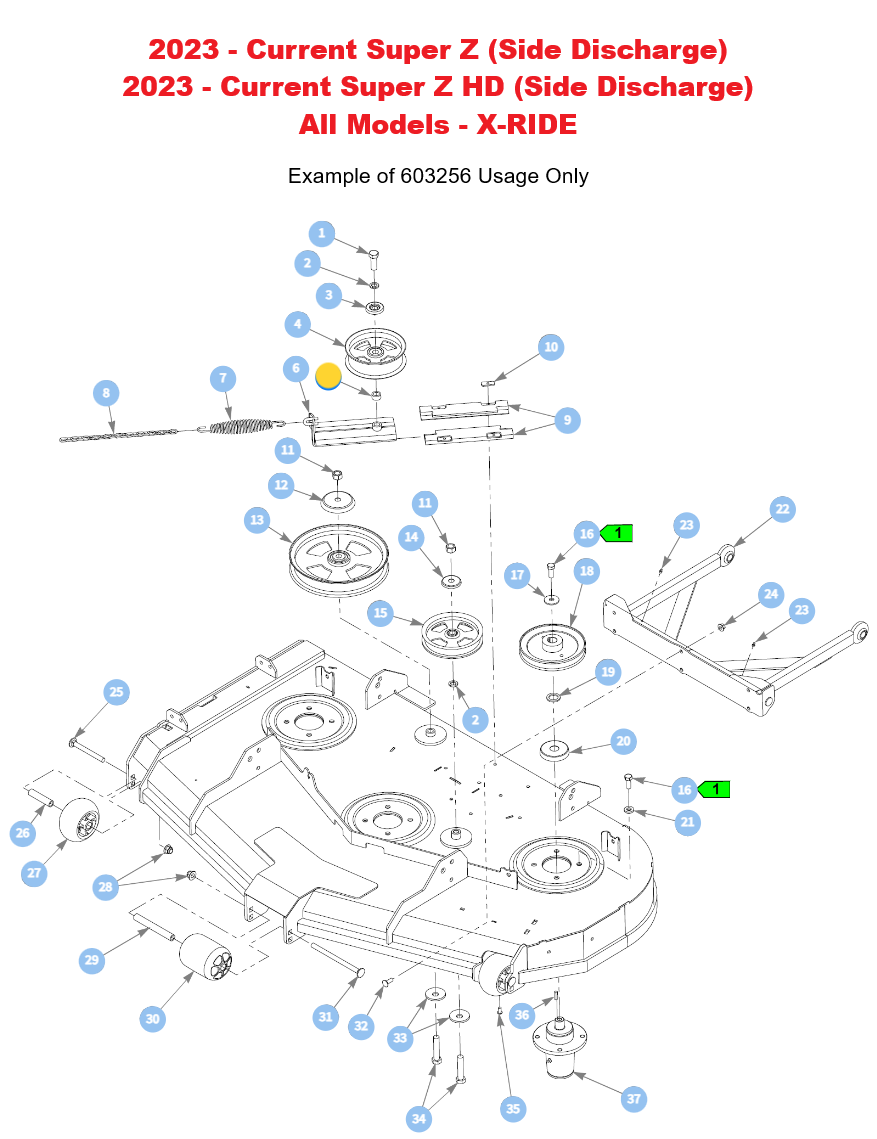

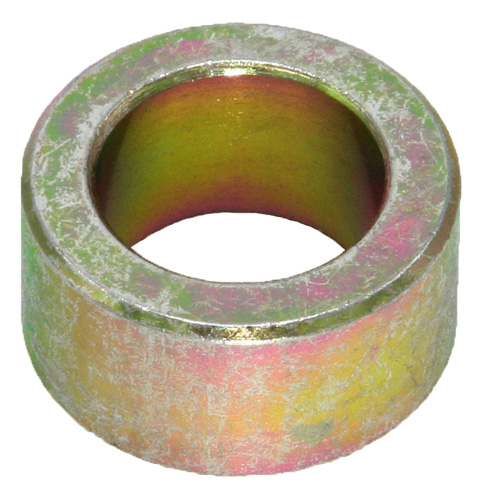

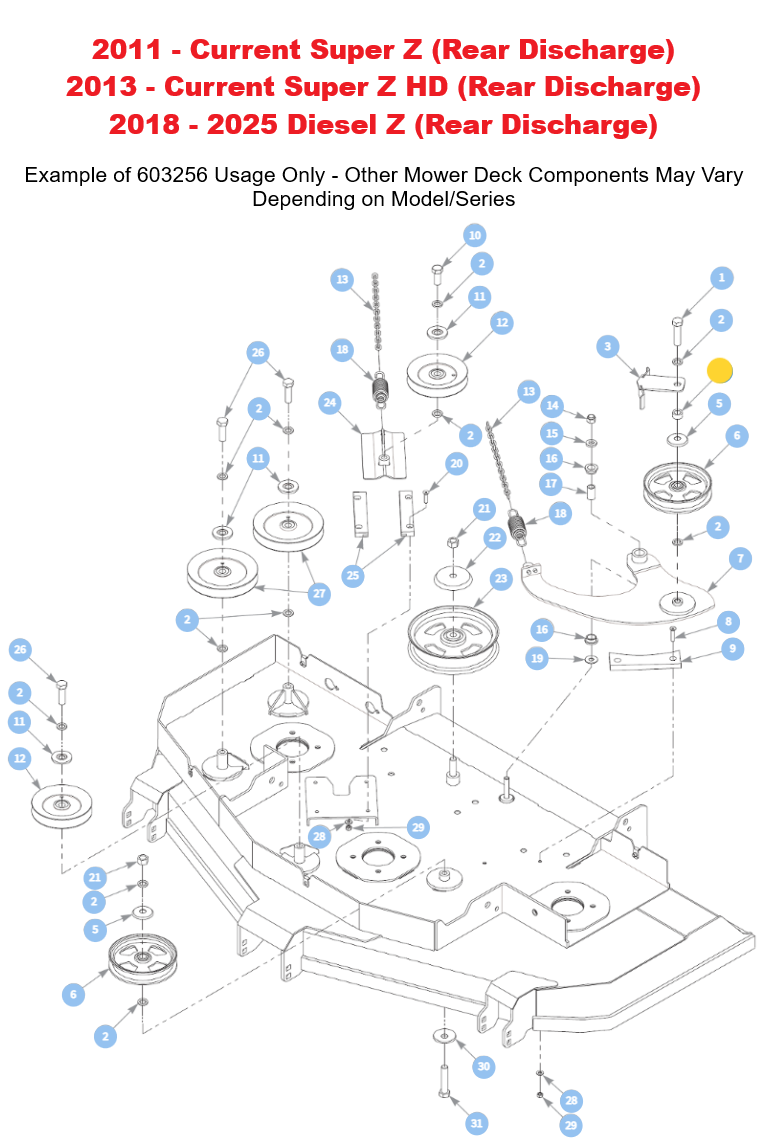

Hustler OEM 603256 1/2" Idler Spacer is Often Used to Space the Belt Guards Above the Pulleys (Super Z, Super Z HD, Diesel Z - Rear Discharge Models) & Space the Idler Pulley Above the Idler Guide Slide (X-RIDE, Super Z, Super Z HD, Super 88 - Side Discharge). Review the Parts Diagrams in the Images Above (Organized by Family/Series & Usage Type) & and Model Fit Chart Below to Ensure a Correct Fit.
Inside Diameter Is Sized For a 5/8" Fastener
Model Fit Chart
All Models - X-RIDE Models
936617, 939546
2023 - Current Side Discharge - Super Z Models
942805, 942813, 942821, 942839, 942854, 942870, 942888, 942896, 942920, 943852, 943860, 943886, 943894, 943928, 943936
2023 - Current Side Discharge - Super Z HD Models
942979, 942995, 943001, 943019, 943027, 943050, 943068, 943969, 943977, 943985, 943993, 944017, 944041
2011 - 2022 Rear Discharge - Super Z Models
930024, 930065, 932053, 932061, 934216, 934224, 935023, 935064, 936914, 936955, 940031, 940049, 941195, 941203
2013 - 2022 Rear Discharge - Super Z HD Models
932178, 932186, 934307, 934315, 934935, 934976, 937011, 937052, 941245, 941286, 941559, 941567
2018 - 2025 Rear Discharge - Diesel Z Models
Models are Currently Not Listed Will Be Eventually
All Models - Super 88
936617, 939546
Not sure if this is the correct part?
Contact us with your Hustler model and serial number and our parts team will verify fitment before you order.
