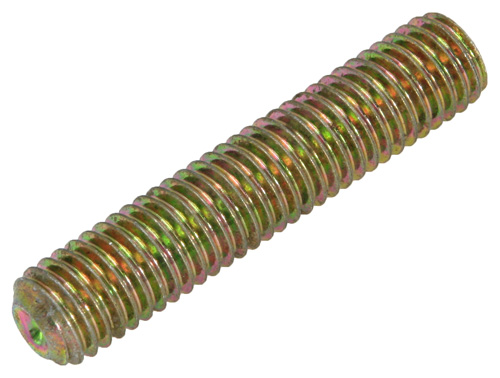

Hustler OEM 603055 Outside Steering Control Lever Stop Stud (1/2 X 2 1/2 -13) Fits Hustler X-ONE (2011 - Current), X-RIDE (All Models), Super Z (2011 - Current), Super Z HD (2013 - Current), Diesel Z (2014 - Current), Super 104 (All Models).

• Part Number: 603055

• Supersession: n/a

• Description: Stop Stud (.500 x 2.50 - 13) OR (1/2 X 2 1/2 -13) Thread Size - Stop Stud.

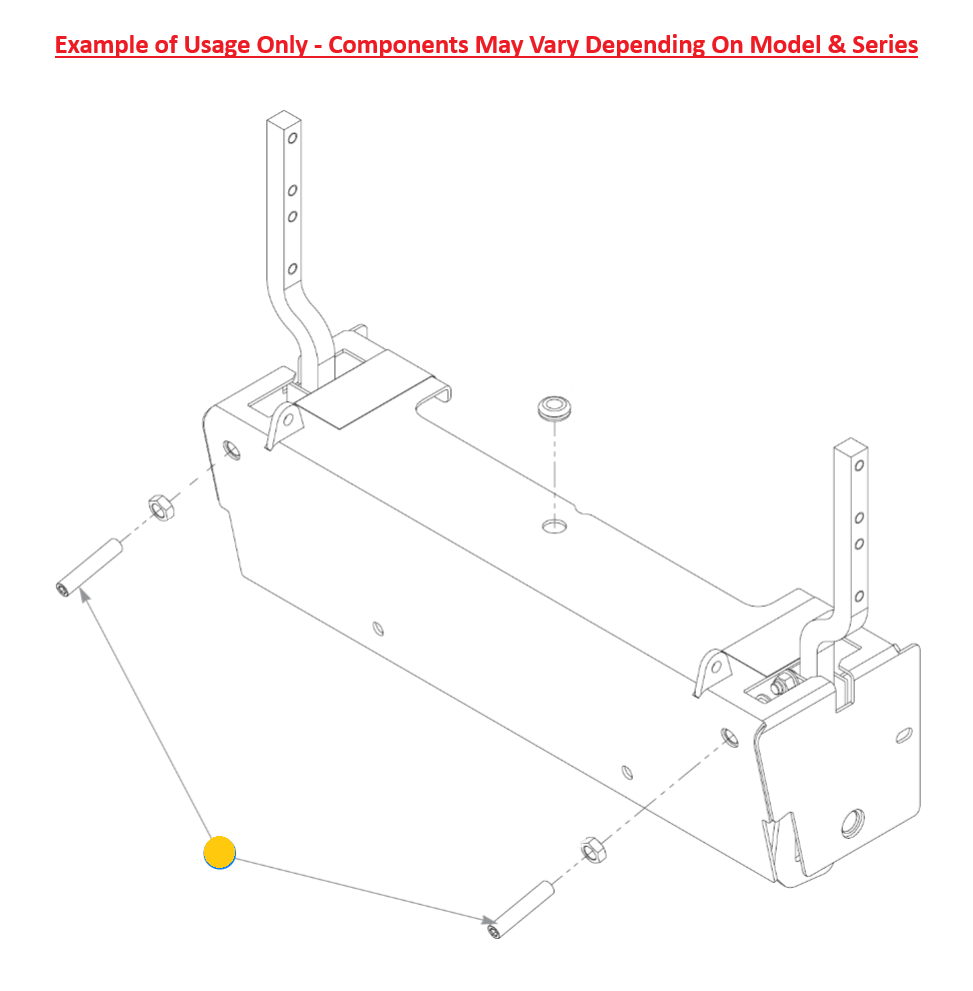

• Application: 603055 is commonly used as an Adjustable Steering Stop Stud in the steering cover. When properly adjusted, the studs allow both steering levers to travel to the same forward position, helping keep the levers aligned and providing more consistent machine control. The 603055 steering studs also prevent the steering box and steering arms from traveling too far forward by providing a solid mechanical stop. This helps eliminate variations in pressure being applied to the hydraulic pump forward/reverse control arms. By giving the steering components, a consistent forward stopping point, the studs help maintain more even hydraulic input and improve straight-line tracking when both steering levers are pushed fully forward. Note: Be Sure Not Confuse 603055 with Its Similar Partner 797738 Inside Steering Box Stop Stud that Screws Directly into the Steering Box Assembly - to Review the Difference Refer to 797738.



Keep your equipment performing the way it was designed with this genuine OEM replacement part. Manufactured to the original equipment manufacturer's specifications, this part is engineered for the proper fit, dependable performance, and long service life.

Whether you're performing routine maintenance or repairing a broken component, using genuine OEM parts helps maintain the reliability and performance of your equipment.

Choosing genuine OEM parts helps ensure your machine continues to operate as the manufacturer intended.

Please verify that Part Number 603055 is the correct replacement for your equipment before placing your order.

Model Fit Chart





X-ONE (2011 – Current)



930503, 930503US, 930511, 930529, 930529US, 930537, 930537US, 930545, 930552, 930560, 930578, 930586, 930594, 930883, 930891, 931006, 931055, 931055US, 931774, 931782, 932194, 932202, 932210, 932228, 932236, 932244, 932251, 932269, 932715, 932723, 932731, 932749, 932756, 932764, 932772, 932780, 932798, 933317US, 933887US, 933895US, 933978US, 933986US, 933994US, 934117, 934125, 934133, 934141, 934158, 934166, 934174, 936237, 936245US, 936252, 936260, 936278, 936286, 936294US, 936302, 936310, 936328, 936336, 936740, 936765, 936773, 936781, 936799, 936815, 936823, 936831, 936849, 939314, 939322, 940056, 940064, 940072, 940080, 940106, 940114, 940122, 940130, 940197, 941062, 941070, 941369, 941831, 941856, 941864, 941872, 941880, 941898, 941922, 941930, 941971, 942201, 942334, 942797, 943399, 943407, 943787, 943795, 943803, 943811, 943829, 943837, 943845





X-RIDE (All Models)

Unlike All Other Models - X-RIDE Models Utilize it - as it Screws into the Steering Box Assembly



944074, 944868





Super Z (2011 - Current Models)



929927, 929935, 929943, 929950, 930024, 930065, 930875, 931048, 931725, 932012, 932020, 932038, 932046, 932053, 932061, 932129, 932137, 932970, 932988, 933457, 933929US, 934216, 934224, 934232, 934240, 934265, 934273, 934281, 934299, 934984US, 934992, 935007, 935015US, 935023, 935031, 935049, 935056US, 935064, 936872, 936880, 936898US, 936914, 936922, 936930, 936948US, 936955, 936989, 937714, 937722, 937730, 938985, 938993, 940031, 940049, 941138, 941146, 941153, 941161, 941179, 941187, 941195, 941203, 941377, 941385, 942342, 942763, 942771, 942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943878, 943886, 943894, 943910, 943928, 943936, 943944





Super Z Hyper Drive (2013 - Current Models)



932145, 932152, 932160, 932178, 932186, 932384US, 932392US, 932996, 933002, 934307, 934315, 934323, 934331, 934349, 934356, 934687, 934695, 934703, 934711, 934919, 934927, 934935, 934943, 934950, 934968, 934976, 936625, 936997, 937003, 937011, 937029, 937045, 937037, 937052, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941245, 941252, 941260, 941278, 941286, 941294, 941302, 941310, 941328, 941534, 941542, 941559, 941567, 942219, 942227, 942235, 942243, 942250, 942359, 942961, 942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943951, 943969, 943977, 943993, 943985, 944017, 944041, 944025, 944033





Diesel Z (2014 - Current Models)



932665US, 932673US, 932681US, 932699US, 932707US, 938233US, 938241US, 938258US, 938266US, 940452US, 940460US, 940478US, 940486US, 943233US, 943241US, 943249US, 943266US





Super 104 (All Models)



937201, 937219, 939462, 939470, 939603, 939652, 941005, 941526, 942318, 943217, 943225, 944058, 944066





If you're unsure, send us your model and serial number, and we'll be happy to verify the correct part before you order.

Your order is shipped by a knowledgeable outdoor power equipment dealership—not a general warehouse.

Every order is carefully packed, and our experienced parts specialists are available to help if you have questions before or after your purchase.

Thank you for choosing Hilly Ridge Sales & Service for your genuine OEM parts needs.

Part Number: 603055

Description: Steering Stop Stud (.500 x 2.50 - 13) OR (1/2 X 2 1/2 -13) Thread Size - Stop Stud
