Description
The 603023 OEM Hustler Low Profile Fastner Were Designed Exclusively for The Hustler Mower and Contain a standard 5/16 - 18 Standard Thread Pattern. The Hustler OEM 603023 is used in specific Models with Mower Decks that Utilize the Hustler Poly Idler Slide Rails Part Numbers 602936. If Replacing the Just the Hardware Be sure to Check 602936 Idler Rail Slides for Wear. If you wish to Oder the Complete Assembly Order 602936 Kit - Comes with 2 x 602936 Idler Rail Slides - 4 x 603023 Weld Nuts - 4 x 603022 Stainless Steel Screws.
Fits These Hustler Models
* Verify your model number in the Model Fit Chart Below before ordering - variations may occur depending within Model and Families. If your Model is not List Feel Free to Contact us with your Model Number to Verify Correct Usage for you Model Number.
X-ONE, X-RIDE, Super Z, Super Z HD, Super ATZ, Diesel Z

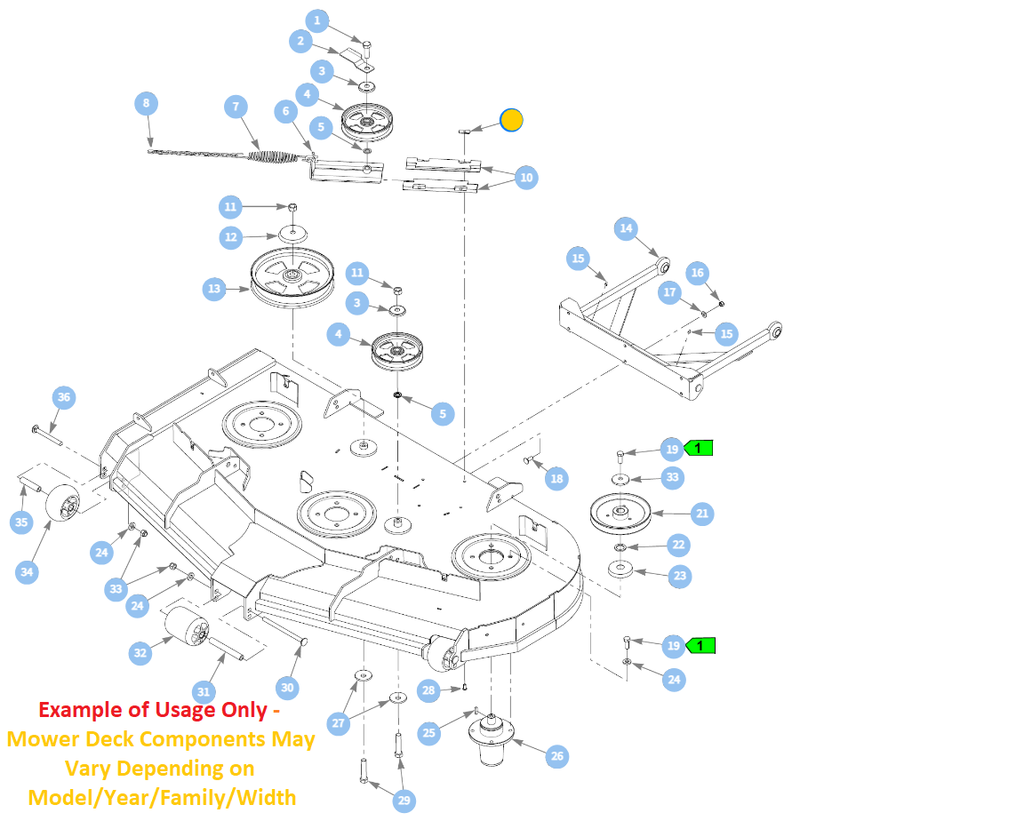

NOTE: When replacing Part Number 602936 it will be necessary to Remove the Deck Spring. Deck Spring are Required to have a correct adjustment measurement to obtain their correct function. Refer to the Image and Directions Below for Proper Tension Spring Adjustment. If you are unsure Part Number 602936 is the correct replacement part for your unit or if you Help with Spring Tension Measurements Questions for your Specific Models, Send us a Text Message or Email Here @ Hilly Ridge inquiring about your questions. Be sure to include a Model and Serial Number. We appreciate your Business, Thank You.
Spring Measurement & Belt Tension Notes
For correct deck belt tension, many Hustler deck assemblies use a **spring measurement from outside hook to outside hook** spring measurement from hook to hook on models that use 781302 Spring should be 9.3 in. - 10.0 in. Review the Image Below for example of Measurement. (For Additional Spring Measurement Length Refer to manufacturer notes in Mower Deck Belt routing section of Service Manual).
Related & Wear-Item Parts
These parts are commonly serviced or recommended at the same time:
- 602936 KIT - UHMW Rail Slide & Hardware Kit (Comes with Both UHMW Rail Slide and UHMW Rail Slide Fastening Hardware - 603022 Screw & 603023 Weld Nut).
- 602936 - UHMW Wear Slides / Wear Pads (Replaceable Components that Contain and Allow the Mower Deck Idler Guide Slide to Travel without Creating Wear on The Mower Deck Shell).
- 603022 - Screw (Fastens from the Bottom or Inside the Mower Deck and threw the 603023 Weld Nut Clamping or Retaining the UHMW Rail Slide).
- 350884 - Mower Deck Idler Slide (Retains the Idler Pulley and Tensioner Spring and Insert into the Rail Slide or Wear Pads).
- 781302 - Idler/Slide Tension Spring (Retains Tension on the Mower Deck Belt and is Retained by the Mower Deck Idler Pulley Slide - Standard for all Models).
- ?????? - Idler Pulley (6″ or 5″ – Depending on Mower Deck Width/Model/Family - to Find Correct Mower Idler Part Number for your Particular Model on Hilly Ridge Website - Correct Part Number Can be Found on Hilly Ridge Website by Typing Part Number in the Search tab or Typing Mower Deck Idler for Model ----- in the Search Tab - Review the Idler Usage Charts and always to Make Sure your Model Number is listed in the Model in the Model Fit Chart).
Specification
|
Product Number: |
603023 |
|
Brand: |
Hustler |
|
Length: |
1.45 IN |
|
Width: |
0.65 IN |
|
Height: |
0.20 IN |
|
Weight: |
0.035 LB |
Model Fit:
* 603023 May Be Used on Additional Models/Families like Deisel Z & X-One Models - Due to Lack of Information and Details - Hilly Ridge Will Continue to MANUELLY Improve the Model Fit Chart with Time - If you Have any Questions on Exact Fit Feel free to Message or Call us.
X-ONE
(Models 2011 and Later are Listed - Models Listed Prior To 2011 Will Not Be Listed If Applicable)
X-RIDE (Side Discharge)
(Models 2011 and Later are Listed - Models Listed Prior To 2011 Will Not Be Listed If Applicable)
944074
Super Z (Side Discharge)
(Models 2011 and Later are Listed - Models Listed Prior To 2011 Will Not Be Listed If Applicable)
929927, 929935, 929943, 929950, 930875, 931048, 932012, 932020, 932038, 932046, 932129, 932137, 932970, 932988, 933457, 933929US, 934232, 934240, 934265, 934273, 934281, 934984US, 934992, 935007, 935015US, 935031, 935049, 935056US, 936872, 936880, 936898US, 936922, 936930, 936948US, 936989, 937714, 937722, 937730, 938985, 938993, 941138, 941146, 941153, 941161, 941179, 941187, 941377, 941385, 942342, 942771, 942763, 942805, 942813, 942821, 942839, 942854, 942870, 942888, 942896, 942920, 943852, 943860, 943886, 943894, 943928, 943936
Super Z Hyper Drive (Side Discharge)
(Models 2011 and Later are Listed - Models Listed Prior To 2011 Will Not Be Listed If Applicable)
932145, 932152, 932160, 932996, 933002, 934323, 934349, 934687, 934695, 934919, 934927, 934943, 934950, 934968, 936997, 937003, 937029, 937037, 937045, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941252, 941260, 941278, 941294, 941302, 941310, 941534, 941542, 942219, 942227, 942235, 942243, 942250, 942359, 942979, 942995, 943001, 943019, 943027, 943050, 943068, 943969, 943977, 943993, 943985, 944017, 944041
Diesel Z (Side Discharge)
(Models 2011 and Later are Listed - Models Listed Prior To 2011 Will Not Be Listed If Applicable)
