Description

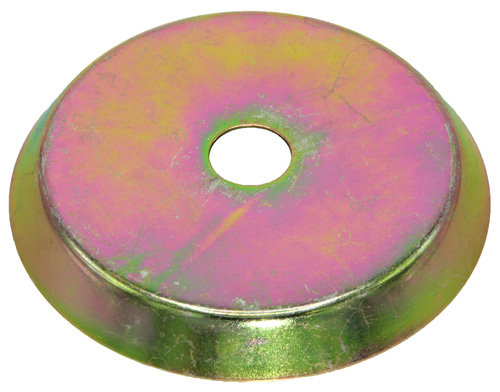

Hustler OEM 602963 Is Designed to be Fastened with the Correct Idler Pulley Fasteners Over the Upper Side of the Idler Pulley Bearing Seal. Preventing Water and Dirt Contaminates from Eventually Working Themselves into the Idler Pulley Bearing Prematurely Causing Idler Pulley Failures. 602963 Contains a Wider Girth and Typically is Used on 8" 602838 & 10" 602743 Mower Deck Idler Pulley's.

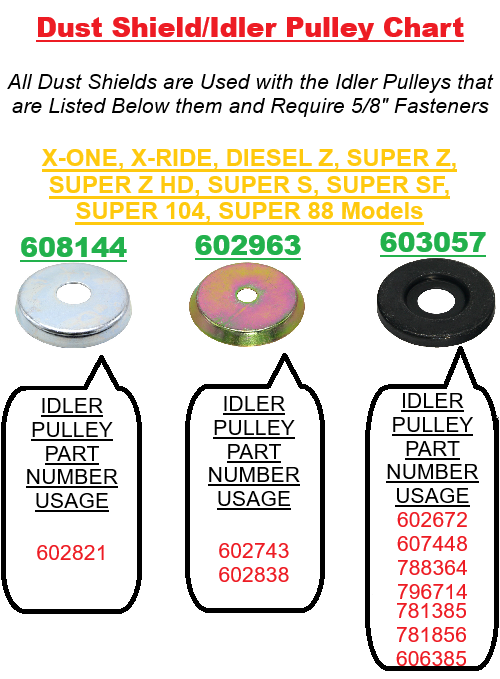

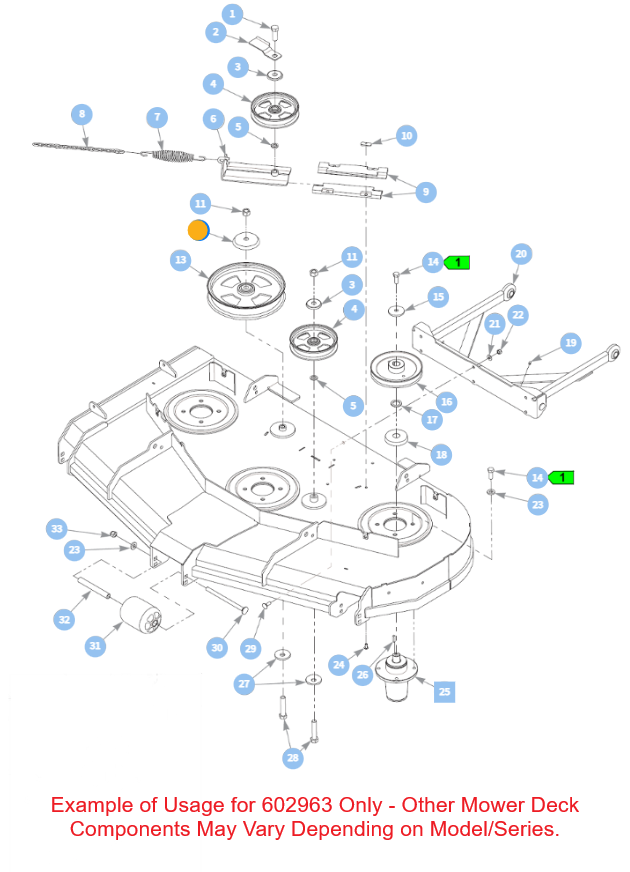

Hustler Idler Pulley's On Hustler Commercial Mowers will Use Three Common Types of Dust Shields - Refer to the Dust Shield/Idler Pulley Usage Chart to Determine the Correct Dust Shield for the Correct Idler Pulley Usage. All the Referred to Idler Pulley's and Idler Pulley Shield will be used Only with 5/8" Fasteners. Refer to the Idler Pulley Part Numbers on Hilly Ridge Website Page (Type Part Number in the Search Tab) to Find Detailed Part Diagrams for Each Family/Deck Size/Deck Type to Determine Required Part Number and its Location of Usage for Each Idler Pulley Part Number - Always Remember to Verify your Model Is Listed in the Model Fit Chart as Well.
Model Fit Chart
Below is a List of Models Categorized by Families/Models - There May Be Additional Model Usages that Won't Be Listed - However Known Common Model Usages Will Be Listed.
X-ONE (ALL MODELS)
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
Models and Diagrams are Currently Not Listed Will Be Eventually
X-RIDE (ALL MODELS)
944074, 944868
Super Z (ALL MODELS)
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
929927, 929935, 929943, 929950, 930024, 930065, 930875, 931048, 932012, 932020, 932038, 932046, 932053, 932061, 932129, 932137, 932970, 932988, 933457, 933929US, 934216, 934224, 934232, 934240, 934265, 934273, 934281, 934984US, 934992, 935007, 935015US, 935023, 935031, 935049, 935056US, 935064, 936872, 936880, 936898US, 936914, 936922, 936930, 936948US, 936955, 936989, 937714, 937722, 937730, 938985, 938993, 940031, 940049, 941138, 941146, 941153, 941161, 941179, 941187, 941195, 941203, 941377, 941385, 942342, 942771, 942763, 942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943878, 943886, 943894, 943910, 943928, 943936, 943944
Super Z HD (ALL MODELS)
(Models 2013 and Later are Listed - Models Listed Prior To 2013 May Not Be Listed If Applicable)
932145, 932152, 932160, 932178, 932186, 932996, 933002, 934315, 934307, 934323, 934349, 934687, 934695, 934919, 934927, 934935, 934943, 934950, 934968, 934976, 936997, 937003, 937011, 937029, 937037, 937045, 937052, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941245, 941252, 941260, 941278, 941286, 941294, 941302, 941310, 941534, 941542, 941559, 941567, 942219, 942227, 942235, 942243, 942250, 942359, 942961, 942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943951, 943969, 943977, 943993, 943985, 944017, 944041, 944025, 944033
Diesel Z (2011 - Current 60" & 72" Side & Rear Discharge Models)
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
Models and Diagrams are Currently Not Listed Will Be Eventually
Not sure if this is the correct pulley?
Contact us with your Hustler model and serial number and we will verify the correct part before you order.
