Description

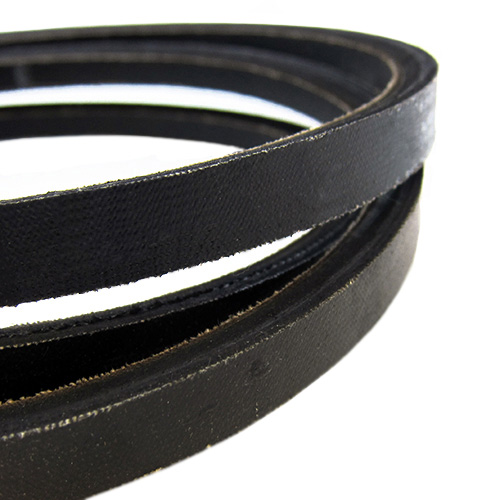

Hustler OEM 602907 Hydraulic Drive Belt is made with the best of Materials Aramid/Kevlar/Rubber and is rigorously tested to ensure they have the Correct Combination of Materials, Made to Engineering Specifications and Superior Quality to Eliminate Disappointment in the functionality of Hustler Equipment. So, with an Attitude (That No Hill is too Big) replace Those Worn-Out Hydraulic Drive Belt with the Confidence and the Peace of Mind that you have recreated your Machines Functionality with Hustler OEM (Original Equipment Manufacturer). Hustler OEM 602907 Hydraulic Drive Belt is a Made to Fit on Hustler Early X-ONE / KAWASAKI FX 801V ENGINE MODELS ONLY. Please refer to the Images above; Product Specifications, Special Notes and the Model Fit guide below to ensure proper fit.

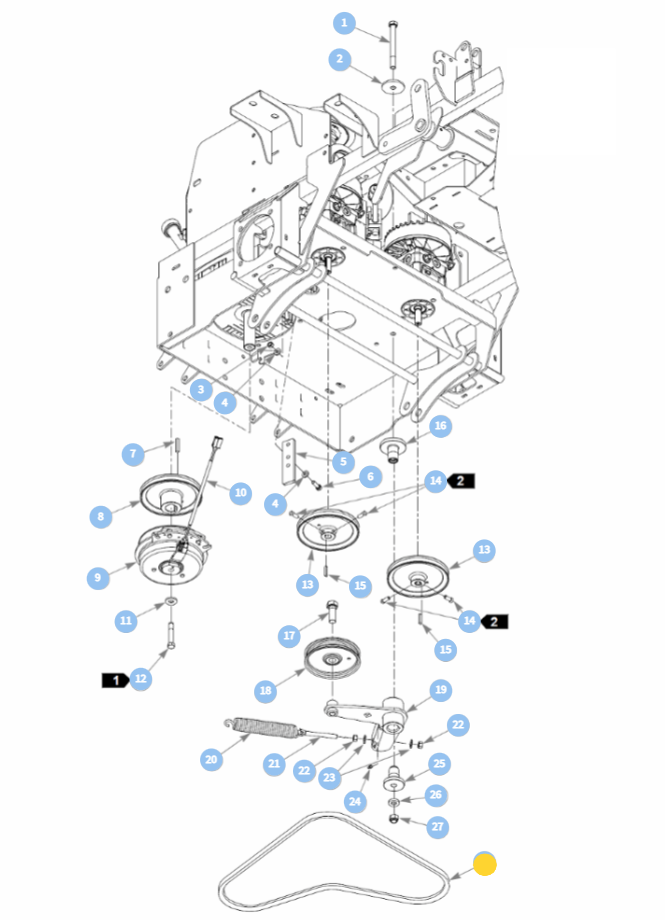

NOTE 1: Due to Changes within Model/Series there might occur instances where Hustler Hydraulic Drive Belt Part Number Might Have Some Variation in Part Numbers depending on the Age and Serial Number of the Unit. One way to Eliminate Confusion is by Searching your Belt Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Page to Find the correct Model/Belt Part Number Combo. Second way to Eliminate Confusion is to perform a visual inspection of your Drive Components and Compare it to the Images above. Key Differences in each Mower Deck Images to Look at are noted with a red arrow along with the Part Number that is associated for that Drive System Type. If this does not prove helpful and you still need assistance with finding the correct part number feel free to text us, email or give us a call and we can try to help you. Remember if further assistance is needed you will need to provide Models and Serial Number of the Unit you are wishing to receive Help with. If you wish to be Redirected to a different Hydraulic Drive Belt Part Number Refer to the Hydraulic Drive Belt Part Number Reference Chart Below and Click on Associated Part Numbers to Redirected.
NOTE 2: Important To Note that Hydro Drive Belt 602907 Requires Proper Spring Tension Adjustment in most Applications. Refer to Your Owner Manual, Authorized Dealer or Contact us here at Hilly Ridge if Further Assistance is Needed with finding Proper Spring Tension Measurements and Directions.

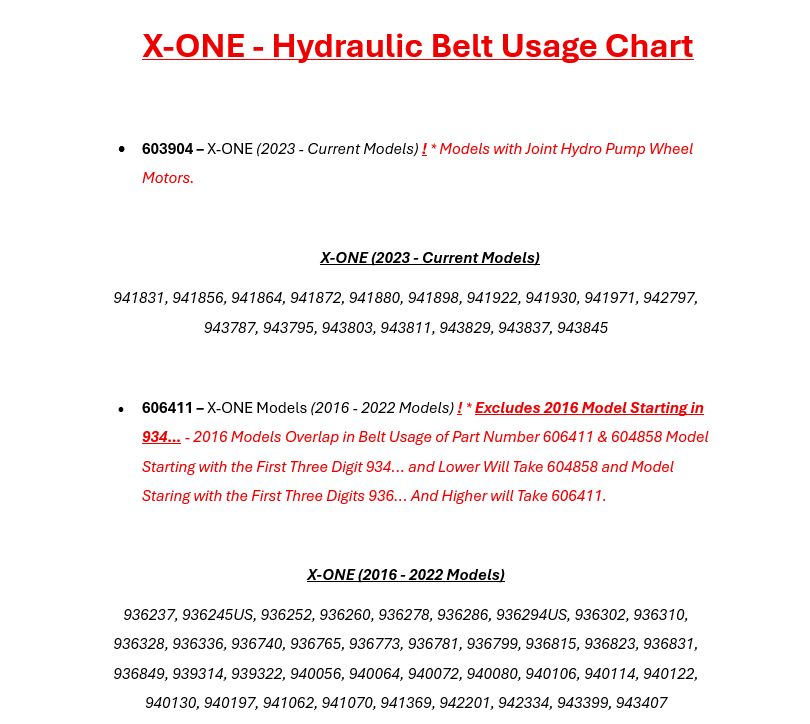

HYDRAULIC DRIVE BELT ASSOCIATED PART NUMBER REFERENCE
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
REFER TO IMAGES TO DETERMINE DIFFERENCES

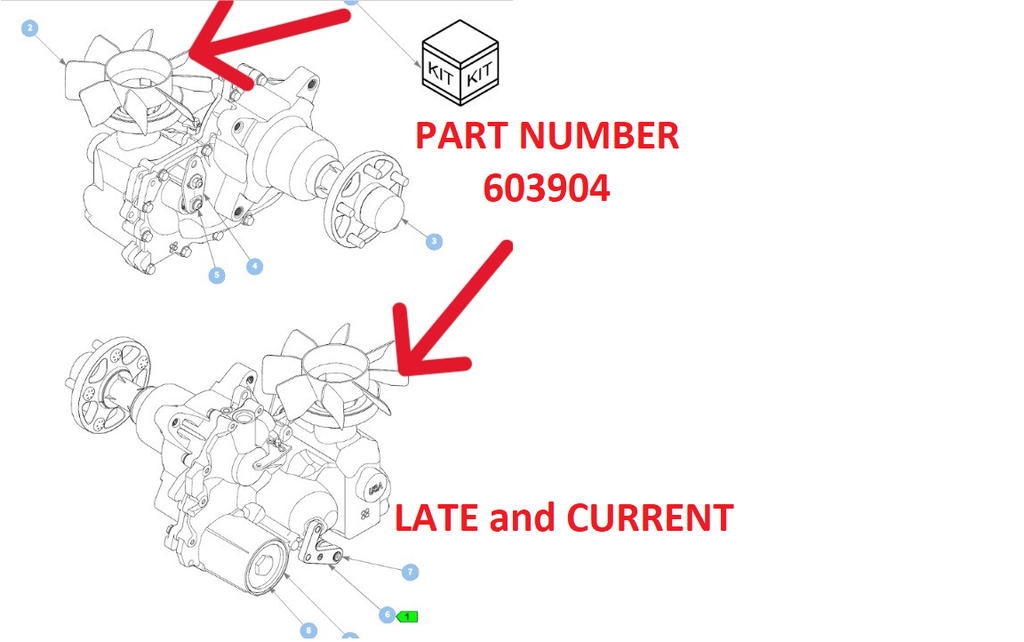

- 603904 - X-ONE - Late and Current Models (* Joint Hydro Pump Wheel Motors).
- 604858 - X-ONE - Early Models (* Independent Hydro Pump/Wheel Motor).
- 602907 - X-ONE - Early Models (* Independent Hydro Pump/Wheel Motor - Models with Kawasaki FX 801V Engine Option).
- 788794 - X-ONEi - Early Models (* Only Model 931949, 931956, 932343US and 932350US)
Specification
|
Product Number: |
602907 |
|
Brand: |
Hustler |
|
Length: |
NA |
|
Width: |
1/2 IN |
|
Height: |
NA |
|
Weight: |
0.310 LB |
Model Fit:
Early X-ONE Models with Kawasaki FX801V ENGINE ONLY
