Description
Hustler OEM 602891 Discharge Chute
Hustler OEM 602891 Discharge Chute Is not only designed to keep your grass clipping from blowing all over you while mowing but also is designed to keep liabilities to a minimum. The Hustler OEM 602891 Discharge Chute is designed to (keep safety first!) by helping to eliminating flying debris and possibly worse amputation. Hustler OEM 602891 Discharge Chute is designed to Fit Hustler Commercial
60" X-RIDE Models
72" X-ONE Models
72" SUPER SF Models
60" 66" & 72'' Super Z & Super Z HD
60" & 72" Diesel Z
Please Refer to the Images above, Special Notes and Help Links below to ensure a proper fit. Click on the Part Numbers and Help Links to be redirected.

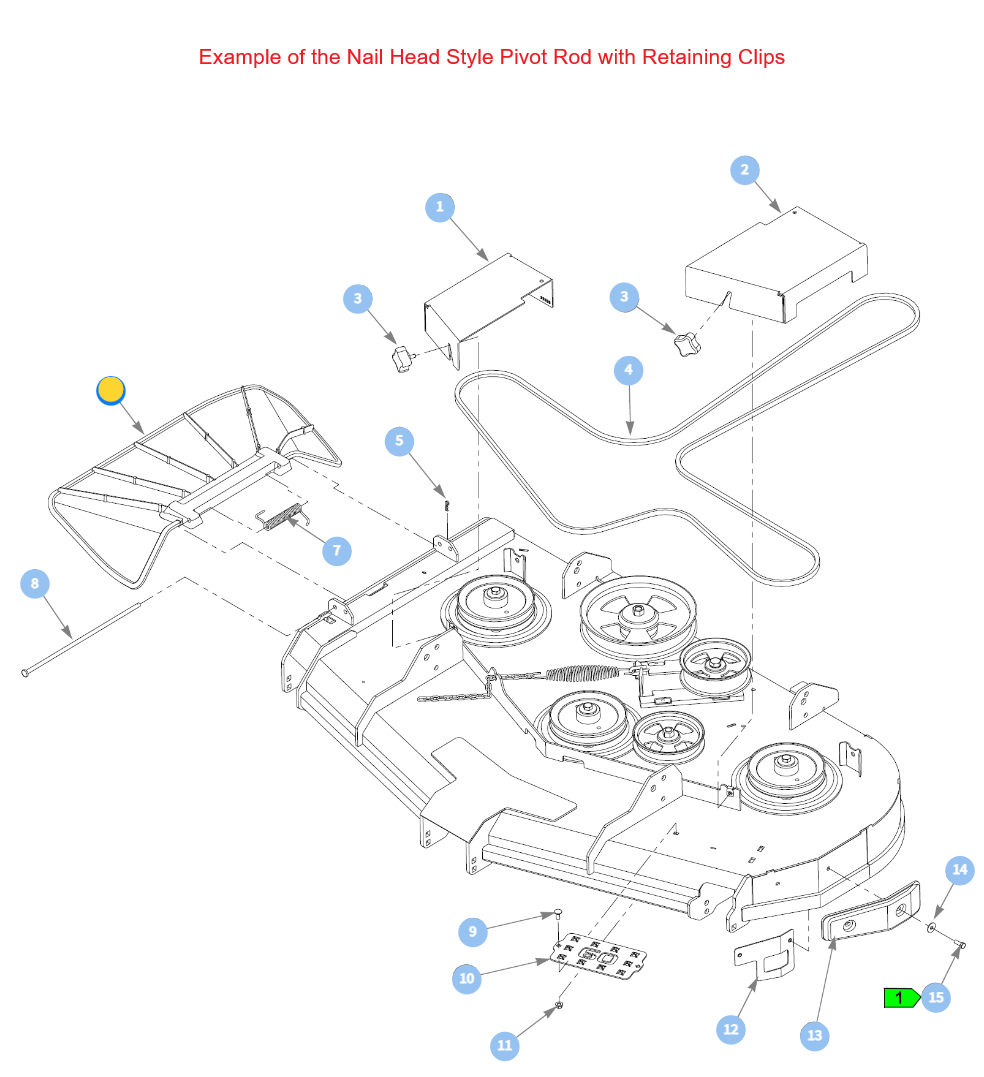

- 608776-4 - Discharge Chute Pivot Pin (Nail Style Pin)

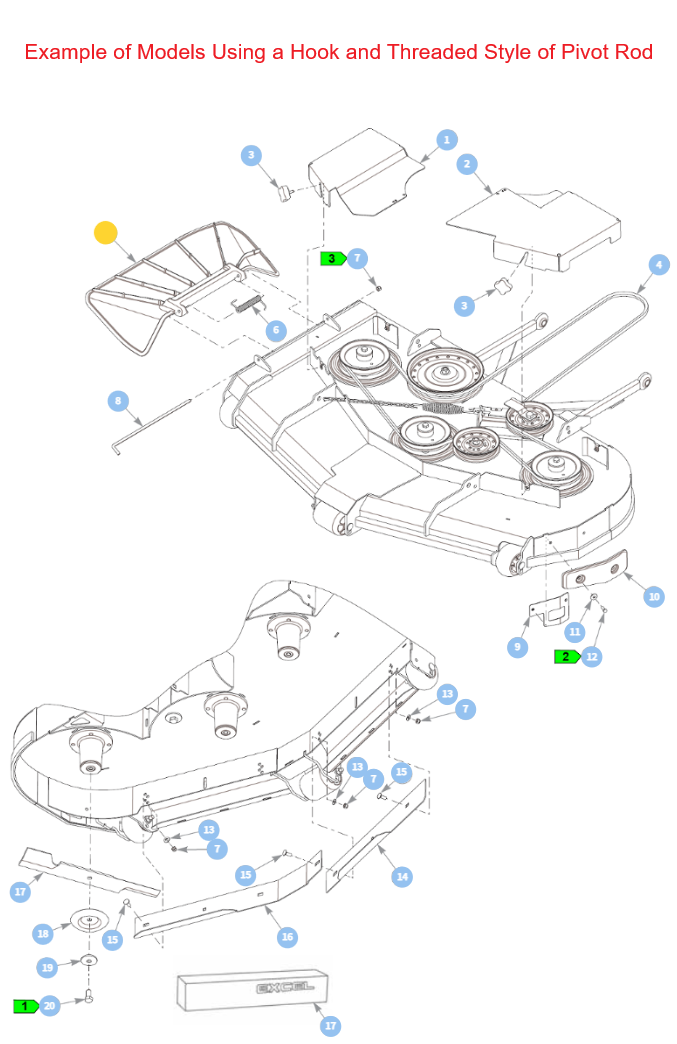

- 602432 - Discharge Chute Pivot Pin (Hook Style Pin)
- 602435 - Discharge Chute Torsion Spring
- 706549 - Discharge Chute Clip Pin (Used With 608776-4)
- 086660 - Lock Nut (Used With 602432)
Specification
|
Product Number: |
602891 |
|
Brand: |
Hustler |
|
Length: |
32.00 IN. |
|
Width: |
15.75 IN. |
|
Height: |
6.12 IN. |
|
Weight: |
2.750 LBS. |
Model Fit:
* 602891 May Be Used on Additional Models/Families like Deisel Z & X-One Models - Due to Lack of Information and Details - Hilly Ridge Will Continue to MANUELLY Improve the Model Fit Chart with Time - If you Have any Questions on Exact Fit Feel free to Message or Call us.
X-ONE (72" Side Discharge Models)
(Models 2011 and Later are Listed - Models Listed Prior To 2011 Will Not Be Listed If Applicable)
Models are Currently Not Listed Will Be Eventually
X-RIDE (60" Side Discharge Models)
944074, 944868
Super Z (60" & 72" Side Discharge)
(Models 2011 and Later are Listed - Models Listed Prior To 2011 Will Not Be Listed If Applicable)
929927, 929935, 929943, 929950, 930875, 931048, 932012, 932020, 932038, 932046, 932129, 932137, 932970, 932988, 933929US, 934232, 934240, 934265, 934273, 934281, 935007, 935015US, 935031, 935049, 935056US, 936880, 936898US, 936922, 936930, 936948US, 936989, 937714, 937722, 937730, 938985, 938993, 941146, 941153, 941161, 941179, 941187, 941377, 941385, 942342, 942771, 942763, 942813, 942821, 942839, 942854, 942870, 942888, 942896, 942920, 943860, 943878, 943886, 943894, 943928, 943936
Super Z Hyper Drive (60" & 72" Side Discharge)
(Models 2013 and Later are Listed - Models Listed Prior To 2013 Will Not Be Listed If Applicable)
932145, 932152, 932160, 932996, 933002, 934323, 934349, 934687, 934695, 934919, 934927, 934943, 934950, 934968, 936997, 937003, 937029, 937037, 937045, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941252, 941260, 941278, 941294, 941302, 941310, 941534, 941542, 942219, 942227, 942235, 942243, 942250, 942359, 942961, 942979, 942995, 943001, 943019, 943027, 943050, 943068, 943951, 943969, 943977, 943993, 943985, 944017, 944041
Diesel Z (60" & 72" Side Discharge)
(Models 2018 and Later are Listed - Models Listed Prior To 2018 Will Not Be Listed If Applicable)
Models are Currently Not Listed Will Be Eventually
Not sure if this is the correct pulley?
Contact us with your Hustler model and serial number and we will verify the correct part before you order.
