Description

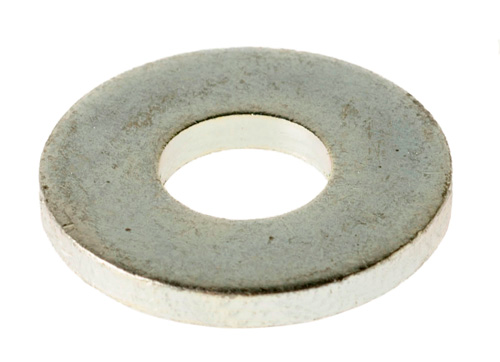

602680 Hardened PTO Clutch Washer

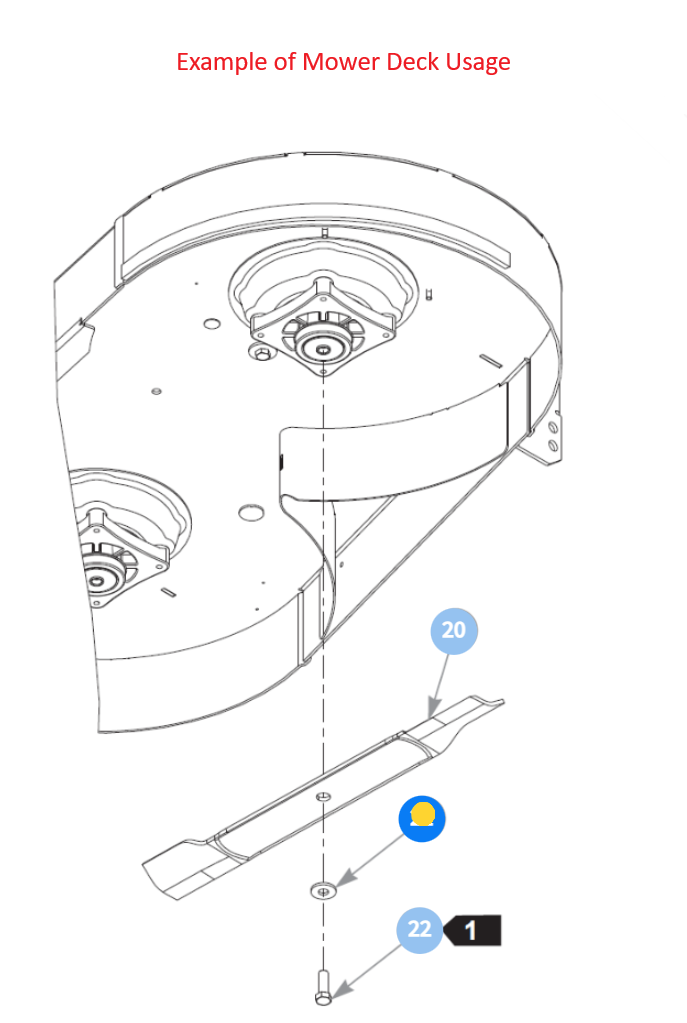

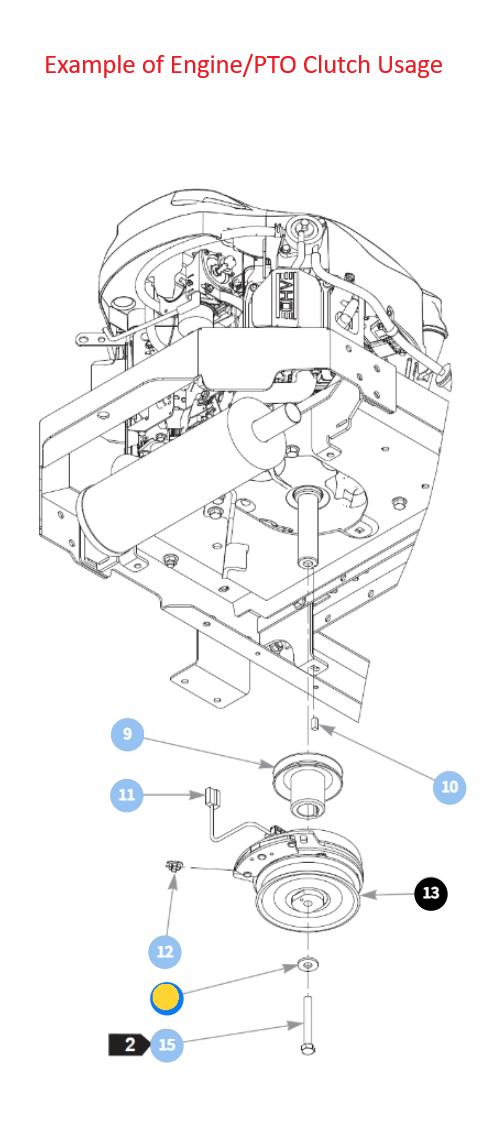

- Application: Could Be Used in a Wide Range of Usages in a Wide Range of Models - However Commonly Used on: All Hustler Model (Except Surfer PRO Models) to Support the PTO Clutch Bolt and Help Retain the PTO Clutch on the Engine Shaft & On a Few Models (Raptor [Select Few Models], Dash & Surfer Pro Models - Only Models that use 604214 Spindle Assembly) it is Used to Support the Mower Deck Blades in Retaining the Mower Blade to the Spindle Shaft on the Mower Deck (Usage for 7/16 Nut or Bolt Size)
- Size: 0.453 x 1.12 x 0.119
- Supersession: n/a
Model Fit Chart
Surfer PRO (All Models - Mower Deck)
941591, 941617
Dash (All Models - Mower Deck & PTO Clutch)
938480, 938498, 939231, 939249, 940742, 940759, 940767, 944082
Trimstar (All Models - PTO Clutch)
929240, 929265, 929273, 929232, 930388, 930388US, 930396, 930404, 930412, 939496, 939504, 939512, 939538, 942268, 942276
Raptor (All Models - Mower Deck & PTO Clutch)
Note: Only Used on the Mower Deck of Models Like the Standard Raptor & Raptor Limited Series that would Use the 604214 Spindle Assembly
933614, 933622, 933846US, 933853US, 934505US, 934513US, 934547US, 934760, 934778, 934786, 934794, 934802, 935734, 935742, 935759, 935767US, 935817, 935825, 935833, 935841, 935858US, 935866US, 935882, 935916, 936476, 936484, 936492, 936500, 936682, 936708, 936716US, 937748, 937755, 937763, 937771, 937813, 937847, 937854, 937862, 937789, 937797, 937805, 937821, 937839, 937870, 937888, 938019, 938027, 938035, 938134, 938142, 938159, 938167, 938464, 938472, 938530, 938548, 938555, 938563, 938571, 938589, 938597, 938605, 938613, 938621, 938639, 938647, 938654, 938662, 938670, 938688, 938696, 938977, 939165, 939173, 939181, 939199, 939207, 939215, 939223, 939256, 939264, 939397, 939389, 939405, 939694, 939702, 939744, 939751, 939769, 939819, 939827, 939835, 939843, 939876, 939884, 940312, 940320, 944470, 944488, 944496, 944504, 944512, 944520, 944538, 944546, 944553
FasTrack (All Models - PTO Clutch)
933424, 933432, 933440, 934851, 935627, 936054, 936062, 936070, 936088, 936104, 936112, 936120, 936138, 936146US, 936153US, 936161US, 938043, 938050, 938704, 938712, 938720, 938738, 938746, 938753, 938761, 938779, 938787, 938795, 940346, 940353, 940361, 940379, 940387, 940395, 940403, 940411, 940429, 940437, 941724, 941732, 941740, 941757, 941765, 941773, 941781, 941674, 941682, 941708, 943704, 943753, 943761
X-ONE (2016 - Current Models - PTO Clutch)
936237, 936245US, 936252, 936260, 936278, 936286, 936294US, 936302, 936310, 936328, 936336, 936740, 936765, 936773, 936781, 936799, 936815, 936823, 936831, 936849, 939314, 939322, 940056, 940064, 940072, 940080, 940106, 940114, 940122, 940130, 940197, 941062, 941070, 941369, 941831, 941856, 941864, 941872, 941880, 941898, 941922, 941930, 941971, 942201, 942334, 942797, 943399, 943407, 943787, 943795, 943803, 943811, 943829, 943837, 943845
X-RIDE (All Models - PTO Clutch)
944074, 944868
Super Z (2011 - Current Models - PTO Clutch)
929927, 929935, 929943, 929950, 930024, 930065, 930875, 931048, 932012, 932020, 932038, 932046, 932053, 932061, 932129, 932137, 932970, 932988, 933457, 933929US, 934216, 934224, 934232, 934240, 934265, 934273, 934281, 934984US, 934992, 935007, 935015US, 935023, 935031, 935049, 935056US, 935064, 936872, 936880, 936898US, 936914, 936922, 936930, 936948US, 936955, 936989, 937714, 937722, 937730, 938985, 938993, 940031, 940049, 941138, 941146, 941153, 941161, 941179, 941187, 941195, 941203, 941377, 941385, 942342, 942763, 942771, 942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943878, 943886, 943894, 943910, 943928, 943936, 943944
Super Z Hyper Drive (2013 - Current Models - PTO Clutch)
932145, 932152, 932160, 932178, 932186, 932996, 933002, 934307, 934315, 934323, 934331, 934349, 934356, 934687, 934695, 934919, 934927, 934935, 934943, 934950, 934968, 934976, 936997, 937003, 937011, 937029, 937037, 937045, 937052, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941245, 941252, 941260, 941278, 941286, 941294, 941302, 941310, 941328, 941534, 941542, 941559, 941567, 942219, 942227, 942235, 942243, 942250, 942359, 942961, 942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943951, 943969, 943977, 943985, 943993, 944017, 944025, 944033, 944041
Diesel Z (2025 - Earlier Models - PTO Clutch)
938233US, 938241US, 938258US, 938266US, 940452US, 940460US, 940478US, 940486US, 943233US, 943241US, 943249US, 943266US
Super S (All Models - PTO Clutch)
933325, 933333, 933341, 933358, 935353, 935361, 935387US, 935395US, 937136, 937144, 937151, 937169, 937177, 939439, 939447, 939454, 940205, 940213, 940221, 940247, 940254, 940288, 940296, 940304, 941393, 942292, 943126, 943134, 943142, 943167, 943175
Super SF (All Models - PTO Clutch)
942029, 942037, 942045, 942052, 943506, 943514, 943522, 943530
Super 88 (All Models - PTO Clutch)
936617, 939546
Super 104 (All Models - PTO Clutch)
937201, 937219, 939462, 939470, 939603, 939652, 941005, 941526, 942318, 943217, 943225, 944058, 944066
