Description

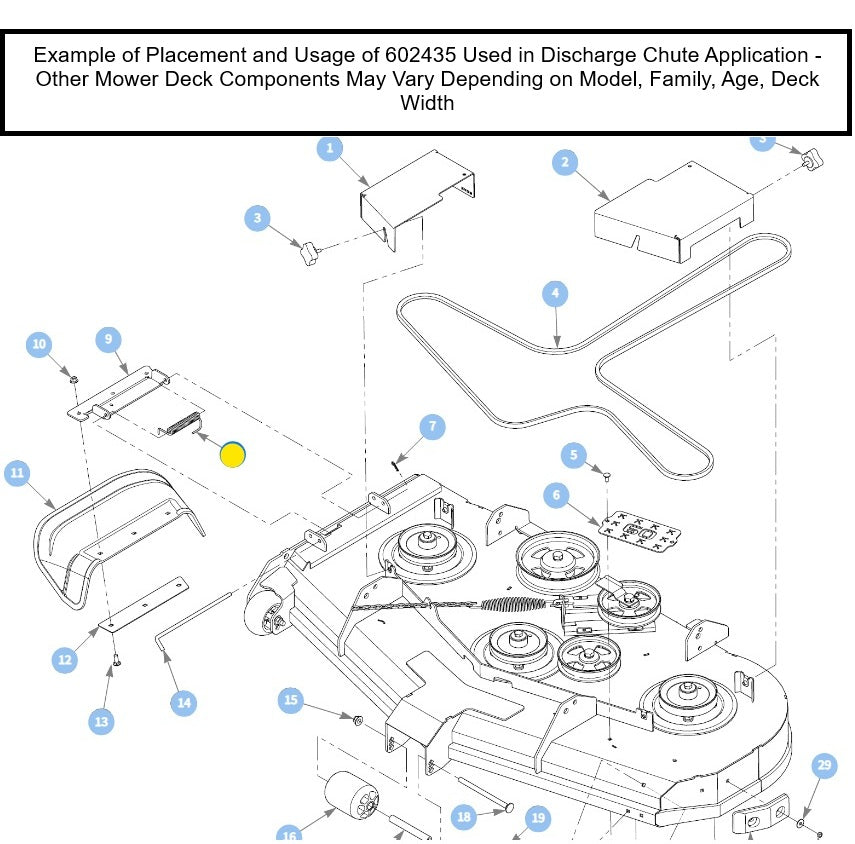

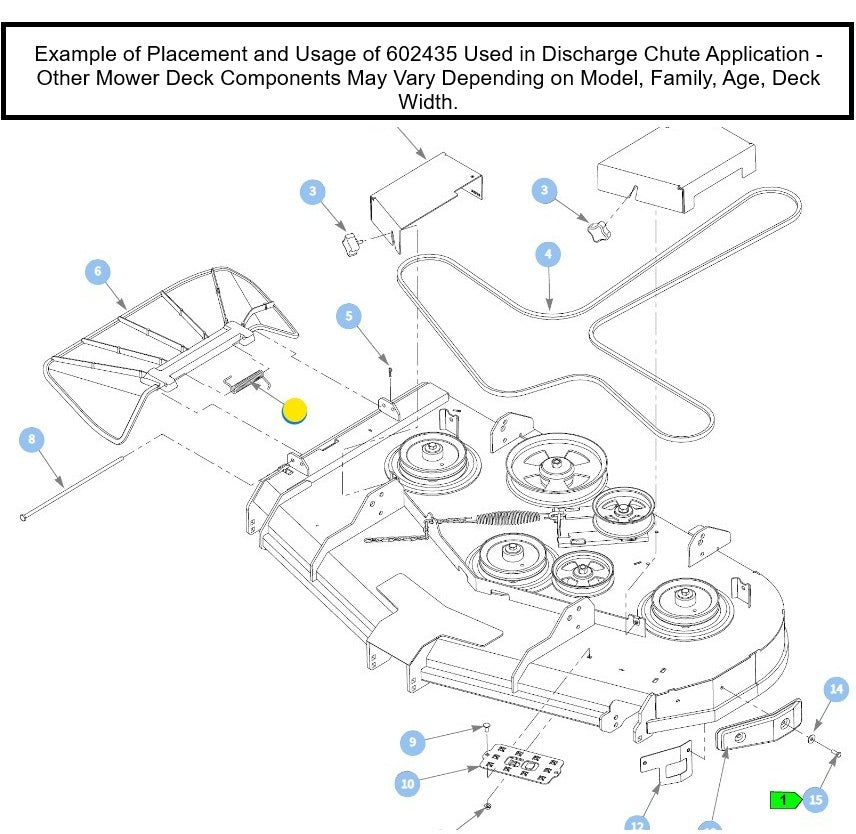

The Hustler OEM 602435 is specially made for the Hustler Discharge Chute Application. This Discharge Torsion Spring keeps the chute in the down position and provides adequate downward pressure, preventing it from bouncing on rough terrain. Discharge Torsion Spring 602435 is Used on a wide range of Hustler Models such as the Hustler:
DISCHARGE CHUTE RETAINING PIVOT PIN
Trimstar, Raptor SDX and XDX, FasTrak & FasTrack SDX, X-ONE, X-RIDE, Super Z, Super Z HD, Super S and Super SF Models.

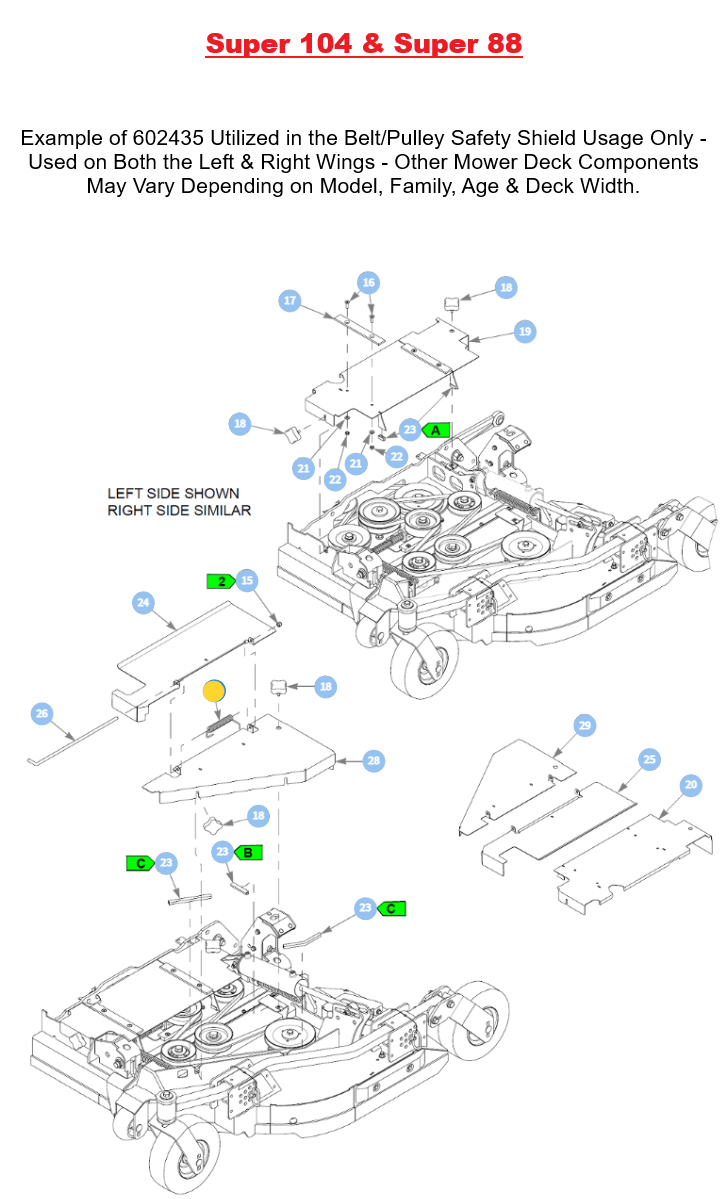

LEFT & RIGHT MOWER DECK BELT/PULLEY SAFETY SHIELD PIVOT PIN
Super 104, Super 88 Models
Please Refer to the Images above, Special Notes and Help Links below to ensure a proper fit. Click on the Part Numbers and Help Links to be redirected.
- 602429 - Discharge Chute - 54" Super Z Models Only.
- 602891 - Discharge Chute - 72" X-ONE & SUPER SF - 60" X-RIDE - 60", 66" & 72" Super Z - 60", 66" & 72" Super Z HD - 60" & 72" Diesel Z Models.
- 605916 - Discharge Chute - X-ONE (With Exception of Models with a 72" Mower Deck), Super S and Super SF (With Exception of Models with a 72" Mower Deck).
- 605469 - Discharge Chute - Trimstar, Raptor SDX, XDX, and FasTrak Models.
- 608776-4 - Discharge Chute Pivot Pin (Nail Style Pin)
- 602432 - Discharge Chute Pivot Pin (Hook Style Pin)
- 607995 - Discharge Chute Pivot Pin (Hook Style Pin - Used on Models Only that Use the 605916 Discharge Chute)
- 706549 - Discharge Chute Clip Pin (Used With 608776-4 & 607995)
- 086660 - Lock Nut (Used With 602432)
Specification
|
Product Number: |
602435 |
|
Brand: |
Hustler |
|
Length: |
4.45 IN |
|
Width: |
2.20 IN |
|
Height: |
1.45 IN |
|
Weight: |
0.340 LB |
Model Fit:
Trimstar
Models are Currently Not Listed Will Be Eventually
Raptor XDX & Raptor SDX
Models are Currently Not Listed Will Be Eventually
FasTrack & FasTrack SDX
Models are Currently Not Listed Will Be Eventually
X-ONE (2011 - Current Side Discharge Models)
Models are Currently Not Listed Will Be Eventually
X-RIDE (ALL MODELS)
944074, 944868
Super Z (2011 - Current Side Discharge Models)
929927, 929935, 929943, 929950, 930875, 931048, 932012, 932020, 932038, 932046, 932129, 932137, 932970, 932988, 933457, 933929US, 934232, 934240, 934265, 934273, 934281, 934984US, 934992, 935007, 935015US, 935031, 935049, 935056US, 936872, 936880, 936898US, 936922, 936930, 936948US, 936989, 937714, 937722, 937730, 938985, 938993, 941138, 941146, 941153, 941161, 941179, 941187, 941377, 941385, 942763, 942771, 942342, 942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943886, 943894, 943910, 943928, 943936, 943944
Super Z Hyper Drive (2013 - Current Side Discharge Models)
932145, 932152, 932160, 932996, 933002, 934323, 934349, 934687, 934695, 934919, 934927, 934943, 934950, 934968, 936997, 937003, 937029, 937045, 937037, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941252, 941260, 941278, 941294, 941302, 941310, 941328, 941534, 941542, 942219, 942227, 942235, 942243, 942250, 942359, 942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943969, 943977, 943985, 943993, 944017, 944041, 944025, 944033
Diesel Z (2018 - 2025 60", 72" Side Discharge Models)
938233US, 938258US, 940452US, 940478US, 943233US, 943249US
Super 104 (All Models)
937201, 937219, 939603, 939462, 939470, 939652, 941005, 941526, 944058, 944066
Super 88 (All Models)
936617, 939546
Super S (All Models)
Models are Currently Not Listed Will Be Eventually
Super SF (Select Models Only)
942037, 942052, 943506, 943514, 943522, 943530
Not sure if this is the correct part?
Contact us with your Hustler model and serial number and our parts team will verify fitment before you order.
