Description
Hustler OEM 602432 Discharge Chute Pivot Pin
- Application: Commonly Used in Select

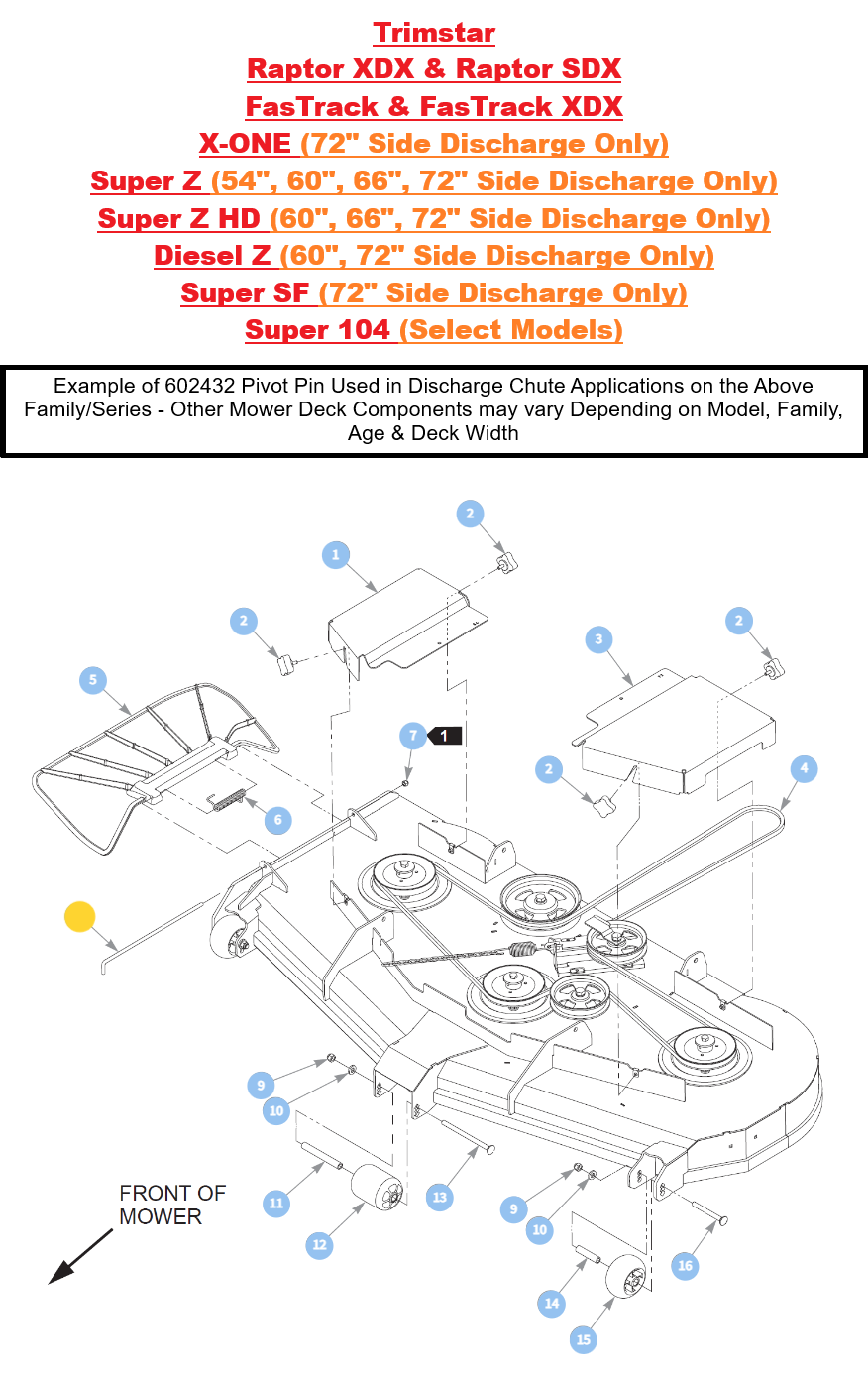

DISCHARGE CHUTE RETAINING PIVOT PIN
- Trimstar
- Raptor XDX & Raptor SDX
- FasTrack & FasTrack SDX
- 72" X-ONE (Side Discharge)
- 72" Super SF
- 54", 60", 66", 72" Super Z
- 60", 66", 72" Super Z HD
- 60", 72" Diesel Z

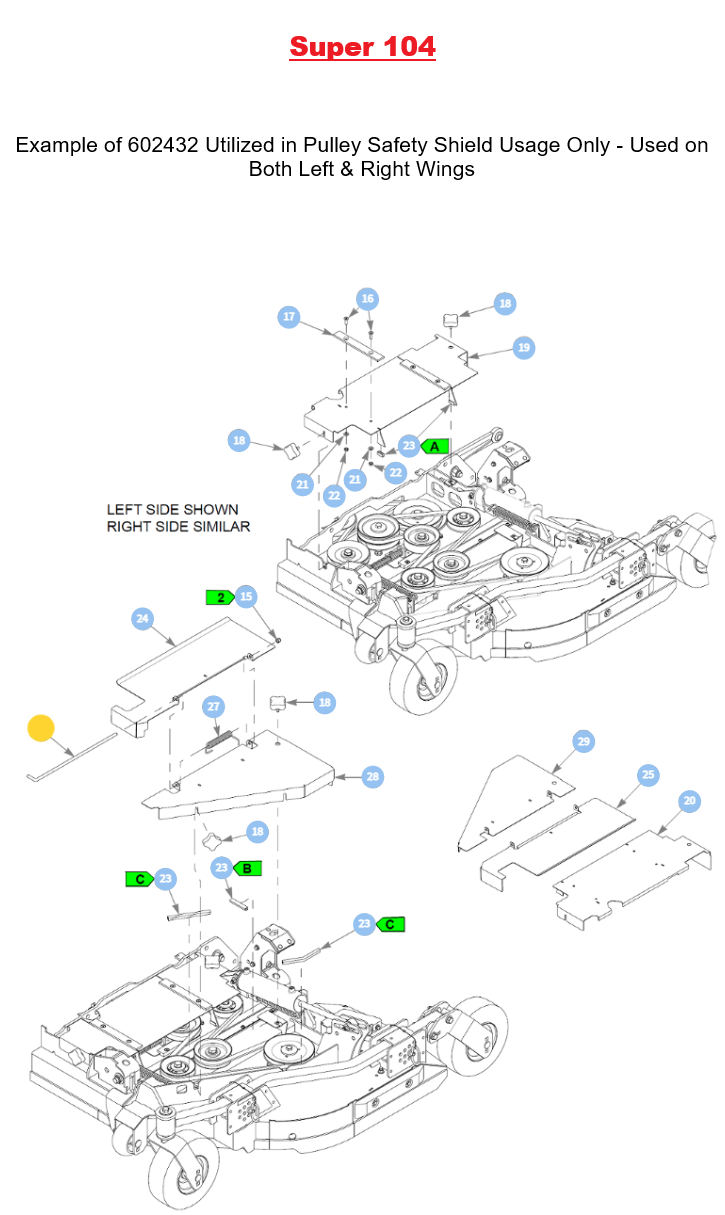

LEFT & RIGHT MOWER DECK BELT/PULLEY SAFETY SHIELD PIVOT PIN
- Super 104
ASSOCIATED RETAINING CLIP PIN & TORSION SPRING
Note: In Most Application 608776-4 & 602432 Pivot Pins can be Interchanged with Right Retaining Hardware (Nut or Clip-Pin).
-
086660 - Lock Nut (Used With 602432)
- 602435 - Discharge Chute Torsion Spring
Model Fit Chart
Trimstar
Models are Currently Not Listed Will Be Eventually
Raptor XDX & Raptor SDX
Models are Currently Not Listed Will Be Eventually
Select FasTrack & FasTrack SDX
Models are Currently Not Listed Will Be Eventually
X-ONE (72" Side Discharge Models)
Models are Currently Not Listed Will Be Eventually
Super Z (2011 - 2022 54", 60", 66", 72" Side Discharge Models)
929927, 929935, 929943, 929950, 930875, 931048, 932012, 932020, 932038, 932046, 932129, 932137, 932970, 932988, 933457, 933929US, 934232, 934240, 934265, 934273, 934281, 934984US, 934992, 935007, 935015US, 935031, 935049, 935056US, 936872, 936880, 936898US, 936922, 936930, 936948US, 936989, 937714, 937722, 937730, 938985, 938993, 941138, 941146, 941153, 941161, 941179, 941187, 941377, 941385, 942763, 942771, 942342
Super Z Hyper Drive (2013 - 2022 60", 66", 72" Side Discharge Models)
932145, 932152, 932160, 932996, 933002, 934323, 934349, 934687, 934695, 934919, 934927, 934943, 934950, 934968, 936997, 937003, 937029, 937045, 937037, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941252, 941260, 941278, 941294, 941302, 941310, 941328, 941534, 941542, 942219, 942227, 942235, 942243, 942250, 942359
Diesel Z (2018 - 2022 60", 72" Side Discharge Models)
938233US, 938258US, 940452US, 940478US
Super 104 (2022 & Earlier)
937201, 937219, 939603, 939462, 939470, 939652, 941005, 941526
Super SF (2021 - 2022 72" Side Discharge Models)
942037, 942052
Not sure if this is the correct part?
Contact us with your Hustler model and serial number and our parts team will verify fitment before you order.
