Description
Hustler OEM 602341 Anti-Scalp Wheel
Crafted from Durable Hard Plastic Material, the Hustler OEM 602341 Center Anti-Scalp Wheels are Designed to Withstand Frequent Contact and Rough Surfaces. With the Ability to Lift and Transport a Mower Deck, These Wheels Eliminate the Risk of Scalping on Uneven Terrains and Imperfections in your Yard. The Hustler OEM 602341 Anti-Scalp Wheel is Designed to Evenly Distribute Weight (Preventing Bent Anti-Scalp Wheel Fasteners) and Create a Larger Ground Contact Area on the Center of the Mower Deck, Resulting in a Pristine Yard. Trust Hustler OEM 602341 to Improve your Yard Maintenance and Fit on Hustler:
Trimstar (2020 - Current Side Discharge)
Raptor SDX & Raptor XDX (2019 - Current Side Discharge)
FasTrak & FasTrack SDX (2015 - Current Side & Rear Discharge)
Super S (Select Models - Excluding Models Less Than 48")
Super SF (All Models)
X-ONE (2016 - Current Side & Rear Discharge)
X-RIDE (All Models)
Super Z (2011 - Current Side & Rear Discharge)
Super Z HD (2013 - Current Side & Rear Discharge)
Diesel Z (2018 - Current Side & Rear Discharge)
Super 88 (All Models)

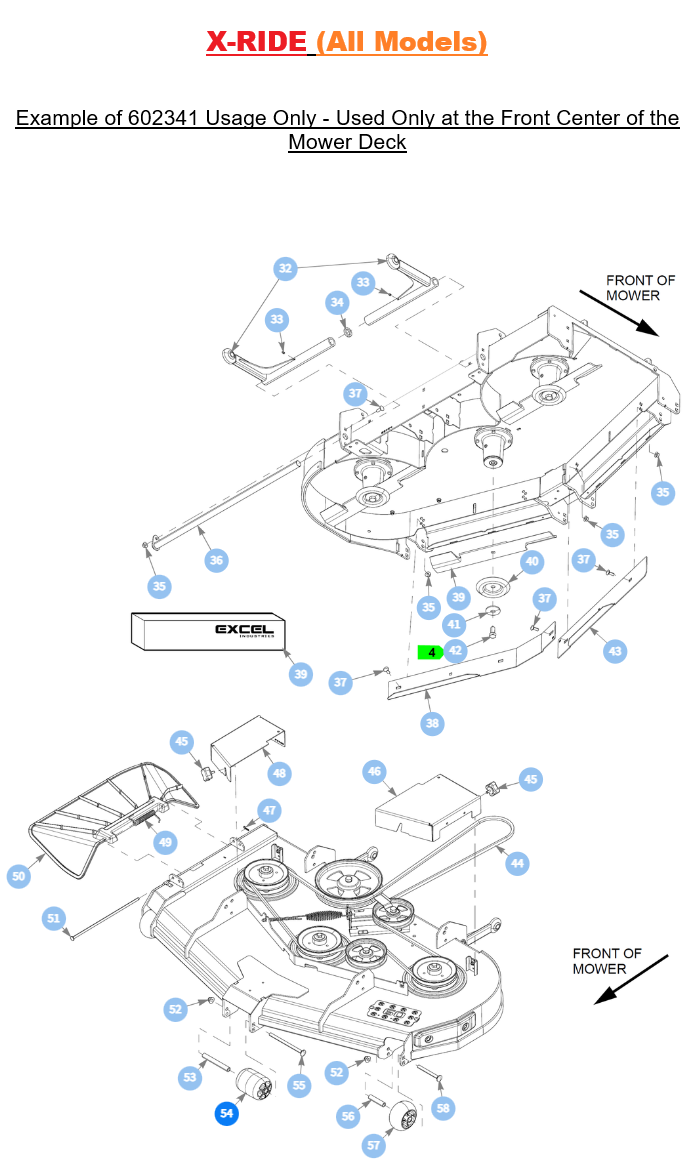

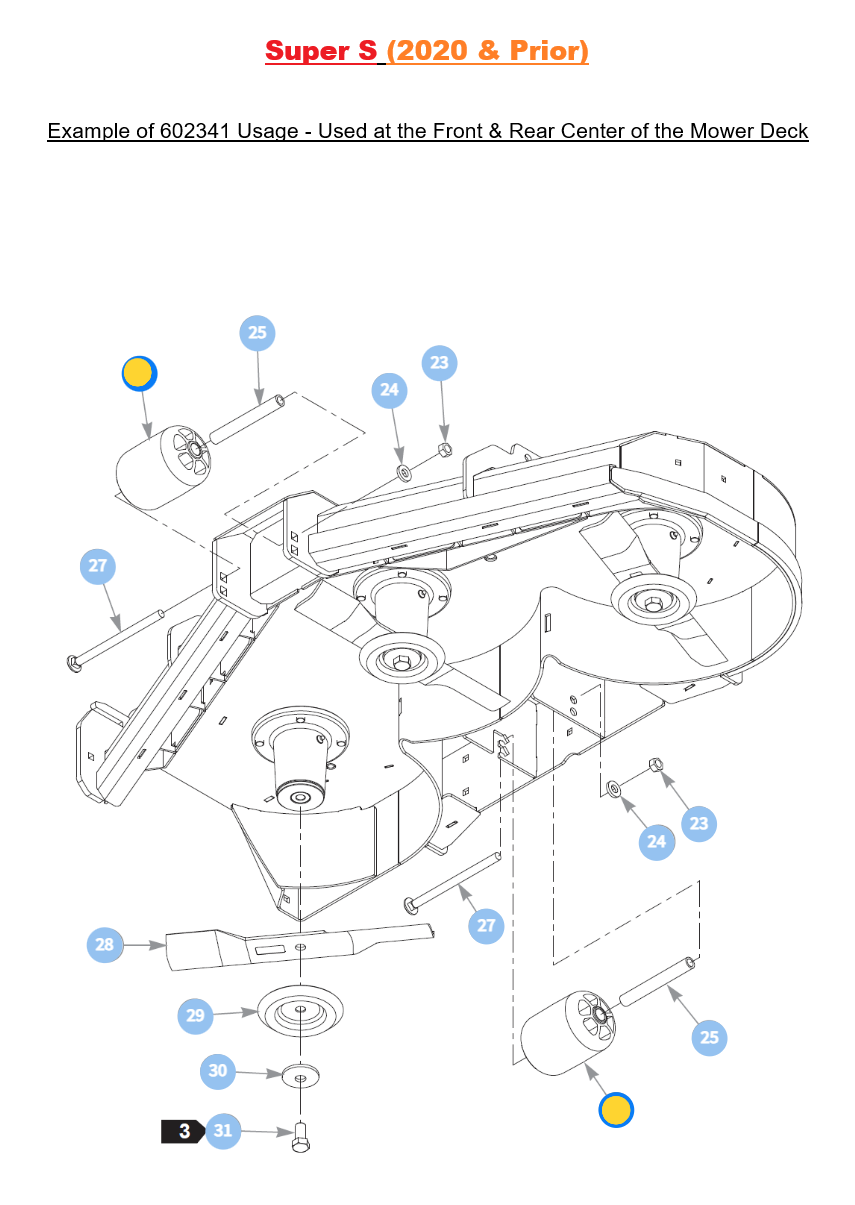

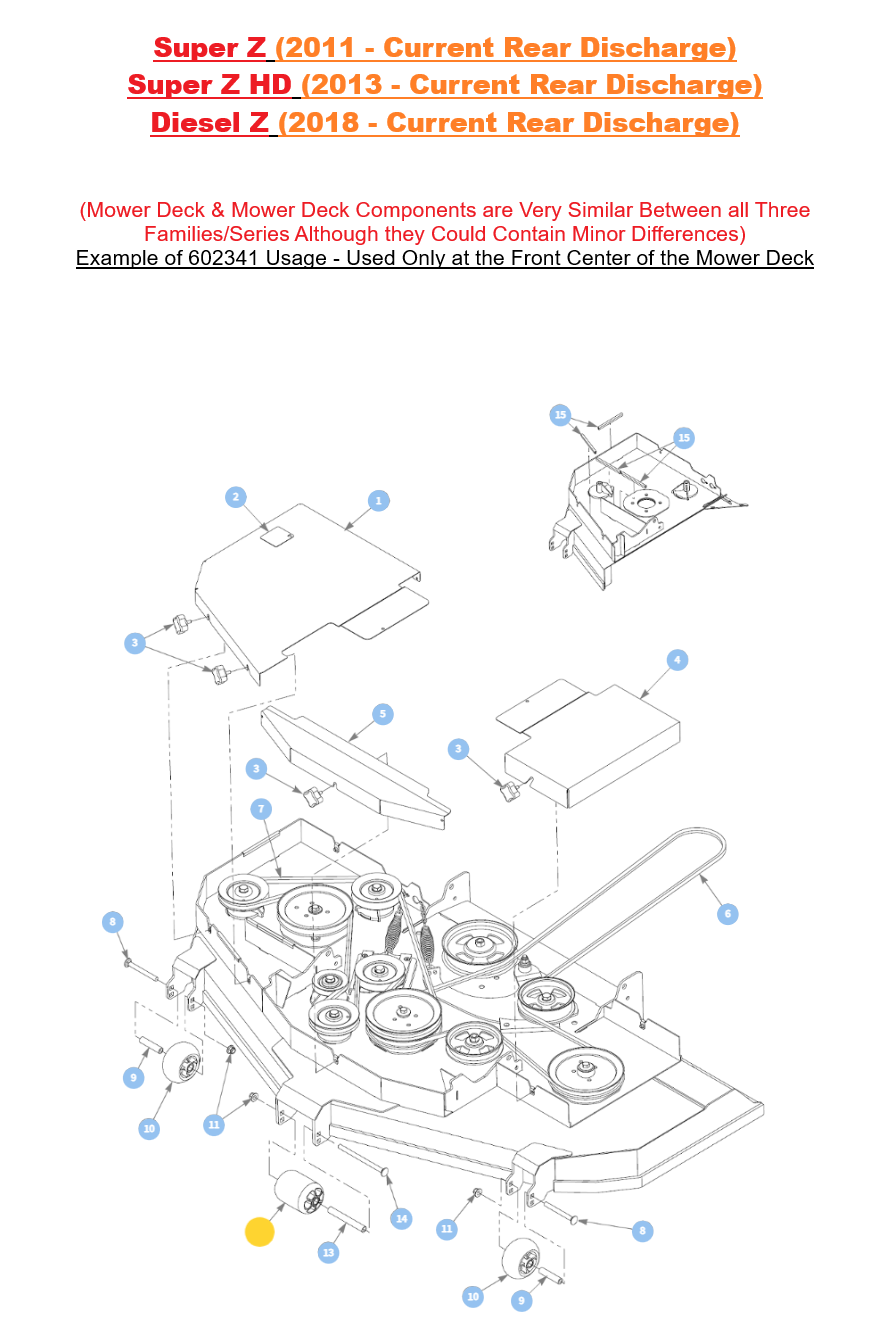

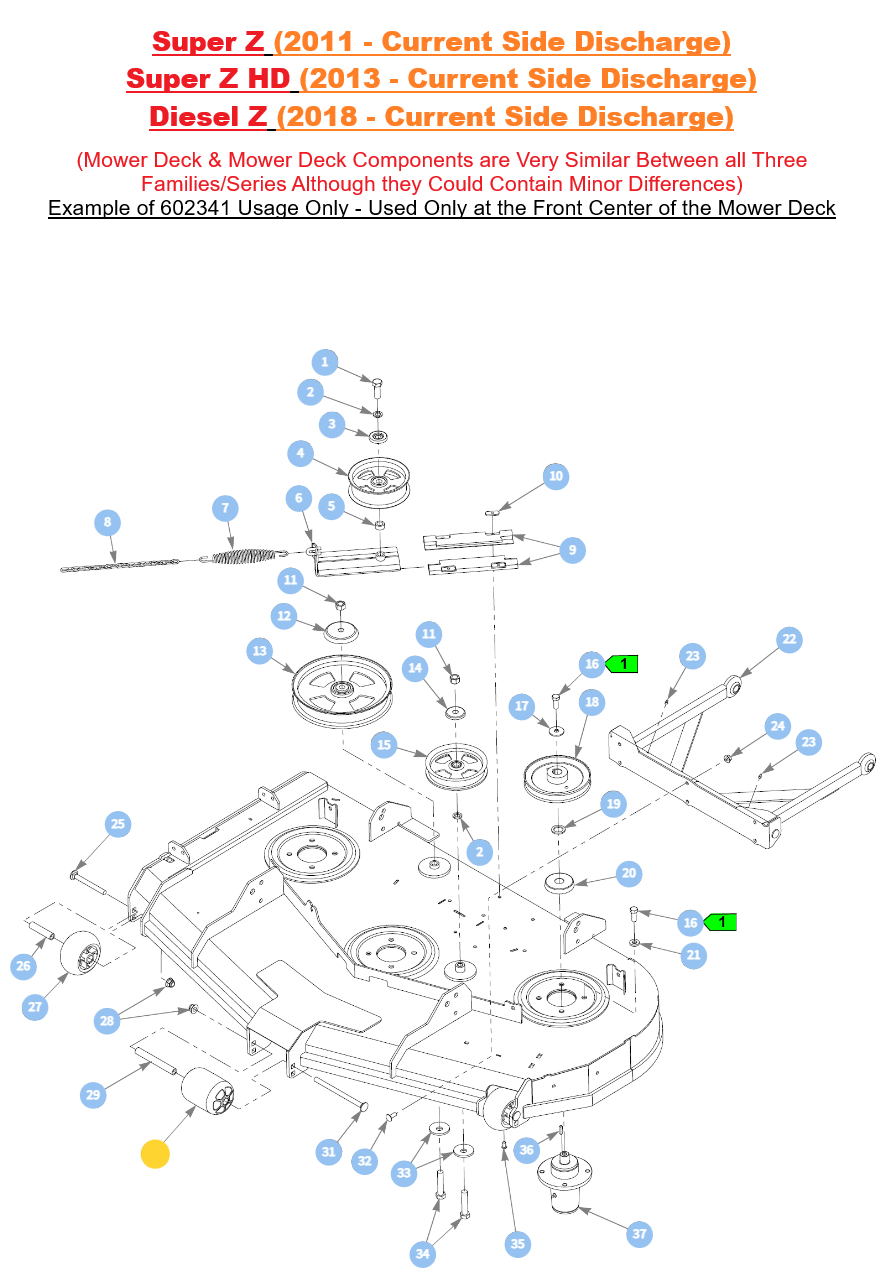

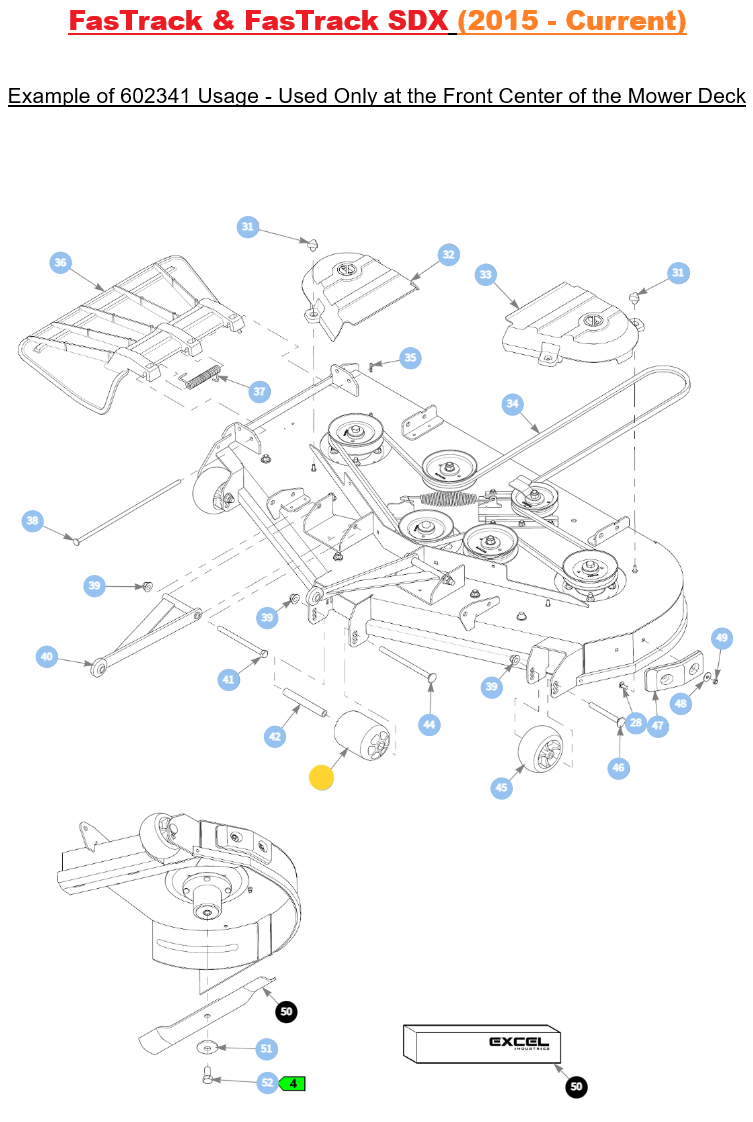

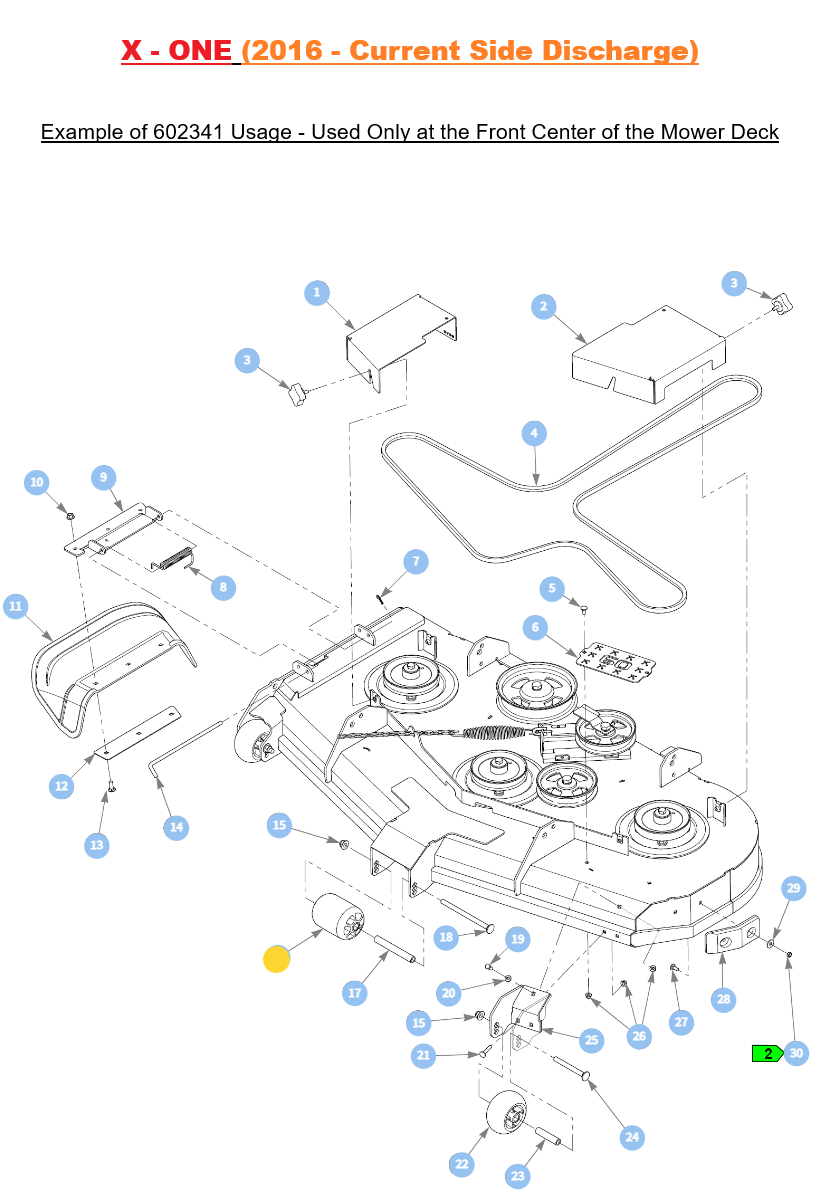

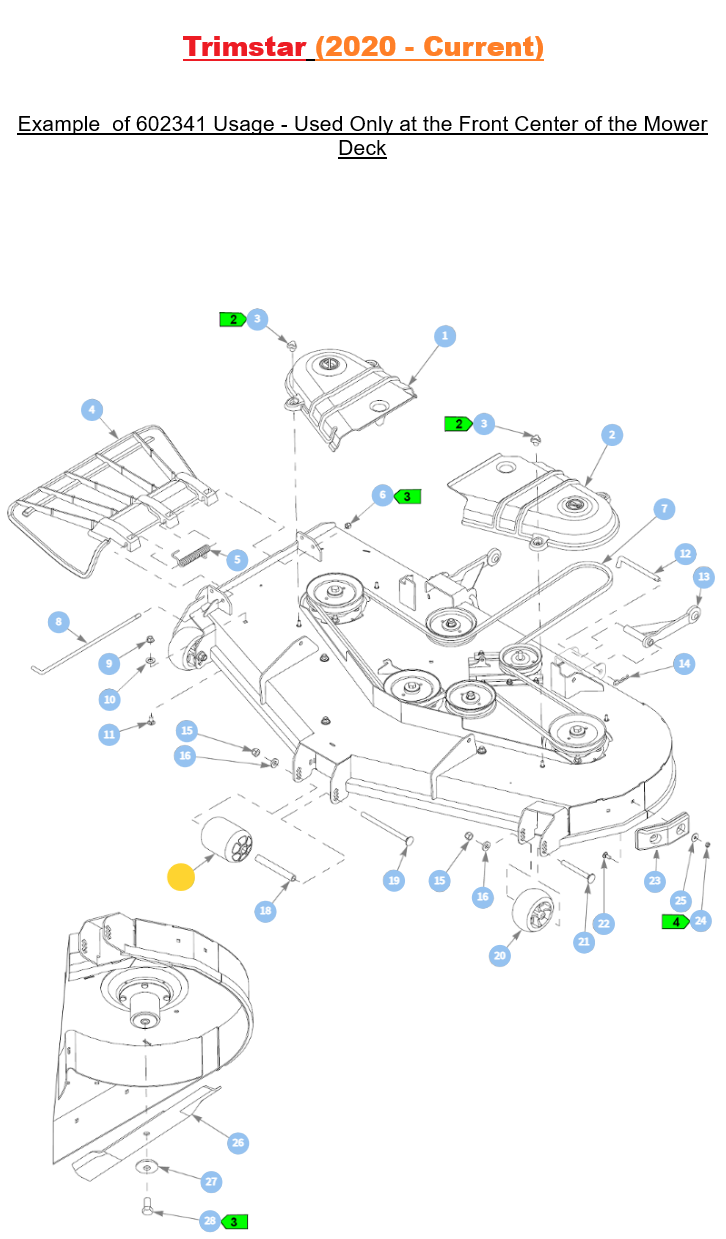

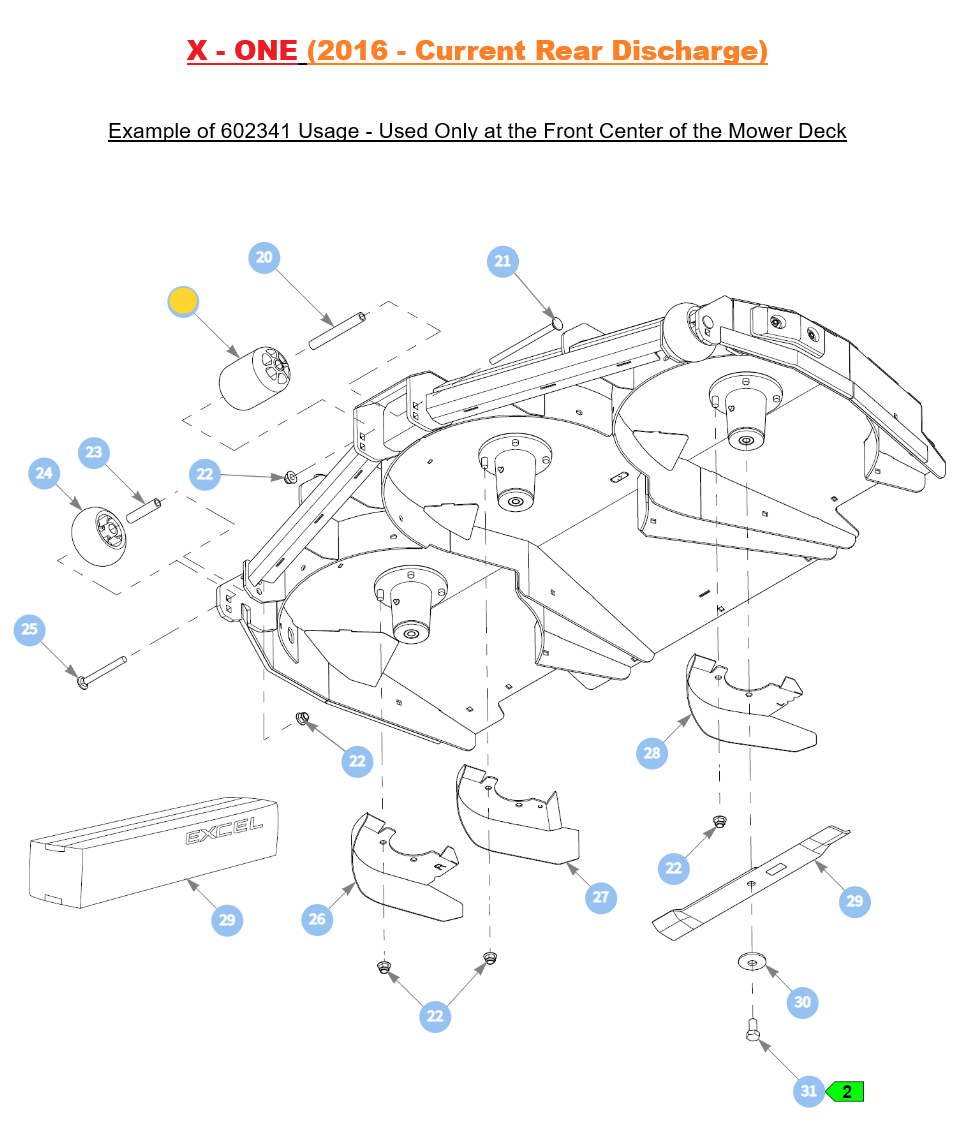

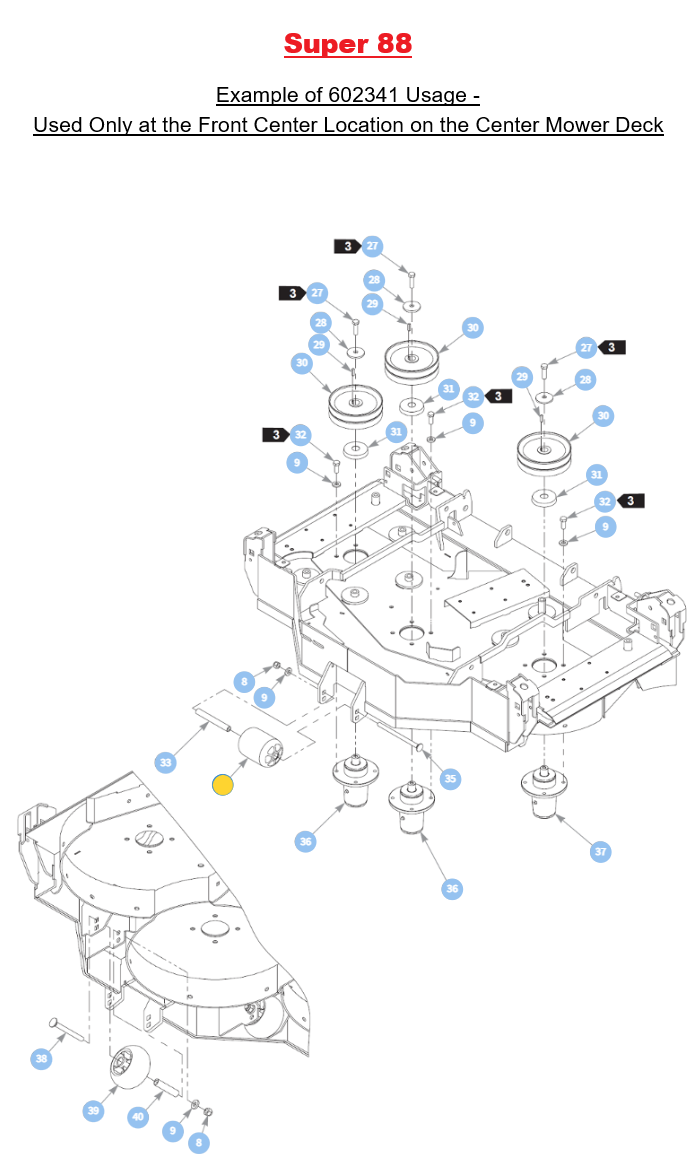

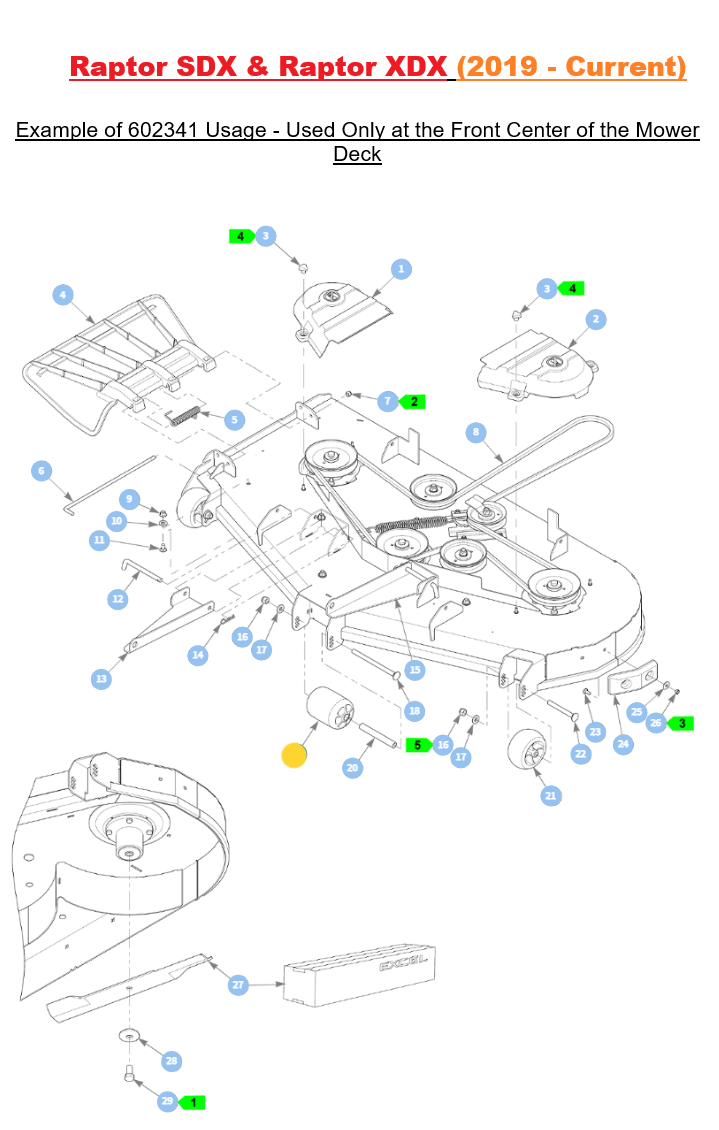

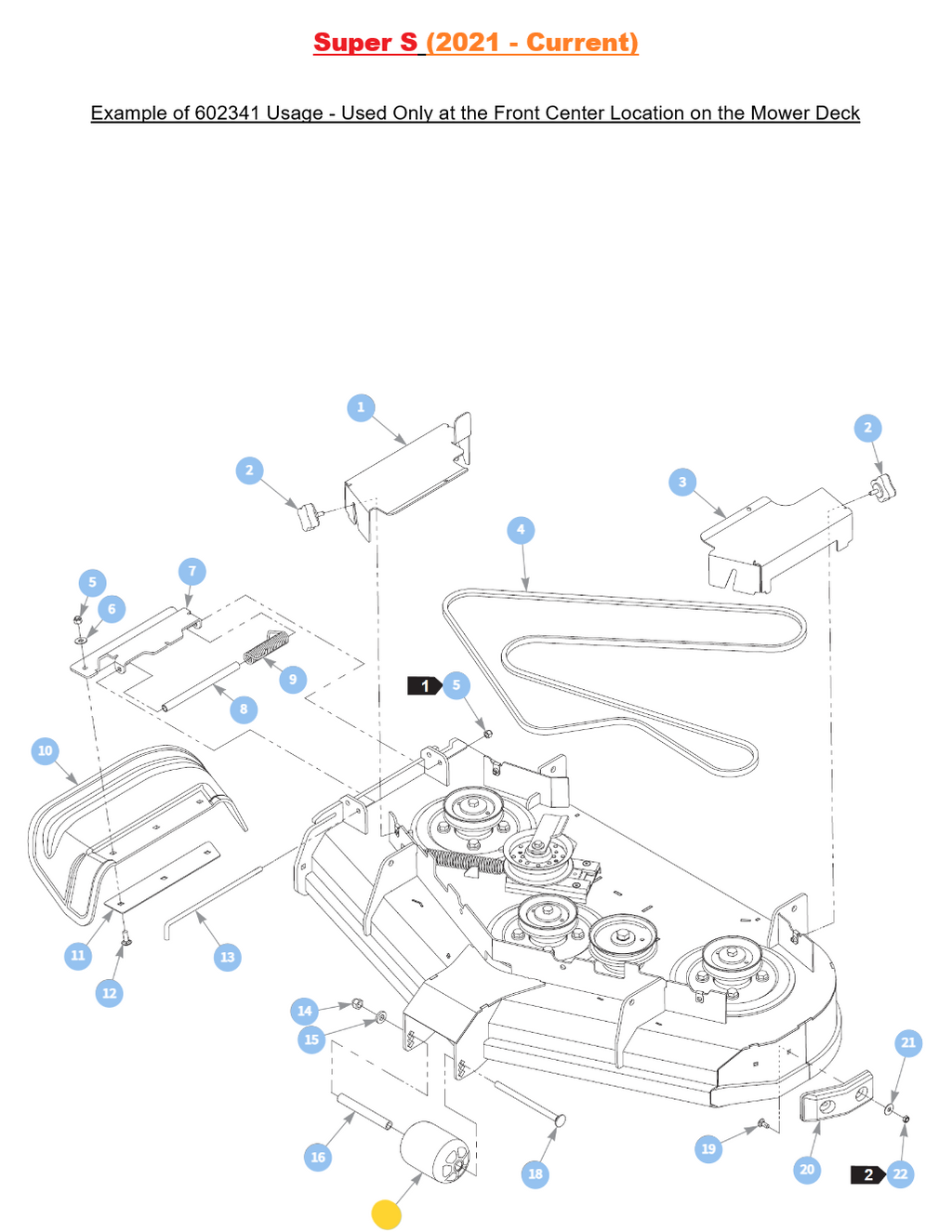

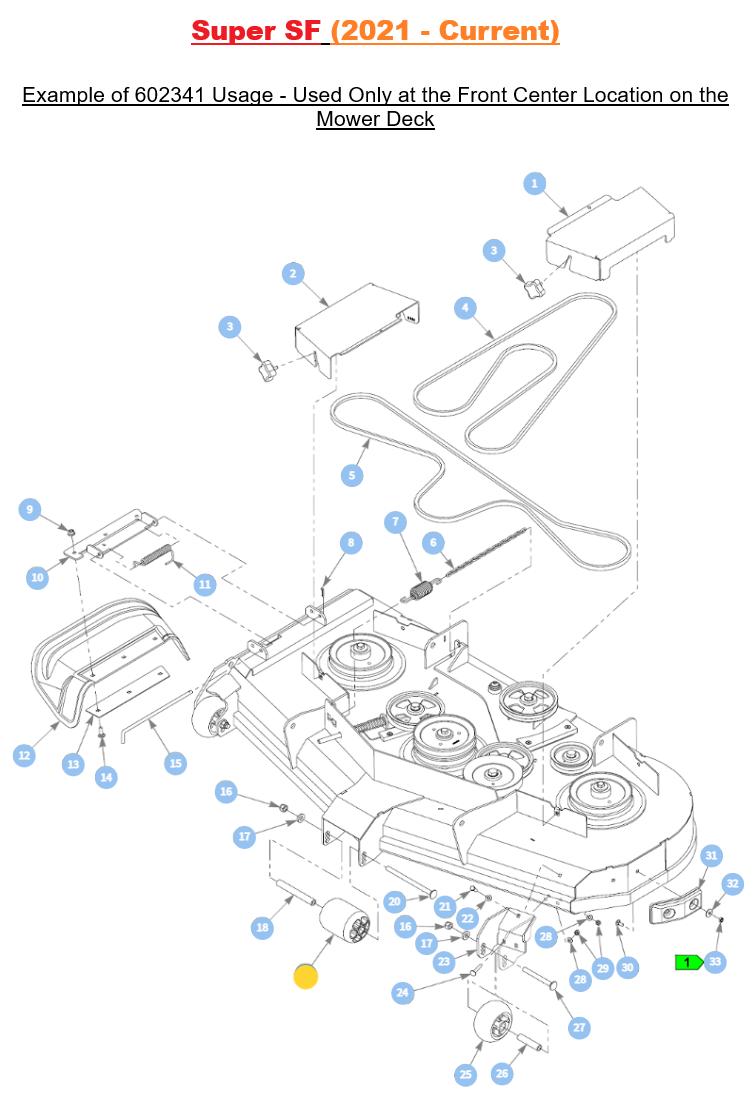

Note: 602341 is Only Used as a Center Anti-Scalp Wheel on the Center of the Mower Deck Only. Select Super S Models May Require Two (One in the Front and One in the Rear of the Mower Deck) Whereas Most Other Models and Series Require Only One in the Front. For Examples of Usages Refer to the Parts Diagrams in the Images Above.
Refer to Images Above and Part References Below to Verify a Correct Fit. Click on the Additional Part References Below to be Redirected.
COMMON OUTSIDE ANTI-SCALP WHEEL REFERENCES
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 604780 - Trimstar, Raptor SDX AND XDX, and FasTrak Models. (Outside of Mower Deck)
- 602263 - Super S, Super SF, X-ONE, X-RIDE, Super Z, Super Z HD, Super Z Diesel and/or Z Diesel Models. (Outside of Mower Deck)
COMMON PART REFERENCES FOR 602341 ANTI-SCALP WHEEL
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 608880 - Anti-Scalp Wheel Nut
- 602344 - Anti-Scalp Wheel Spacer
- 602338 - Anti-Scalp Wheel Bolt
Specification
|
Product Number: |
602341 |
|
Brand: |
Hustler |
|
Length: |
5.60 IN |
|
Width: |
4.00 IN |
|
Height: |
4.00 IN |
|
Weight: |
1.420 LB |
Model Fit:
Trimstar (2020 - Current Side Discharge)
Models are Currently Not Listed Will Be Eventually
Raptor XDX & Raptor SDX (2019 - Current Side Discharge)
Models are Currently Not Listed Will Be Eventually
FasTrack & FasTrack SDX (2015 - Current Side & Rear Discharge)
Models are Currently Not Listed Will Be Eventually
X-ONE (2016 - Current Side & Rear Discharge)
Models are Currently Not Listed Will Be Eventually
X-RIDE (All Models)
944074, 944868
Super Z (2011 - Current Side & Rear Discharge)
929927, 929935, 929943, 929950, 930024, 930065, 930875, 931048, 932012, 932020, 932038, 932046, 932053, 932061, 932129, 932137, 932970, 932988, 933457, 933929US, 934216, 934224, 934232, 934240, 934265, 934273, 934281, 934984US, 934992, 935007, 935015US, 935023, 935031, 935049, 935056US, 935064, 936872, 936880, 936898US, 936914, 936922, 936930, 936948US, 936955, 936989, 937714, 937722, 937730, 938985, 938993, 940031, 940049, 941138, 941146, 941153, 941161, 941179, 941187, 941195, 941203, 941377, 941385, 942342, 942771, 942763, 942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943878, 943886, 943894, 943910, 943928, 943936, 943944
Super Z Hyper Drive (2013 - Current Side & Rear Discharge)
932145, 932152, 932160, 932178, 932186, 932996, 933002, 934307, 934315, 934323, 934349, 934687, 934695, 934919, 934927, 934935, 934943, 934950, 934968, 934976, 936997, 937003, 937011, 937029, 937037, 937045, 937052, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941245, 941252, 941260, 941278, 941286, 941294, 941302, 941310, 941534, 941542, 941559, 941567, 942219, 942227, 942235, 942243, 942250, 942359, 942961, 942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943951, 943969, 943977, 943993, 943985, 944017, 944041, 944025, 944033
Diesel Z (2018 - Current Side & Rear Discharge)
Models are Currently Not Listed Will Be Eventually
Super 88 (All Models)
936617, 939546
Super S (Select Models - Excluding Models Under 48")
Models are Currently Not Listed Will Be Eventually
Super SF (All Models)
Models are Currently Not Listed Will Be Eventually
Not sure if this is the correct part?
Contact us with your Hustler model and serial number and our parts team will verify fitment before you order.
